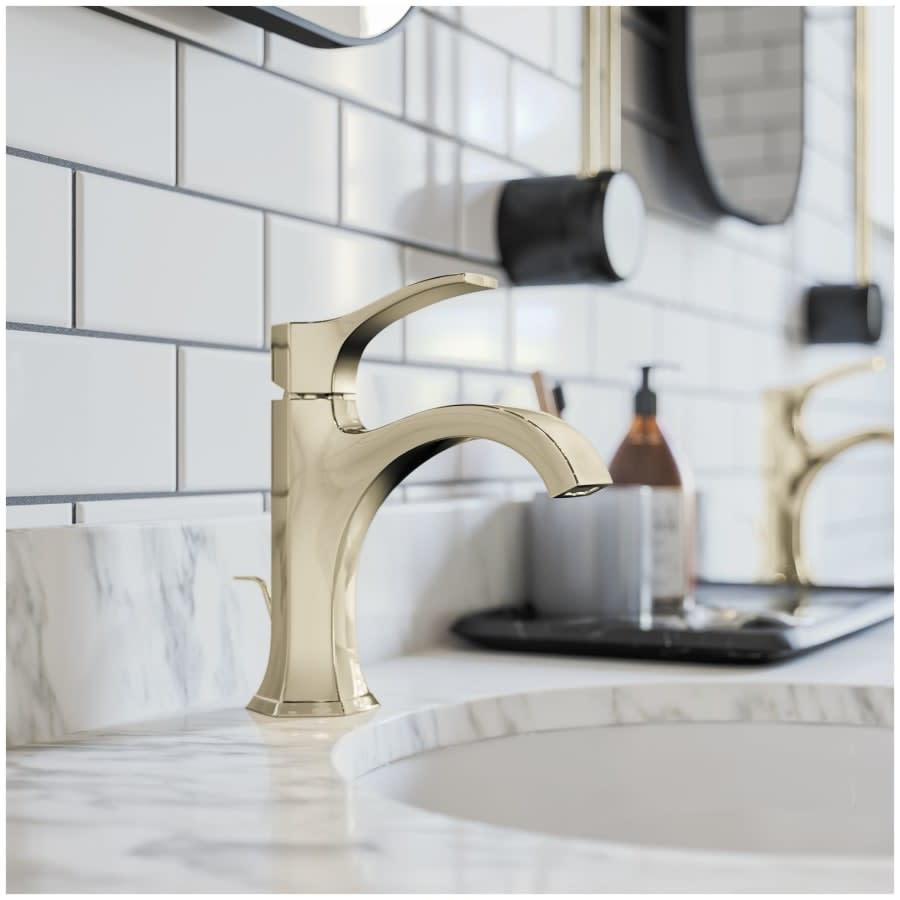

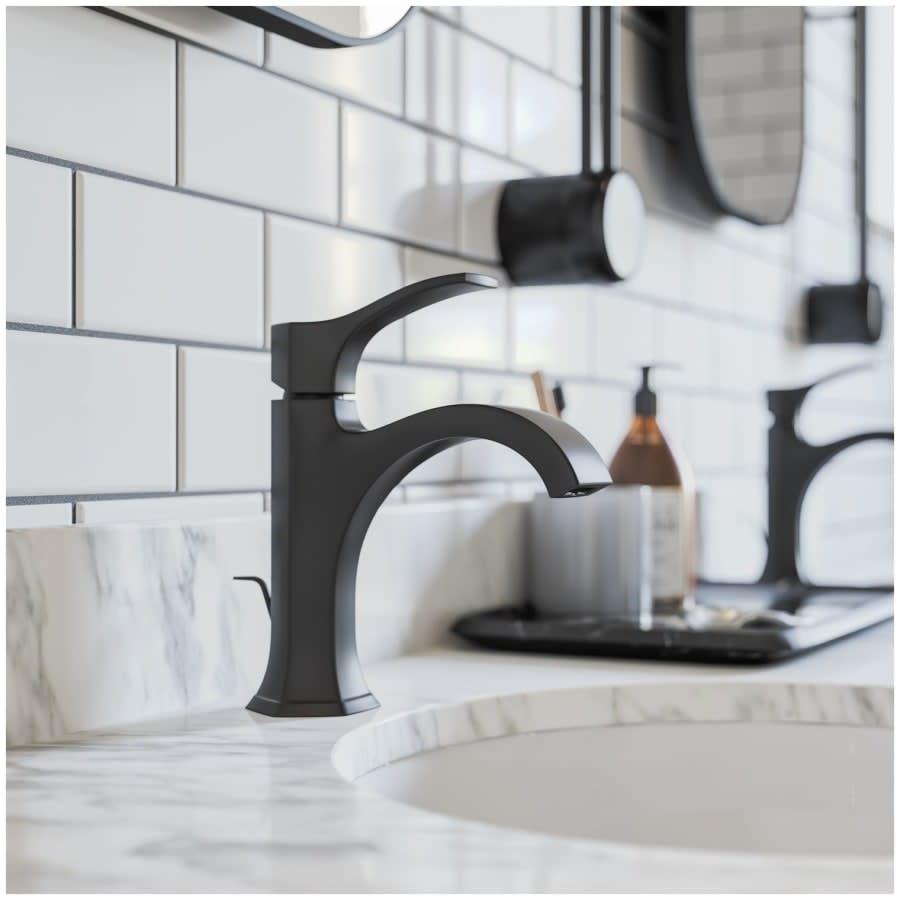

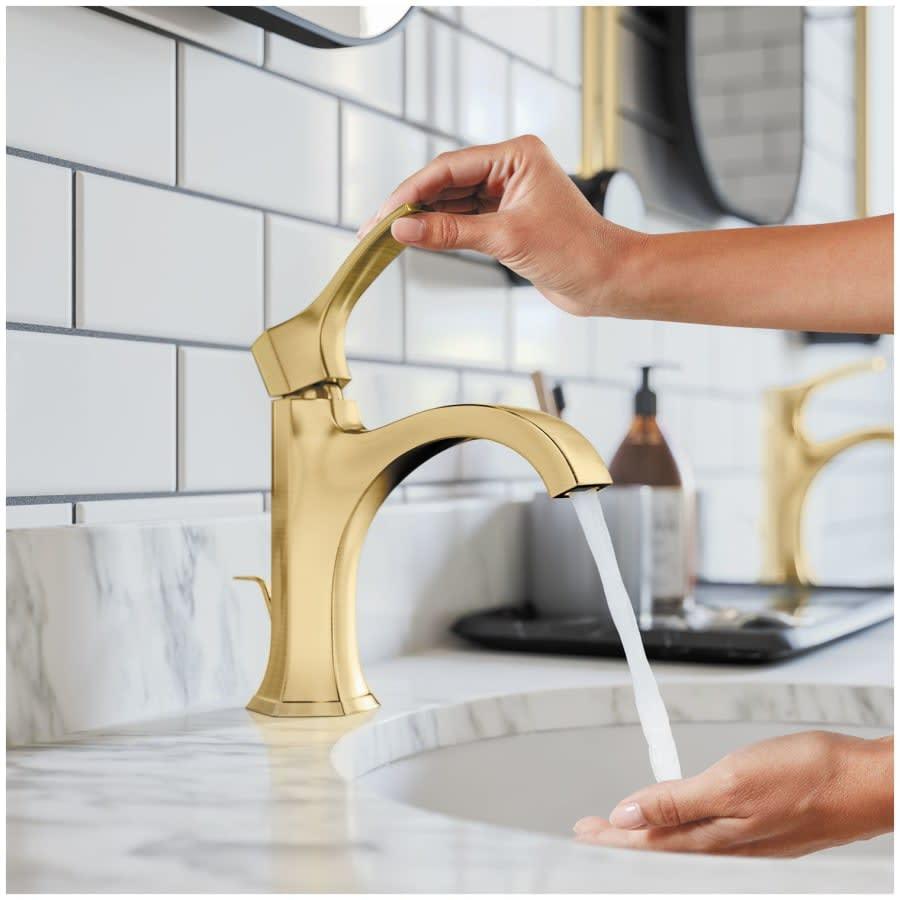

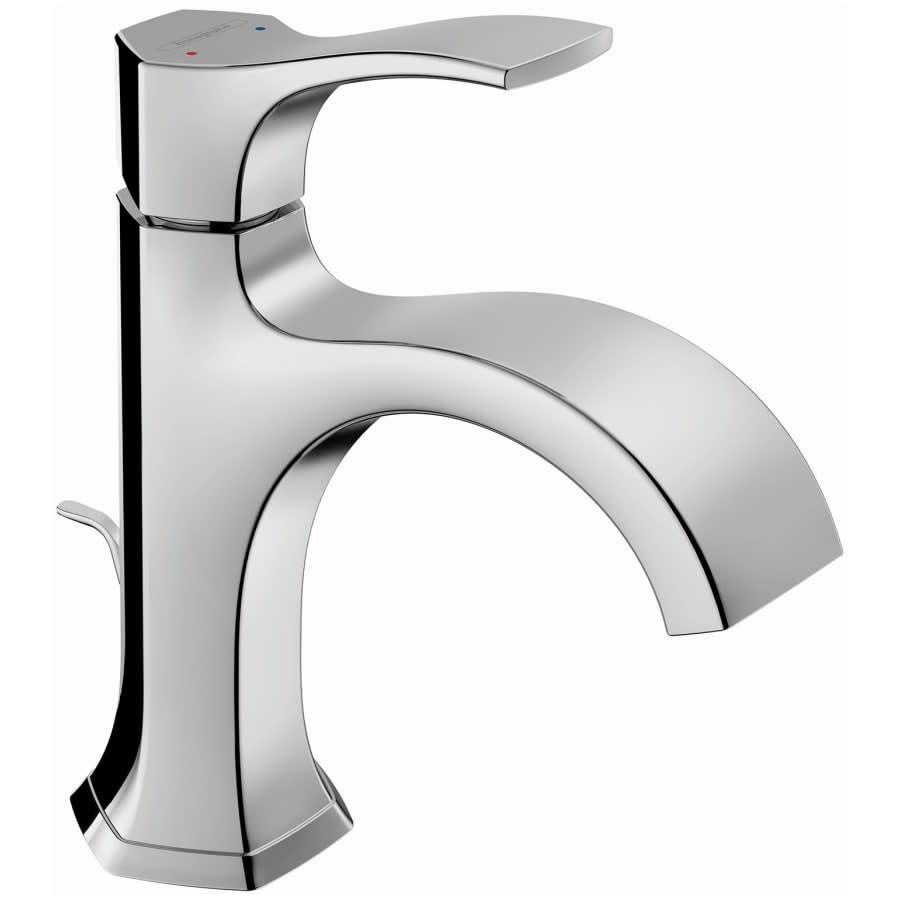

Inspired by the Art Deco movement and the 1920s, Locarno is the revival of iconic sophistication and elegance. Geometric octagonal form recalls the monumental period and will make a bold statement of authenticity and artistic appreciation in any living space. Available in five different finishes, Locarno will enable endless creativity, opening the door for uniquely glamorous interior spaces. The Locarno single-hole bath faucet features the new Ribbon spray, which provides a stylish water flow while reducing the amount of splashing. The single-hole design may be installed in either a 1-hole or 3-hole counter setup with the addition of the Locarno baseplate (04819xxx).

Hansgrohe 04810 Features:

Balanced design: The design inspired by the Art Deco movement create balanced design that suits any living space.
Saves water, energy and money: The flow rate is automatically restricted to max. 1.2 GPM, even when the water pressure varies (EcoRight)
More room to move: The gap between spout and sink offers space for convenient use (ComfortZone 110)
This faucet features the new Ribbon spray, delivering an all-new water experience
Easy operation: The included pop-up drain can be easily opened and closed with one hand
Easy to install: The faucet is attached to the water connections via flexible connection hoses (3/8-inch)
Extra safe: an adjustable temperature limiter protects against too hot water
Classic style: Timeless polished nickel fits particularly well for transitional architecture
Installation notes: Hansgrohe recommends a licensed plumber install this product
Limited lifetime consumer warranty: Consumer purchases of Hansgrohe products from authorized sellers are covered by a limited lifetime manufacturer warranty applicable to the original purchaser

Hansgrohe 04810 Specifications:

Height: 8-3/8" (deck to top of faucet)
Spout Height: 4-3/8" (deck to spout outlet)
Spout Reach: 5-3/4" (faucet base to spout outlet)
Flow Rate: 1.2 gallons-per-minute
Maximum Deck Thickness: 1-5/8" (cannot mount on thicker decks)
Faucet Hole Size: 1-1/4"
Faucet Holes: 1 (minimum number of holes required for installation)

Dimensions and Measurements

Faucet Centers
0 in.
Faucet Hole Size
1.25 in.
Flow Rate (GPM)
1.2
Height
8.375 in.
Max Deck Thickness
1.625 in.
Spout Height
4.375 in.
Spout Reach
5.75 in.
Water Connection
3/8"

Included Components

Drain Assembly Included
Yes
Escutcheon Included
No
Handles Included
Yes
Installation Hardware Included
Yes
Pop-Up Included
Yes
Valve Included
Yes

Characteristics and Features

Bridge Faucet
No
Electronic
No
Faucet Holes
1
Faucet Type
Bathroom Sink Faucet
Handle Style
Lever
Installation Type
Deck Mounted
Material
Brass
Mounting Type
Single Hole
Number Of Handles
1
Spout Type
Fixed
Theme
Contemporary
Valve Type
Ceramic Disc
Vessel Faucet
No
Waterfall Faucet
No

Warranty and Product Information

ADA
Yes
CA Drought Compliant
Yes
Collection
Locarno
Country Of Origin
USA
Low Lead Compliant
No
Manufacturer Warranty
Limited Lifetime
