Pure shower enjoyment at the touch of a button â this is ShowerSelect. Whether you want the water to flow precisely or stop altogether, or whether you want to easily switch from the hand to the overhead shower: The Select button permits highly comfortable water control at the touch of a button. It offers stylish, concealed thermostats and faucets for every setting, taste and shower style: The design is available in an angular or a rounded design language, in chrome and with glass finish in white or black. Hansgrohe ShowerSelect units can easily be installed with the iBox Universal. The advanced Hansgrohe technology simply vanishes behind the wall â the focus is on the Elegant design, and there is more room for shower comfort.

Hansgrohe 15743 Features:

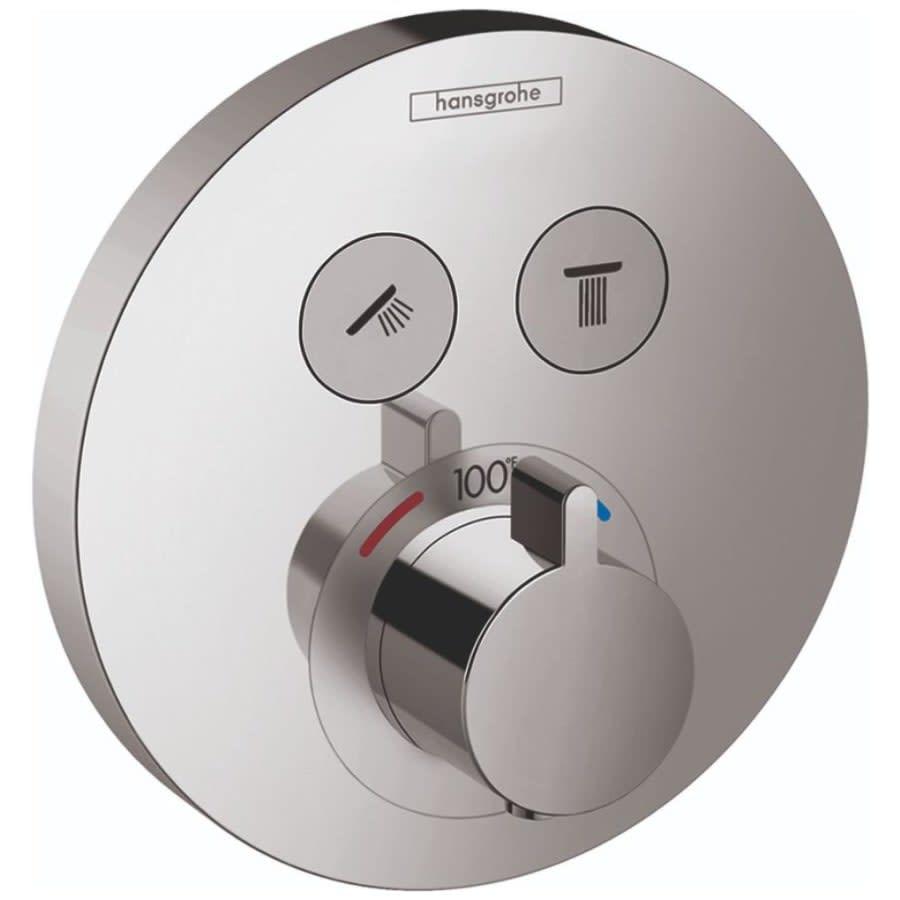

Comfort thermostat concealed for 2 outlets: such as handheld shower and shower head
High-quality thermostat cartridge which controls the temperature evenly and precisely
More safety: a button on the handle only releases hot water when required and prevents the temperature from becoming too high (SafetyStop)
The single handle allows you to conveniently control water temperature, and the button provides on/off for each shower outlet with an Easy touch
Built to last: Brass internal components compliment a polymer trim plate for a surface that is resistant to dents, chemical corrosion, and mineral accumulation
Includes handle, sleeve, function block, and escutcheon
Shiny appearance: The brilliant, Easy-to-clean chrome surface impresses with its lasting shine

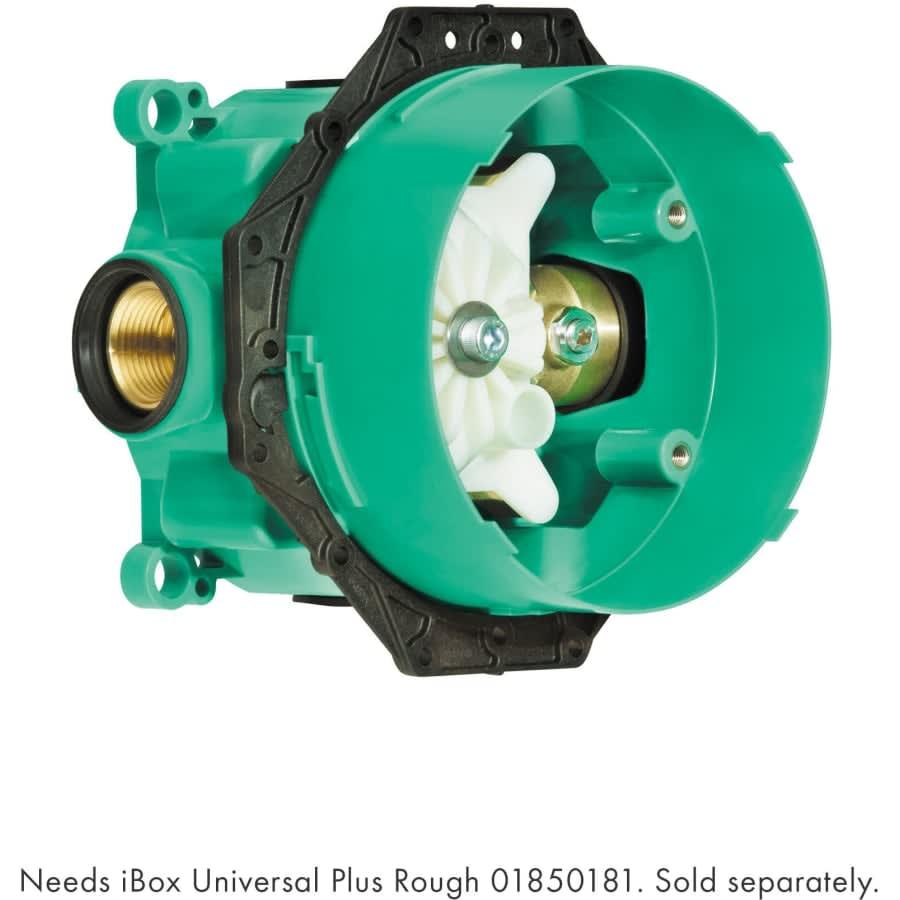

Required parts: This product requires the iBox Universal Plus Rough (Part No. 01850181) for Installation
Installation notes: Hansgrohe recommends a licensed plumber install this product
Limited lifetime consumer warranty: Consumer purchases of Hansgrohe products from authorized sellers are covered by a limited lifetime manufacturer warranty applicable to the original purchaser

Hansgrohe 15743 Specifications:

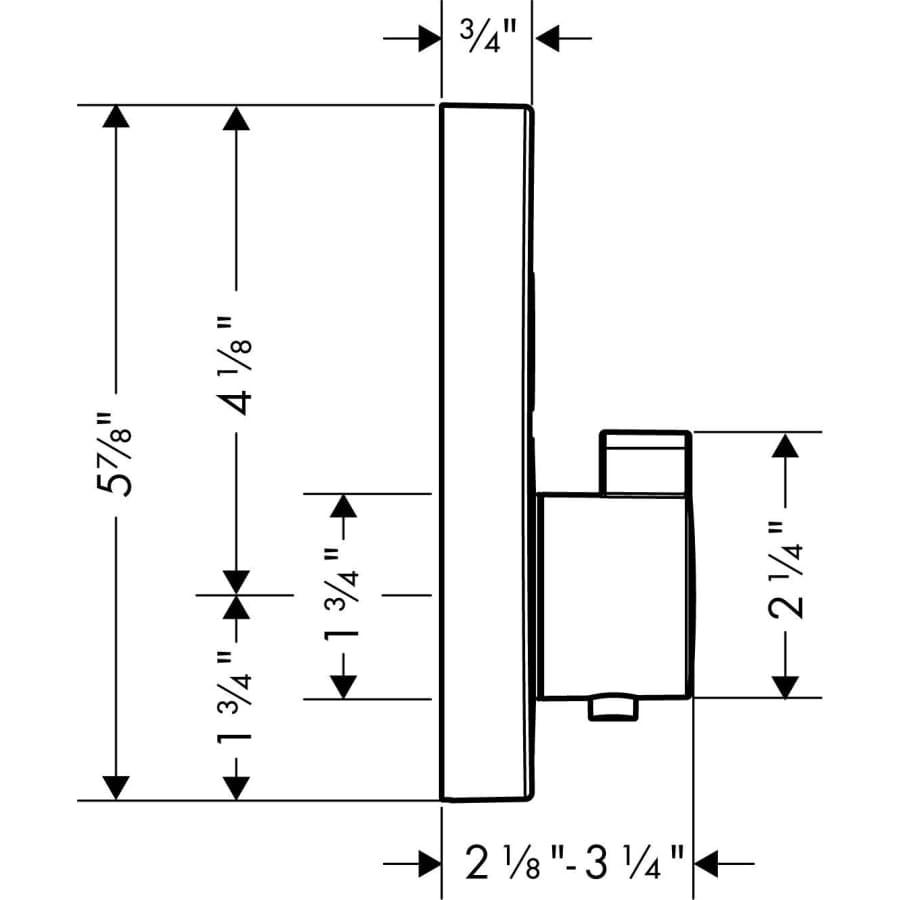

Valve Trim Height: 5-7/8" (bottom to top)
Valve Trim Width: 5-7/8" (left to right)

Dimensions and Measurements

Backplate Diameter
5.875 in.
Diameter
5.875 in.
Escutcheon Height
5.875 in.
Escutcheon Width
5.875 in.
Flow Rate (GPM)
8
Height
5.875 in.
Projection
2.125 in.
Width
5.875 in.

Included Components

Diverter Included
Yes
Drop Ell Included
No
Handles Included
Yes
Installation Hardware Included
Yes
Integrated Diverter
Yes
Twin Ell Included
No
Valve Included
Yes
Volume Control
No

Characteristics and Features

Diverter Location
Valve Trim
Faucet Type
Shower Faucet
Handle Style
Lever
Installation Type
Wall Mounted
Material
ABS
Number of Functions
2
Number Of Handles
1
Scald Guard
Yes
Theme
Modern
Valve Type
Thermostatic

Manufacturer Technology

iBox Universal
Yes
Select Technology
Yes

Warranty and Product Information

ADA
yes
Approved for Commercial Use
No
Collection
ShowerSelect S
Country Of Origin
Germany
Manufacturer Warranty
Limited Lifetime
