American Standard 2234.001 Features:

Bowl only configuration - giving you the opportunity to select your matching tank
Elongated bowl provides extra comfort, extending out an extra 1-1/2" compared to a round configuration
Meets definition of HET (High Efficiency Toilet) when used with a high efficiency flush valve (1.28 gpf or 1.6 / 1.1 gpf dual flush)
Condensation channel
100% factory flush tested
Made from vitreous china - providing a classic look and feel
Installs in a floor mounted configuration
Powerful direct-fed siphon jet action
Bowl only - toilet seat and flushometer not included (will be offered at checkout)

Product Technologies / Benefits:

Everclean EverClean™ Surface: Using the antimicrobial properties of silver (the precious metal), EverClean Surfaces inhibit the growth of bacteria, mold, and mildew. The super smooth, baked-in, mirror-like surface not only eliminates unsightly rings, but also helps repel toilet messes.

Water Efficient Water Efficient: Did you know that the average family of four can save money and more than 33,000 gallons a year simply by installing water efficient American Standard products? Commit to water efficiency with American Standard.

Right Heightâ¢ Right Height™: Right Height bowls lift the sitting-height an additional 1.5 inches off the ground for a more comfortable seated position that is easier to get in and out of. This feature is particularly well liked by men, taller women, and the elderly.

Product Specifications:

Overall Height: 15" (bottom of the base to the highest point on the toilet)
Overall Length: 28-1/4" (back of the tank to the front of the rim)
Overall Width: 14" (furthest point on the left to the furthest on the right)
Bowl Height: 15" (bottom of the base to the rim)
Flow Rate: 1.1 / 1.6 gallons-per-flush
Water Area: 10" x 12" (inner rim dimensions length X width)
Trapway (Discharge Passageway) Size: 2-1/8"

American Standard truly is an American Brand to the core. Originally founded in 1872, American Standard began under the name Standard Manufacturing Company, and has played a role in some of our Countries biggest achievements over the years. They have continually manufactured and designed products such as toilets, faucets, sinks that are not only high quality and durable, but are functional, and range from the most classic, traditional designs all the way to the most modern styles you can imagine. When you choose American Standard you are supporting a great American Company and choosing products that are made right, at reasonable prices.

Why Buy American Standard From Us:

We are an American Standard Preferred Authorized Online Dealer
We Only Ship Showroom Quality products vs Builder Grade quality found at big box retailers
All metal parts, not plastic like some of our competitors
Customer Care Experts Available 7 Days a Week to Serve You Before & After Purchase
A Showroom Experience from the Comfort of Your Home or Office

Dimensions and Measurements

Bowl Height
15 in.
Depth
28.25 in.
Gallons Per Flush
1.1, 1.6
Height
15 in.
Rough In
10, 12 in.
Spud Size
1.5 in.
Trapway
2.125 in.
Water Area
10 x 12
Width
14 in.

Included Components

Seat Included
No

Characteristics and Features

Bowl Shape
Elongated
Configuration
Bowl Only
Design Features
Dual Flush
Flush Type
Siphon Jet
Installation Type
Floor Mounted
Material
Vitreous China
Number Of Doors
0
Spud Placement
Top
Theme
Modern

Warranty and Product Information

ADA
No
Approved for Commercial Use
Yes
CA Drought Compliant
Yes
Collection
Brooks, Madera
Series
Madera
TX Drought Compliant
Yes
WaterSense Certified
No

American Standard

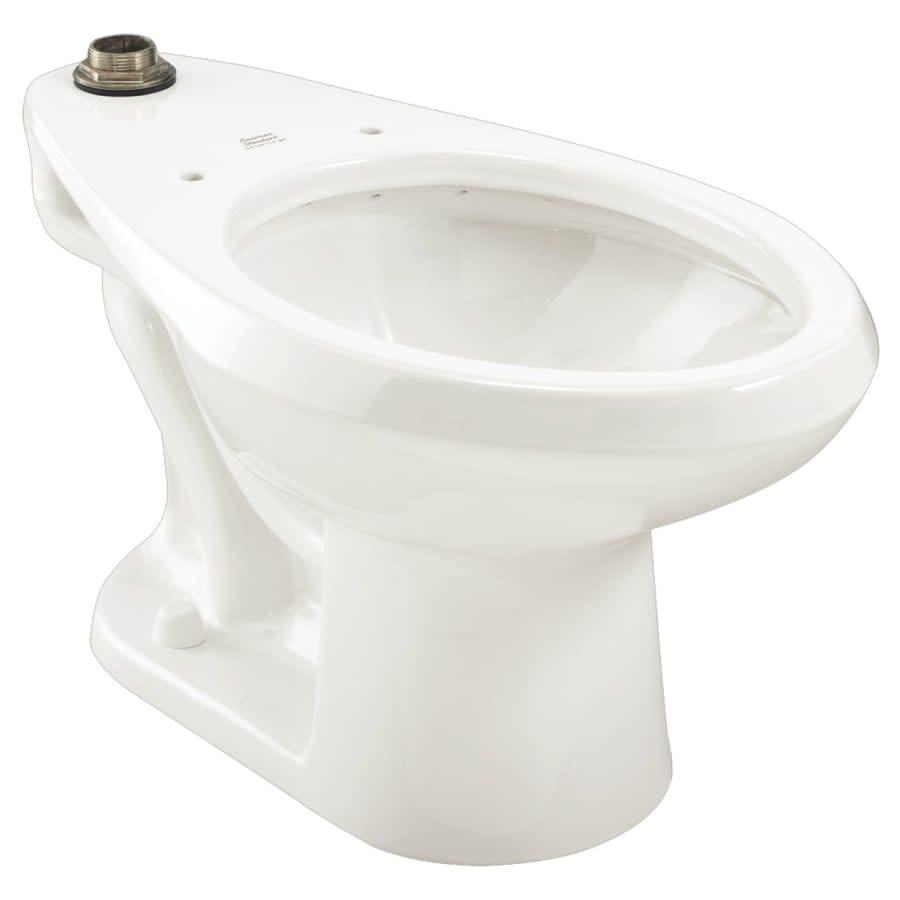

Maderna Elongated Toilet Bowl Only - Less Seat and Flushometer

Finish

Product Details
