Smart Faucet technology makes everyday interactions in the kitchen more convenient. And, it is the only kitchen faucetyou never have to touch. From precise temperature and exact measurements, to faucet operation from any one of 4 controls, Moen has taken the kitchen faucet to the next level. The Smart Faucet is the only voice-controlled faucet on the commercial market to dispense water amounts as small as 1 tablespoon and as large as 15 gallons at a specific temperature on commandâregardless of the handle position. There are 4 ways to activate the faucetâwith your voice by using your smart speaker, the touchless sensor, the Moen Smart Water App, or the faucet handle. To utilize voice control, you can ask Amazon Alexa or Google Assistant to start/stop water flow, activate presets and perform specific tasks likefractional measurements, precise temperatures (90Â°), generic commands (hot, warm, cold), and combined requests (1 cup of 90Â° water). The Moen Smart Water App allows you to create unlimited custom preset commands such as âCoffee Potâ or âDog Bowl,â to help simplify daily tasks in the kitchen.Â

Moen 7565EV Features:

Features four unique methods of control that you can mix and match, independent of the handle position â voice control through a smart home speaker, sensor control, handle control or smartphone Moen Smart Water App control
Provides voice-controlled and touchless activation regardless of the faucetâs manual handle position
The Wave Sensor positioned at the front of the faucet, starts, and stops the water flow with a simple hand movement without touching the faucet
Precisely dispenses water at desired temperatures and volumes as little as 1 tablespoon or as much as 15 gallons

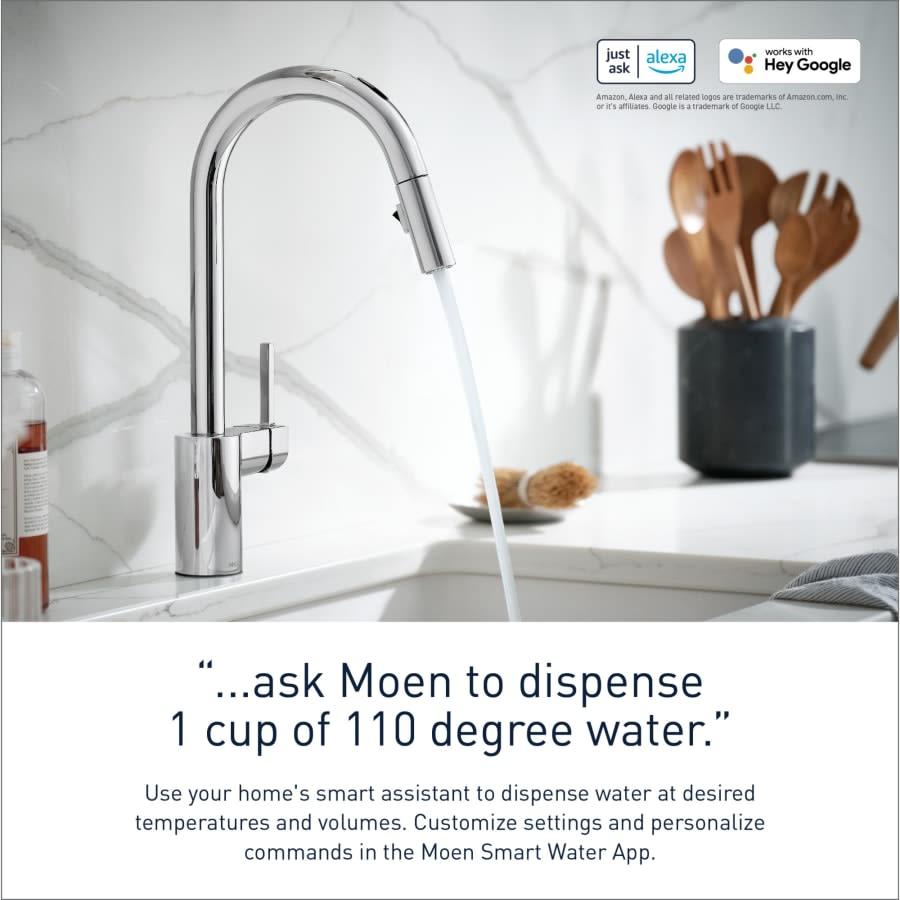

Combine a specific temperature and specific measurement or mix generic commands with specific commands, for example, âAlexa/Hey Google, ask Moen to dispense 1 cup of hot waterâ
Intelligent flow controls deliver precise measurements support fractional metric and non-metric measurements
Pre-programmed commands are available, including âwash my hands,â for touchless, timed, and optimal temperature handwashing
User-defined presets help handle common tasks, like filling a baby bottle, baking measurements, filling a pasta pot, or filling the dog bowl. âAlexa/Hey Google, ask Moen to fill the dog bowl"Â
When activating a temperature command, the faucet will run to the desired temperature then pause and hold until you are ready to activate
Monitor water usage through the smartphone Moen Smarter Water App to understand daily consumption habits
LED temperature indicator changes from blue, purple to red to visually indicate the change in water temperature

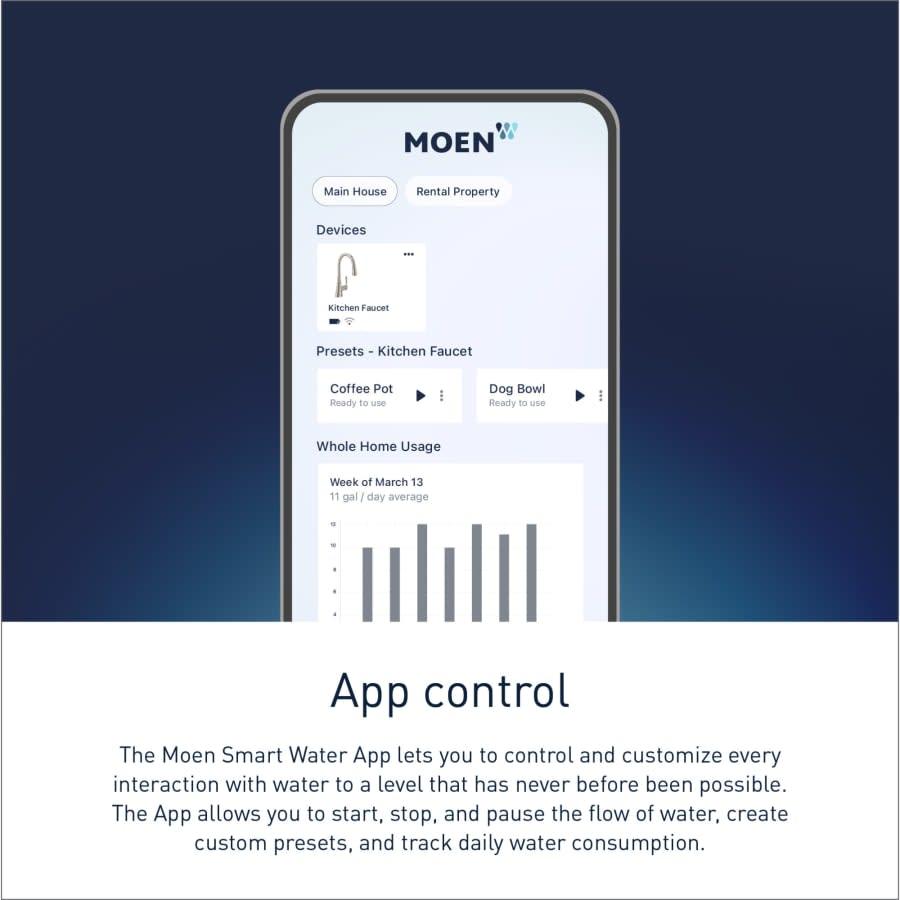

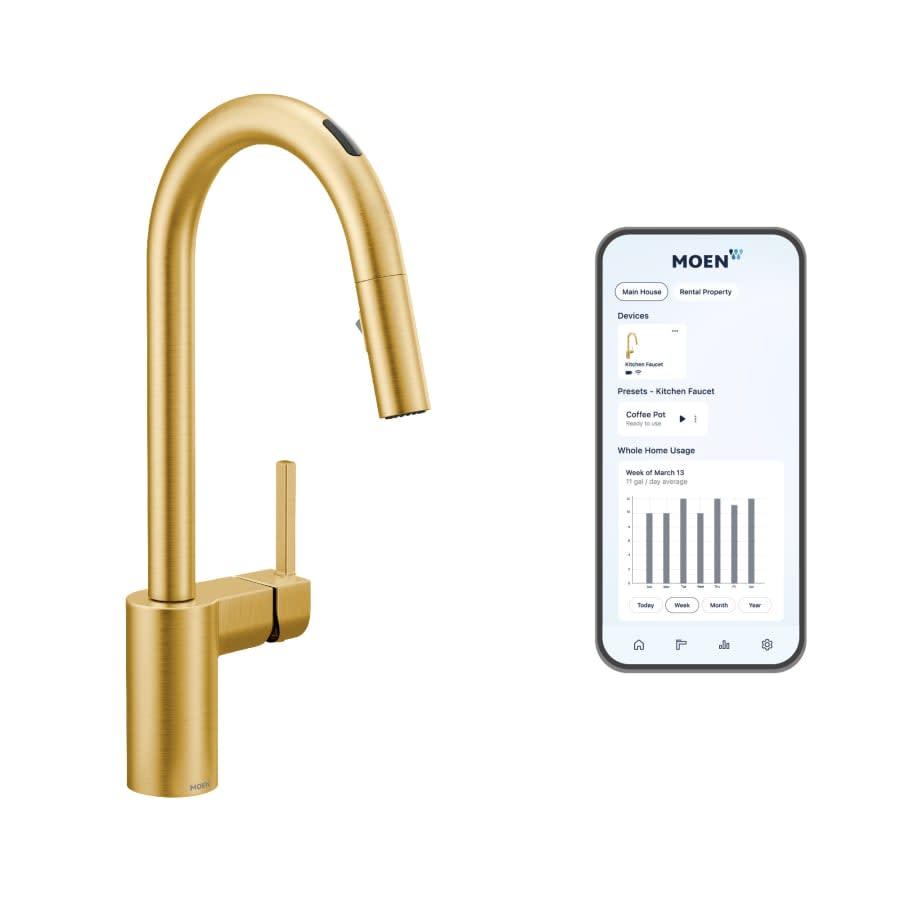

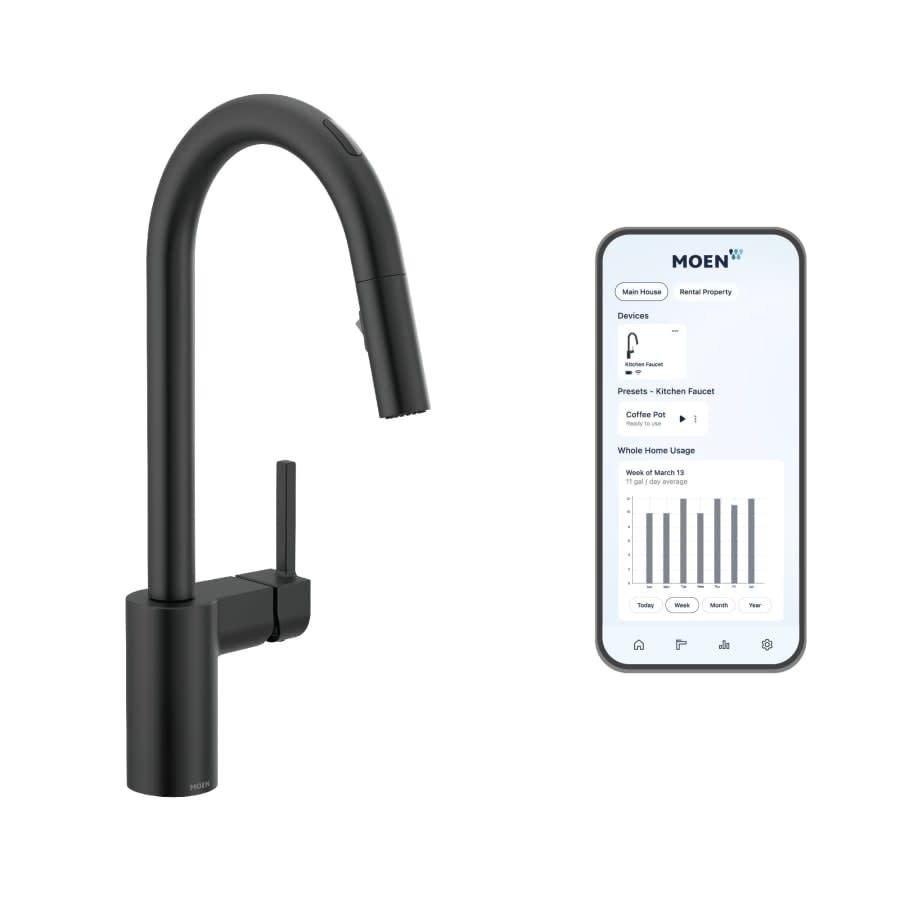

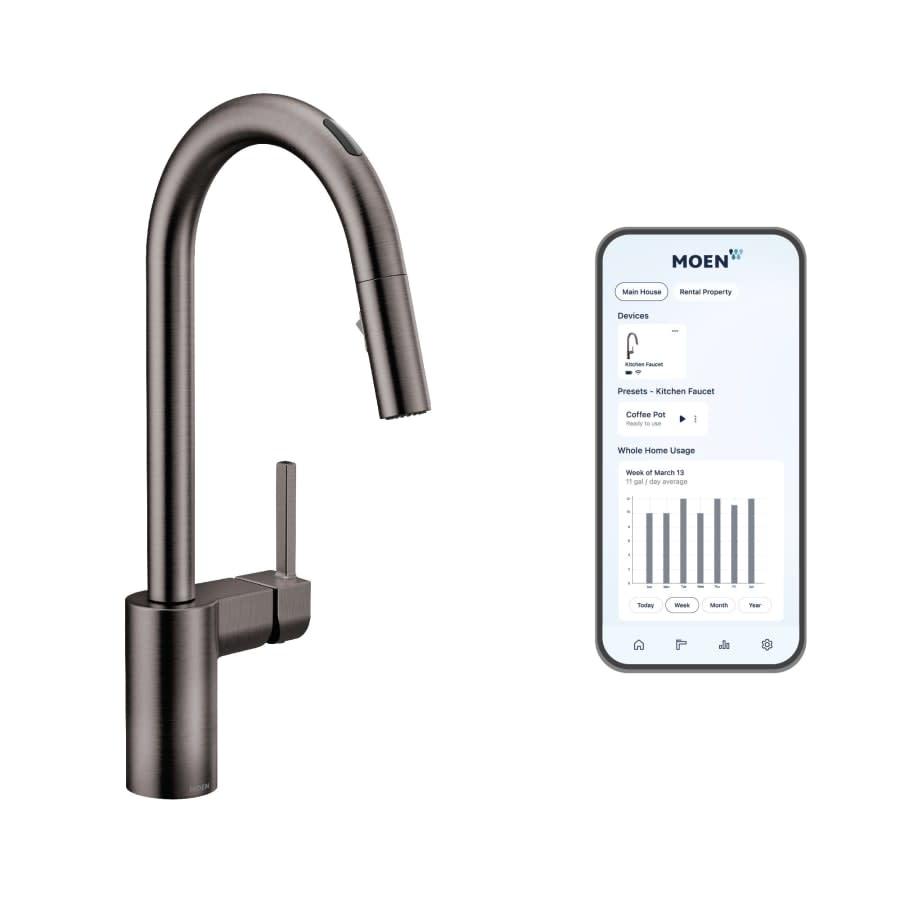

Interactive iOS/Androidâ¢ Moen Smart Water App provides usage data, customizable settings, and control of all your Moen Network products
DC powered; includes 6 D-Cell batteries, which last up to 2 years, eliminating the need for a dedicated outlet
For full functionality and to enable voice controls, wireless internet, a smartphone and Amazon or Google smart device are required
Equipped with the ReflexÂ® system for smooth operation, easy movement and secure docking of the pulldown spray head
5-year warranty on digital components, Limited Lifetime warranty on trim

Moen 7565EV Technologies:

- Power Clean: Moen's thoughtfully designed Power Clean technology provides an improved powerful, concentrated spray for faster clean up.

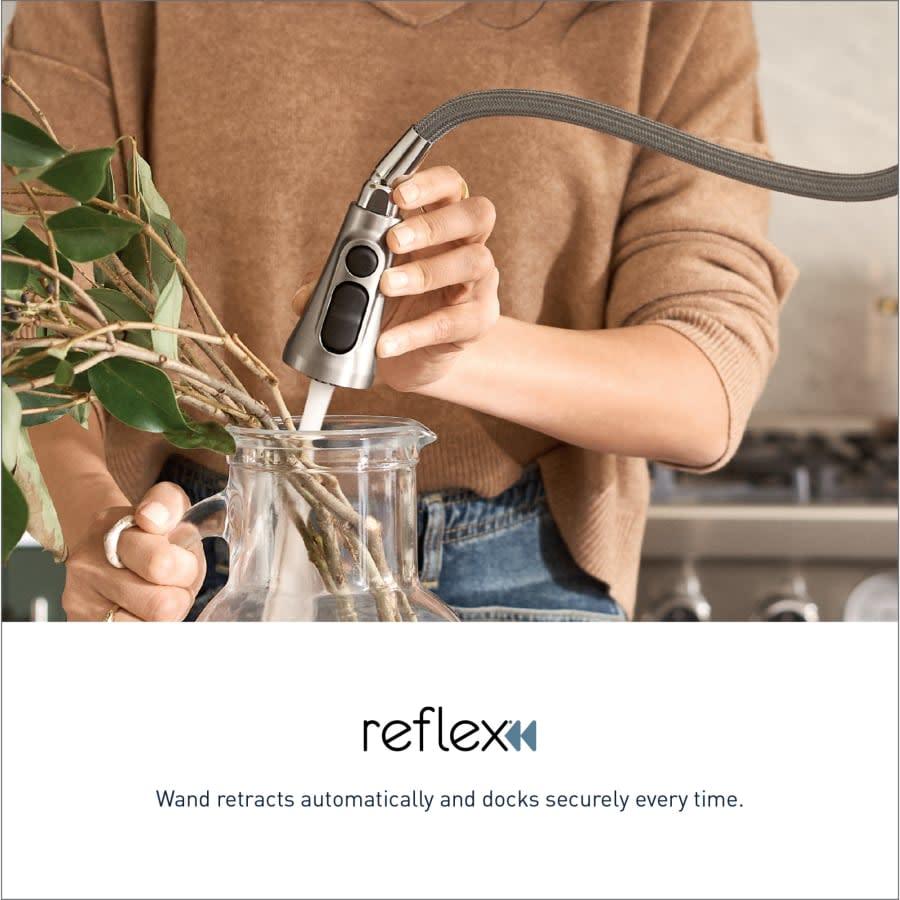

- Reflex: A technological innovation created based on input from actual faucet users, Reflexâ¢ is made to work the way you do. Featuring an exceptional range of motion, the spray wand on Reflexâ¢ faucets swivel to optimize maneuverable range. Only pull-down faucets with the Reflexâ¢ system will retract back to the docked position from any distance without assistance. Compared to other pull-down designs, Reflexâ¢ faucets will also make the spray head up to 40% easier to unlatch.

- Duralock: Duralockâ¢ Quick-Connect is a one-step, no tool installation system. The intuitive design is hassle-free, just listen for the 'click' sound to assure a reliable connection that will last for the lifetime of the faucet

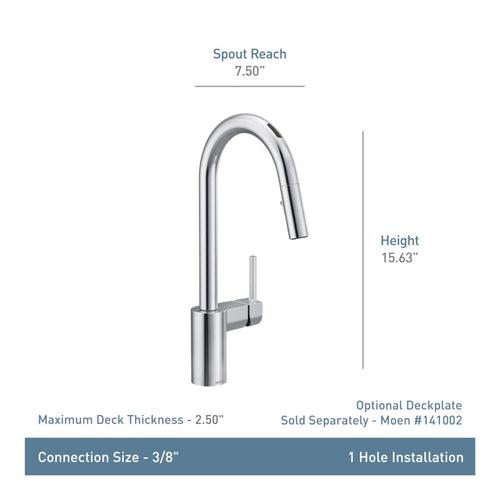

Moen 7565EV Specifications:

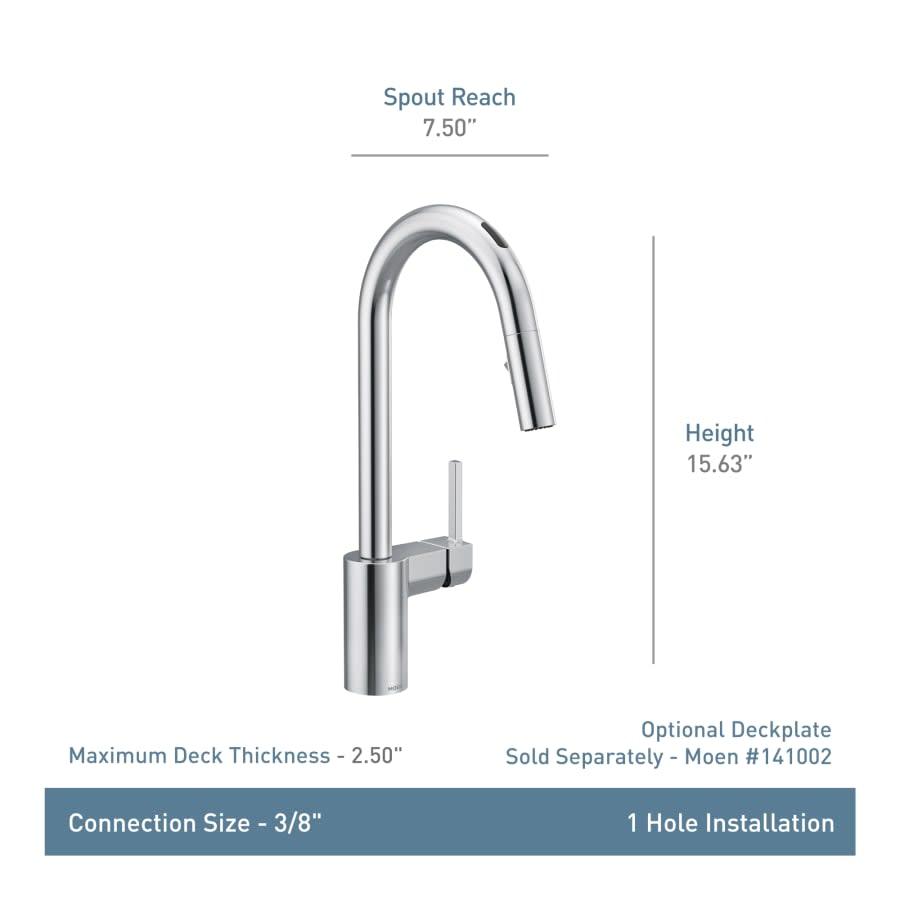

Height: 15-5/8" (deck to top of faucet)
Spout Height: 9-1/2" (deck to spout outlet)
Spout Reach: 7-1/2" (center of faucet body to center of spout outlet)
Flow Rate: 1.5 gallons-per-minute

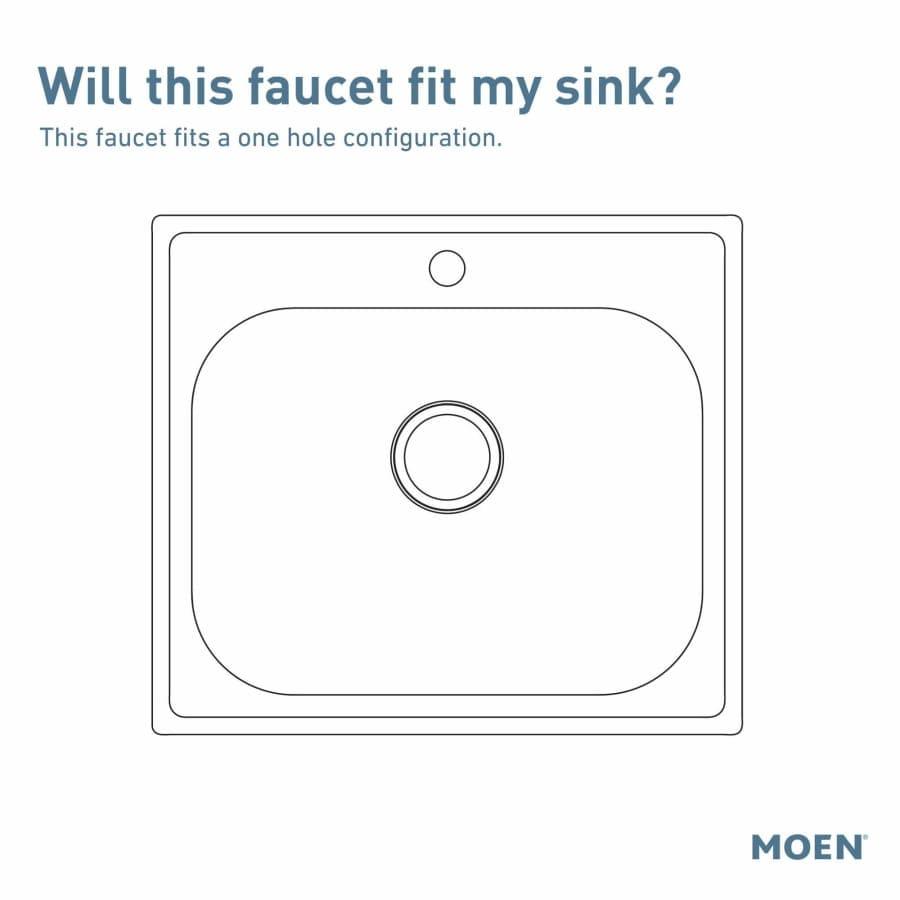

Faucet Holes: Single Hole
Faucet Hole Size: 1-1/2"
Max Deck Thickness: 2-1/2" (cannot mount on thicker decks)

Product Specifications Image

Dimensions and Measurements

Faucet Centers
0 in.
Faucet Hole Size
1.5 in.
Flow Rate (GPM)
1.5
Height
15.625 in.
Hose Length
68 in.
Max Deck Thickness
2.5 in.
Spout Height
9.5 in.
Spout Reach
7.5 in.
Spout Swivel
120 Degrees

Included Components

Escutcheon Included
No
Filtering
No
Handles Included
Yes
Sidespray
No
Soap Dispenser Included
No
Valve Included
Yes

Characteristics and Features

App Compatibility
Amazon Alexa
Battery Quantity
6
Bridge Faucet
No
Device Compatibility
Smartphone
Electronic
Yes
Faucet Holes
1
Faucet Type
Kitchen Faucet
Handle Style
Lever
Installation Type
Deck Mounted
Magnetic Docking
No
Material
Zinc
Mounting Type
Single Hole
Number Of Handles
1
Pre Rinse
No
Pullout Direction
Down
Pullout Spray
Yes
Smart Home
Yes
Spout Type
Swivel
Spray Settings
2
Theme
Modern
Touchless Faucet
Yes
Valve Type
Ceramic Disc
Voice Activated
Yes
Water Connection Type
Compression
Water Efficient
Yes
Wireless Communication
WiFi

Manufacturer Technology

Valve Technology
Duralast

Electrical and Operational Information

Battery Size
D
Battery Type
Alkaline
Power Source
Battery, Plug-In

Warranty and Product Information

ADA
Yes
ASME Code
A112.18.1
CA Drought Compliant
Yes
Certifications
ANSI, ASME, NSF, CSA
Collection
Align
Country Of Origin
China
CSA Code
B125.1
Lead Leaching Certified NSF/ANSI 61
Yes
Low Lead Compliant
Yes
Manufacturer Warranty
Limited Lifetime

Moen

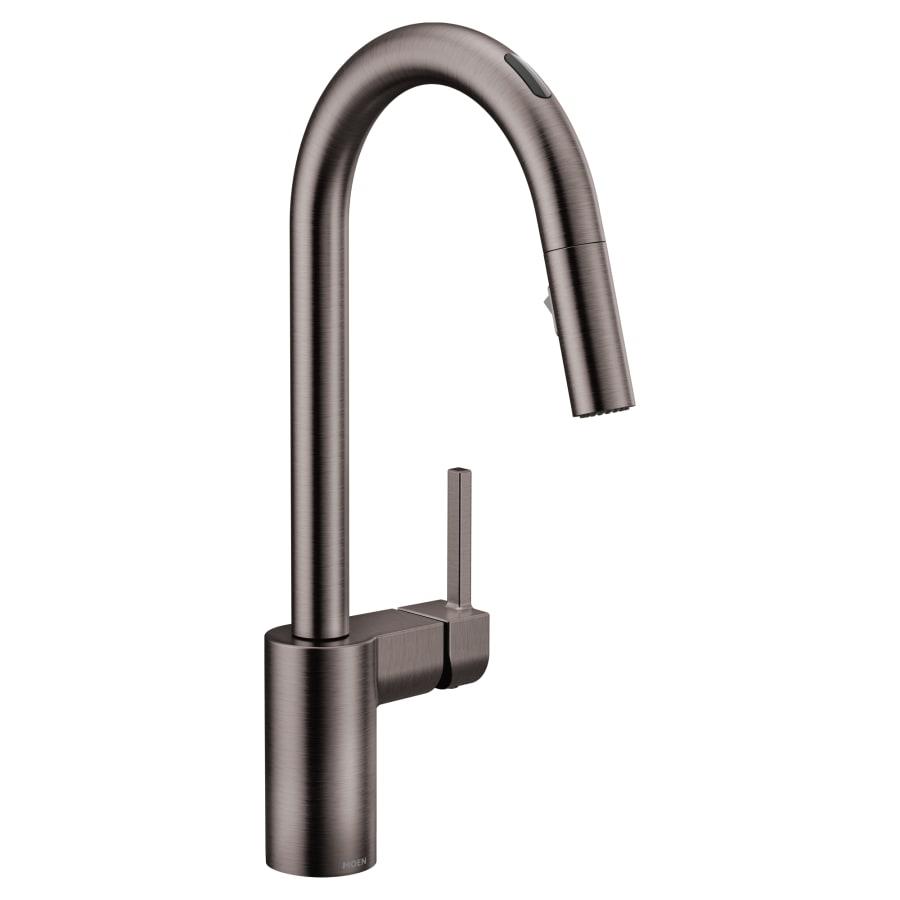

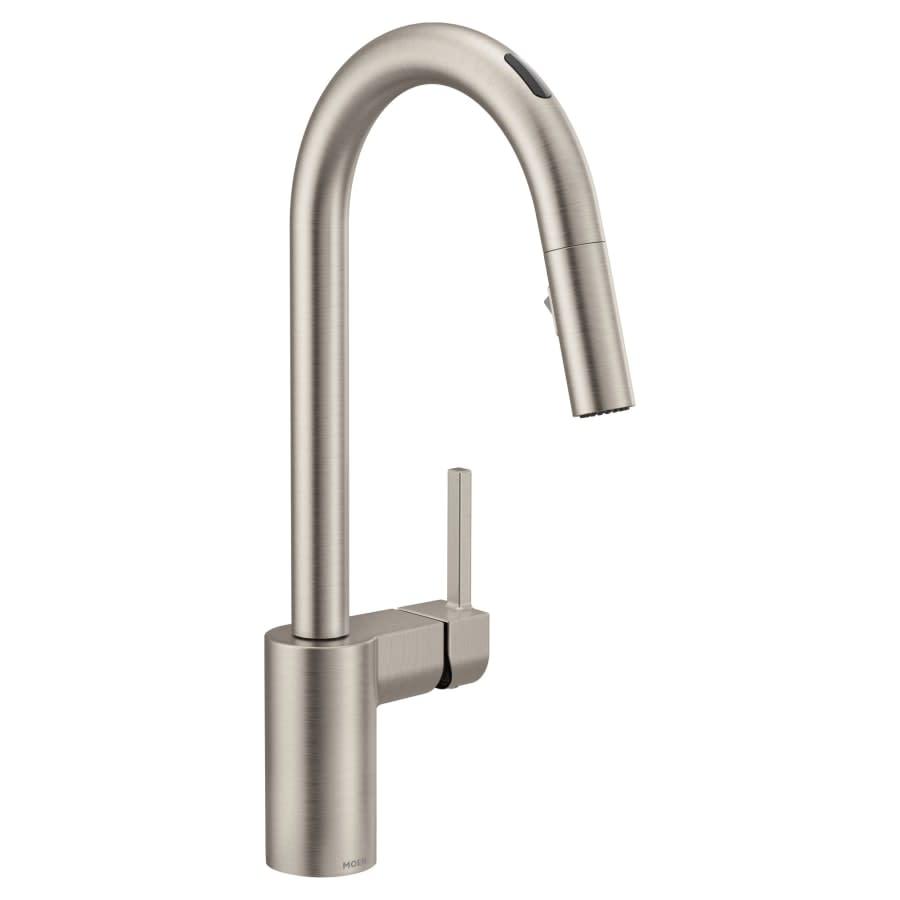

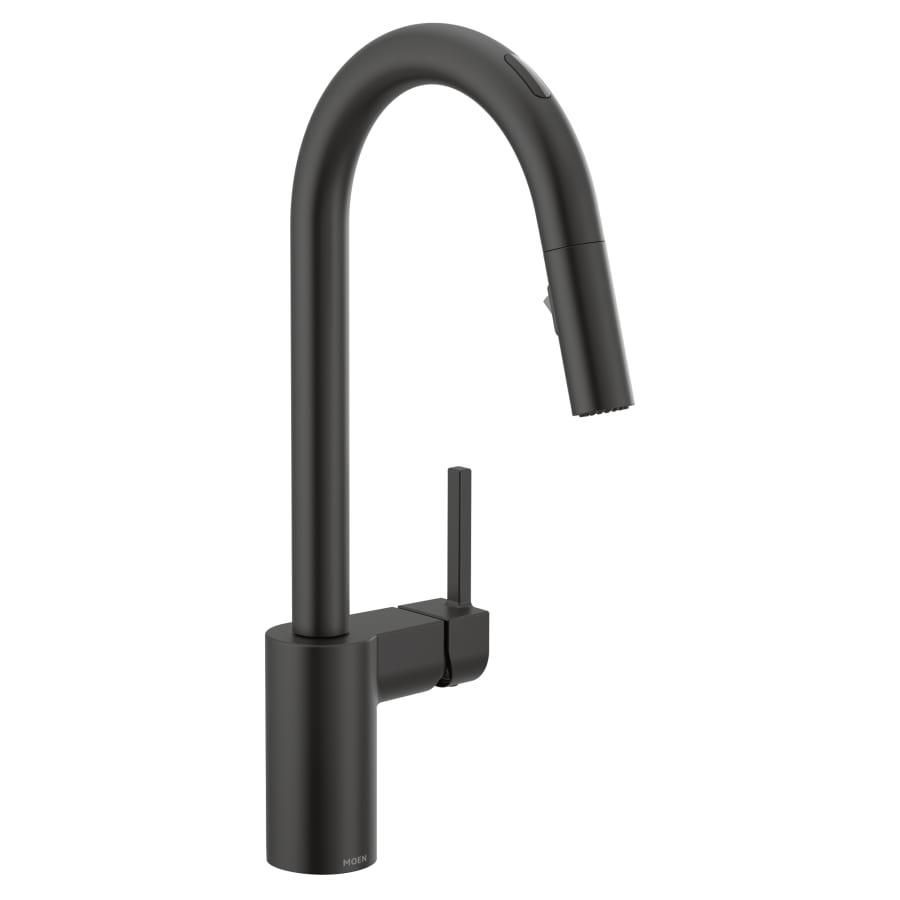

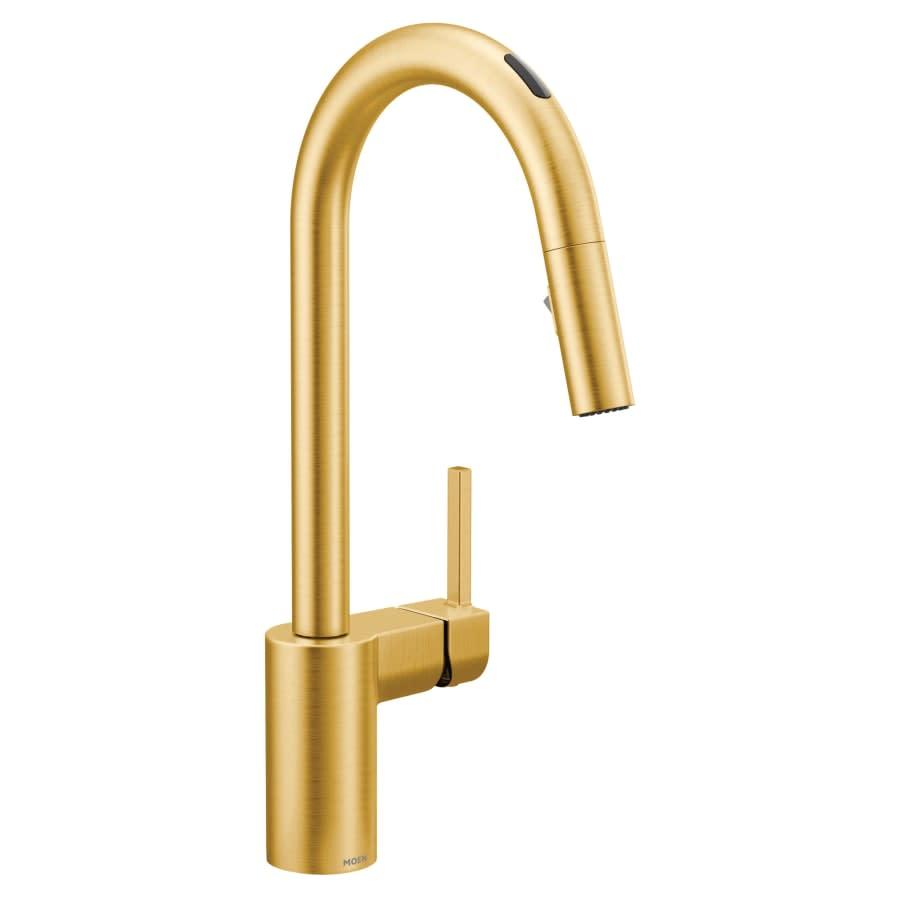

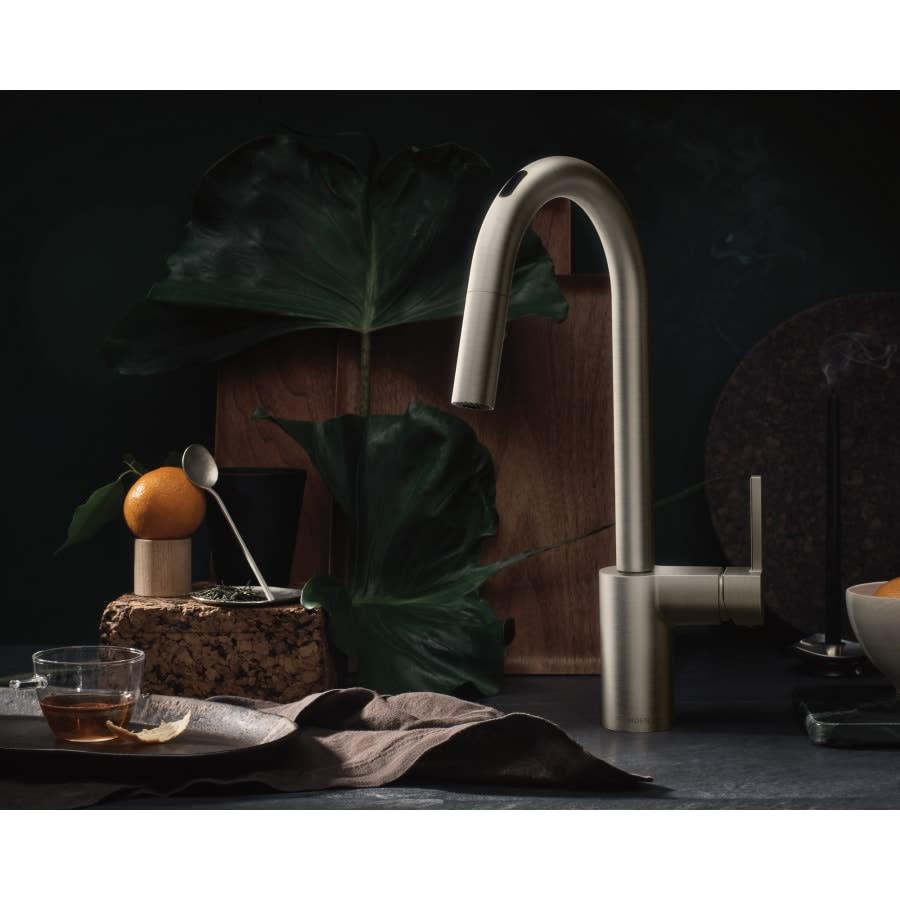

Align Smart Faucet 1.5 GPM Single Hole Pull Down Kitchen Faucet with Voice Control
