Tub Features:

Kohler bathtubs are fully covered under warranty for up to a year after installation
Tub is constructed from an Acrylic material making it strong and flex resistant

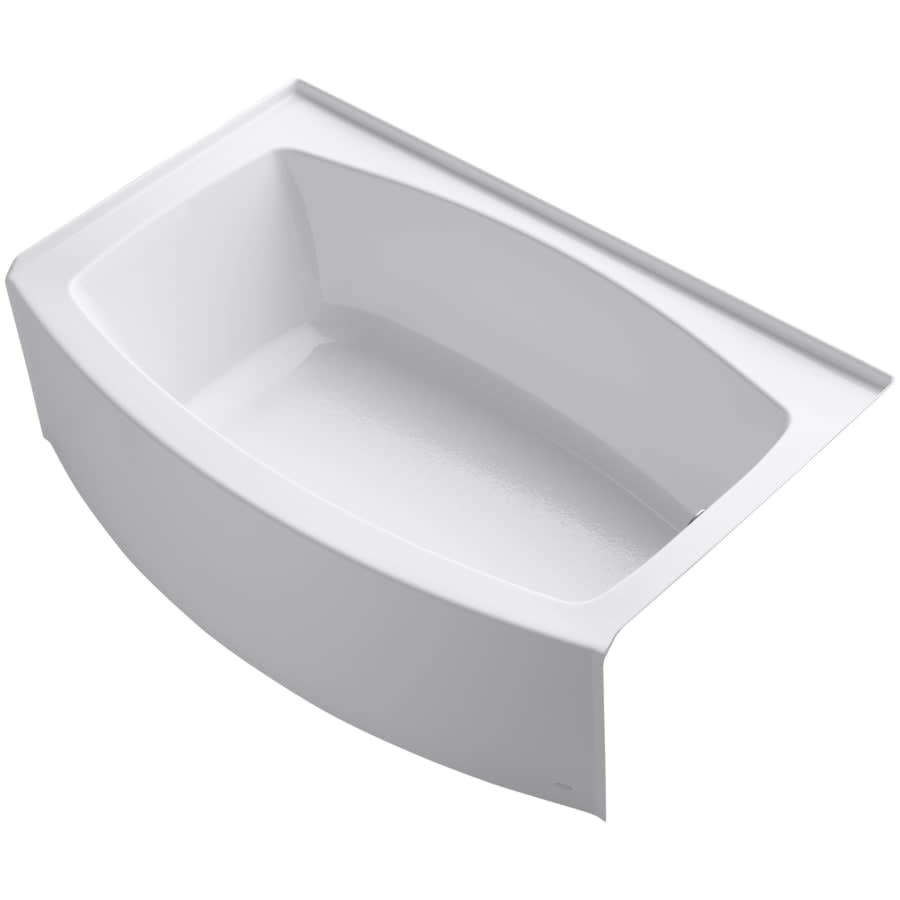

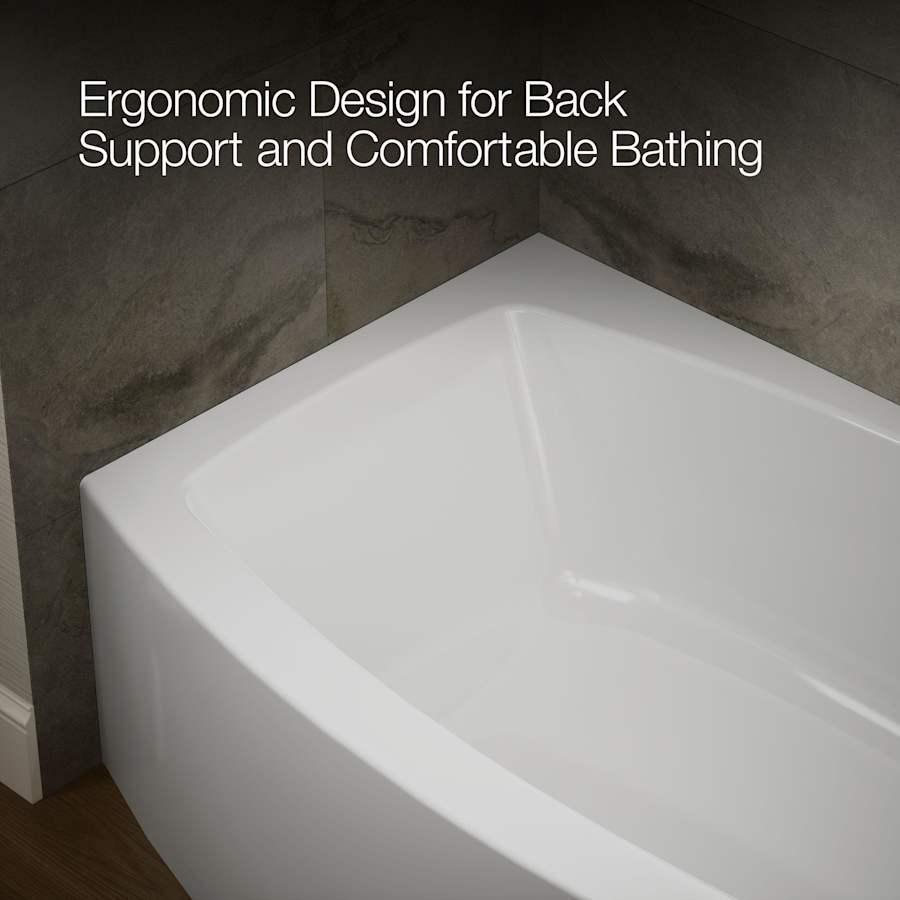

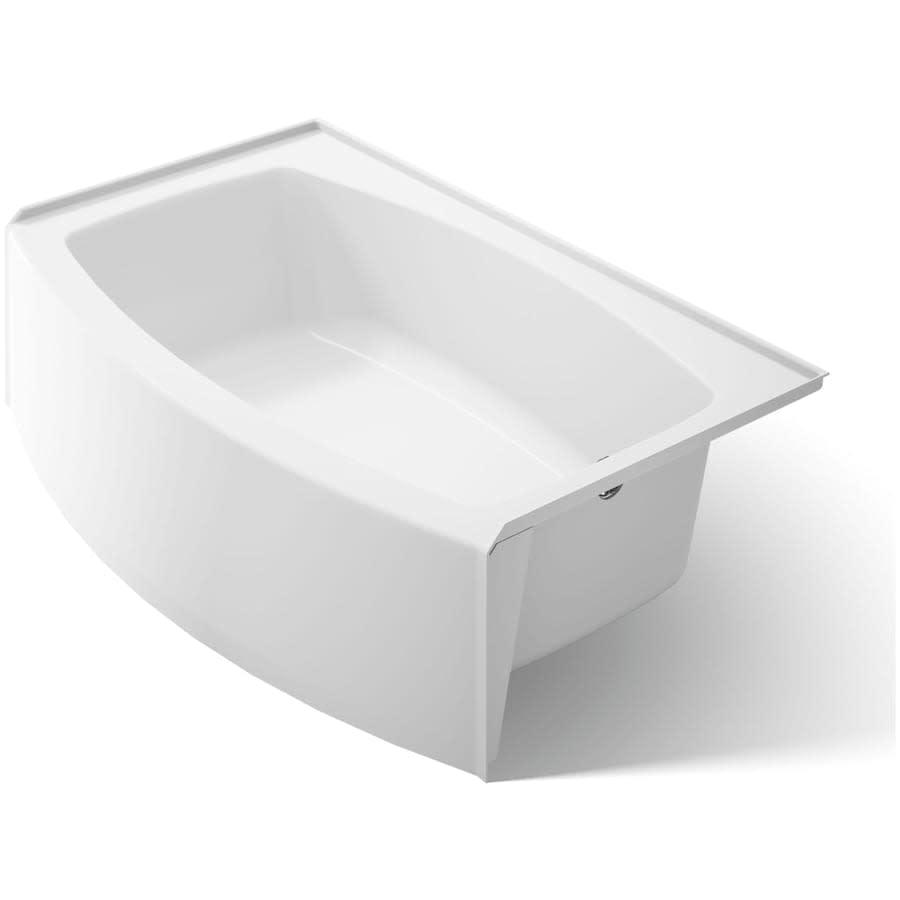

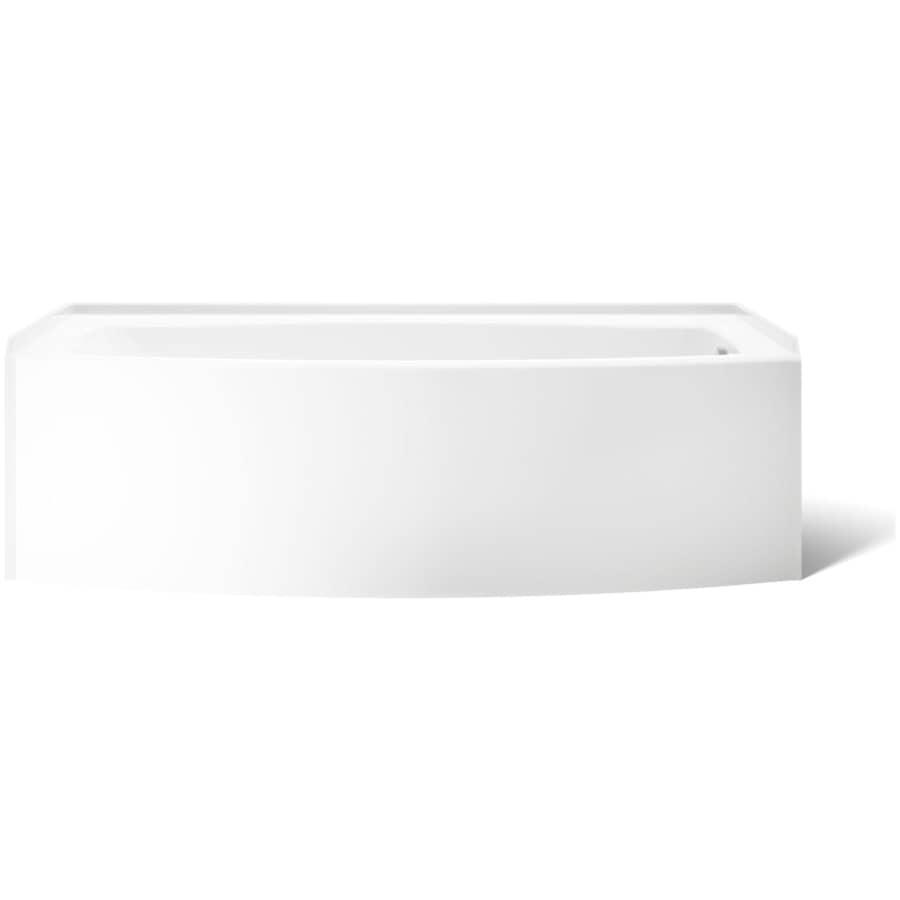

With an attractive curved apron Expanse baths provide extra room to soak
Expanse tubs bring a sophistication and modern appeal to any contemporary bathroom

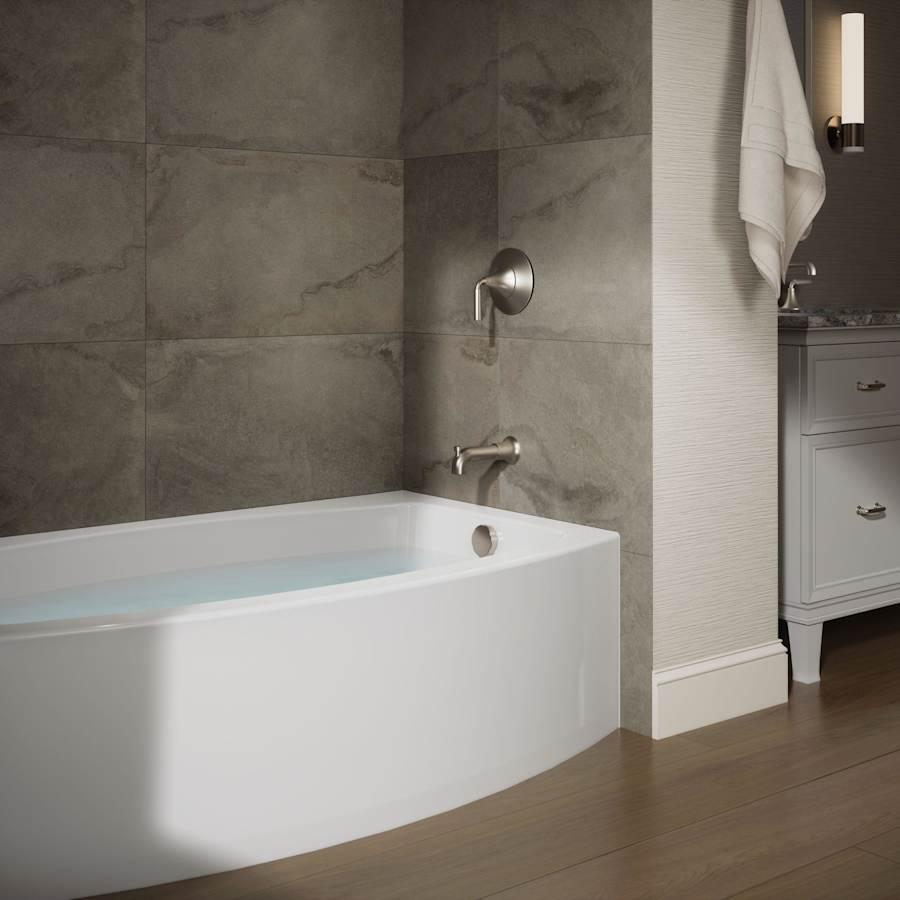

Installs in a Three-wall Alcove configuration

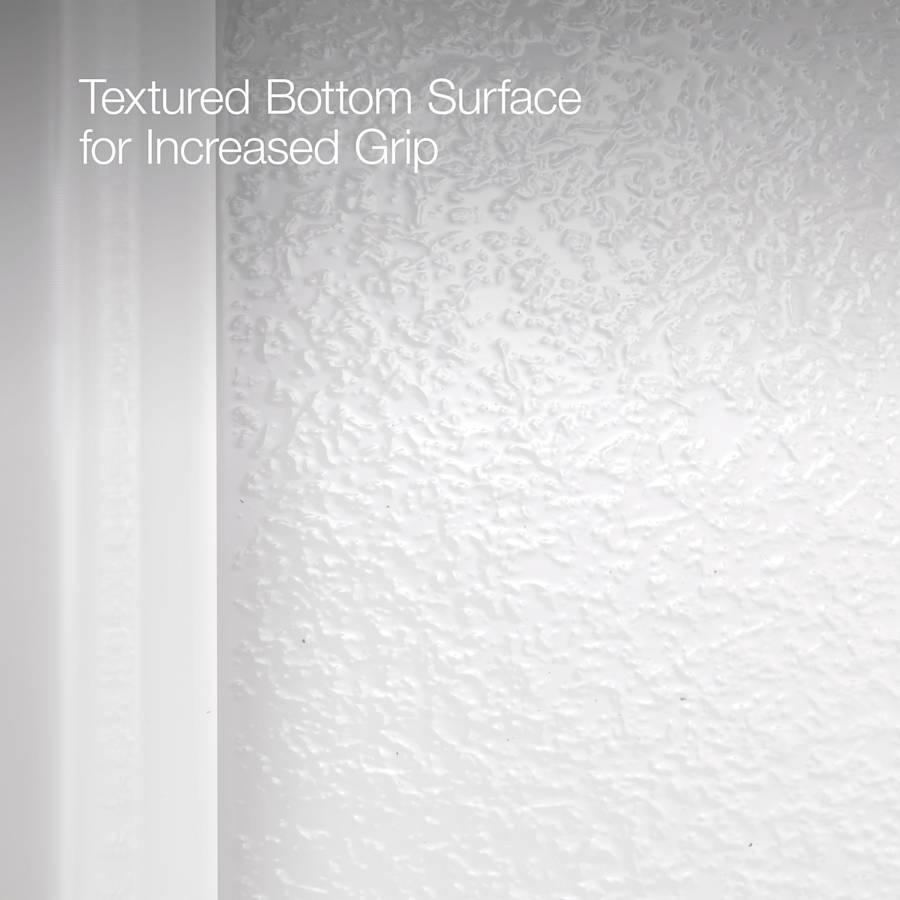

Textured bottom surface
Product Meets or Exceeds the Following Codes and Standards: ANSI, ASTM, CSA

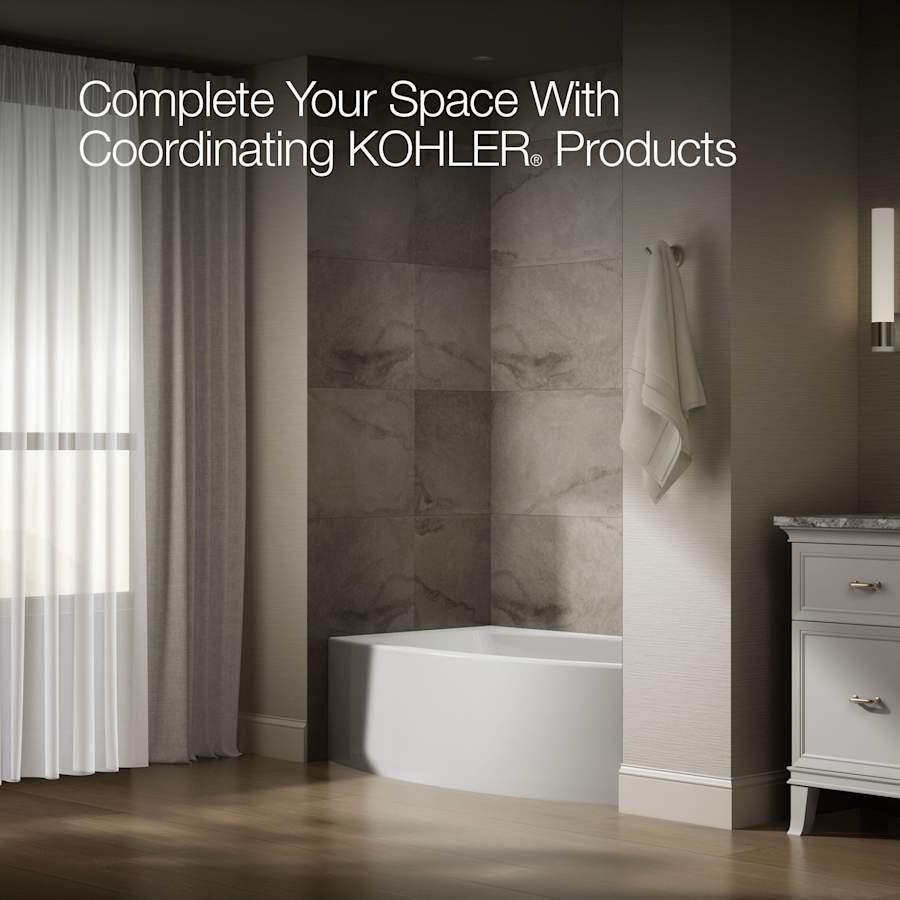

Pair this bath with other products from the Expanse Collection for a coordinated elegant look in the bathroom

Product Technologies and Benefits:

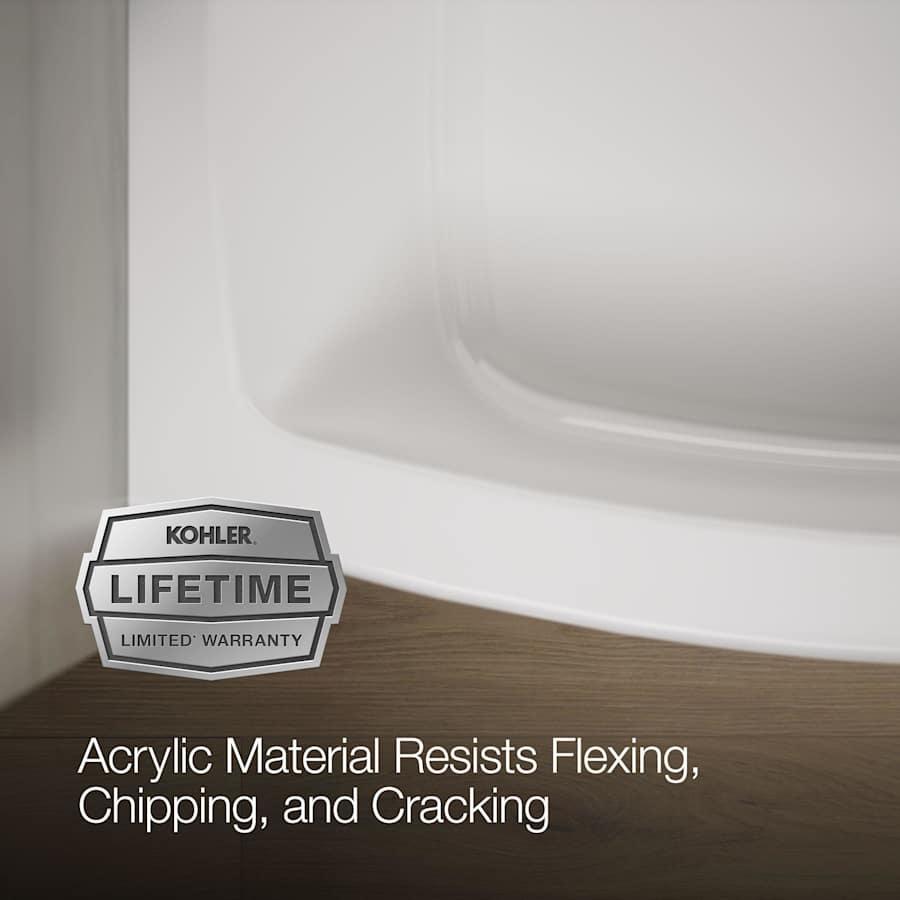

Material - Acrylic - A strong, flex resistant material with a smooth finish that resists chipping and cracking, as well as being easy to clean.
Expanse - The Kohler Expanse curved wall alcove tub is designed to maximize your bathing space while maintaining the ability to be installed within the area of a traditional alcove style tub.

Tub Specifications:

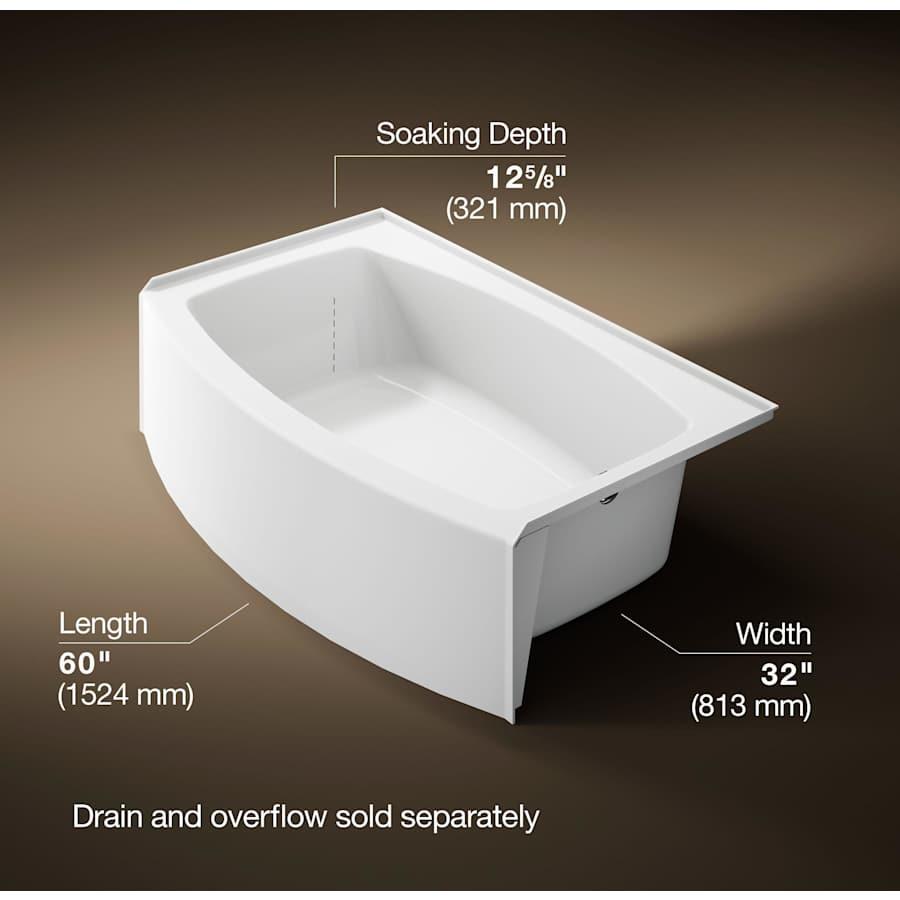

Overall Height: 17" (measured from the top of tub rim to the bottom of basin)
Overall Width: 38" (measured from back most to front most point on outer rim of the Expanse curved wall)
Overall Length: 60" (measured from left most to right most point on outer rim)
Basin Width (Bottom): 31" (back to front measurement of the bottom of basin walls)
Basin Length (Bottom): 54" (right to left measurement of the bottom of basin walls)
Basin Width (Top): 27-5/8" (back to front measurement of the top of basin walls)
Basin Length (Top): 45-11/16" (right to left measurement of the top of the basin walls)
Water Depth: 12-5/8" (depth of water at tub's maximum capacity)
Maximum Water Capacity: 60-gallons

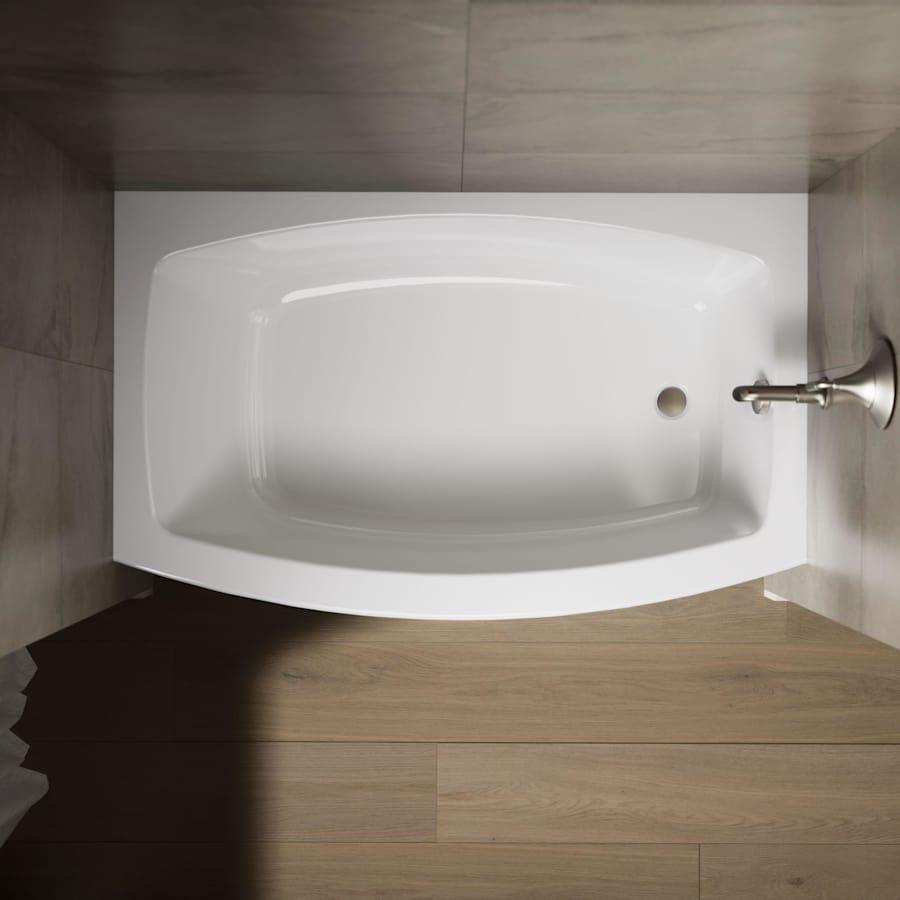

Drain Location: Right

Variations On This Tub:

K-1100-RA: This model
K-1100-LA: This model with left-hand drain

With everything that Kohler does it lives on the leading edge of design and technology, while maintaining a constant level of quality regardless of price. Kohler sets the standard of excellence in its field, and yet is constantly striving to improve.

From sustainable products in the kitchen and bath, to engines for lawn tractors and generators, to power systems that protect data centers and urban landscapes all over the world; this is what the Kohler Company is all about.

Dimensions and Measurements

Basin Length
54 in.
Basin Width
31 in.
Capacity (Gallons)
60
Depth
12.625 in.
Drain Hole
1 in.
Height
17 in.
Length
60 in.
Nominal Length
60 in.
Nominal Width
32 in.
Overflow Height
12.625 in.
Product Weight
78 lbs.
Tub Size
60 Inches
Width
32 in.

Included Components

Light Included
No

Characteristics and Features

Apron Front
Yes
Drain Placement
Right
Installation Type
Three Wall Alcove
Material
Acrylic
Number Of Bathers
1

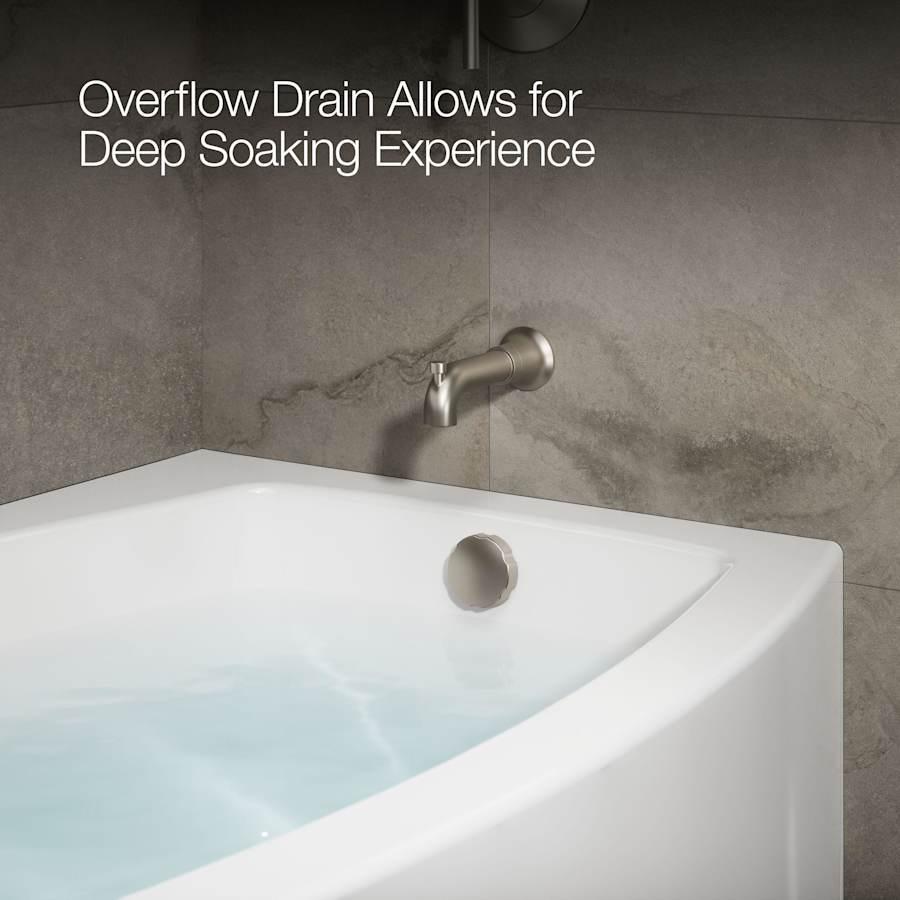

Overflow
Yes
Theme
Modern
Tub Shape
Rectangular

Warranty and Product Information

ADA
No
Collection
Expanse
Country Of Origin
USA
Made in America
Yes
