Product Features:

Kohler tubs are fully covered under warranty for up to a year after installation
All jets are fully adjustable for water intensity and direction of flow
Jets can be turned off completely
Finger pads on outer ring for easy adjustment
Shallow recess for ease of cleaning
Tub is constructed of acrylicÂ Â - offering a lighter more manageable installation
Whirlpool hydrotherapy tub - provides one of the most relaxing and invigorating bath experiences available
Surround yourself with the comfortable contours of a Sunward bath
Designed to turn any bathing area into a spa-like retreat with its fluid lines and graceful sophistication
Variable-speed whirlpool with 6 fully adjustable color matched jets offers optimum performance and value
Hydro-massage flow and direction that can be controlled at each jet
Installs in a drop-in configuration
Product meets or exceeds the following Codes/Standards: ASME, UL, CSA, IAPMO
This tub coordinates seamlessly with other products from the Sunward Collection

Product Technologies and Benefits:

ExoCrylic Material - Kohler Baths constructed of ExoCrylic material are 30% lighter and offer an easier, mortar-less installation, as well as using 90% fewer volatile organic compounds produced during manufacturing.
Whirlpool Tubs - Kohler Whirlpool tubs are designed to deliver powerful jets of water and air that are fully adjustable in direction and massage intensity, thus allowing your own personal massage.

Product Specifications:

Overall Height: 20" (measured from the top of tub rim to the bottom of basin)
Overall Width: 42" (measured from back most to front most point on outer rim)
Overall Length: 60" (measured from left most to right most point on outer rim)
Basin Width (Bottom): 21-9/16" (back to front measurement of the bottom of basin walls)
Basin Length (Bottom): 43" (right to left measurement of the bottom of basin walls)
Basin Width (Top): 32-1/8" (back to front measurement of the top of basin walls)
Basin Length (Top): 53-1/2" (left to right measurement of top of basin walls)
Water Depth: 15" (depth of water at tub's maximum capacity)
Maximum Water Capacity: 57-gallons
Drain Location: Reversible (right or left)
Pump Voltage: 120V

Variations of K-1162-S1:

K-1163-S1: soaking bath version of this tub
K-1163-S1W: soaking bath and bask heated surface version of this tub
K-1162-S1G: bubblemassage air bath version of this tub
K-1162-S1GW: bubblemassage air bath and bask heated surface version of this tub
K-1162-S1H: whirlpool and heater version of this tub
K-1162-S1W: whirlpool and bask heated surface version of this tub

With everything that Kohler does it lives on the leading edge of design and technology, while maintaining a constant level of quality regardless of price. Kohler sets the standard of excellence in its field, and yet is constantly striving to improve.

From sustainable products in the kitchen and bath, to engines for lawn tractors and generators, to power systems that protect data centers and urban landscapes all over the world; this is what the Kohler Company is all about.

Dimensions and Measurements

Basin Length
43 in.
Basin Width
21.563 in.
Capacity (Gallons)
57
Height
20 in.
Length
60 in.
Nominal Length
60 in.
Nominal Width
42 in.
Overflow Height
15 in.
Tub Size
60 Inches
Width
42 in.

Included Components

Tile Flange
No

Characteristics and Features

Apron Front
No
Control Type
Analog
Drain Placement
Left, Reversible, Right
Installation Type
Drop In
Material
Acrylic
Number Of Bathers
1
Number of Jets
6
Overflow
Yes
Pump Placement
Right, Reversible, Left
Theme
Modern
Tub Shape
Oval

Electrical and Operational Information

Amperage
15
Frequency
60 Hertz
Voltage
120

Warranty and Product Information

ADA
No
Collection
Sunward

Kohler

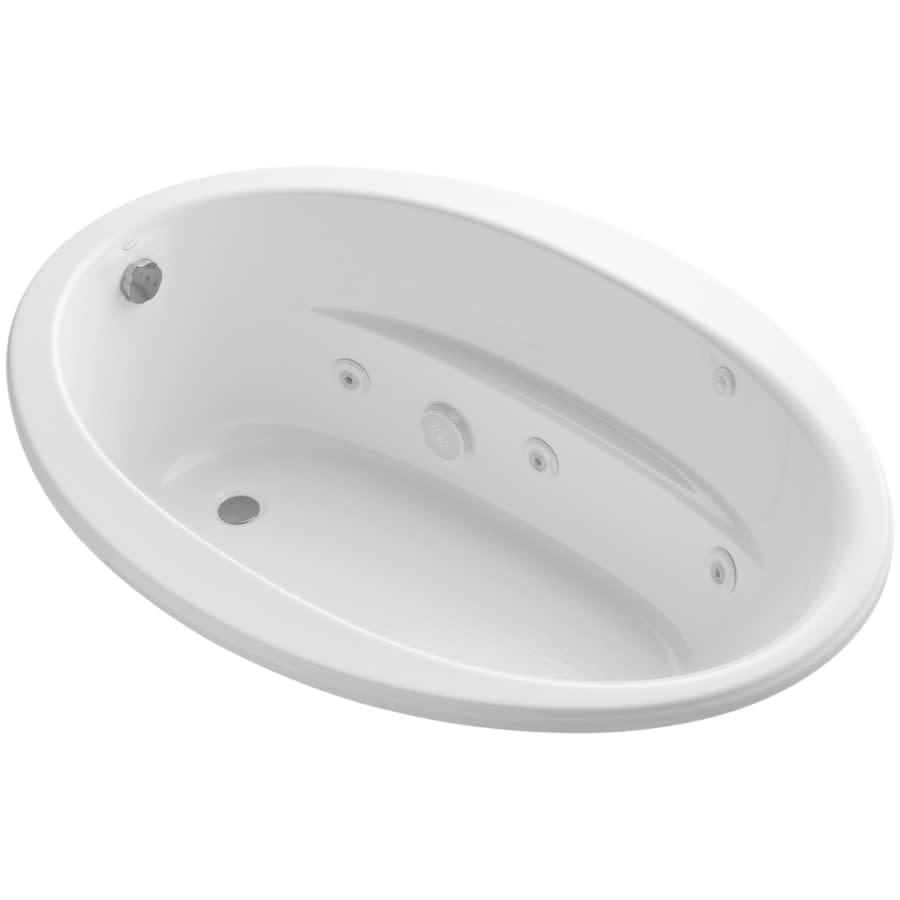

Sunward Collection 60" Drop In Jetted Whirlpool Bath Tub with Reversible Drain
