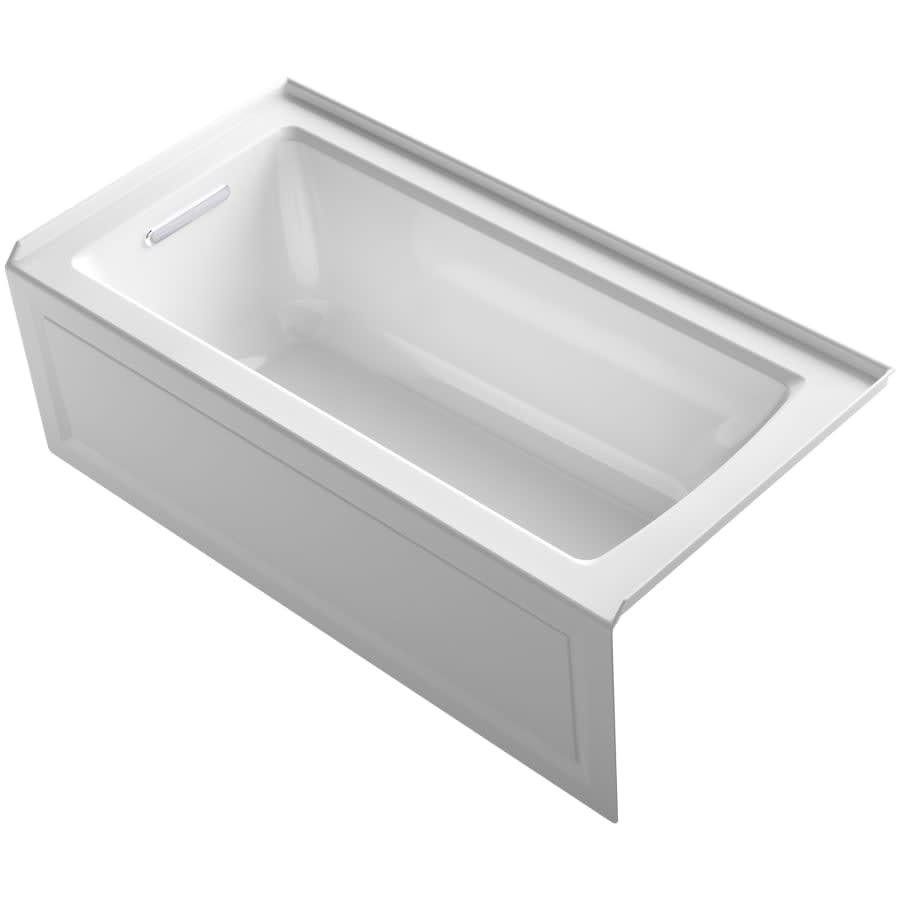

Archer

Taking its design cues from traditional Craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This bath offers a low step-over height while allowing deep, comfortable soaking. Lumbar arch gently support the natural curves of your body. Kohler ExoCrylic is the next generation of bathroom acrylics, featuring a lighter weight for easier installation and 90% fewer VOCs produced during manufacturing. Lifestyle

Product Features:

Kohler tubs are fully covered under warranty for up to a year after installation
Tub constructed of acrylic
Comfort height design â provides a lower wall to step over when entering the bath, while maintaining the comfortable soaking depth of standard tubs
Three wall alcove installation type with tile flange and integral tub apron
Tub comes standard with integral lumbar support furthering the users comfort
A textured slip-resistant bottom takes the worry out of slipping and sliding as you move about the tub
Equipped with an overflow assembly permitting the user to enjoy a deep soak without worrying about spillage
ADA compliant - complies with the standards set forth by the Americans with Disabilities Act
Product Meet or Exceeds the Following Codes/Standards: ADA, ICC/ANSI A117.1 and CSA B45.5/IAPMO Z124

Product Technologies and Benefits:

Material - ExoCrylic - Kohler Baths constructed of ExoCrylic material are 30% lighter and offer an easier, mortar-less installation, as well as using 90% fewer volatile organic compounds produced during manufacturing.

Product Specifications:

Overall Height: 19" (measured from the top of tub rim to the bottom of basin)
Overall Width: 30" (measured from back most to front most point on outer rim)
Overall Length: 60" (measured from left most to right most point on outer rim)
Basin Width (Bottom): 19-11/16" (back to front measurement of the bottom of basin walls)
Basin Length (Bottom): 45-1/8" (right to left measurement of the bottom of basin walls)
Basin Width (Top): 22-1/16" (back to front measurement of the top of basin walls)
Basin Length (Top): 52-1/8" (right to left measurement of the top of basin walls)
Water Depth: 15-1/8" (depth of water at tubâs maximum capacity)
Maximum Water Capacity: 57 â gallons
Drain Location: Left

Lifestyle

Variations:

K-1946-LAW: Soaking with Bask
K-1947-GLA: Air Bath
K-1947-GLAW: Air Bath with Bask
K-1947-LA: Whirlpool
K-1947-HLA: Whirlpool with heater
K-1947-LAW: Whirlpool with Bask
K-1947-XHGLA: Whirlpool/Air

With everything that Kohler does it lives on the leading edge of design and technology, while maintaining a constant level of quality regardless of price. Kohler sets the standard of excellence in its field, and yet is constantly striving to improve.

From sustainable products in the kitchen and bath, to engines for lawn tractors and generators, to power systems that protect data centers and urban landscapes all over the world; this is what the Kohler Company is all about.

Dimensions and Measurements

Basin Length
45.125, 52.125 in.
Basin Width
23.063 in.
Capacity (Gallons)
57
Depth
15.125 in.
Height
19 in.
Length
60 in.
Nominal Length
60 in.
Nominal Width
30 in.
Overflow Height
15.125 in.
Product Weight
73 lbs.
Top Area
52.125 x 23.062 in.
Tub Size
60 Inches
Width
30 in.

Included Components

Heater Included
No
Light Included
No
Tile Flange
Yes

Characteristics and Features

Apron Front
Yes
Drain Placement
Left
Installation Type
Three Wall Alcove
Material
Acrylic
Number Of Bathers
1
Overflow
Yes
Slip Resistant
Yes
Tub Shape
Rectangular

Warranty and Product Information

ADA
Yes
Approved for Commercial Use
No
Certifications
UL
Collection
Archer, Comfort Height
Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
1 Year

Kohler

Archer Three Wall Alcove Soaking Tub with Left Hand Drain and Integral Apron
