Product Features:

Double basin sink with a 50/50 split provides increased versatility for any task
Covered under Kohler's limited lifetime warranty
The distinctive, modern design of the Vault sink lends a contemporary vibe to any kitchen

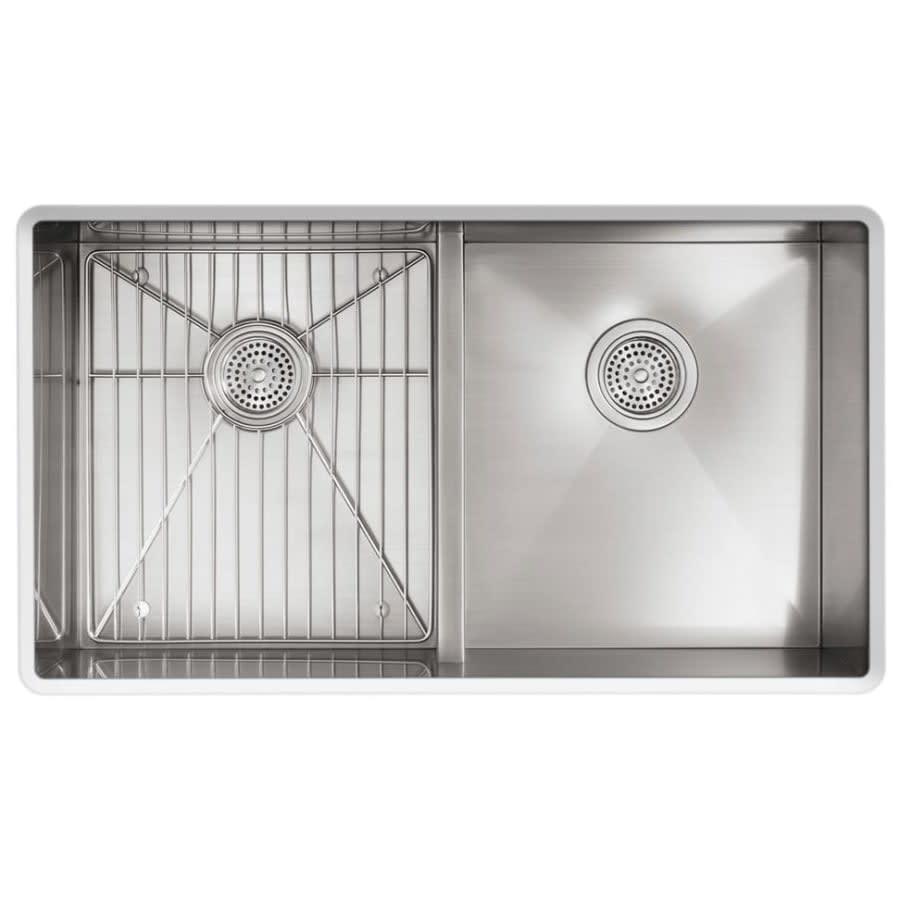

An included bottom basin rack fits either bowl and helps to prevent scratching
Hand crafted from 18-gauge stainless steel giving both the aesthetic beauty you want and the durability and longevity you need

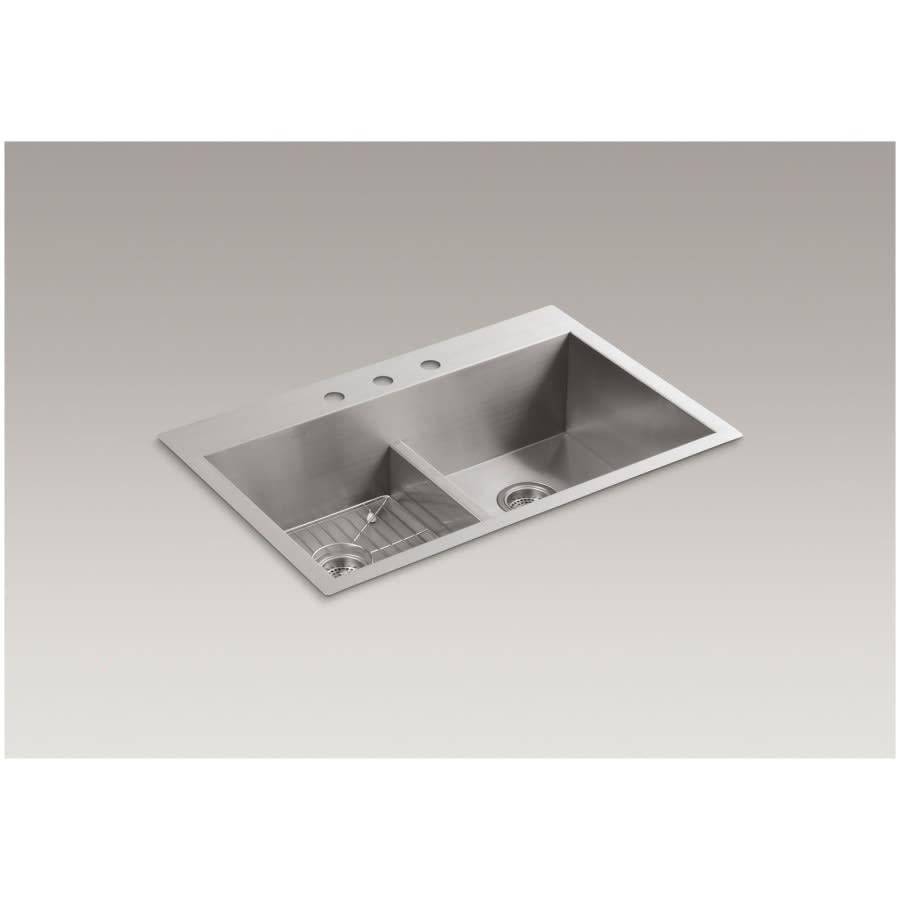

Top-mount or Under-mount installation options
Rear drain location increases workspace area in the sink as well as storage area underneath
All hardware needed for installation included

Product Technologies / Benefits:

Smart Divide: The basin divider is set to a lower height than perimeter of the sink; you gain the convenience of a single basin sink completely filled, without losing the functionality of a double basin sink. The lower divider also gives more room for working with larger pots and pans providing more access for filling and cleaning.

Product Specifications:

Height: 9-5/16" (measured from the bottom of the sink to the top most point of the sink)
Overall Width: 22" (measured from the back outer rim to the front outer rim)
Overall Length: 33" (measured from the left outer rim to the right outer rim)
Basin Width: 16-9/16" (measured from the back inner rim to the front inner rim)
Basin Length: 14-9/16" (measured from the left inner rim to the right inner rim)
Basin Depth: 9" (measured from center of the basin to the rim)
Installation Type: Top-mount or Under-mount
Number of Faucet Holes: 3
Drain Outlet Connection: 3-5/8"
Minimum Base Cabinet Width: 35"

With everything that Kohler does it lives on the leading edge of design and technology, while maintaining a constant level of quality regardless of price. Kohler sets the standard of excellence in its field, and yet is constantly striving to improve.

From sustainable products in the kitchen and bath, to engines for lawn tractors and generators, to power systems that protect data centers and urban landscapes all over the world; this is what the Kohler Company is all about.

Dimensions and Measurements

Basin Depth
9 in.
Basin Depth (Left)
9 in.
Basin Depth (Right)
9 in.
Basin Length (Left)
14.563 in.
Basin Length (Right)
14.563 in.
Basin Width (Left)
16.563 in.
Basin Width (Right)
16.563 in.
Drain Connection
3.625 in.
Faucet Centers
8 in.
Gauge
18
Height
9.313 in.
Length
33 in.
Nominal Length
33 in.
Nominal Width
22 in.
Product Weight
30 lbs.
Sink Length
33 in.
Width
22 in.

Included Components

Basin Rack Included
Yes
Basket Strainer Included
No
Cutting Board Included
No
Faucet Included
No
Soap Dispenser Included
No

Characteristics and Features

Basin Split
50/50
Drain Placement
Rear
Farmhouse
No
Faucet Holes
3
Installation Type
Undermount, Drop In
Material
Stainless Steel
Number Of Basins
2
Sink Shape
Rectangular

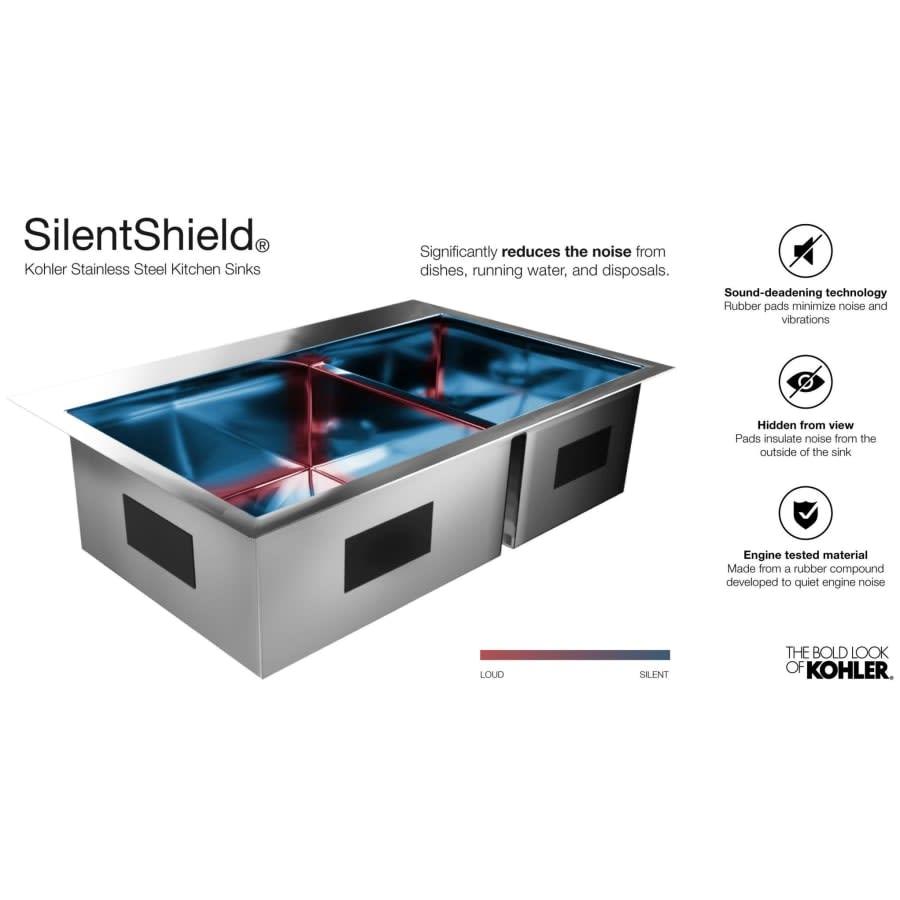

Sound Dampening
Yes
Theme
Modern

Manufacturer Technology

Kohler Technologies
Smart Divide

Warranty and Product Information

ADA
No
Collection
Smart Divide
Country Of Origin
USA
