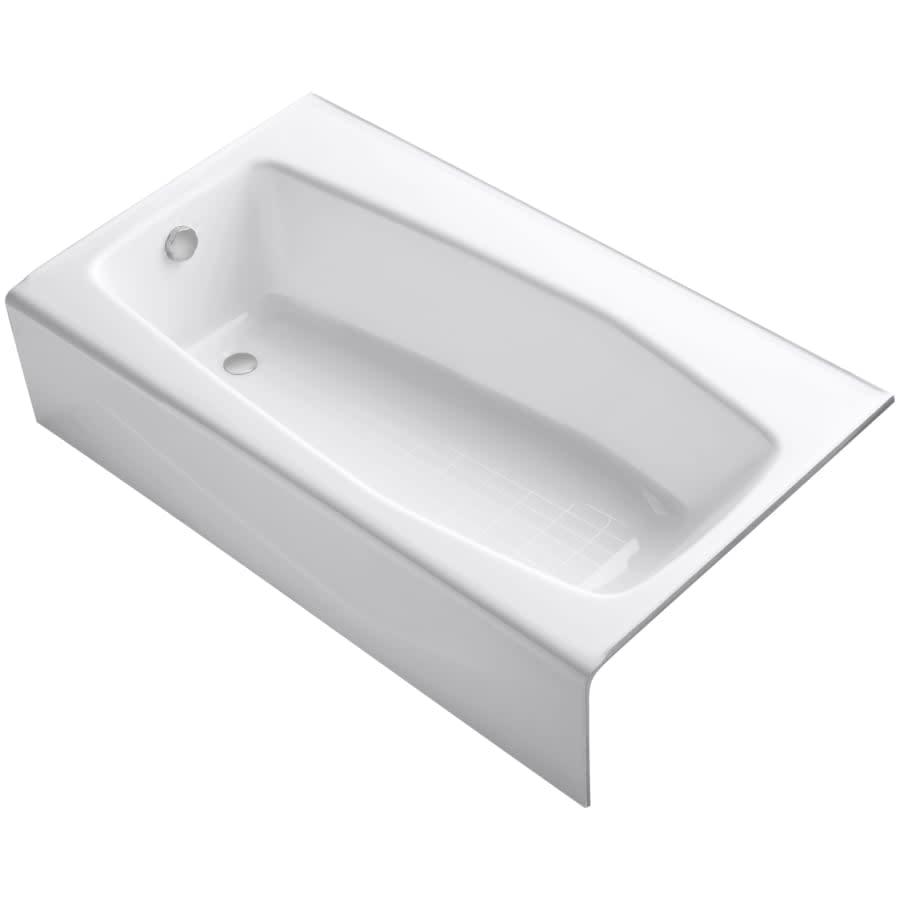

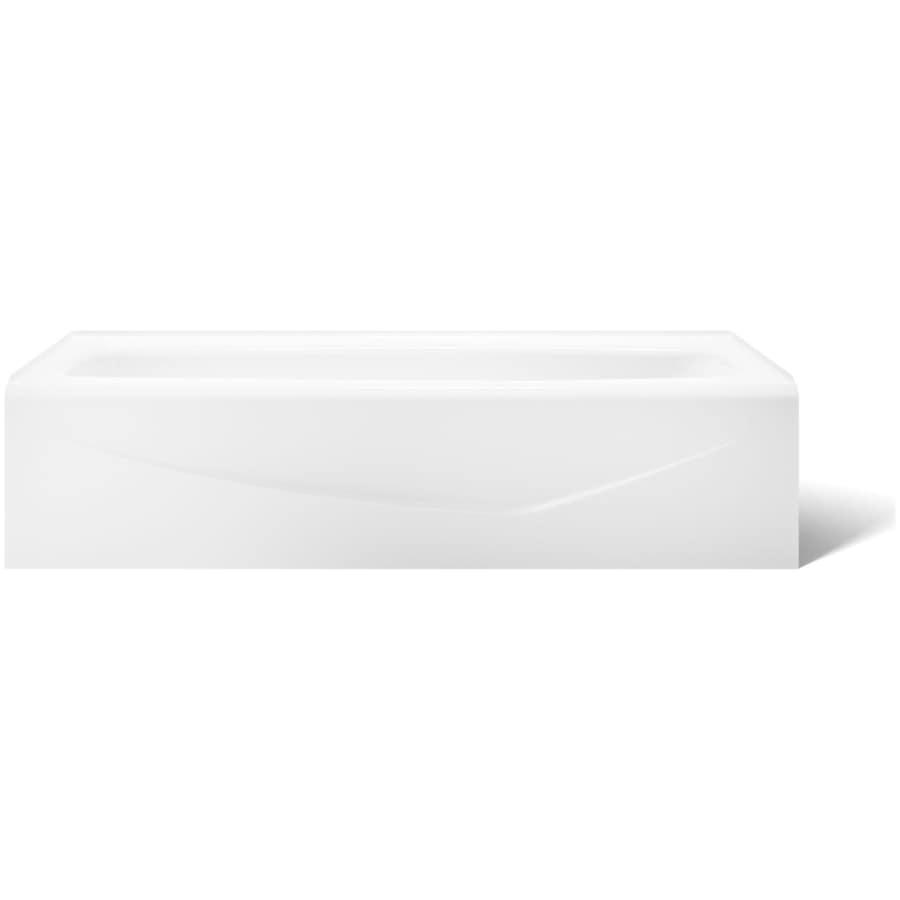

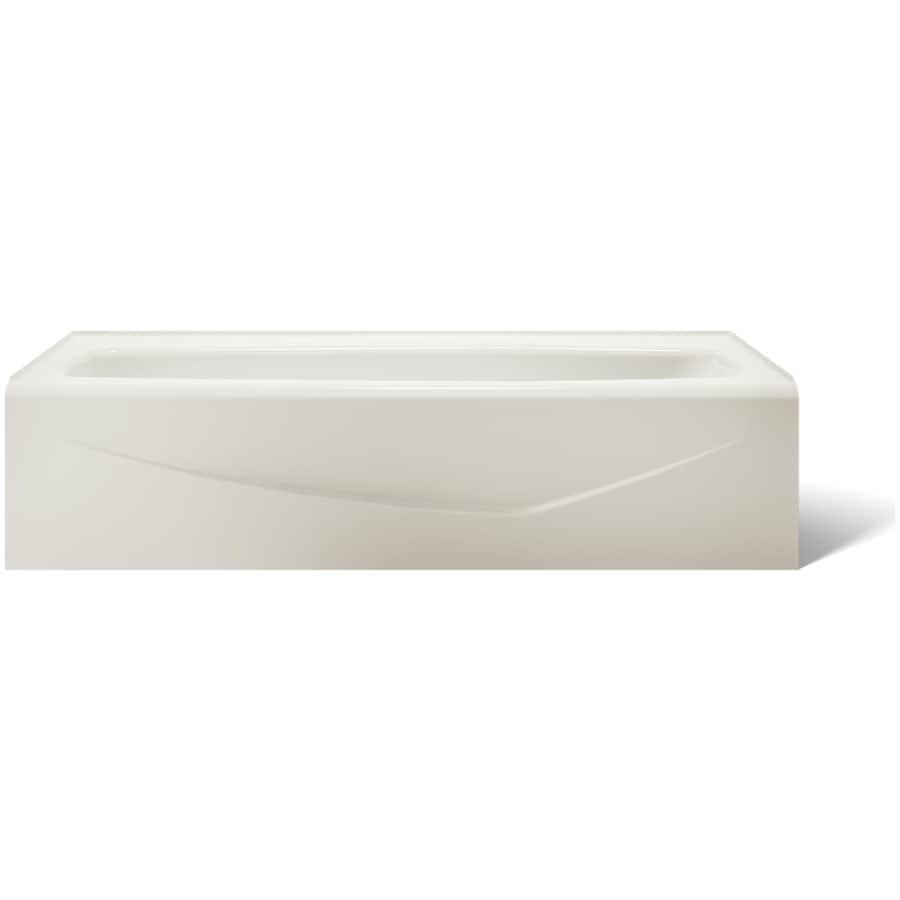

Tub Features:

Kohler's cast iron components carry a limited lifetime warranty
Tub is constructed from Enameled Cast Iron combining strength with durability

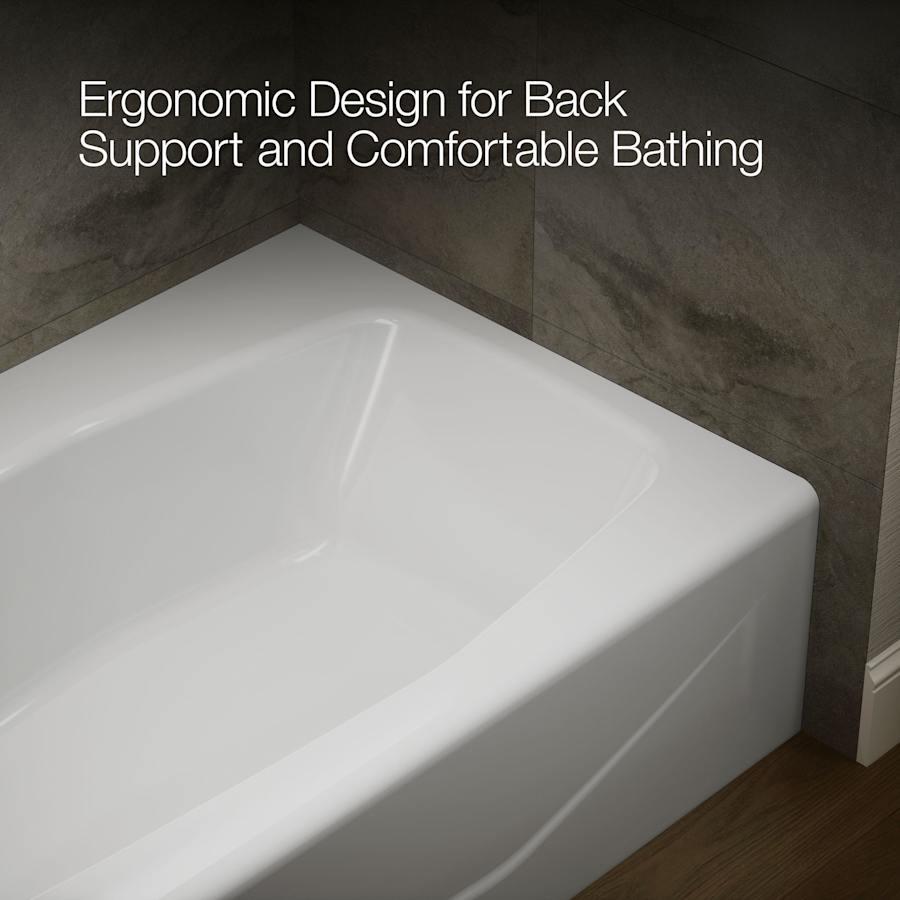

With its functional design and straight forward styling, the Villager is the most popular of the Kohler baths

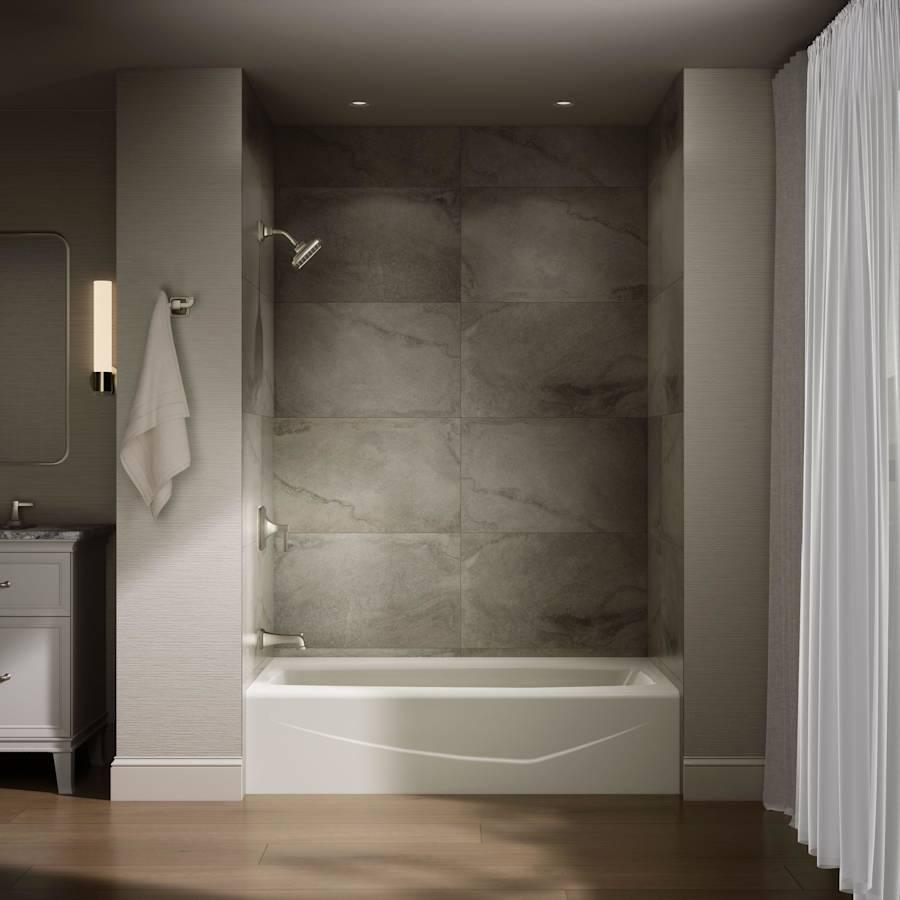

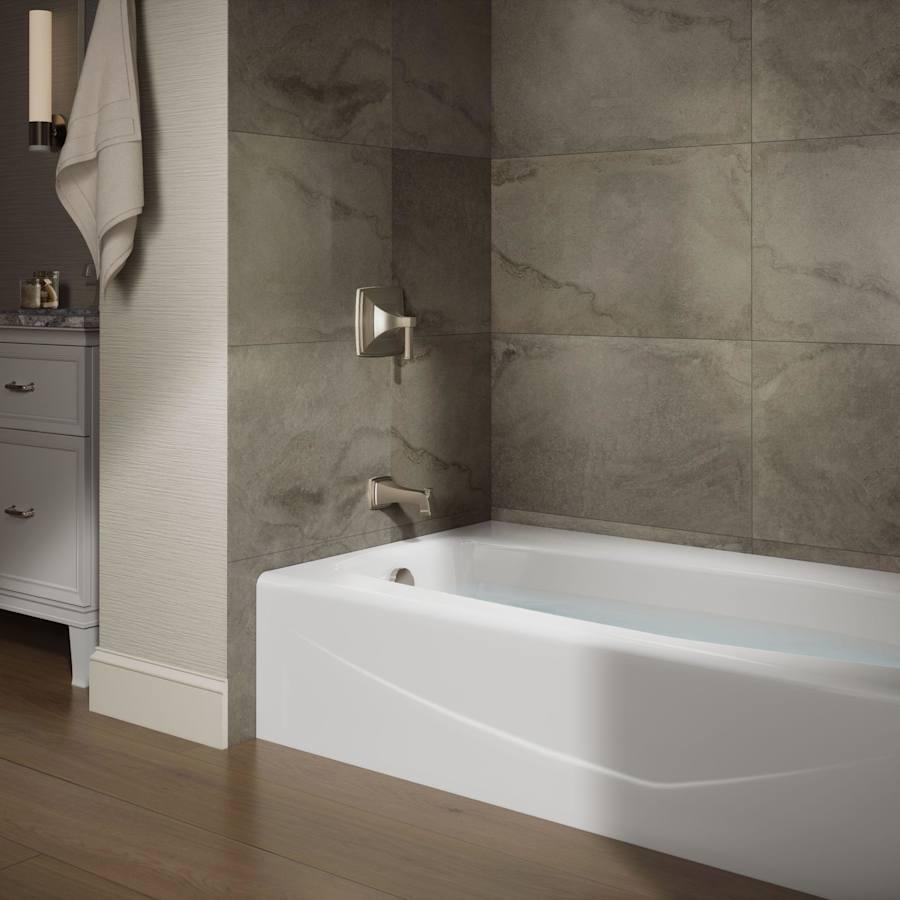

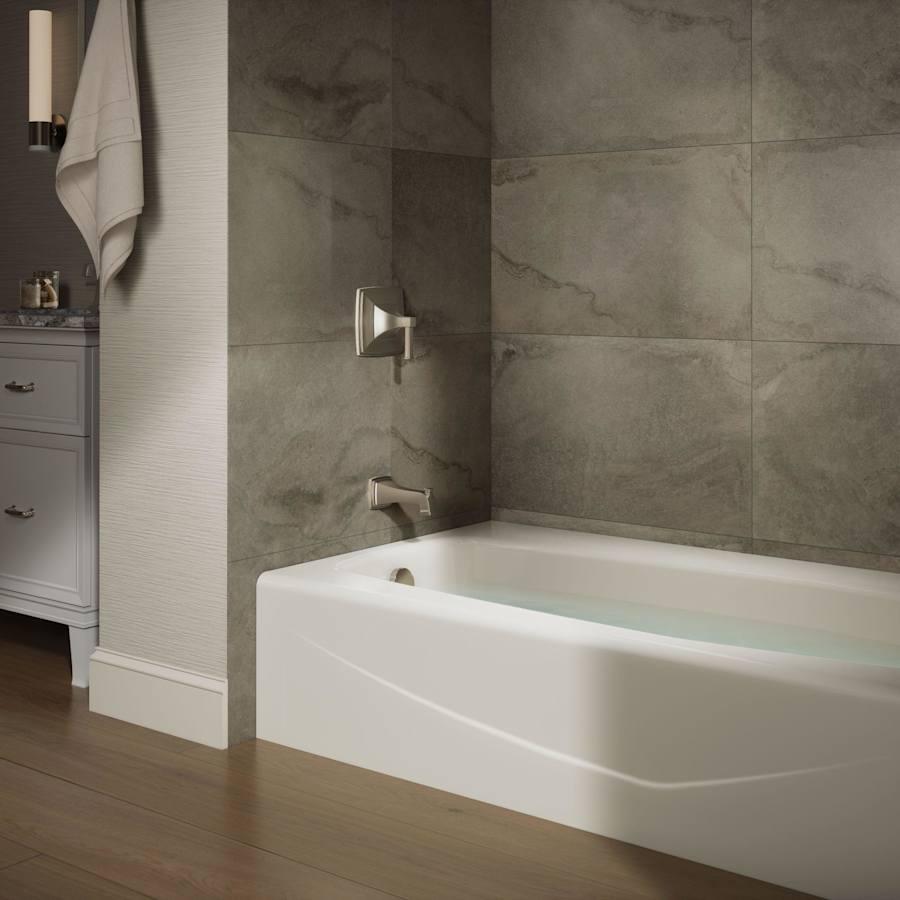

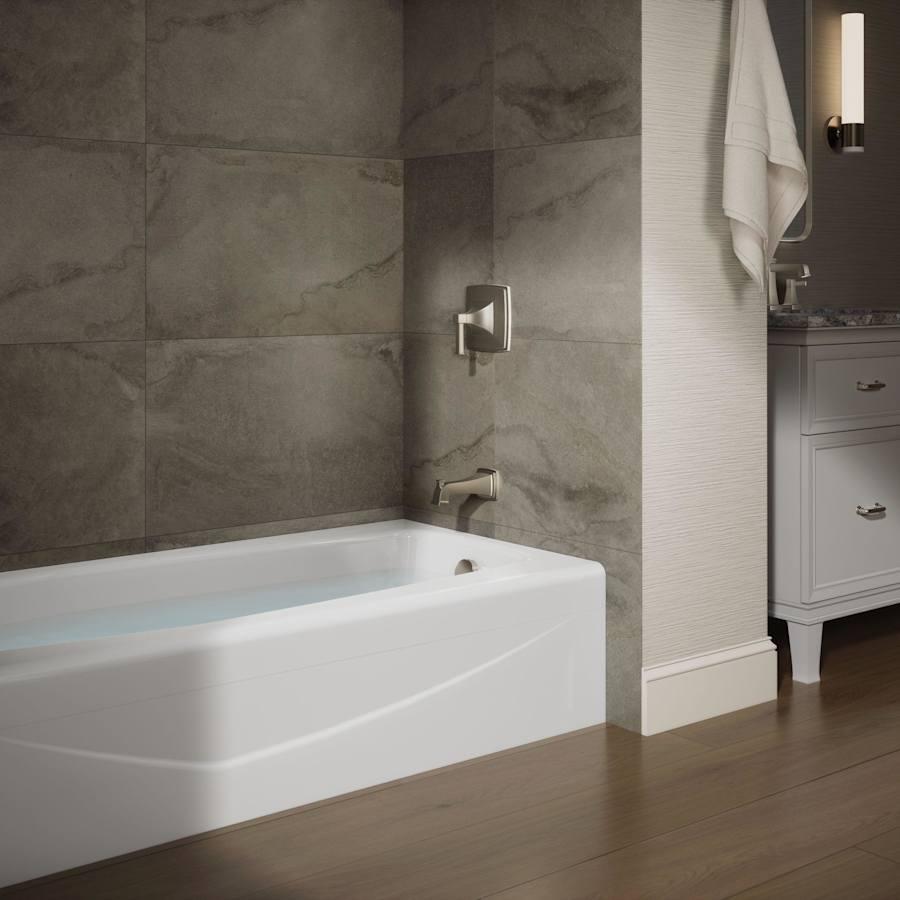

Installs in a Three-wall Alcove configuration
ADA compliant - complies with the standards set forth by the American's with Disabilities Act
Product Meets or Exceeds the Following Codes and Standards: ADA, ICC/ANSI, CSA, OBC, ASME

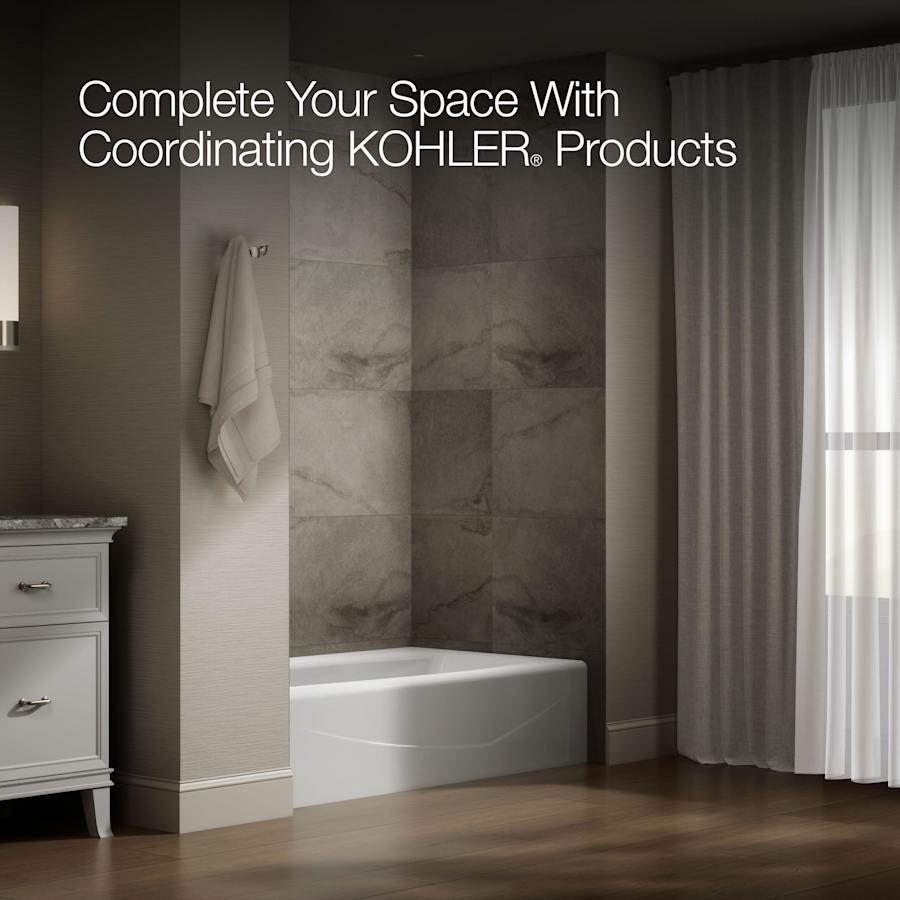

Pair this bath with other products from the Villager Collection for a coordinated elegant look in the bathroom

Product Technologies and Benefits:

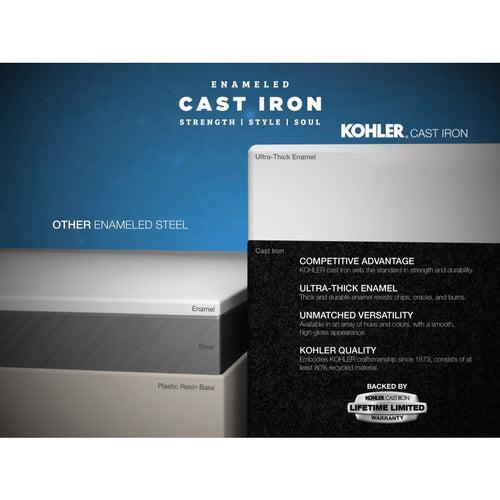

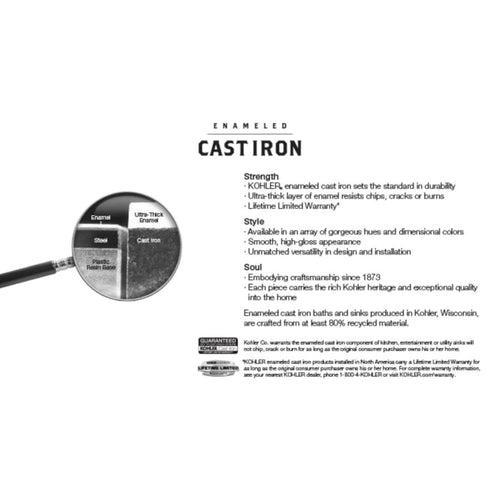

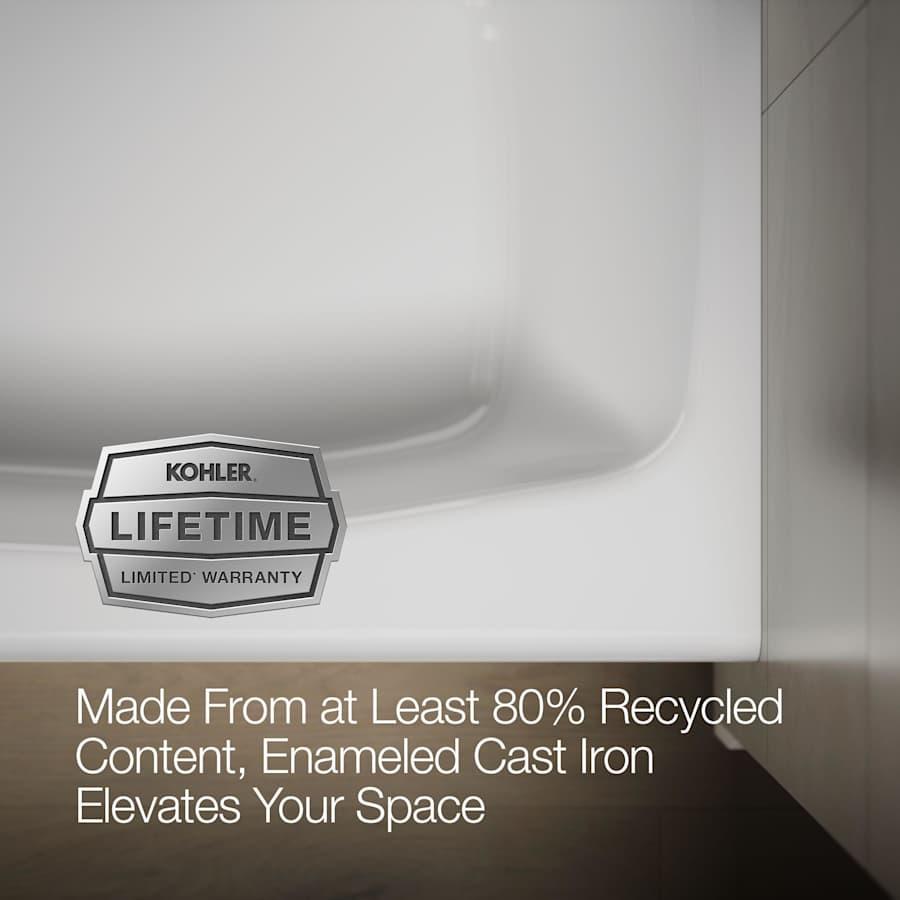

Enameled Cast-Iron: Kohler Enameled Cast-Iron combines the strength, durability, and insulation benefits of cast-iron with the scratch, chip, and burn resistance of a baked, powder coat finish and comes with an exceptional Lifetime Limited Warranty. When these materials are combined it gives the sink or tub the strength to last a lifetime of use. Kohler Enameled Cast-Iron is also available in a wide variety of specialty colors allowing you to truly customize your home.

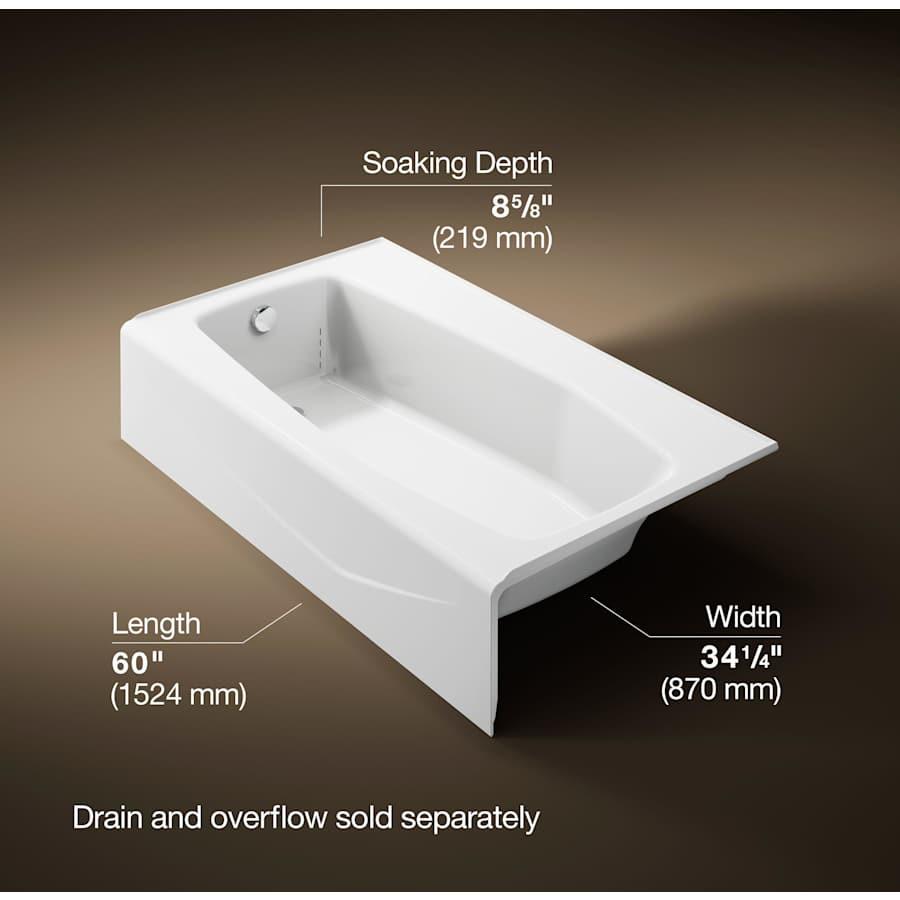

Tub Specifications:

Overall Height: 14" (measured from the top of tub rim to the bottom of basin)
Overall Width: 34-1/4" (measured from back most to front most point on outer rim)
Overall Length: 60" (measured from left most to right most point on outer rim)
Basin Width (Bottom): 22" (back to front measurement of the bottom of basin walls)
Basin Length (Bottom): 45" (right to left measurement of the bottom of basin walls)
Basin Width (Top): 24" (back to front measurement of the top of basin walls)
Basin Length (Top): 55" (right to left measurement of the top of the basin walls)

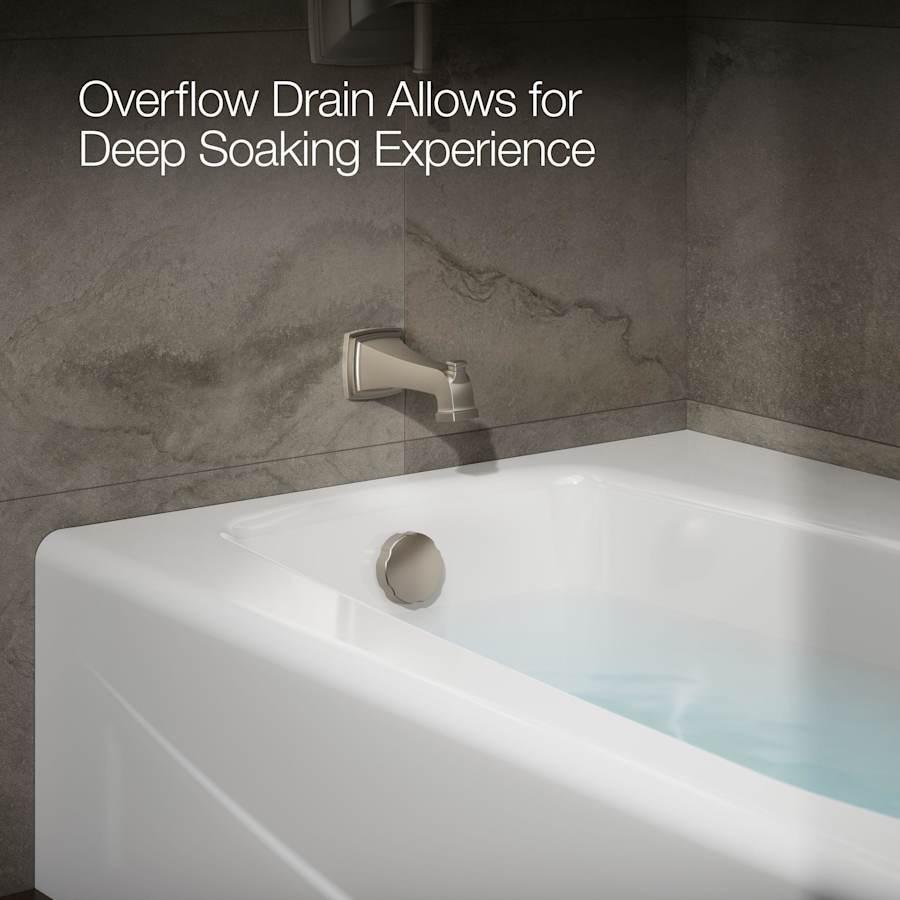

Water Depth: 8-5/8" (depth of water at tub's maximum capacity)
Maximum Water Capacity: 33-gallons
Drain Location: Left

Variations On This Tub:

K-713: This model
K-714: This model with right-hand drain
K-700: 72" free standing version of this model

With everything that Kohler does it lives on the leading edge of design and technology, while maintaining a constant level of quality regardless of price. Kohler sets the standard of excellence in its field, and yet is constantly striving to improve.

From sustainable products in the kitchen and bath, to engines for lawn tractors and generators, to power systems that protect data centers and urban landscapes all over the world; this is what the Kohler Company is all about.

Dimensions and Measurements

Basin Length
22 in.
Basin Width
45 in.
Capacity (Gallons)
33
Depth
8.625 in.
Height
14 in.
Length
60 in.
Nominal Length
60 in.
Nominal Width
35 in.
Overflow Height
8.63 in.
Top Area
55 x 24 in.
Tub Size
60 Inches
Width
34.25 in.

Included Components

Light Included
No

Characteristics and Features

Apron
Yes
Apron Front
Yes
Drain Placement
Left
Installation Type
Three Wall Alcove
Material
Cast Iron
Number Of Bathers
1
Number of Jets
0
Sound Dampening
Yes
Theme
Modern
Tub Shape
Rectangular

Warranty and Product Information

ADA
Yes
Approved for Commercial Use
Yes
Collection
Villager
Country Of Origin
USA
Made in America
Yes
