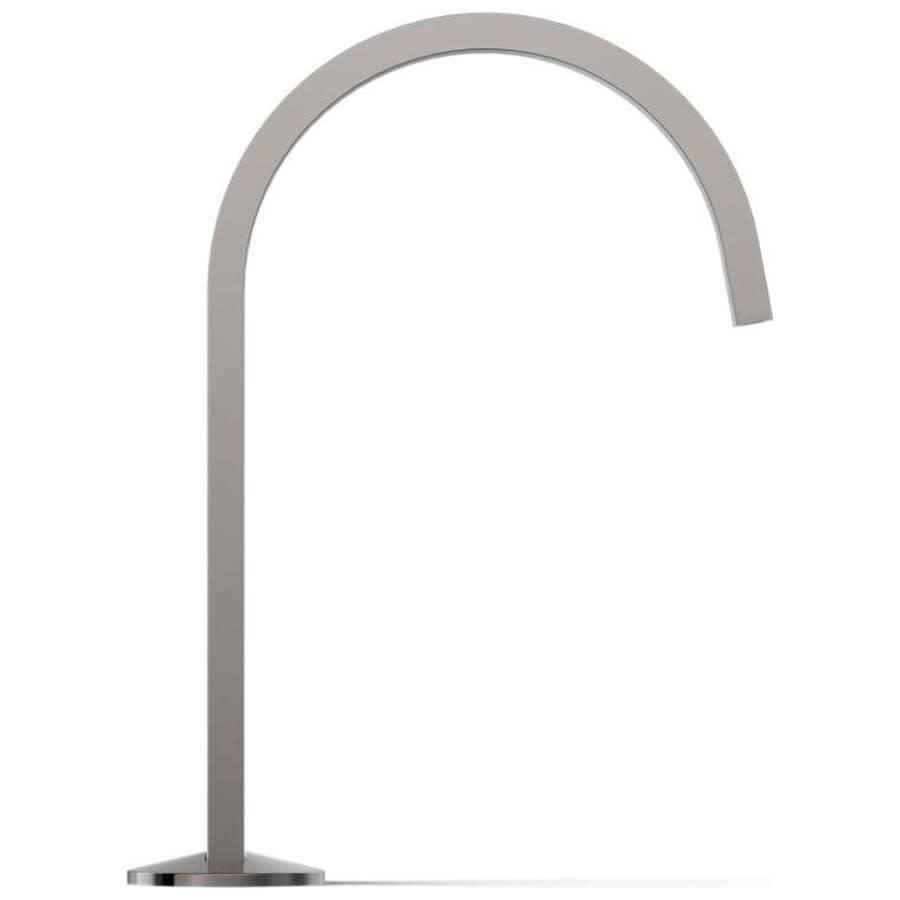

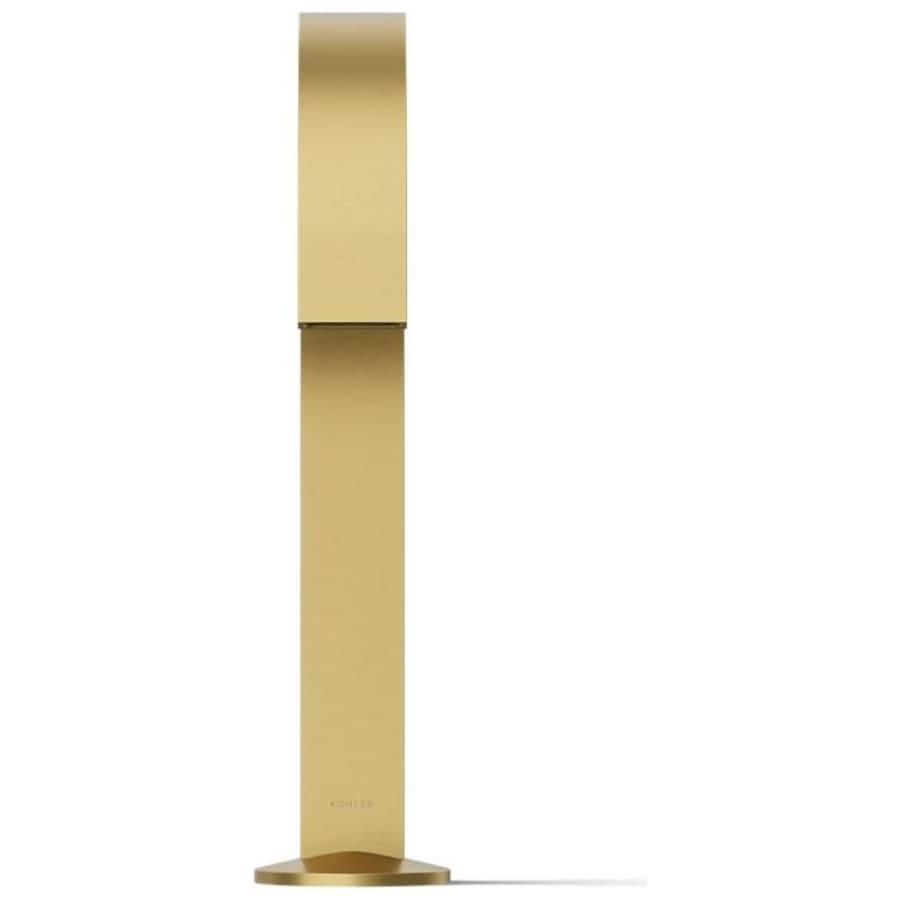

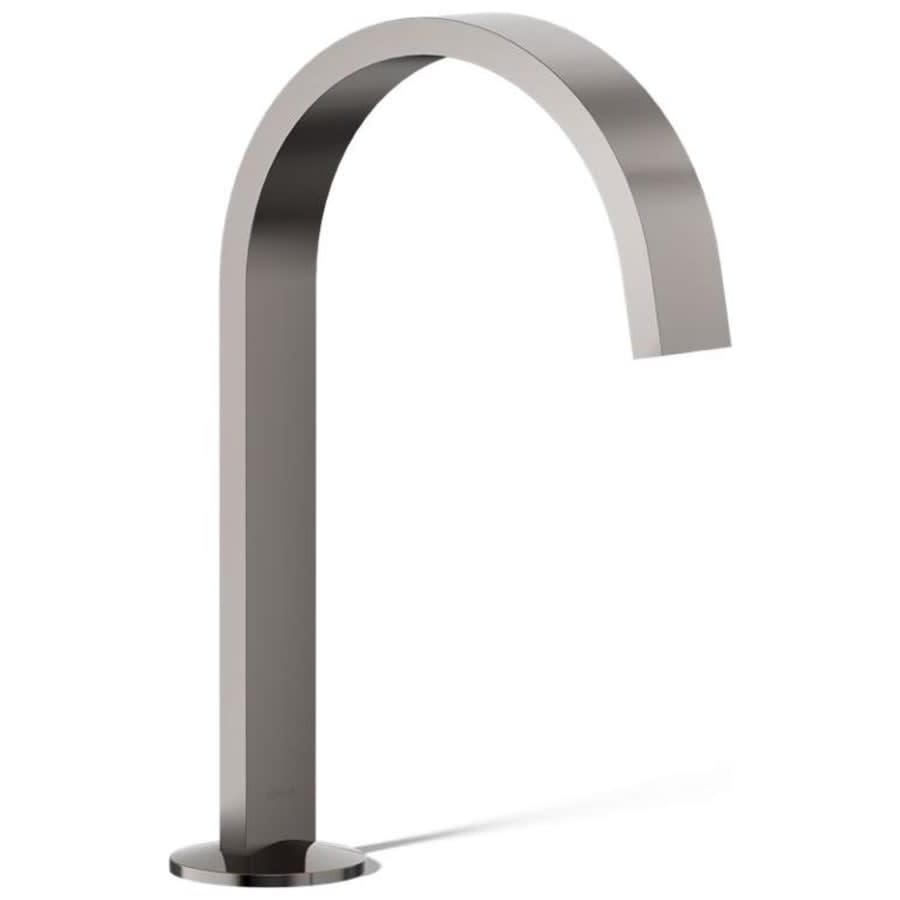

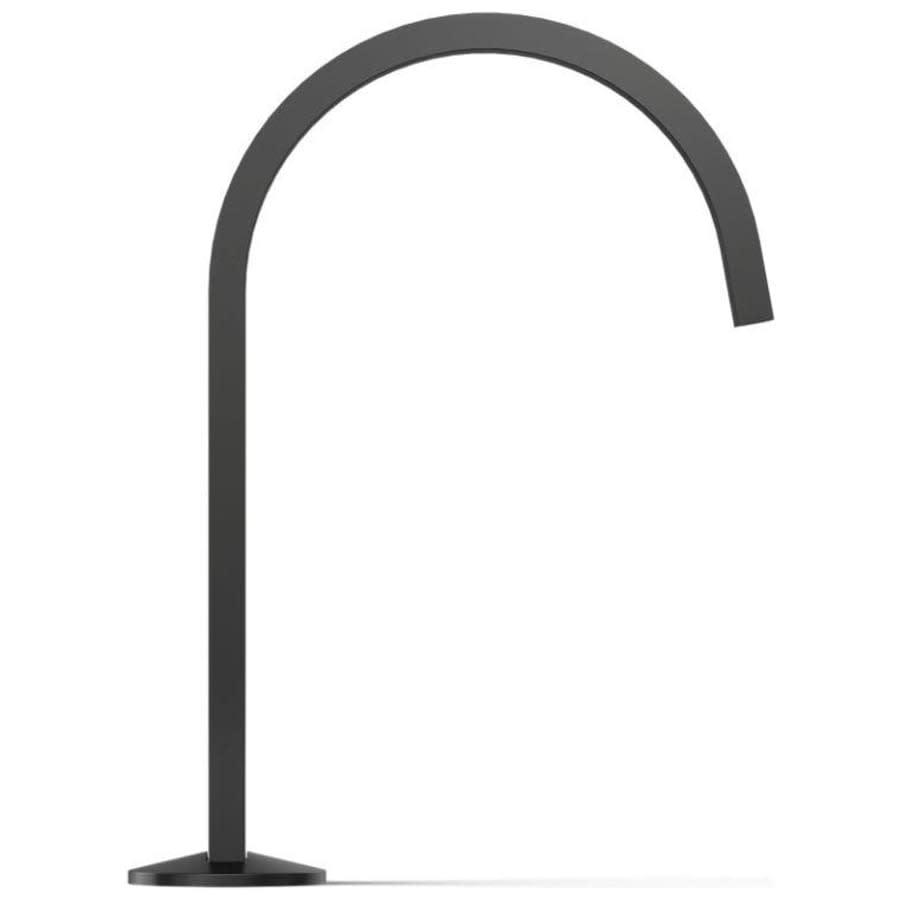

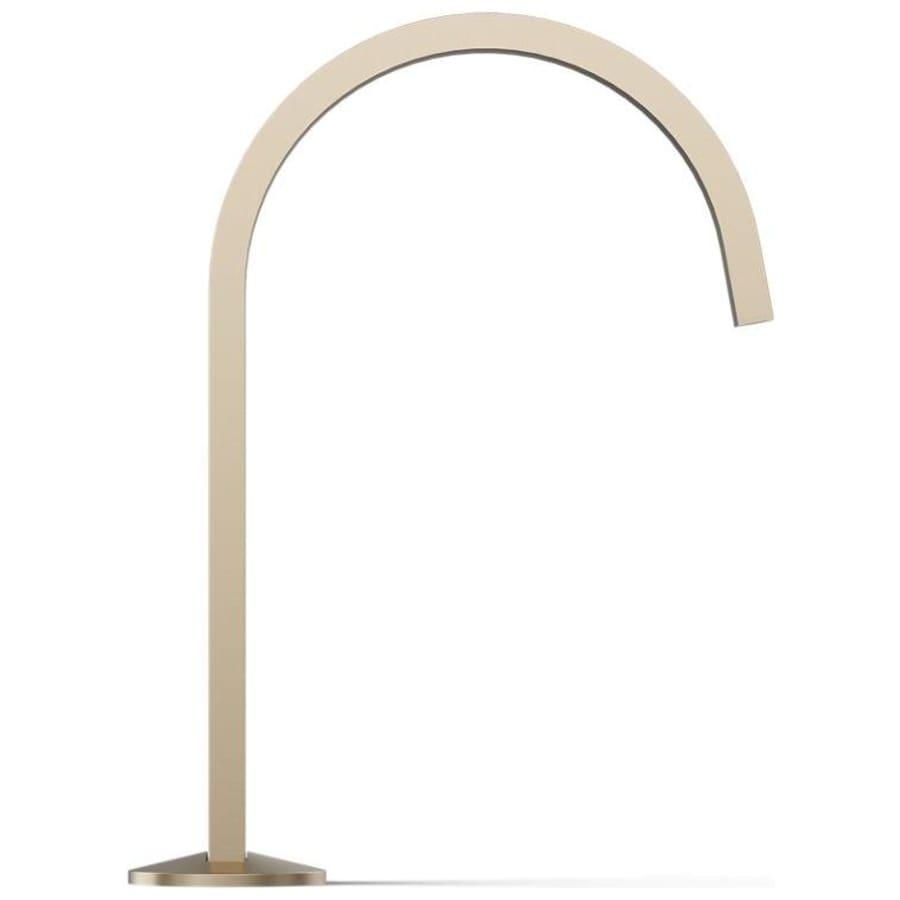

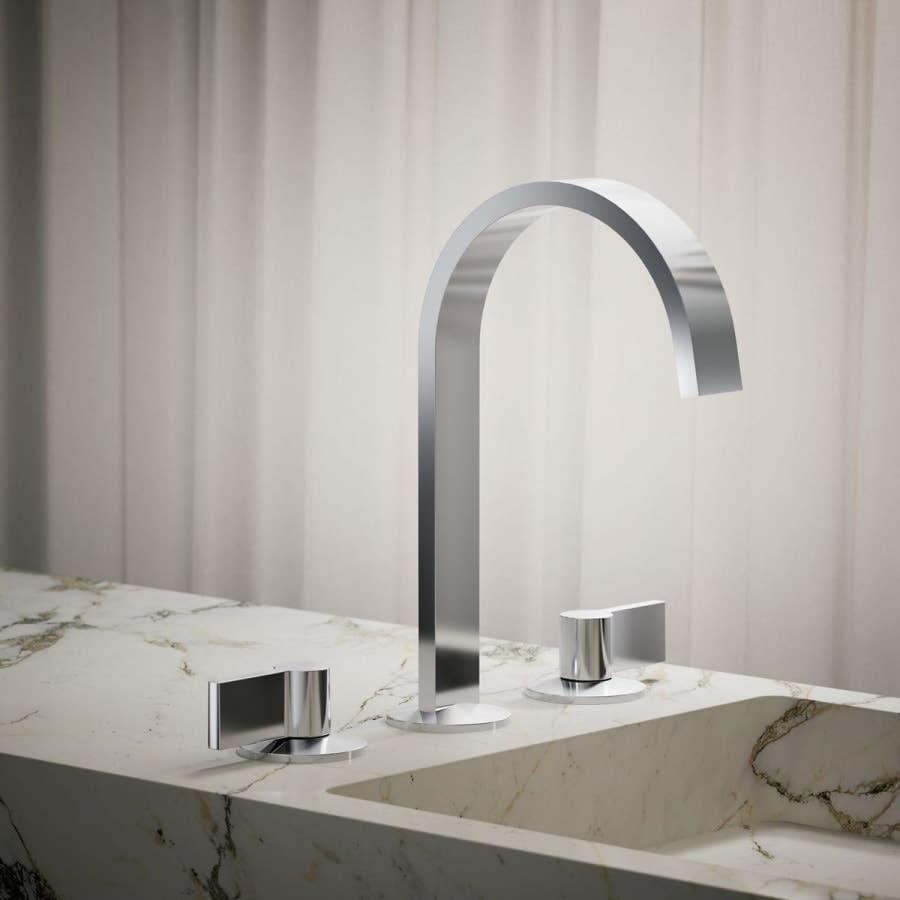

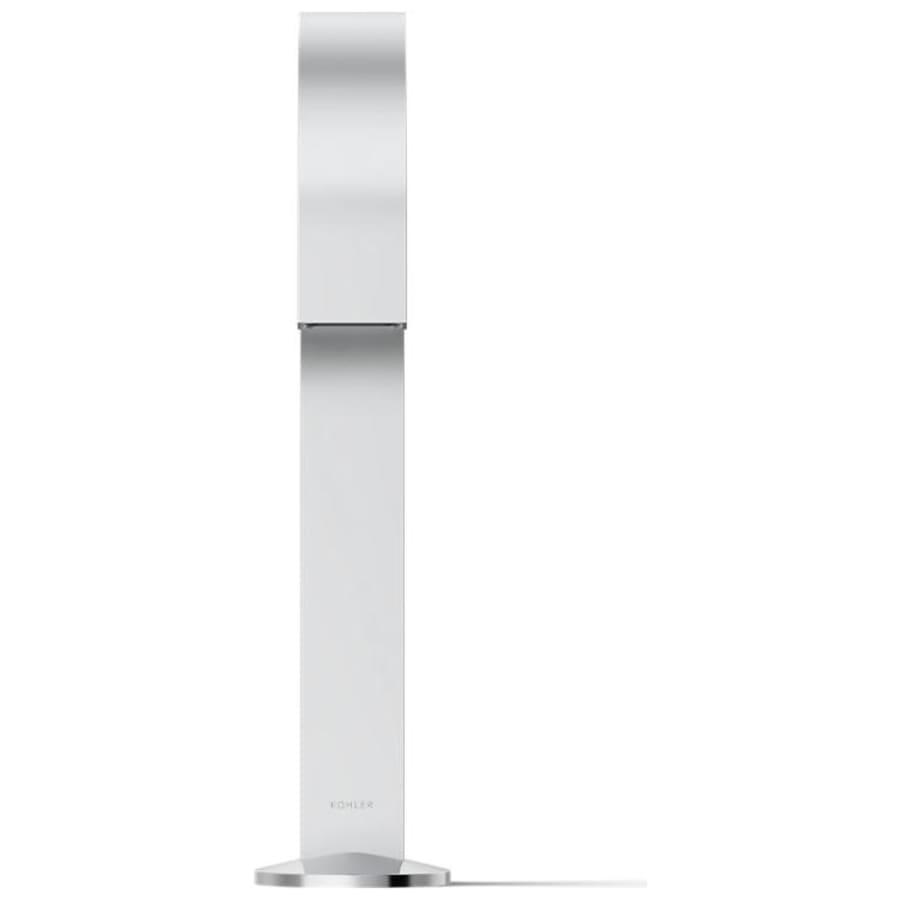

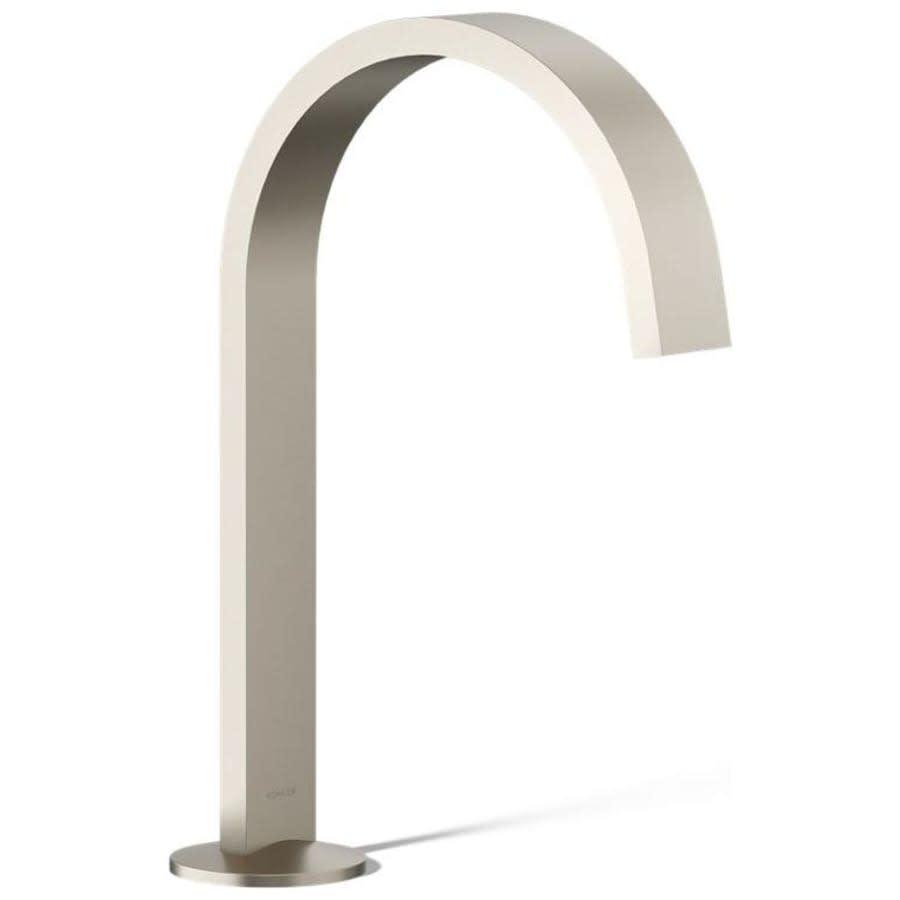

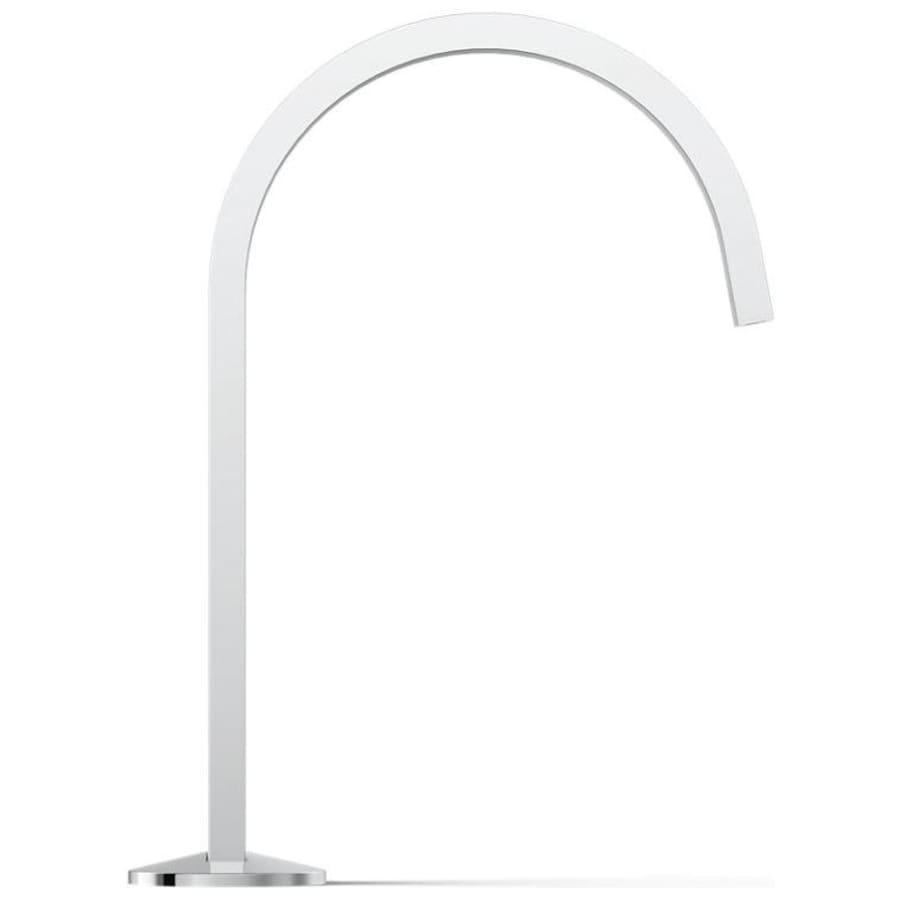

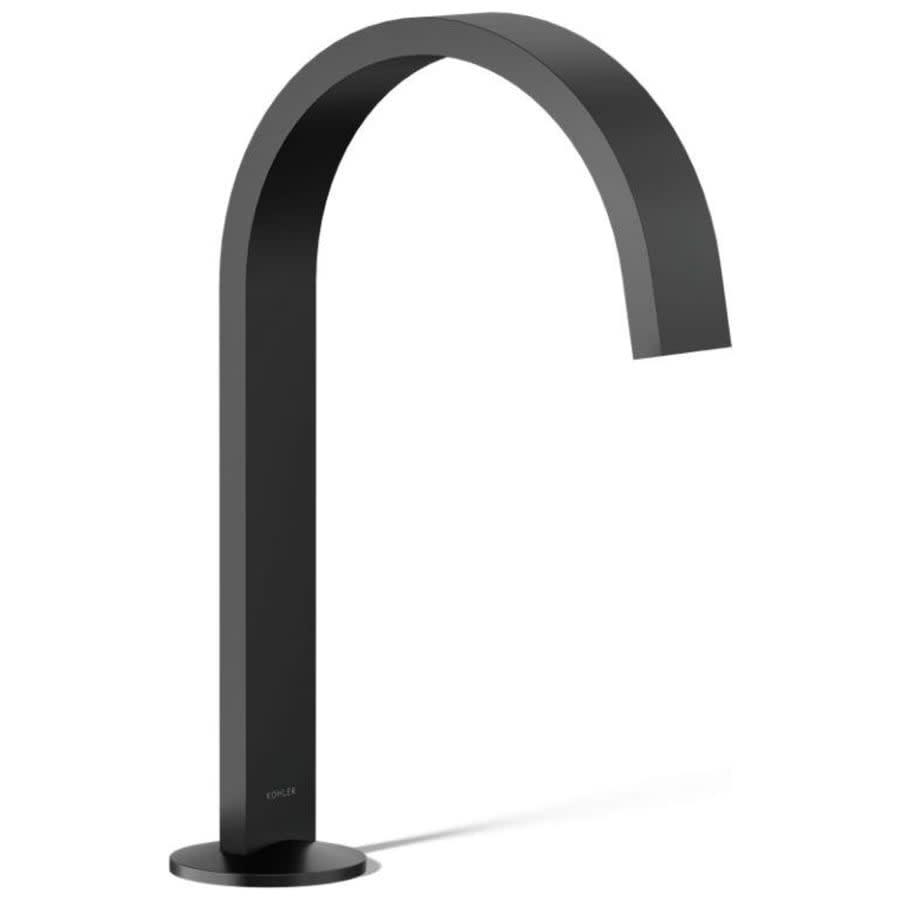

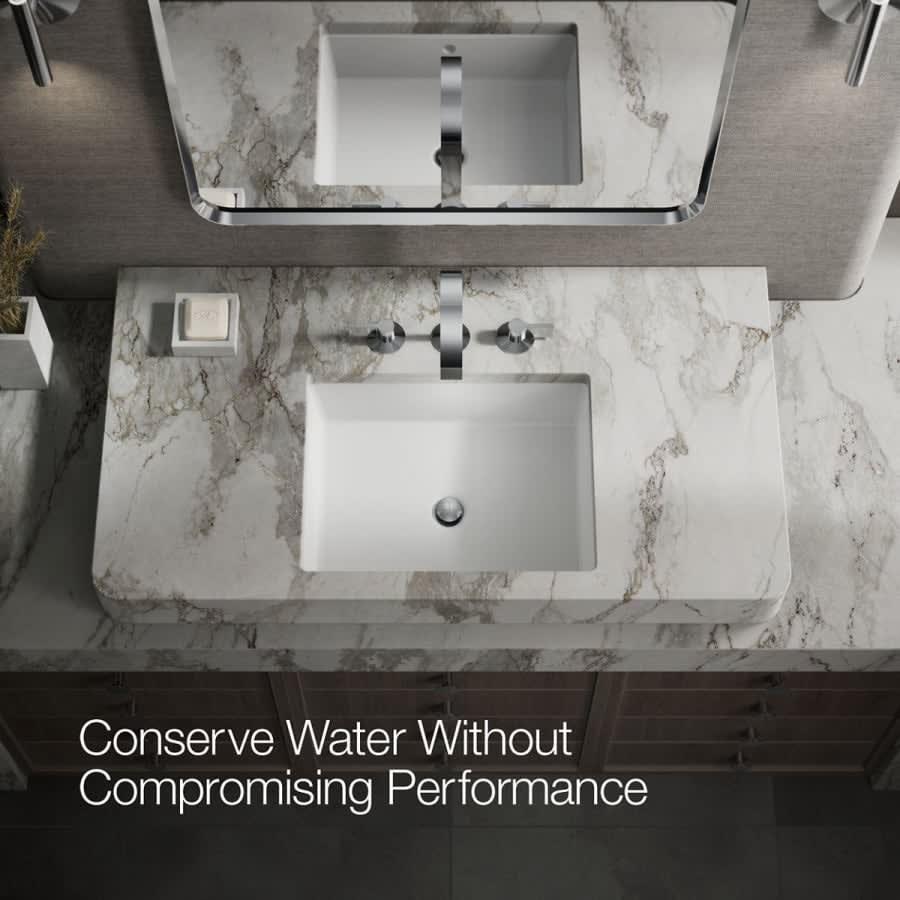

Modern form meets modern function: the Kohler Components collection is defined by controlled forms and stark precision in every line and angle. With Components, you design your custom bath. Choose a spout, handles, and finish to build your own signature modern look. Featuring a sweeping architectural aesthetic, this Ribbon spout pairs with your choice of Components sink faucet handles for a personalized design.

Kohler K-77968 Features:

Covered under Kohler's limited lifetime warranty
Faucet body constructed of brass
Brass is highly resistant to corrosion and an excellent choice to withstand high temperatures
Coordinates with products from the Components line
Widespread mounting type - 2, 3 hole faucet with 8" - 16" centers
Deck mounted installation - 2, 3 hole faucet mounts directly to sink or countertop
Valve not included - options will be presented at check-out
Drain assembly included
All hardware required for installation is included
Made in America
Laminar flow
Includes metal touch-activated drain with 1-1/4" tailpiece
This product can help a building earn Water Efficiency points in LEED Green Building Rating System

Kohler K-77968 Specifications:

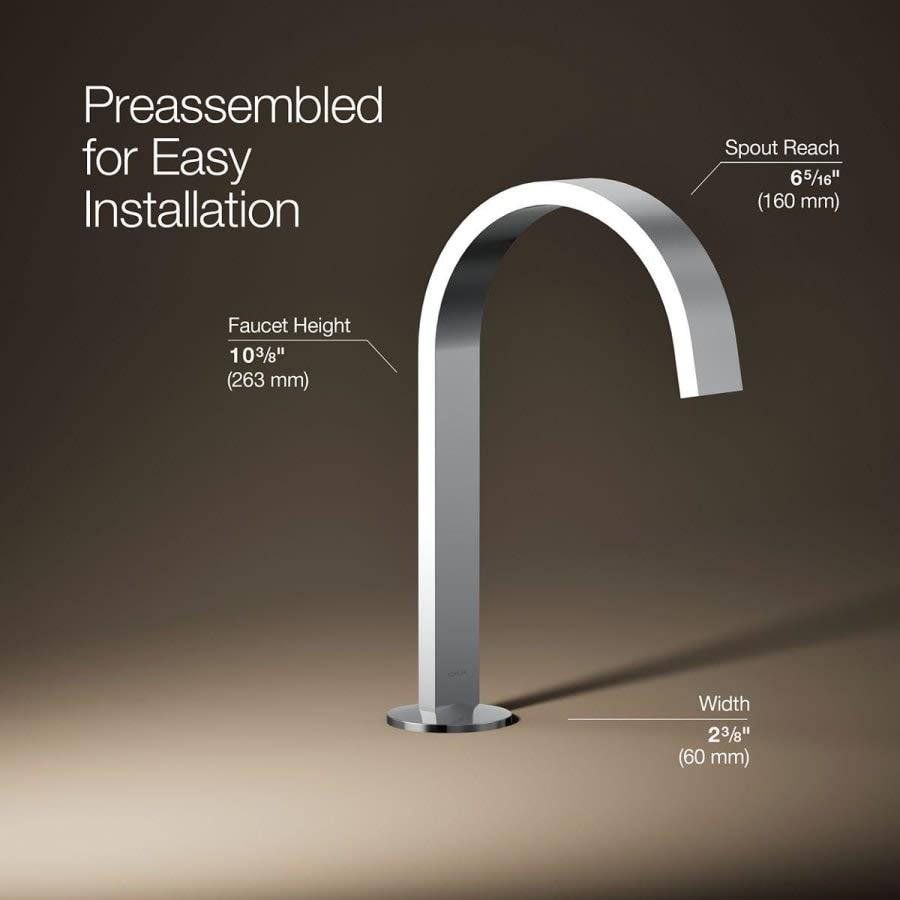

Height: 10-3/8" (deck to top of faucet)
Spout Height: 10-3/8" (deck to spout outlet)
Spout Reach: 6-5/16" (faucet base to spout outlet)
Flow Rate: 1.2 gallons-per-minute
Faucet Centers: 8" to 16" (distance between centers of outside faucet holes)
Maximum Deck Thickness: 2" (cannot mount on thicker decks)
Faucet Holes: 2, 3 (minimum number of holes required for installation)

Dimensions and Measurements

Faucet Centers
10, 11, 12, 13, 14, 15, 16, 8, 9 in.
Faucet Hole Size
1.25 in.
Flow Rate (GPM)
1.2
Height
10.37 in.
Max Deck Thickness
2 in.
Product Weight
5.04 lbs.
Spout Height
10.375 in.
Spout Reach
6.3125 in.

Included Components

Drain Assembly Included
Yes
Escutcheon Included
No
Handles Included
No
Installation Hardware Included
Yes
Pop-Up Included
Yes
Valve Included
No

Characteristics and Features

Electronic
No
Faucet Holes
2, 3
Faucet Type
Bathroom Sink Faucet
Handle Material
Metal
Installation Type
Deck Mounted
Material
Brass
Mounting Type
Widespread
Number Of Handles
2
Spout Type
Fixed
Theme
Modern
Valve Type
Ceramic Disc
Waterfall Faucet
No

Warranty and Product Information

ADA
No
ANSI Certification
372, 61
ASME Code
A112.18.1
CA Drought Compliant
Yes
Certifications
ANSI, ASME, CSA, NSF
Collection
Components
Country Of Origin
USA
CSA Code
B125.1
Lead Leaching Certified NSF/ANSI 61
Yes
Made in America
Yes
Manufacturer Warranty
Limited Lifetime
WaterSense Certified
Yes
