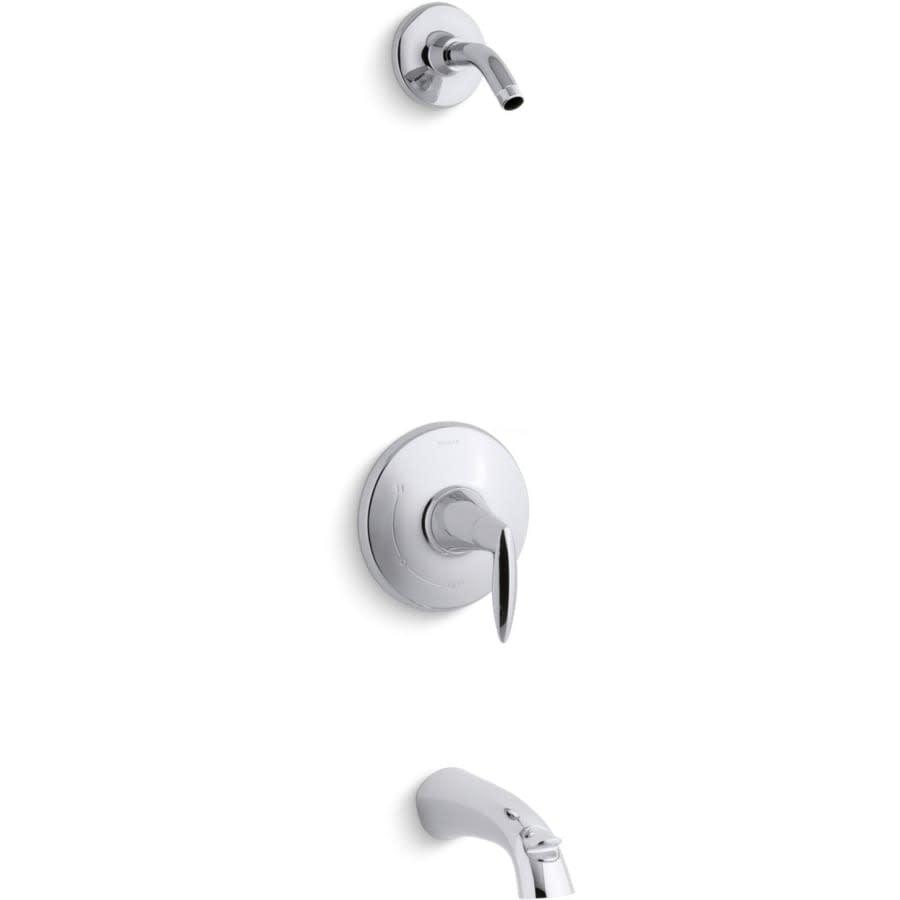

With sleek, confident curves inspired by nature, the Alteo faucet collection exudes a self-assured simplicity. Designed to deliver exceptional quality at an approachable price, the Alteo collection features fluid design lines that complement a wide range of bathroom styles. This bath and shower trim includes a bath spout, a shower arm with flange, and a single lever handle. Pair this trim with a Rite-Temp pressure-balancing valve, which maintains your desired water temperature during pressure fluctuations.

Kohler K-TLS45104-4 Features:

Pressure balancing diaphragm technology maintains outlet temperature within +/- 3 degrees fahrenheit during water pressure fluctuations
Provides temperature regulation and automatic anti-scald protection
Single handle controls both on/off activation and temperature setting
Includes faceplate with ADA compliant metal lever handle
Includes diverter bath spout with combination 1/2" NPT or slip fit connection
Includes shower arm with flange
For use with any Kohler showerhead (sold separately)
Coordinates with Alteo faucets and accessories

Kohler K-TLS45104-4 Valve Trim Specifications:

Valve Trim Dimensions: 7" H x 7" W

Kohler K-TLS45104-4 Tub Spout Specifications:

Tub Spout Reach: 4-7/16"
Integrated diverter for switching between tub and shower applications
Unrestricted flow rate allows for rapid filing of the tub

Dimensions and Measurements

Shower Arm Reach
4.5 in.
Spout Reach
4.4375 in.
Valve Trim Height
7 in.
Valve Trim Width
7 in.
Water Connection
1/2"

Included Components

Diverter Included
Yes
Handles Included
Yes
Handshower Included
No
Installation Hardware Included
Yes
Integrated Diverter
Yes
Integrated Volume Control
Yes
Shower Arm Included
Yes
Shower Head Included
No
Tub Spout Included
Yes
Valve Included
No
Valve Trim Included
Yes
Volume Control
No

Characteristics and Features

Diverter Location
Tub Spout
Faucet Type
Shower Faucet
Handle Material
Metal
Handle Style
Lever
Installation Type
Wall Mounted
Material
Metal
Number Of Handles
1
Pause Control
No
Scald Guard
Yes
Theme
Traditional
Tub Spout Material
Metal
Valve Trim Material
Metal
Valve Type
Pressure Balanced
Water Connection Type
NPT

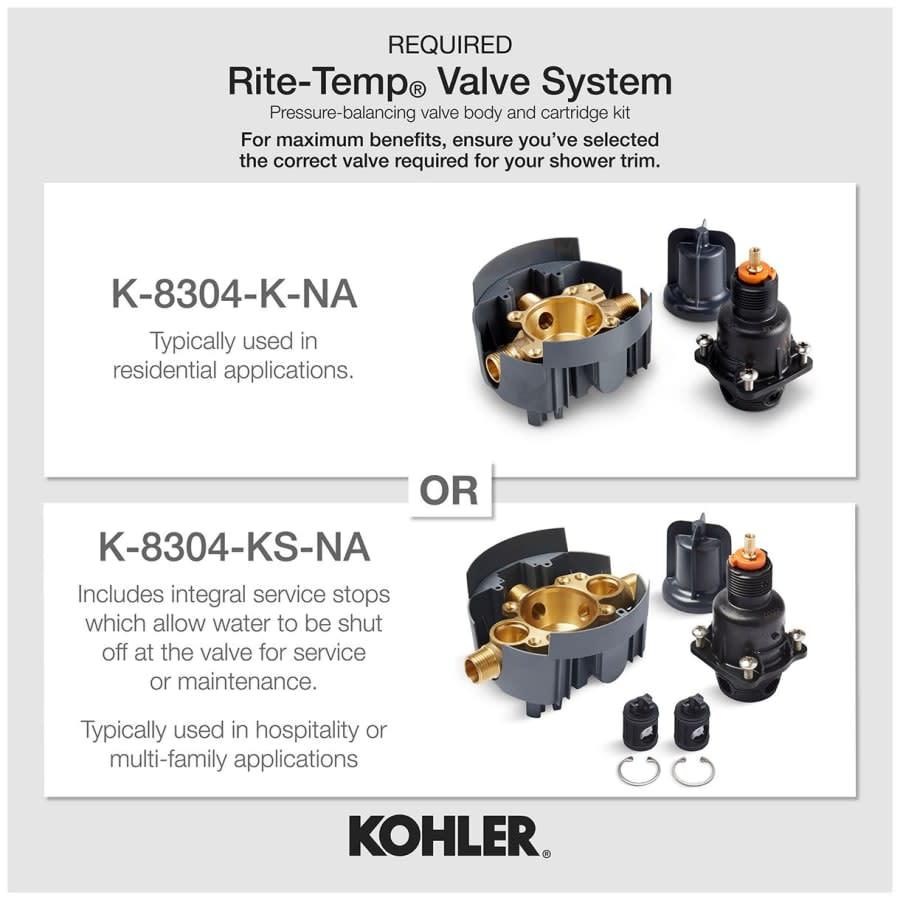

Manufacturer Technology

Valve Technology
8304 Series, 2971 Series

Warranty and Product Information

ADA
Yes
ANSI Certification
A117.1
ASME Code
A112.18.1
Certifications
CSA, ANSI, ASME
Collection
Alteo
Country Of Origin
USA
CSA Code
B125.1, B651
Made in America
Yes
Manufacturer Warranty
Limited Lifetime
