M-CORE is shower design on your time. This universal valve system is simpler and faster to install, and offers additional functionality with desired style choices to create an ideal shower environment. Moen has conducted extensive research to create M-CORE, and what drives the design is a passion to make the workday more streamlined for plumbers, and to give more freedom in showering functionality and design for both new construction and remodel projects. Homeowners and designers will enjoy M-CORE's improved style and finish options, including perfectly matching mixing and transfer trim, and refined details that provide the finishing touches to a dream bathroom. Once installed, M-CORE valves, with new 2-series trim, have pressure-balancing capabilities designed to control temperature fluctuations in the event of water changes in the home.

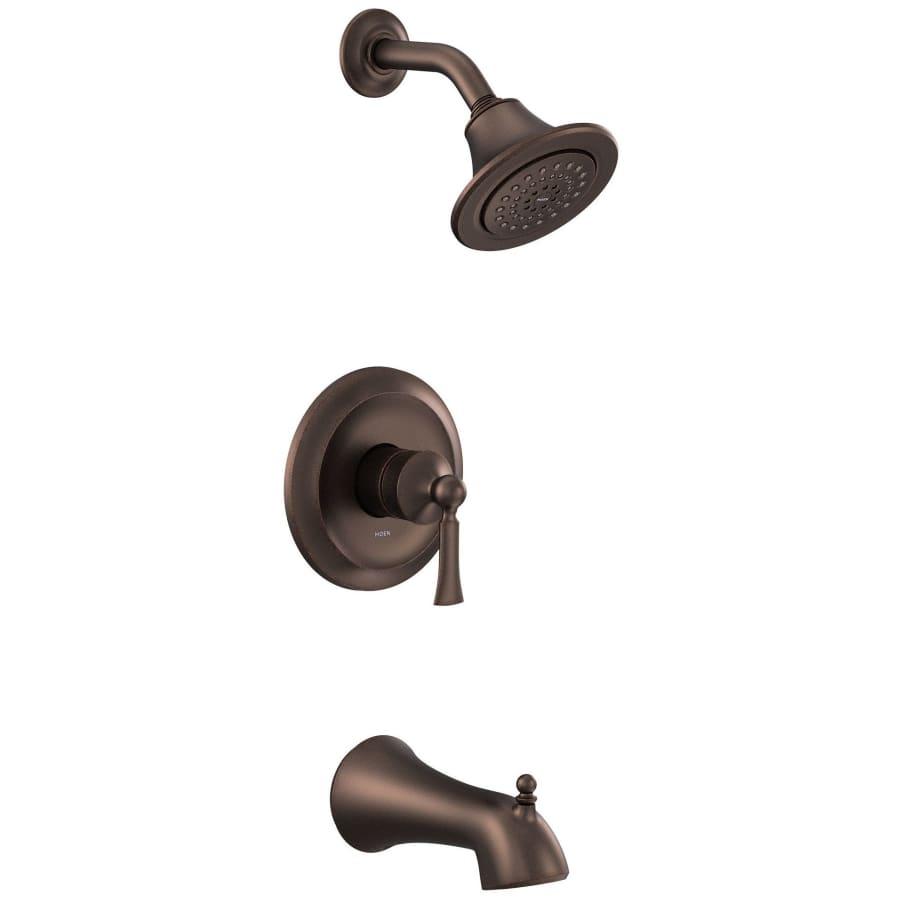

Moen UT24503EP Features:

Covered under Moen's limited lifetime warranty and a 5 year limited commercial warranty
Constructed of brass ensuring durability and dependability
Premier finishing process â finishes will resist corrosion and tarnishing through everyday use
Coordinates with products from the Wynford line seamlessly
Single function shower head
Pressure balanced valve trim - single cartridge controls the temperature of the water and the on/off function
Designed to easily install with standard U.S. plumbing connections
ADA compliant
Made in America

Moen UT24503EP Technologies and Benefits:

M-PACTÂ®: The innovative common valve system from Moenâ¢ gives the homeowner the most functionality and convenience when it comes to bathroom faucets. Designed to be a catch-all valve system, once M-PACTÂ® is installed you can upgrade the style of the lavatory or shower faucet without replacing any of the faucet plumbing.

Valve Trim Specifications:

Valve Trim Dimensions: 6-3/8" H x 6-3/8" W

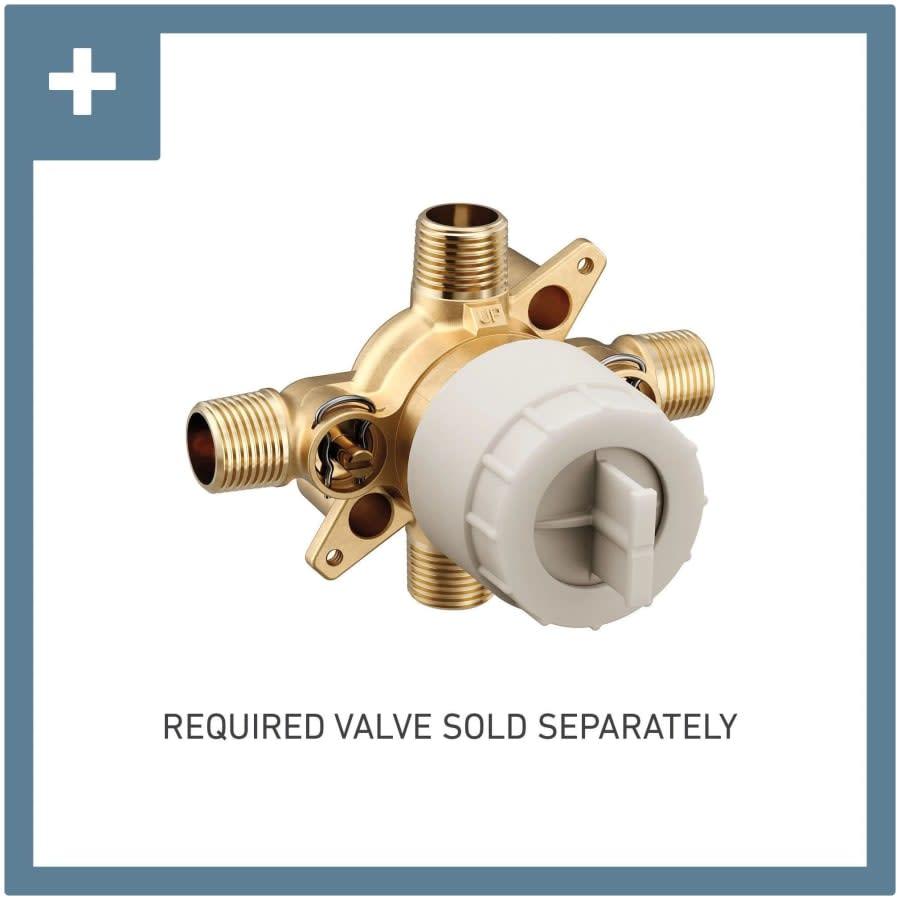

Rough-in valve sold separately

Shower Head Specifications:

Single function shower head
Shower Head Flow Rate: 1.75 gallons-per-minute
Shower Head Width: 5"

Tub Spout Specifications:

Integrated diverter for switching between tub and shower applications
Unrestricted flow rate allows for rapid filling of the tub

Dimensions and Measurements

Flow Rate (GPM)
1.75
Showerhead Flow Rate (GPM)
1.75
Showerhead Height
3.975 in.
Showerhead Width
5 in.
Spout Reach
7.875, 6.66 in.
Valve Trim Height
6.38 in.
Valve Trim Width
6.38 in.

Included Components

Diverter Included
Yes
Handles Included
Yes
Includes Exposed Pipe Riser
No
Integrated Diverter
Yes
Shower Arm Included
Yes
Shower Head Included
Yes
Tub Spout Included
Yes
Valve Included
No
Valve Trim Included
Yes
Volume Control
No

Characteristics and Features

Diverter Location
Tub Spout
Exposed Installation
No
Faucet Type
Shower Faucet
Handle Style
Lever
Installation Type
Wall Mounted
Material
Zinc
Number Of Handles
1
Pause Control
No
Showerhead
Single Function
Showerhead Material
Brass
Showerhead Shape
Round
Spray Pattern
Full
Spray Settings
1
Theme
Traditional
Tub Spout Material
Brass
Valve Trim Material
Brass
Valve Type
Pressure Balanced
Water Efficient
Yes

Manufacturer Technology

Valve Technology
M-CORE

Warranty and Product Information

ADA
Yes
Approved for Commercial Use
Yes
ASME Code
A112.1016, A112.18.1
CA Drought Compliant
Yes
Certifications
ASME, CSA
Collection
Wynford
Commercial Warranty
5 Year Limited
Country Of Origin
USA
CSA Code
B125.1, B125.16
Made in America
Yes
Manufacturer Warranty
Limited Lifetime
WaterSense Certified
Yes
