Specs & Details

Dimensions: 33 3/8 H x 23 3/4 W x 24 D

APPEARANCE

Color Appearance	Fingerprint Resistant Stainless
Door Appearance	Full-length flat door
Door Style	Flat Door
Handle	Towel Bar
Handle Color	Fingerprint Resistant Stainless
Installation	Side Installation or Top Installation Included Built-Up Floor Capable

ECONOMICAL / QUIET

Quiet Package

52 dBA

FEATURES

Active Flood Protection	Active Flood Protect
Control Type	Top Controls Fully Integrated Inlaid Electronic Buttons 6 Touchpads
Cutlery Tray	Optional 3rd rack (GPF3RACK)
Dishwasher Control Features	3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators Last Cycle Memory Audible End-of-Cycle Signal
Dishwasher Cycles	AutoSense Heavy Wash Normal Wash 1 Hour Wash
Dishwasher Drying Features	Dry Boost™ Calrod Heater
Dishwasher Options	Dry Boost™ (High) Dry Boost™ (Normal) Wash TempBoost Steam + Sani (Certified to NSF Standard 184) Start/Reset Lock Controls Delay Start 1-12 Hr. with Countdown Steam PreWash Sabbath Mode
Dispenser	Detergent Rinse Aid
Exterior Style	Traditional
Latch	Center Pull
Leveling System	4 Leveling Legs
Number of Cycles	4
Number of Options	6
Number of Place Settings	16
OU Certified	No
Product Type	Built-In
Rack Color	Silver
Rack Features	1 Piece Silverware Basket with 3 Cell Covers 1 Utility Shelf with Stem Safe Chop stick slots Ball-Tipped Tines
Sabbath Mode	Yes
Sensor	Clean Sensor
Showroom Power Mode	Yes
Style	Built-In Top Control
Tub and Door Liner	Gray Plastic
Tub Type	Tall Tub

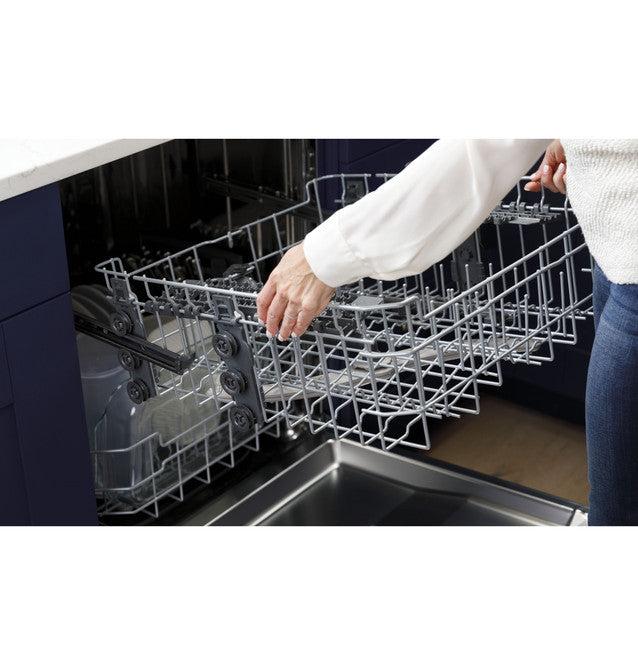

Upper Rack	Removable Adjustable 1 Stem Safe Shelf
Wash Arms	Upper Middle Lower
Wash System	3-Level
Wash System Features	Piranha™ Hard Food Disposer with removable filter Automatic Temperature Control Automatic HotStart Fill Level Pressure Sensor Active Flood Protect
Water Filtration System	100% Filtration with Piranha Hard Food Disposer and Removable Filter
WiFi Connect	Optional (Requires part no. PBX23W00Y0)

POWER / RATINGS

Calrod Heater Watts	800/500
Electrical Requirements	120V ; 60Hz ; 7.1A
Power Connection	Optional cord kit (GPFCORD - WX09X70910, WX09X70911)

WARRANTY

Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details

WEIGHTS & DIMENSIONS

Approximate Shipping Weight	72 lb
Cabinet Width	24 in
Cutout Depth (in)	24 in
Cutout Height (in)	33 1/2 in
Cutout Width (in)	24 in
Depth with Door Open	27 1/2 in
Height w/ Legs Retracted - Minimum Height	33.375 in
Height w/Legs Extended - Maximum Height	34.625 in
Net Weight	58 lb
Overall Depth	24 in
Overall Height	33 3/8 in
Overall Width	23 3/4 in
