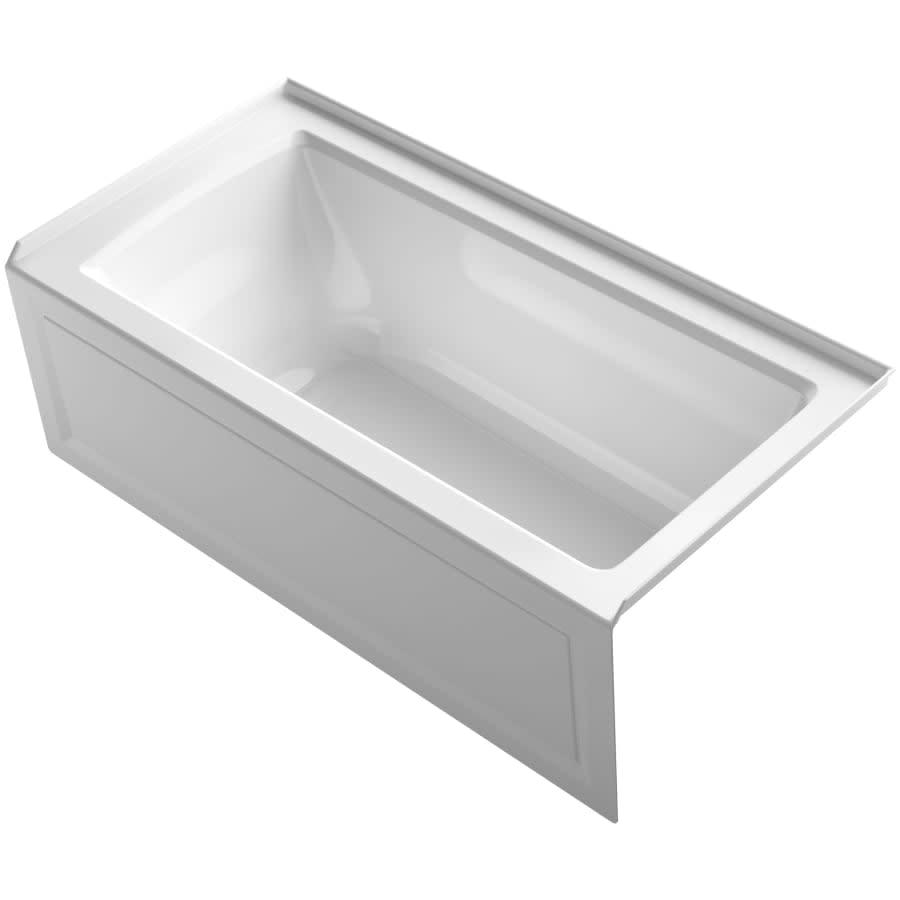

Archer

Design cues from traditional Craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This bath offers a low step-over height while allowing for deep, comfortable soaking. Kohler ExoCrylic is the next generation of bathroom acrylics, featuring a lighter weight for easier installation and 90% fewer VOCs produced during manufacturing. Lifestyle

Product Features:

Kohler tubs are fully covered under warranty for up to a year after installation
Tub constructed of acrylic
Comfort height design – provides a lower wall to step over when entering the bath, while maintaining the comfortable soaking depth of standard tubs
Three wall alcove installation type with tile flange and integral tub apron
Tub comes standard with molded lumbar support
A textured slip-resistant bottom takes the worry out of slipping and sliding as you move about the tub
Equipped with an overflow assembly permitting the user to enjoy a deep soak without worrying about spillage
ADA compliant - complies with the standards set forth by the Americans with Disabilities Act
Product Meet or Exceeds the Following Codes/Standards: ADA, ICC/ANSI A117.1 and CSA B45.5/IAPMO Z124

Product Technologies and Benefits:

Material - ExoCrylic - Kohler Baths constructed of ExoCrylic material are 30% lighter and offer an easier, mortar-less installation, as well as using 90% fewer volatile organic compounds produced during manufacturing.

Product Specifications:

Overall Height: 19" (measured from the top of tub rim to the bottom of basin)
Overall Width: 30" (measured from back most to front most point on outer rim)
Overall Length: 60" (measured from left most to right most point on outer rim)
Basin Width (Bottom): 19-11/16" (back to front measurement of the bottom of basin walls)
Basin Length (Bottom): 45-1/8" (right to left measurement of the bottom of basin walls)
Basin Width (Top): 22-1/16" (back to front measurement of the top of basin walls)
Basin Length (Top): 52-1/8" (right to left measurement of the top of basin walls)
Water Depth: 15-1/8" (depth of water at tub’s maximum capacity)
Maximum Water Capacity: 57 – gallons
Drain Location: Right

Lifestyle

Variations:

K-1946-RAW: Soaking with Bask
K-1947-GRA: Air Bath
K-1947-GRAW: Air Bath with Bask
K-1947-RA: Whirlpool
K-1947-HRA: Whirlpool with Heater
K-1947-RAW: Whirlpool with Bask
K-1947-XHGRA: Whirlpool/Air
