Product Features:

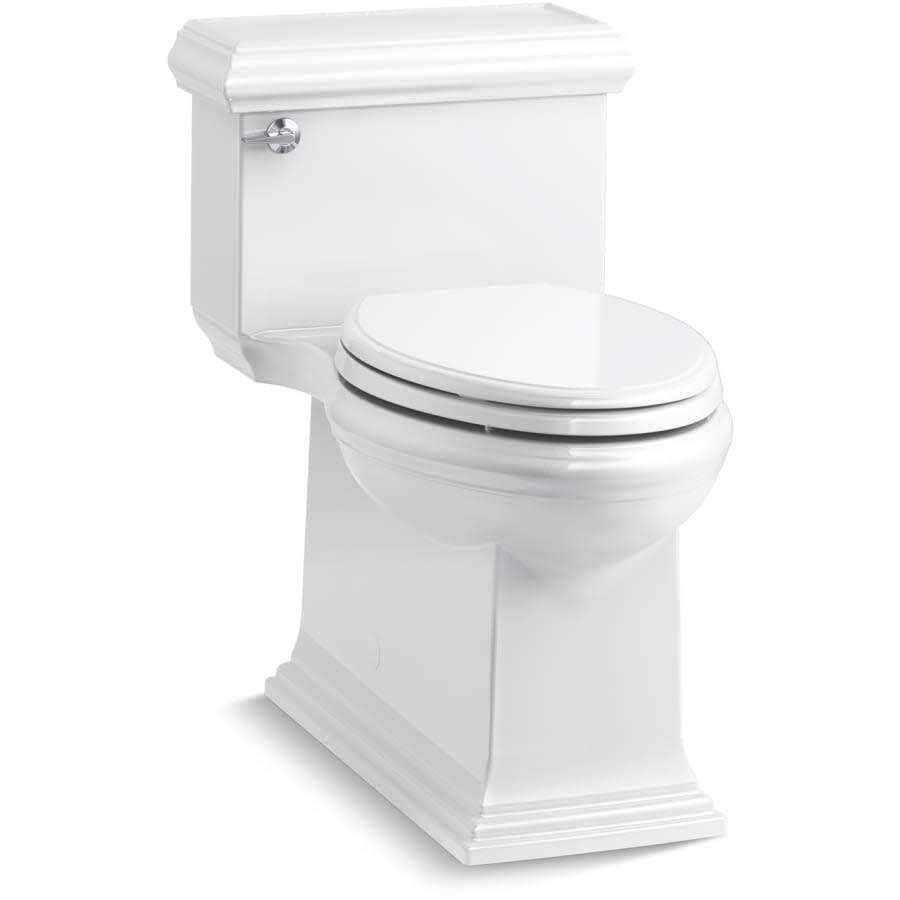

One-piece configuration provides a uniform look and simplifies installation

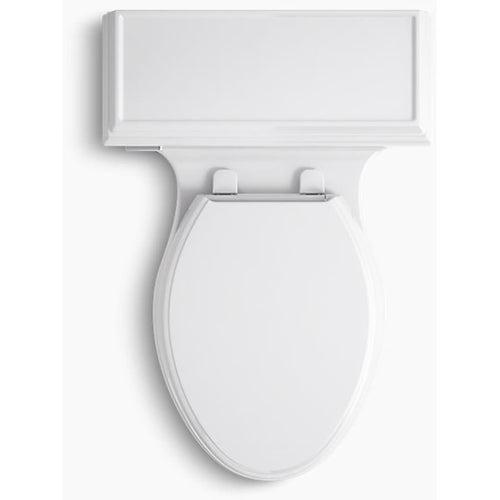

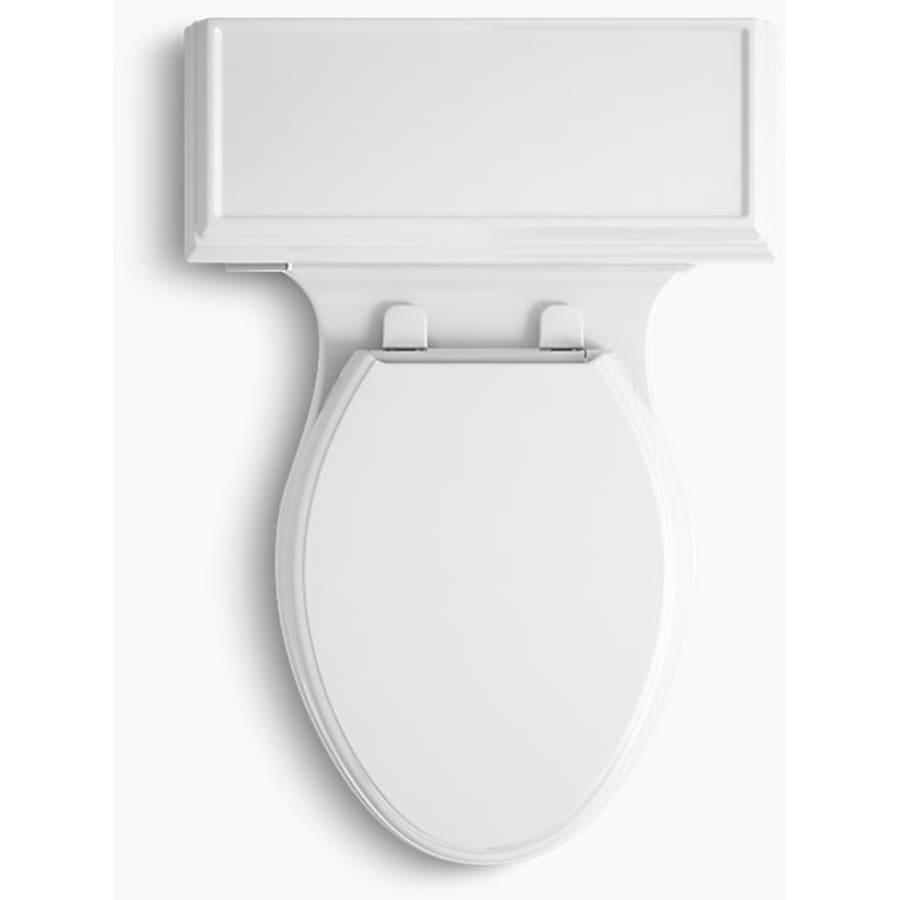

Compact-elongated bowl offers comfort and convenience of an elongated bowl while occupying the same space as a rount-front bowl
Covered under Kohler's 1 year limited warranty

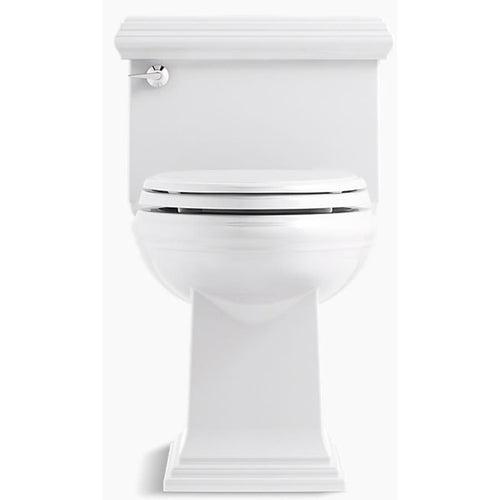

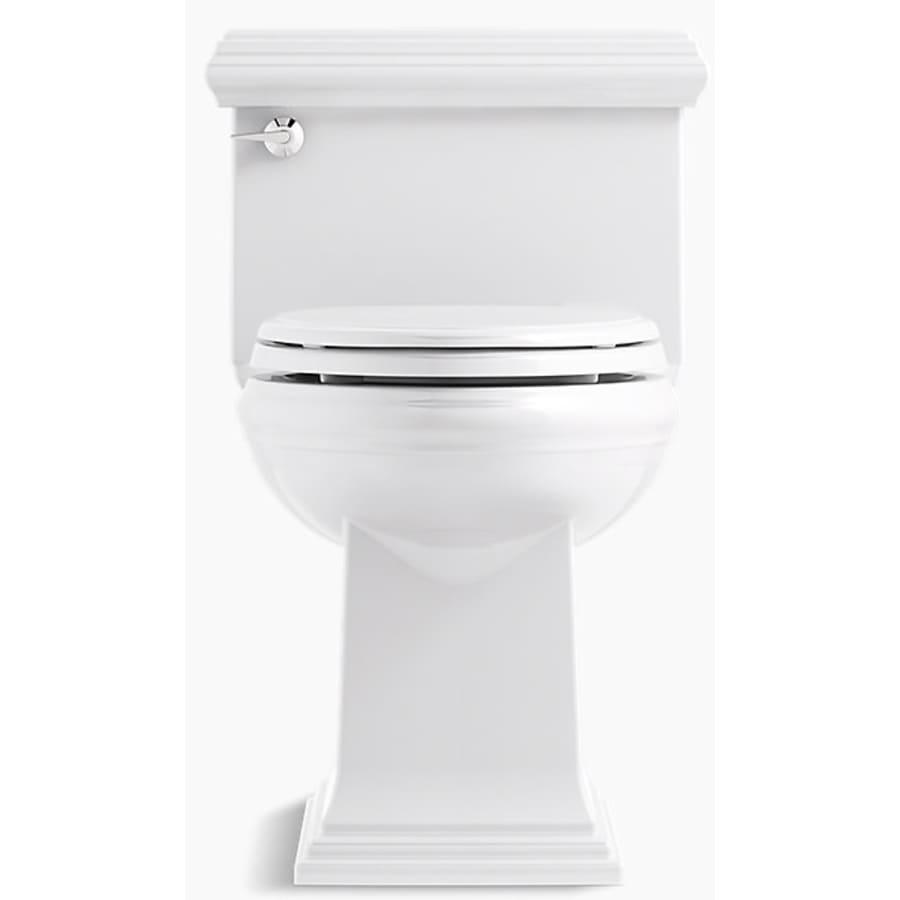

Left hand trip lever

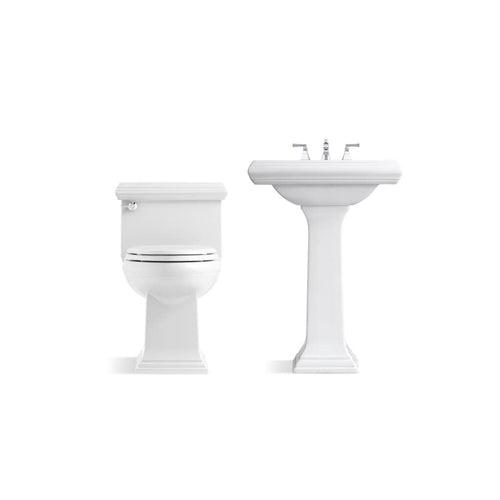

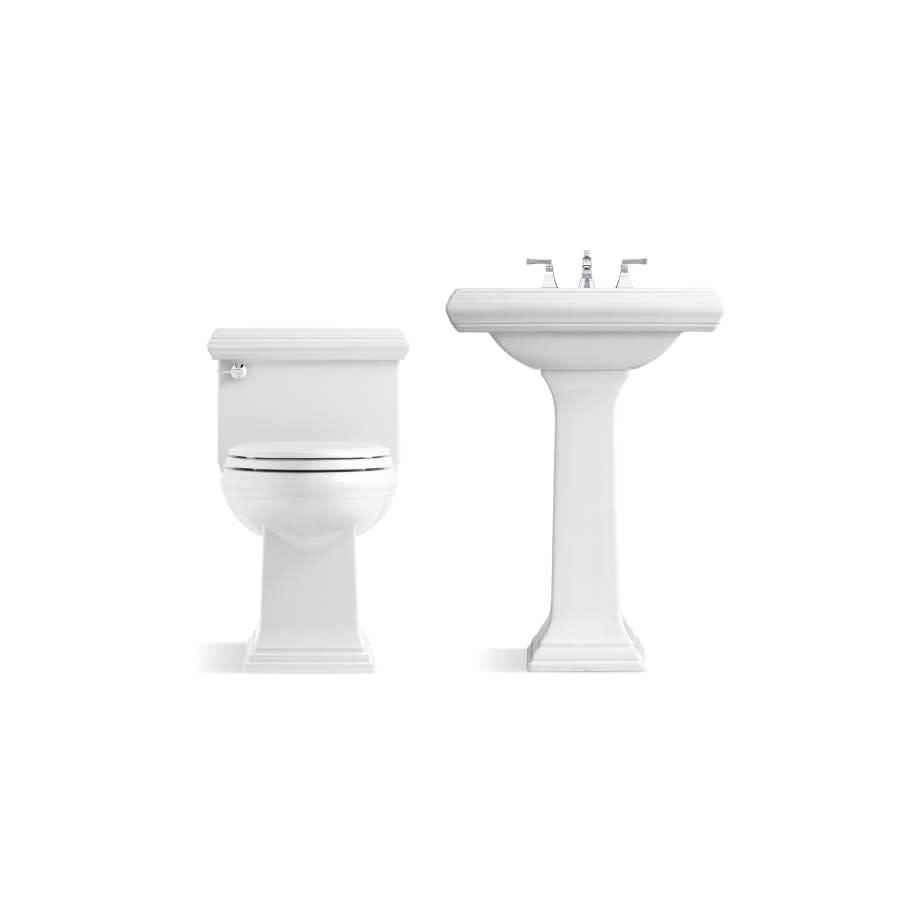

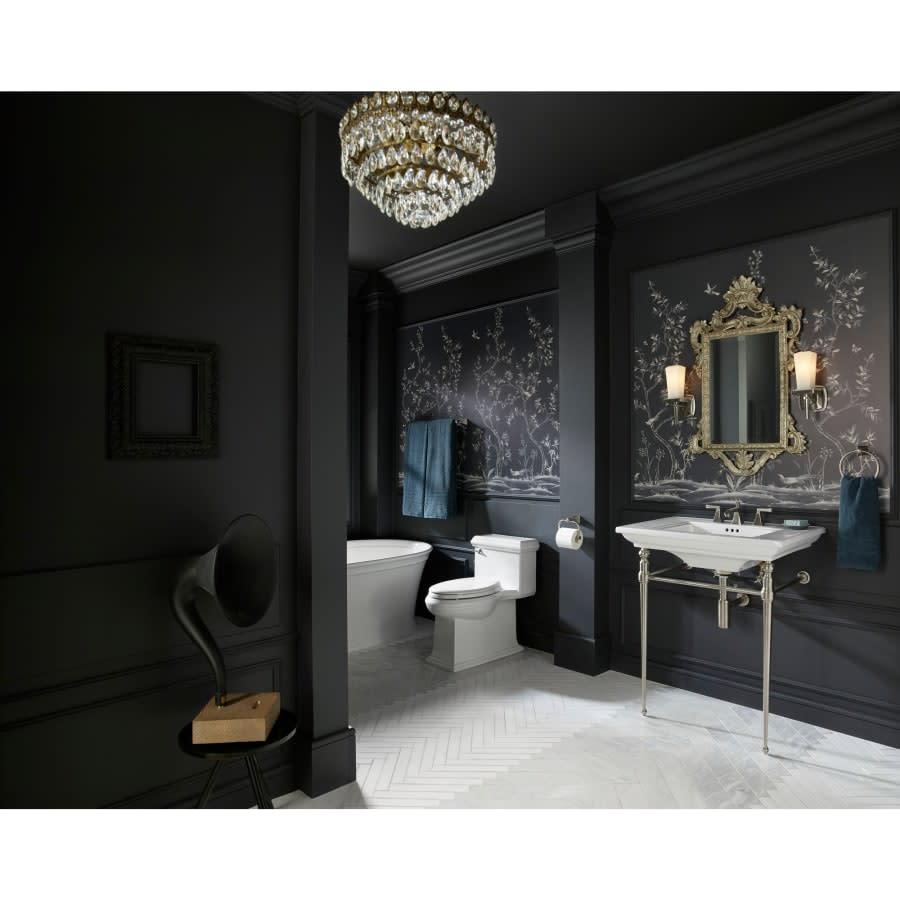

Memoirs collection is steeped in the traditions of classic Americana, bringing a playful eccentricity and eclectic elegance to the bathroom
Constructed of durable, easy to clean vitreous china
Installs in a floor mounted configuration
Features a powerful gravity flush with AquaPiston technology
ADA compliant - complies with the standards for toilets set forth by the Americans with Disabilities Act
Comfort Height - designed for ease of use, with a higher than average bowl
WaterSense certified - toilet uses 20% less water than the current standard while still maintaining superior performance

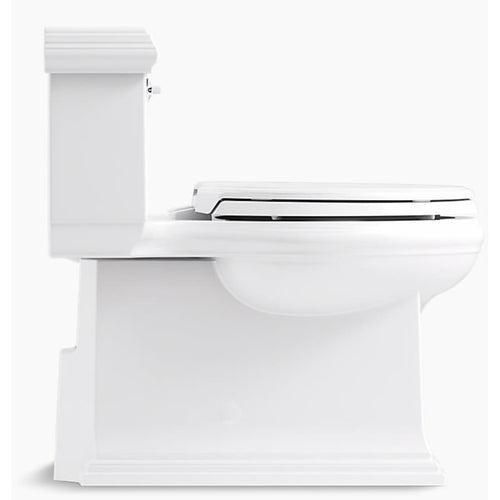

Concealed trapway - a built-in skirt hides the discharge passageway from view, for a smoother, less utilitarian appearance
Skirted trapway simplifies cleaning
Best in class installation methods allowing for 10, 12, or 14 inch rough ins
- 10 and 14 inch kits sold separately (K-5381 and K-5383)
Includes a soft close seat with cover

Product Technologies / Benefits:

Easy to Clean: One-piece toilets integrate the tank and bowl into a seamless easy-to-clean design. Because the toilet's shape has fewer crevasses than two-piece models, there are not as many spaces for dirt to hide. This model also features a fully skirted trapway, meaning that the sides of the toilet are smooth and flat. This feature simplifies cleaning and offers a look that is aesthetically pleasing as well.
Simplified Installation: The Tresham one-piece toilet features an innovative trapway installation system. The system anchors the toilet to the floor for a secure, caulk-free installation. The standard 12" rough-in requires no drilling, no special tools and is easy to install on all floor types. There are also kits available to accommodate 10 and 14 inch rough-in installations.
AquaPiston: AquaPiston single flush canister technology uses the force of gravity and a precision-engineered tank, bowl, and trapway to create a strong, efficient siphon during flushing. The canister flush valve's 3:2 ratio optimizes flush performance and resists warping and deterioration, while its durable design features 90% less exposed seal material than a standard 3-inch flapper flush valve, guaranteeing leak-free performance. The light-touch canister requires lower activation force than a flapper, and once activated, allows water to flow into the bowl from all sides (360 degrees), increasing each flush's power and effectiveness.
Comfort Height: Comfort Height toilets offer the greatest accessibility and ease of use with a bowl height of between 16-1/2" and 18", the same as a standard chair.
WaterSense Certified Product: To help make a difference on a global scale and to further its role as an industry leader in eco-performance practices, Kohler has established partnerships with a number of environmental organizations, including WaterSense. Many Kohler faucets and toilets are equipped with low-flow technology - they use less water, while continuing to meet superior performance standards.

Product Specifications:

Overall Height: 28-1/4" (measured from bottom of base to top of tank)
Overall Depth: 27-3/4" (measured from back of tank to front of rim)
Overall Width: 18" (measured from rightmost to leftmost edge of toilet)
Bowl Height: 16-1/2" (measured from floor to bowl rim)
Flow Rate: 1.28 GPF (gallons per flush)
Water Area: 9-5/8" x 7-3/8" (inner rim dimensions of bowl, length x width)
Water Depth (from Rim): 5-3/8"
Tank Width: 18" (measured from leftmost to rightmost edge of tank)
Tank Depth: 7-1/16" (measured from back edge to front edge of tank)
Trapway (Discharge Passageway) Size: 2-1/2"
Distance Between Toilet Seat Installation Holes: 5-1/2"
Rough-In: 12"

Inspired by elegant architecture and crown molding, this Memoirs collection toilet with Classic design delivers functionality and water savings--as well as traditional style. A high-efficiency 1.28-gallon flush offers up to 16,500 gallons of water savings per year (versus a 3.5-gallon toilet) without sacrificing performance. The included seat, positioned at chair height for your comfort, features technology for noiseless closing and easy cleaning.

Dimensions and Measurements

Bowl Height
16.5 in.
Depth
27.75 in.
Flush Valve Size
3 in.
Gallons Per Flush
1.28
Height
28.25 in.
Rough In
12 in.
Trapway
2.125 in.
Water Area
9.625 x 7.375
Width
18 in.

Included Components

Angle Supply Included
No
Seat Included
Yes

Characteristics and Features

Bowl Shape
Elongated
Configuration
One Piece
Design Features
Concealed Trapway, Soft Close, Chair Height
Flush Type
Gravity Flush
Installation Type
Floor Mounted
Material
Vitreous China
Seat Front
Closed
Theme
Traditional
Trip Lever Finish
Chrome
Trip Lever Placement
Left
Water Efficient
Yes

Manufacturer Technology

Flush Technology
AquaPiston

Warranty and Product Information

ADA
Yes
Approved for Commercial Use
No
ASME Code
A112.19.2
CA Drought Compliant
Yes
Certifications
ASME, CSA
Collection
Memoirs, Comfort Height
Country Of Origin
USA
CSA Code
B45.1
Manufacturer Warranty
1 Year Limited
TX Drought Compliant
Yes
WaterSense Certified
Yes
