With Ecostat shower trims, Hansgrohe offers you sophisticated technology for concealed Installation. Ecostat concealed shower trims are ideal for new buildings or if an iBox universal plus rough is already installed in your wall. The advantage of the concealed version is that the technology disappears invisibly into the wall, saving space. Ecostat trims impress with their Elegant design, safety, sophisticated functionality, high value and proven Hansgrohe quality. The choice in style is yours: Hansgrohe Ecostat is available in three design variants : Ecostat E with rounded corners, Ecostat S in a round shape and Ecostat in a square design. The flat concealed thermostats are simply mounted on the iBox universal plus rough . Concealed Installation is interesting for anyone planning or building a new bathroom. And for purists who like their bathroom to be clear and tidy.

Hansgrohe 04231 Features:

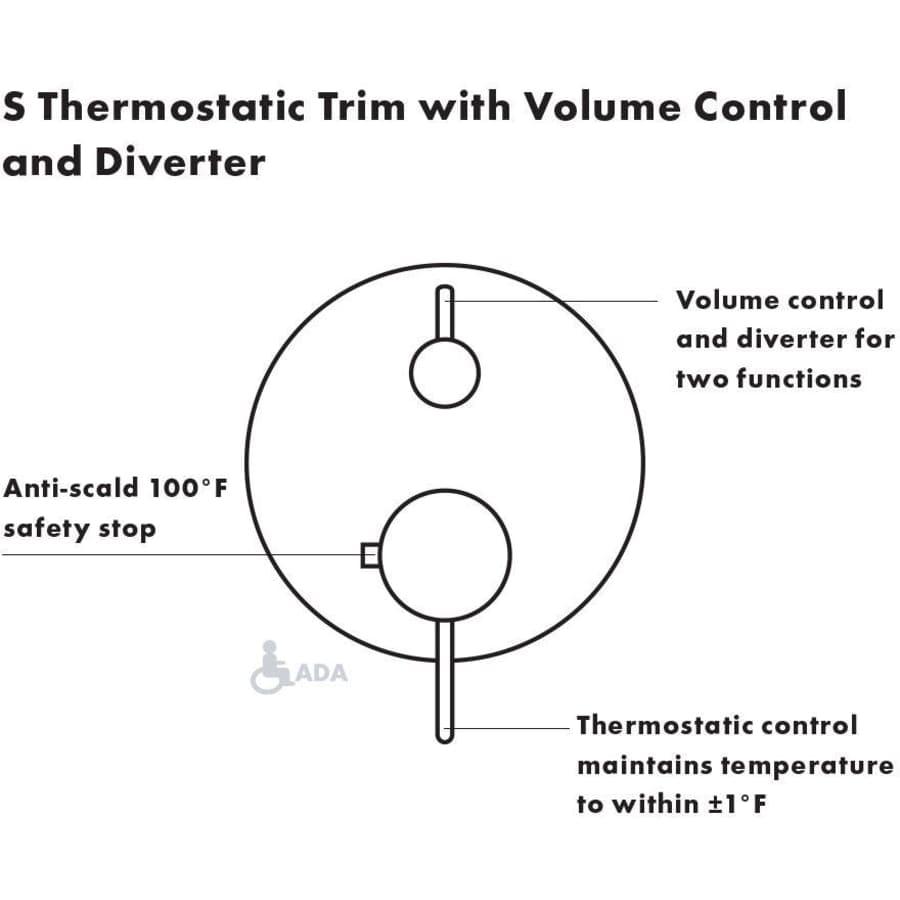

Comfort thermostat concealed for 2 outlets: such as handheld shower and shower head
High-quality thermostat cartridge which controls the temperature evenly and precisely
More safety: a button on the handle only releases hot water when required and prevents the temperature from becoming too high (SafetyStop)
The second handle allows you to conveniently switch between handheld shower and shower head and to control the water volume
Built to last: Brass internal components compliment a polymer trim plate for a surface that is resistant to dents, chemical corrosion, and mineral accumulation
Includes handles, sleeve, function block, escutcheon and shut-off/diverter valve
Shiny appearance: The brilliant, Easy-to-clean chrome surface impresses with its lasting shine

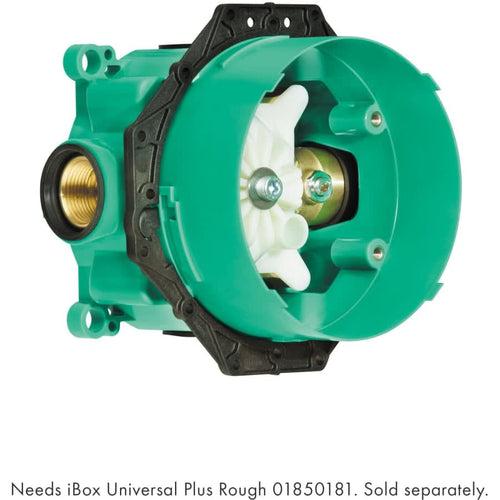

Required parts: This product requires the iBox Universal Plus Rough (Part No. 01850181) for Installation
Installation notes: Hansgrohe recommends a licensed plumber install this product
Limited lifetime consumer warranty: Consumer purchases of Hansgrohe products from authorized sellers are covered by a limited lifetime manufacturer warranty applicable to the original purchaser

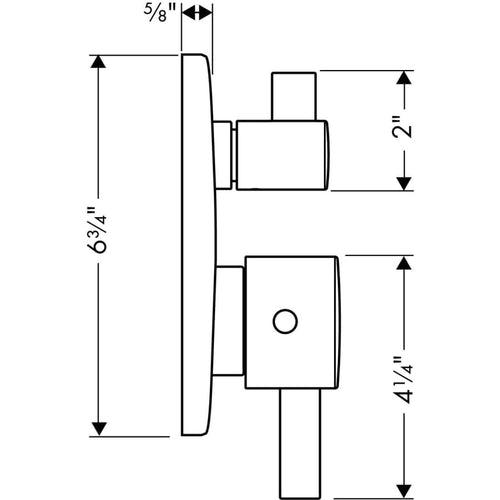

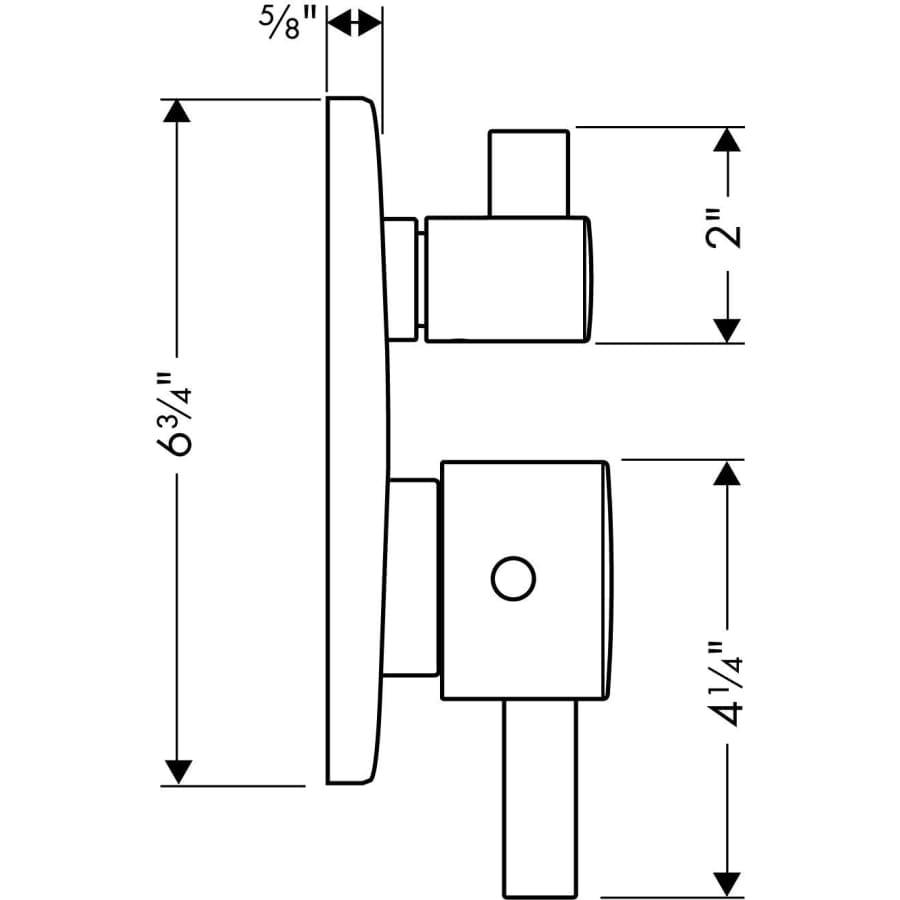

Dimensions and Measurements

Backplate Diameter
6.75 in.
Escutcheon Height
6.75 in.
Escutcheon Width
6.75 in.
Flow Rate (GPM)
7
Water Connection
3/4"

Included Components

Diverter Included
Yes
Drop Ell Included
No
Handles Included
Yes
Installation Hardware Included
Yes
Integrated Diverter
Yes
Integrated Volume Control
Yes
Twin Ell Included
No
Valve Included
No
Volume Control
Yes

Characteristics and Features

Diverter Location
Valve Trim
Handle Material
Metal
Handle Style
Lever
Installation Type
Wall Mounted
Material
Brass
Number Of Handles
2
Scald Guard
Yes
Theme
Modern
Valve Type
Thermostatic

Manufacturer Technology

iBox Universal
Yes

Warranty and Product Information

ADA
Yes
Approved for Commercial Use
Yes
Certifications
CSA
Collection
Ecostat
Commercial Warranty
1 Year Limited
CSA Code
B125.1
Manufacturer Warranty
Limited Lifetime Residential

Hansgrohe

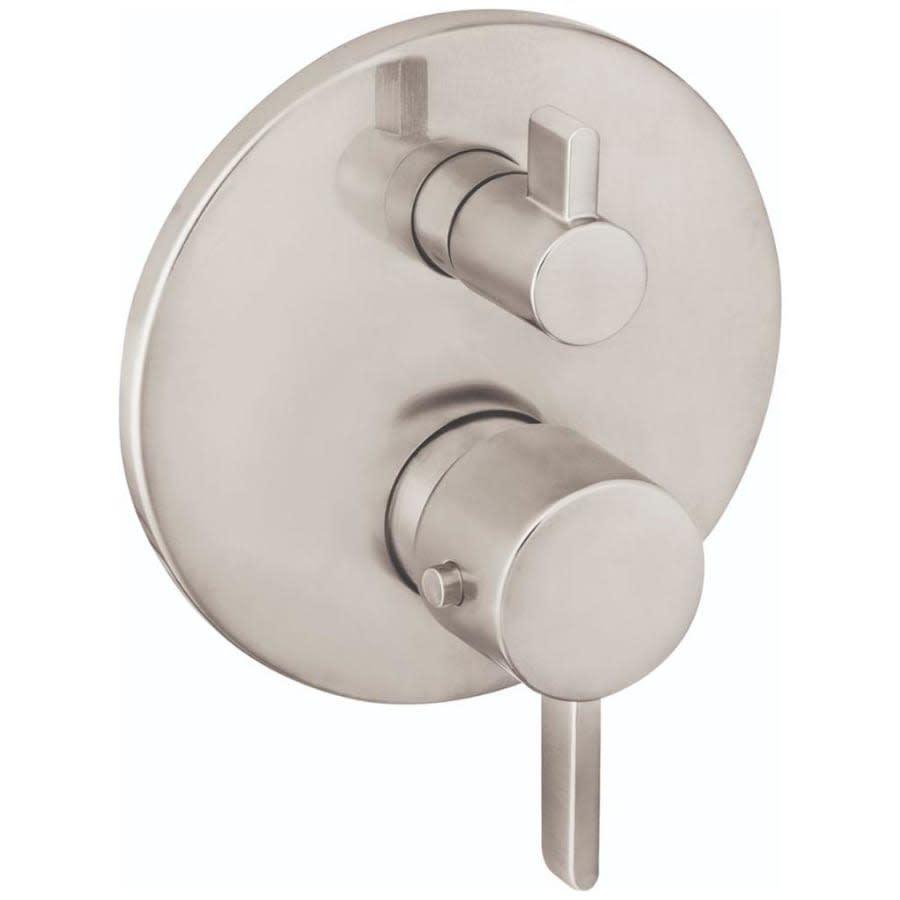

Ecostat S Thermostatic Valve Trim with Integrated Volume Control and Diverter for 2 Distinct Functions - Less Rough In

Finish

Product Details
