With Ecostat shower trims, Hansgrohe offers you sophisticated technology for concealed Installation. Ecostat concealed shower trims are ideal for new buildings or if an iBox universal plus rough is already installed in your wall. The advantage of the concealed version is that the technology disappears invisibly into the wall, saving space. Ecostat trims impress with their Elegant design, safety, sophisticated functionality, high value and proven Hansgrohe quality. The choice in style is yours: Hansgrohe Ecostat is available in three design variants : Ecostat E with rounded corners, Ecostat S in a round shape and Ecostat in a square design. The flat concealed thermostats are simply mounted on the iBox universal plus rough . Concealed Installation is interesting for anyone planning or building a new bathroom. And for purists who like their bathroom to be clear and tidy.

Hansgrohe 15739 Features:

Comfort thermostat concealed for 1 outlet: either shower head or handheld shower
High-quality pressure balanced cartridge which controls the water flow and temperature
Quiet operation: The use of the iBox Universal Plus Rough reduces in-wall vibration and resulting noise during use
The single handle allows you to conveniently control water flow and temperature
Built to last: Brass internal components compliment a polymer trim plate for a surface that is resistant to dents, chemical corrosion, and mineral accumulation
Includes handle, sleeve, function block, and escutcheon
Shiny appearance: the brilliant, Easy to clean chrome surface impresses with its long-lasting shine

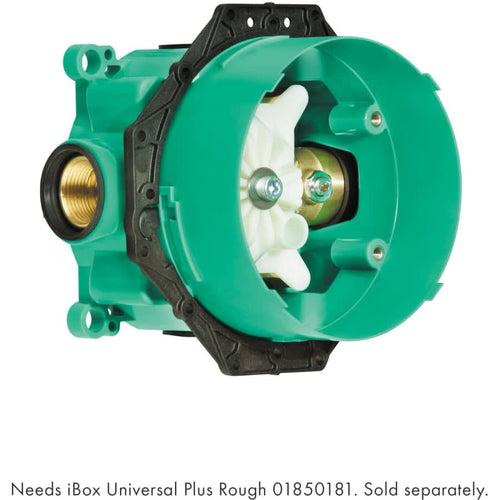

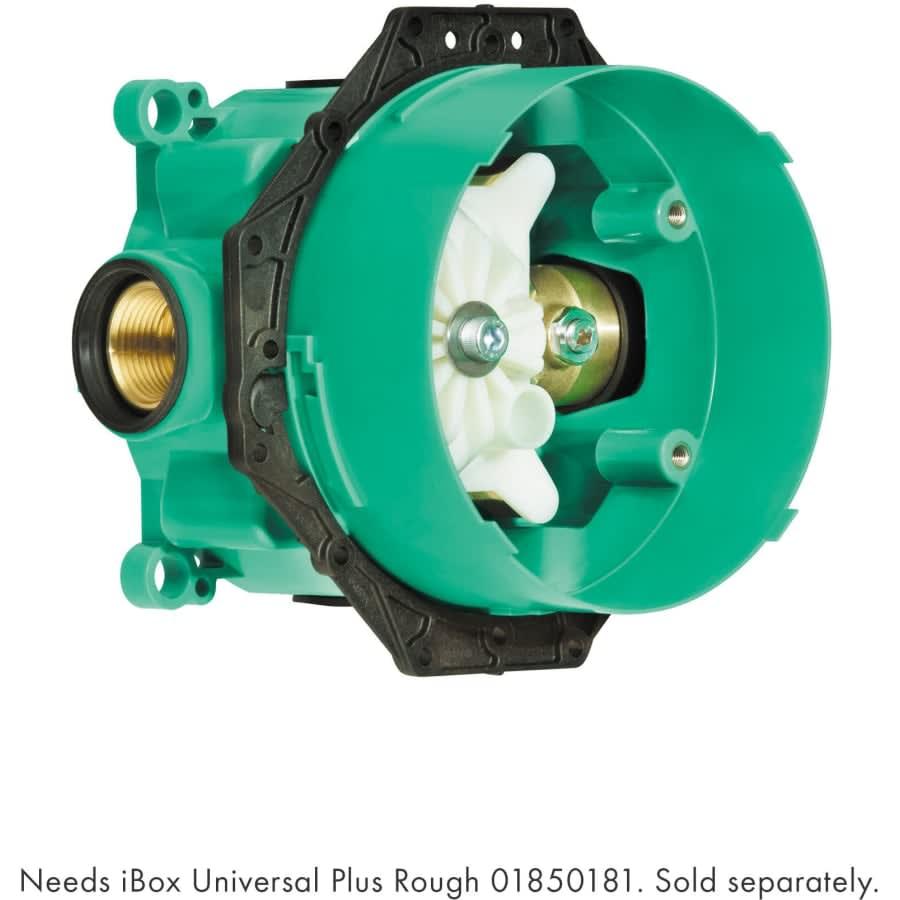

Required parts: This product requires the iBox Universal Plus Rough (Part No. 01850181) for Installation
Maximum flow rate at 60 psi: 5.44 GPM
Bypass for use with diverter-type tub spouts
Installation notes: Hansgrohe recommends a licensed plumber install this product
Limited lifetime consumer warranty: Consumer purchases of Hansgrohe products from authorized sellers are covered by a limited lifetime manufacturer warranty applicable to the original purchaser

Hansgrohe 15739 Specifications:

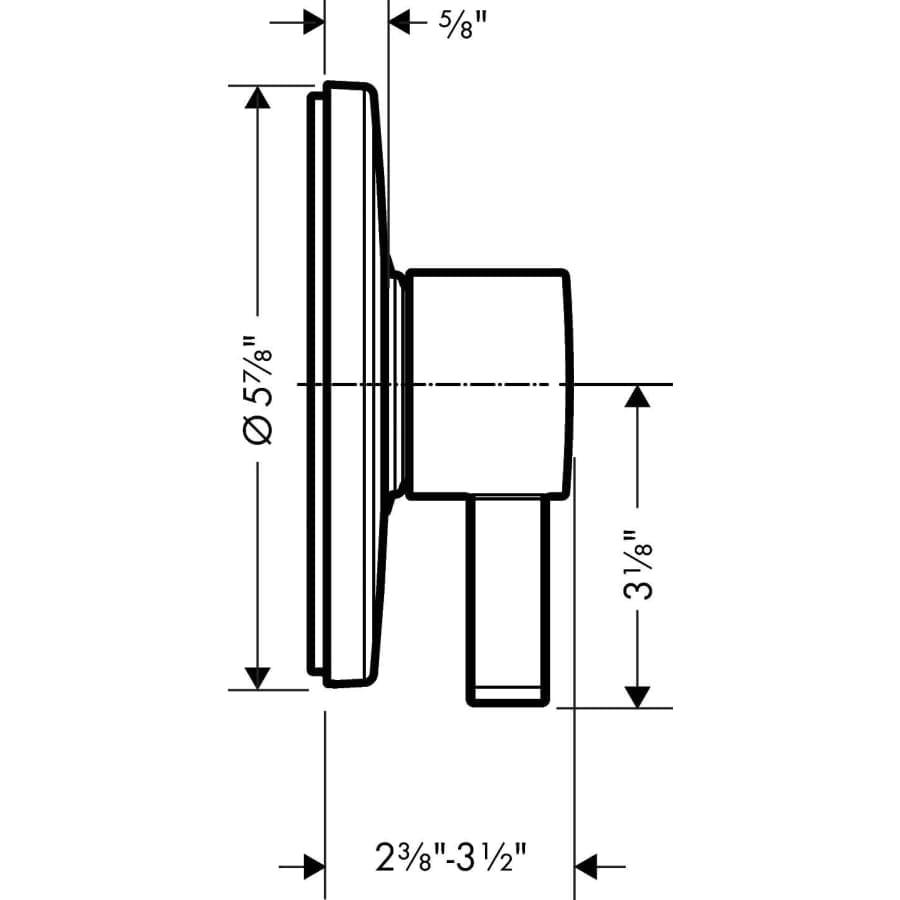

Valve Trim Height: 6-1/16" (bottom to top)
Valve Trim Width: 5-7/8" (left to right)

Dimensions and Measurements

Height
6.06 in.
Width
5.875 in.

Included Components

Diverter Included
No
Handles Included
Yes
Installation Hardware Included
Yes
Valve Included
Yes
Volume Control
No

Characteristics and Features

Faucet Type
Shower Faucet
Handle Material
Brass
Handle Style
Lever
Installation Type
Wall Mounted
Material
Brass, Plastic
Number of Functions
1
Number Of Handles
1
Scald Guard
No
Theme
Modern
Valve Type
Pressure Balanced

Warranty and Product Information

ADA
yes
Approved for Commercial Use
No
Collection
Ecostat S
Commercial Warranty
1 Year Limited
Manufacturer Warranty
Limited Lifetime

Hansgrohe

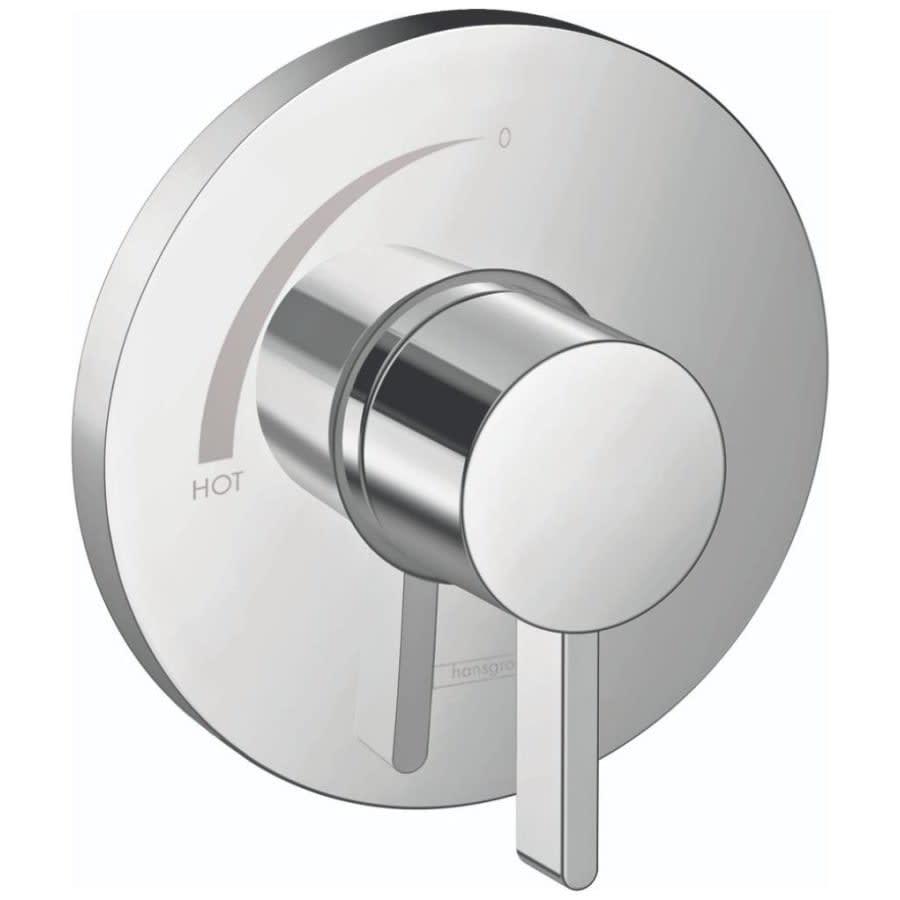

Ecostat S Single Function Pressure Balanced Valve Trim Only - Less Rough In

Finish

Product Details
