Product Features:

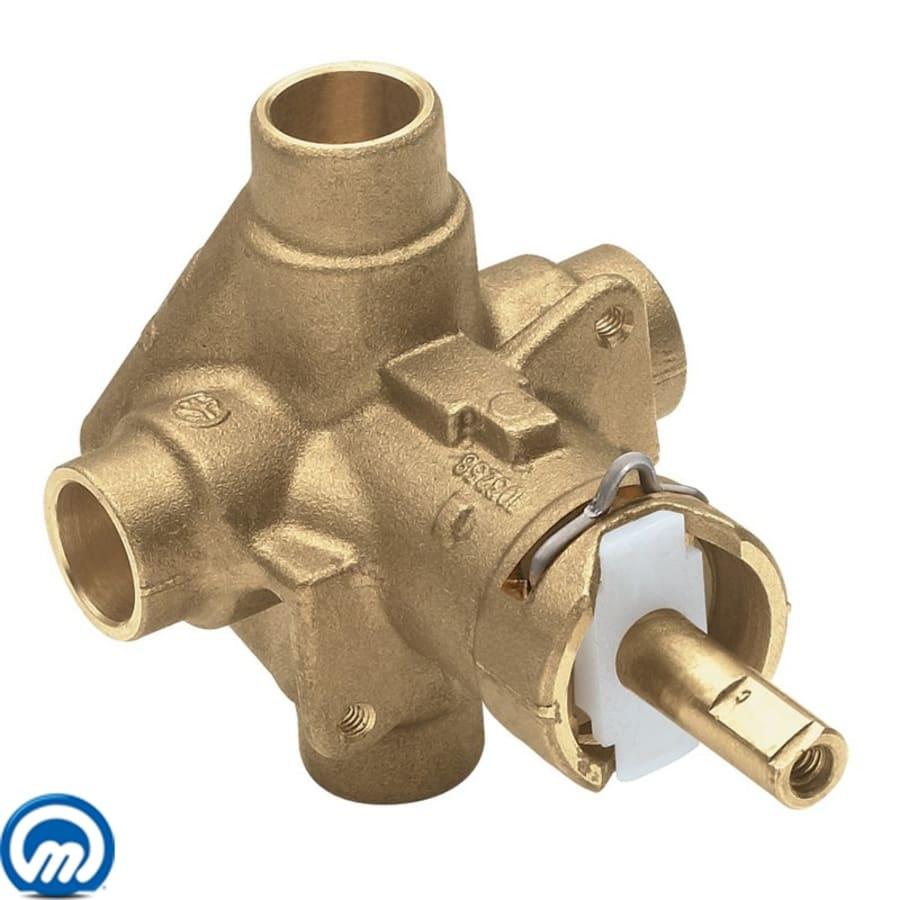

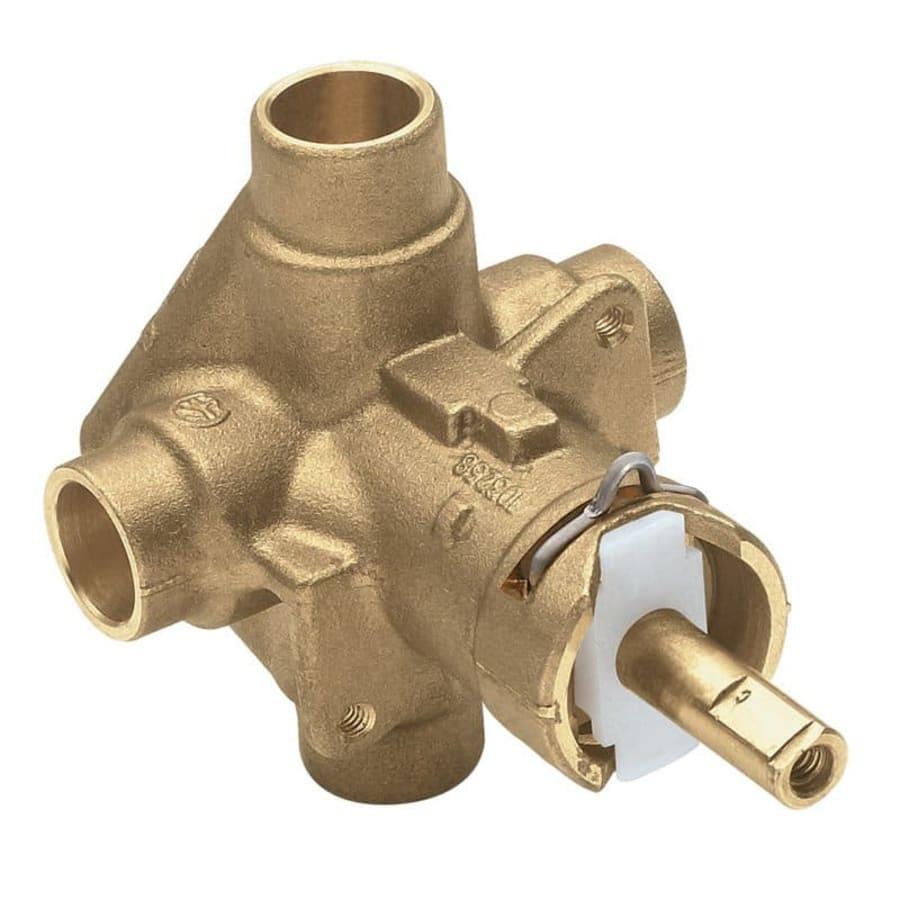

Valve is constructed of brass ensuring durability and dependability
Covered under Moen's limited lifetime warranty for residential installations and 5-year limited warranty for commercial installations
Features Moen's M-PACTÂ® common valve system
Posi-TempÂ® pressure balancing valve maintains water pressure and controls temperature
Designed for sweat (CC) inlet / outlet connections
Back-to-back installation capabilities

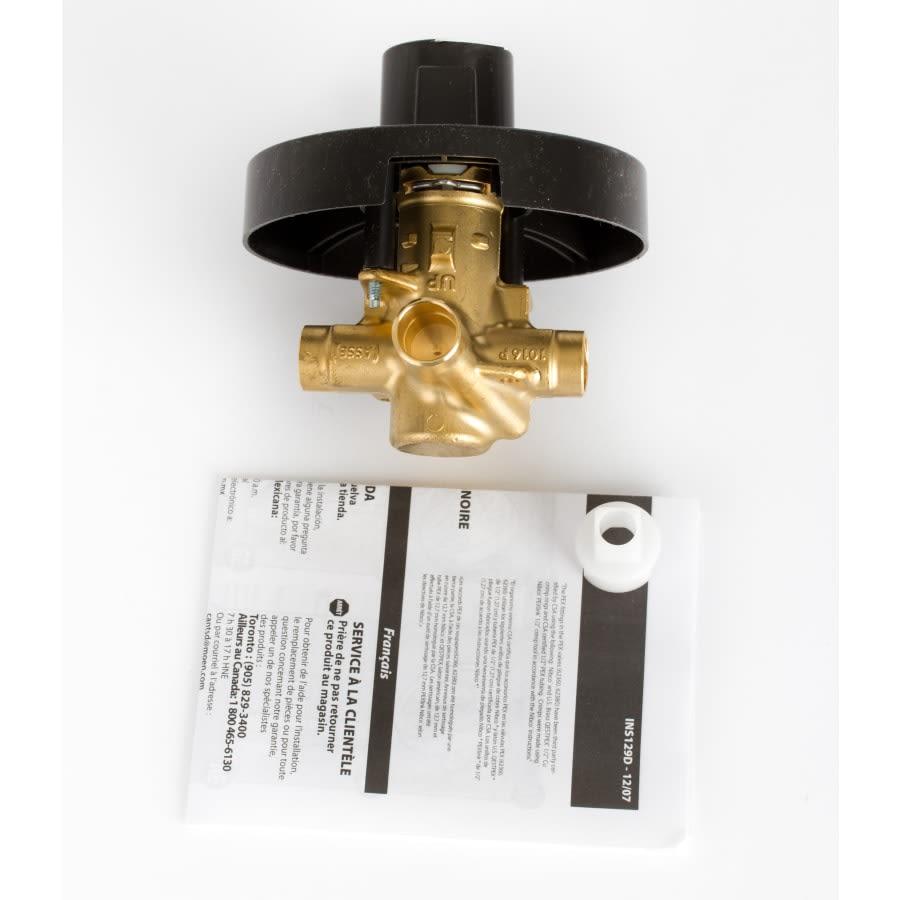

Sturdy mounting bracket included with valve
Note: This is the rough-in valve only - valve trim is required to complete product

Product Technologies / Benefits:

M-PACT M-PACTÂ® Common Valve System: Designed with the future in mind, M-PACTÂ® allows you to install one valve that will make future renovations painless. Upgrade your trim at any point in the decorating or construction process - or even years down the road - without replacing any faucet plumbing.

Posi-TempÂ® Valve: A pressure balancing valve that maintains water temperature within 3Â° F. Built-in temperature limit stops allow you to control how far the handle rotates, in effect controlling the range of water temperature. The Posi-TempÂ® offers the best water flow available for any comparable valve.

Product Specifications:

Connection Size: 1/2"
Connection Type: Sweat (also known as "CC")
Cartridge Included: 1222
Number of Ports: 4

Variations:

2520: This model
2510: IPS connections, no stops
2570: Sweat (CC) connections, with stops
2580: PEX connections, no stops
2590: IPS connections, with stops

Different Types of Valve Inlet / Outlet Connections:

Inlet Types

Dimensions and Measurements

Inlet Diameter
.5 in.
Max Deck Thickness
2.5 in.
Outlet Diameter
.5 in.
Water Connection
1/2"

Included Components

Installation Hardware Included
Yes
Integrated Diverter
No
Volume Control
No

Characteristics and Features

Configuration
Shower Valve
Material
Brass
Number Of Ports
4
Scald Guard
Yes
Theme
Modern
Valve Function
Pressure Balance
Valve Type
Pressure Balanced
Water Connection Type
Sweat

Manufacturer Technology

Moen Technologies
Compatible with MPACT Valve
Valve Technology
1222 Cartridge, M-PACT, Posi-Temp

Warranty and Product Information

Approved for Commercial Use
Yes
ASME Code
A112.18.1M
Certifications
CSA, ASME
CSA Code
B125
Manufacturer Warranty
5 Year Limited Commercial, Limited Lifetime Residential
