Product Features:

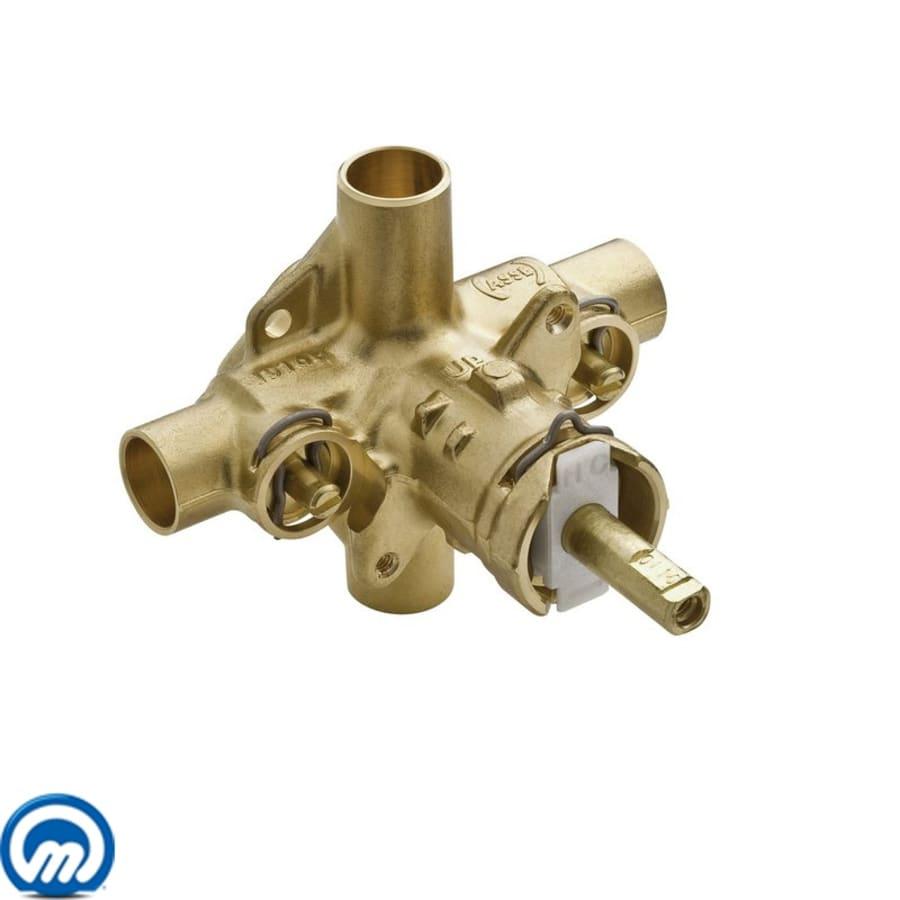

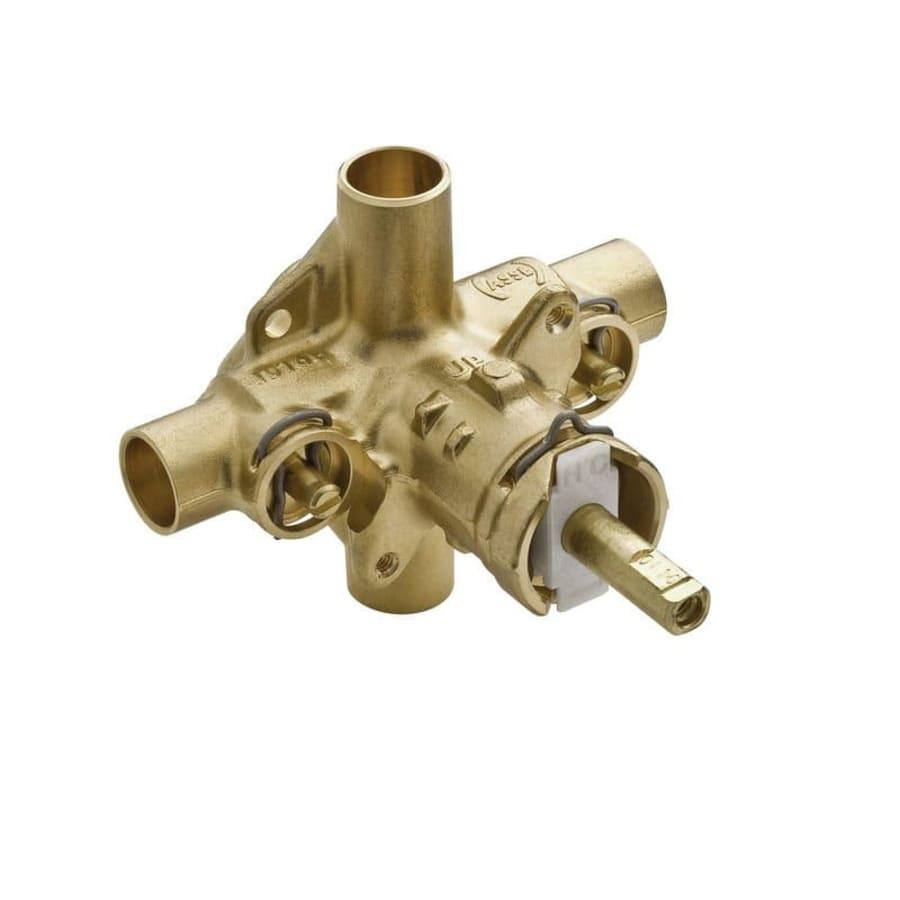

Valve is constructed of brass ensuring durability and dependability
Covered under Moen's limited lifetime warranty for residential installations and 5-year limited warranty for commercial installations
Features Moen's M-PACTÂ® common valve system
Posi-TempÂ® pressure balancing valve maintains water pressure and controls temperature
Designed for sweat (CC) inlet / outlet connections
Integrated service stops allow you to turn water off at the valve
Back-to-back installation capabilities

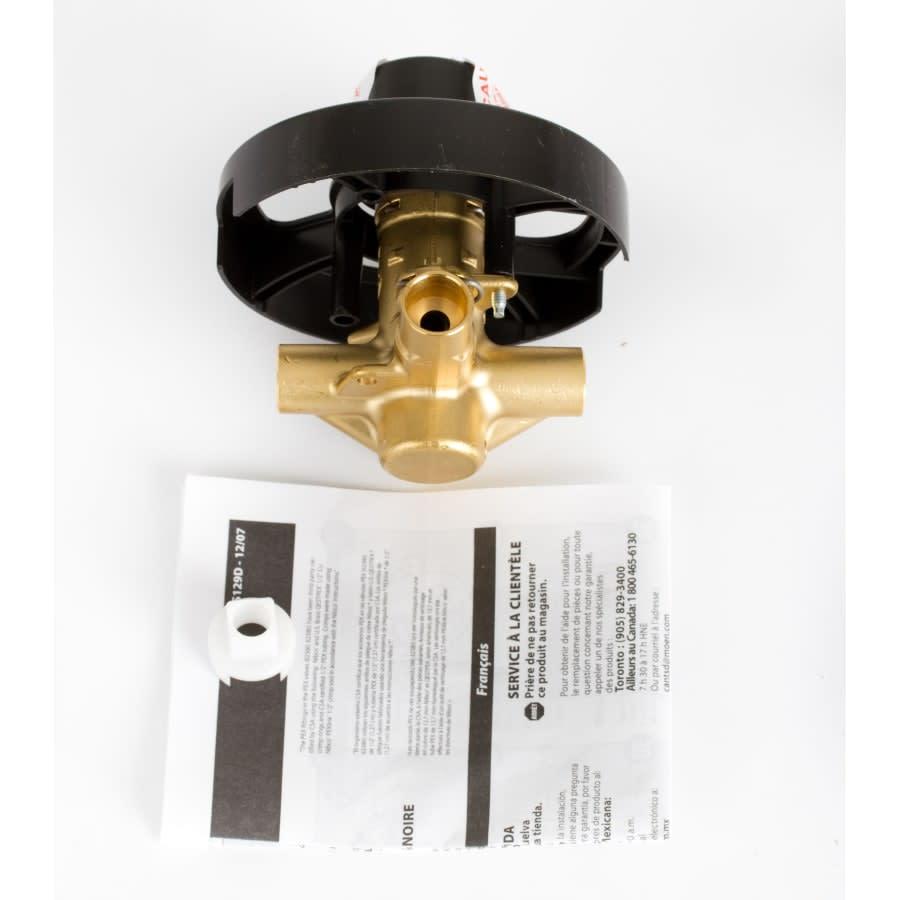

Sturdy mounting bracket included with valve
Note: This is the rough-in valve only - valve trim is required to complete product

Product Technologies / Benefits:

M-PACT M-PACTÂ® Common Valve System: Designed with the future in mind, M-PACTÂ® allows you to install one valve that will make future renovations painless. Upgrade your trim at any point in the decorating or construction process - or even years down the road - without replacing any faucet plumbing.

Posi-TempÂ® Valve: A pressure balancing valve that maintains water temperature within 3Â° F. Built-in temperature limit stops allow you to control how far the handle rotates, in effect controlling the range of water temperature. The Posi-TempÂ® offers the best water flow available for any comparable valve.

Product Specifications:

Connection Size: 1/2"
Connection Type: Sweat (also known as "CC")
Cartridge Included: 1222
Number of Ports: 4

Variations:

2570: This model
2510: IPS connections, no stops
2520: Sweat (CC) connections, no stops
2580: PEX connections, no stops
2590: IPS connections, with stops

Different Types of Valve Inlet / Outlet Connections:

Inlet Types

Dimensions and Measurements

Inlet Diameter
.5 in.
Max Deck Thickness
2.875 in.
Outlet Diameter
.5 in.
Water Connection
1/2"

Included Components

Cartridge Included
Yes
Installation Hardware Included
Yes
Integrated Diverter
No
Service Stops Included
Yes
Trim Included
No
Volume Control
No

Characteristics and Features

Configuration
Shower Valve
Digital
No
Material
Brass
Number Of Ports
4
Scald Guard
Yes
Theme
Modern
Valve Function
Pressure Balance
Valve Type
Pressure Balanced
Water Connection Type
Sweat

Manufacturer Technology

Moen Technologies
Compatible with MPACT Valve
Valve Technology
1222 Cartridge, M-PACT, Posi-Temp

Warranty and Product Information

Approved for Commercial Use
Yes
ASME Code
A112.18.1M
Certifications
CSA, ASME
CSA Code
B125
Manufacturer Warranty
5 Year Limited Commercial, Limited Lifetime Residential
