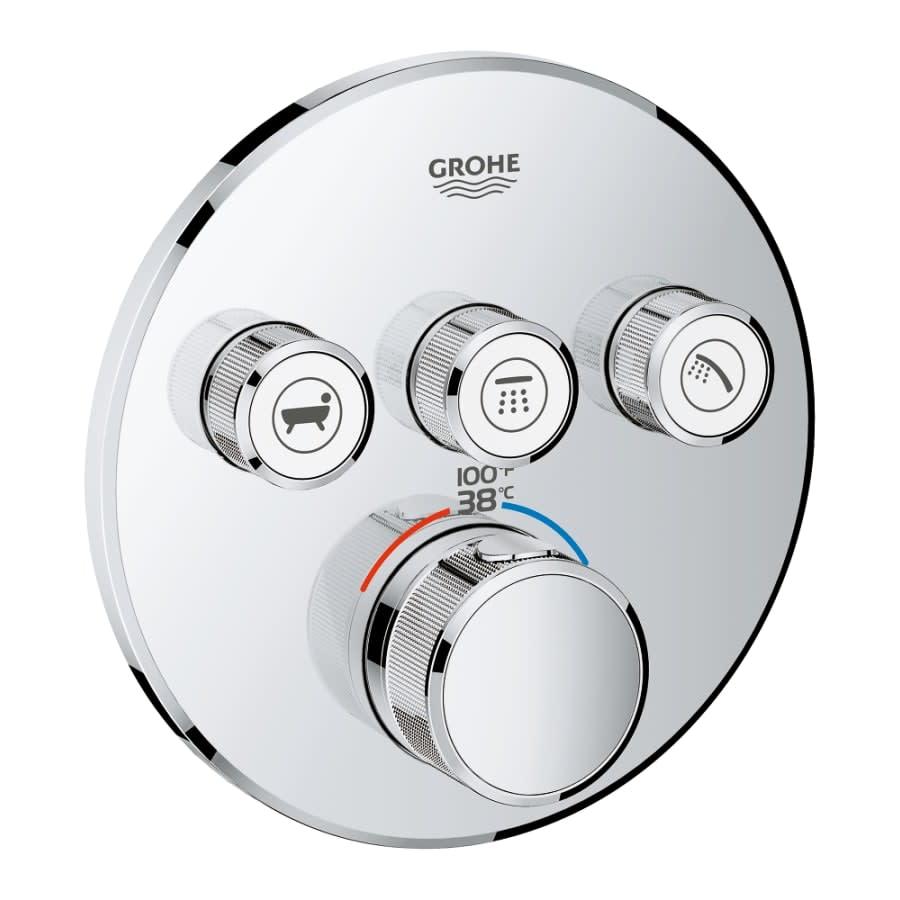

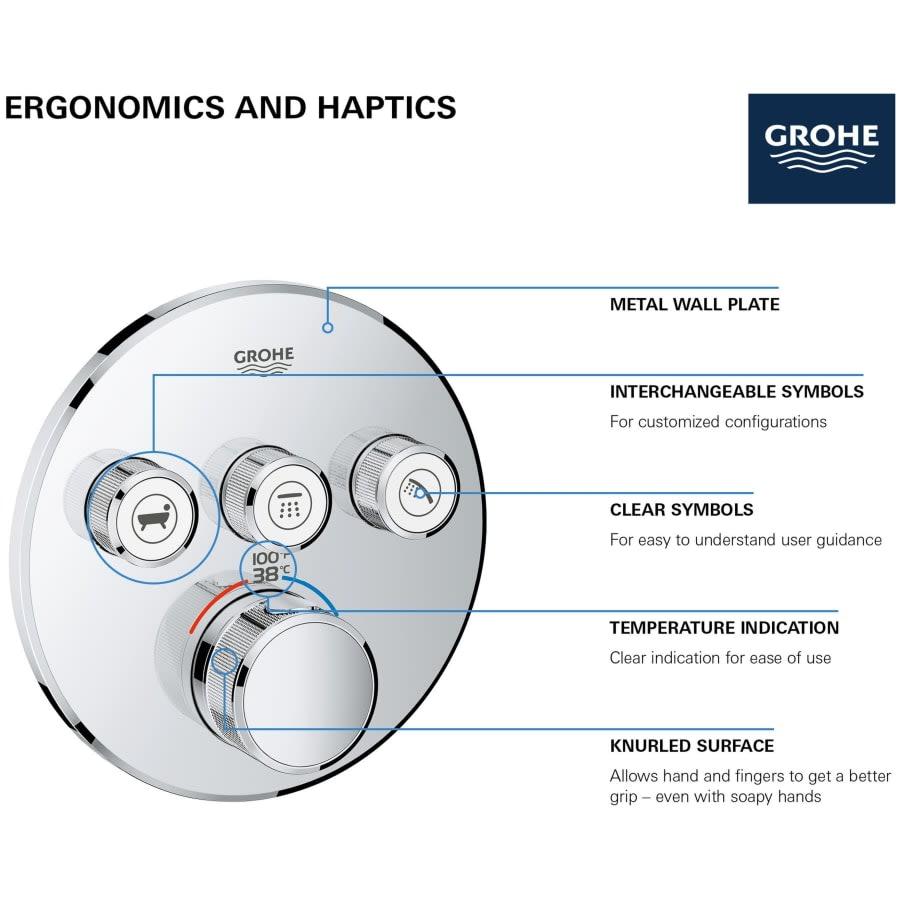

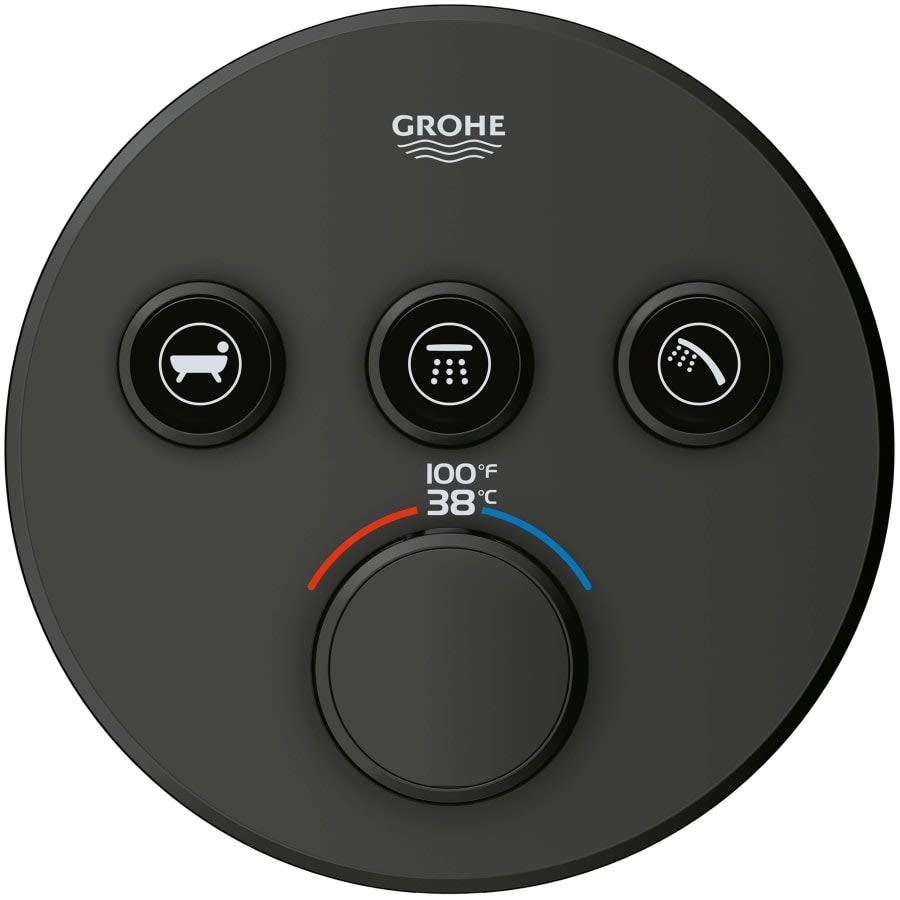

Packed with useful features, the Grohtherm SmartControl concealed thermostat features a minimalist design that will enhance any modern bathroom. The innovative SmartControl technology allows you to select your desired spray source and adjust the water volume at the push-turn of a button. The three valves offer total flexibility, whatever your shower set up â you can control, switch between or even combine different spray patterns and water outlets. Integrated Grohe TurboStat technology prevents any unpleasant temperature fluctuations. Grohe easy logic markings and textured buttons with exchangeable symbols make it easy and intuitive to use. Family-friendly, the Grohe SafeStop override button allows you to set a maximum temperature of 100Â° F/38Â° C to prevent scalding. Water-saving Grohe EcoJoy technology gives you the option of a reduced flow rate with no compromise on enjoyment, and, thanks to the Grohe's QuickFix system, itâs quick and easy to install . Please note that this product must be installed in combination with the Grohe Rapido Smartbox.

Grohe 29 138 Features:

Constructed of metal
Covered under Grohe's limited lifetime warranty
Premier finishing process - finishes will resist rusting and corrosion through every day use
SmartControl push button for on-off volume adjustment from EcoJoy to Full Flow
Triple function valve trim only
Thermostatic valve cartridge with scald guard
Secure mounting assembly

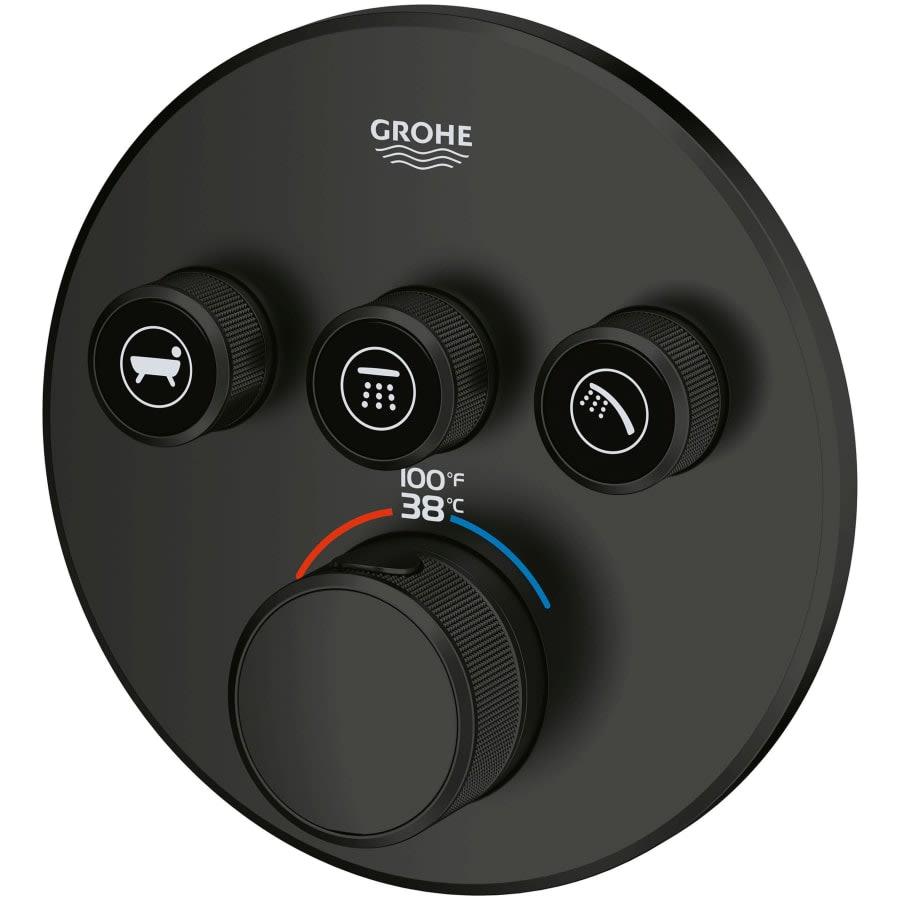

Three push buttons and single knob handle
Includes various icons to customize push buttons

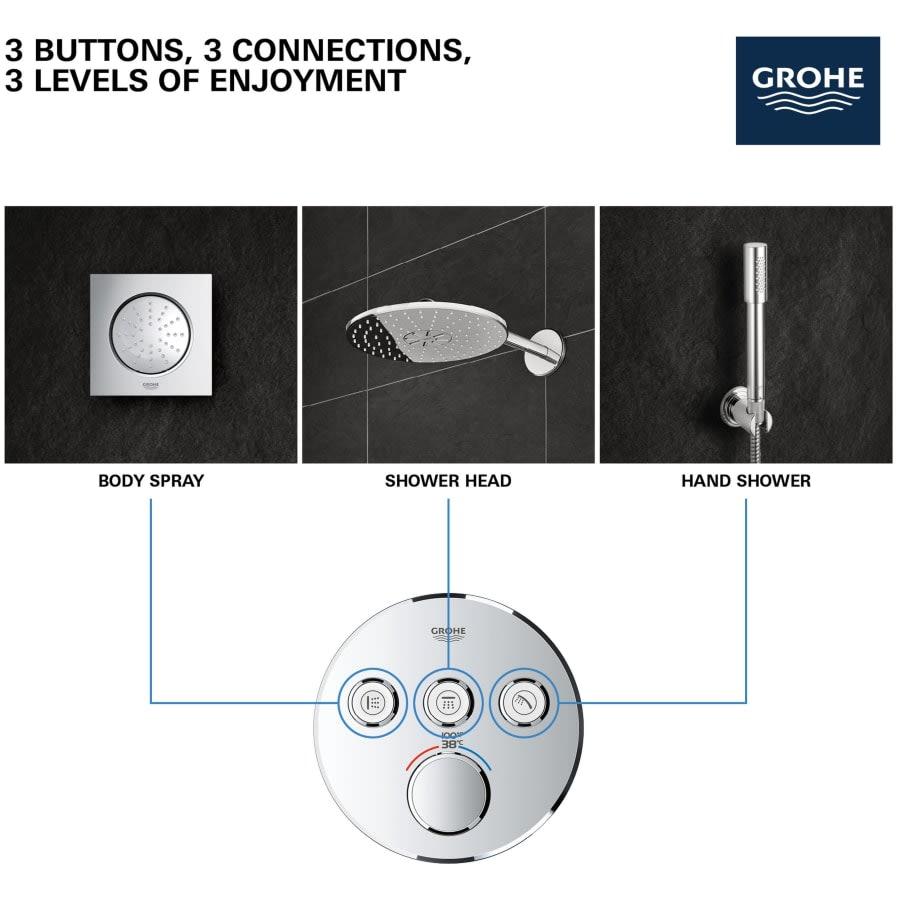

Multiple outlets can be run simultaneously
Maximum flow performance: 7.7 gallons-per-minute
Optional flow reducer for CALGreen compliance included
Rough-in valve not included - when adding to cart valve options will be presented

Grohe 29 138 Technologies and Benefits:

Red Dot Award: International symbol for design innovation. Awarded to products that have separated themselves in quality, durability, functionality, and emotional connection to the customer as a mark of their achievement.

Â
EcoJoy Technology: The highly innovative Grohe EcoJoyâ¢ technology reduces water consumption by up to 50% without compromising on performance.

StarLight Technology: Grohe StarLightÂ® offers a made-to-last finish. The flawless, long-lasting surface is designed to be extremely resistant to dirt and scratches, making maintenance effortless and ensuring good-as-new looks for many years.

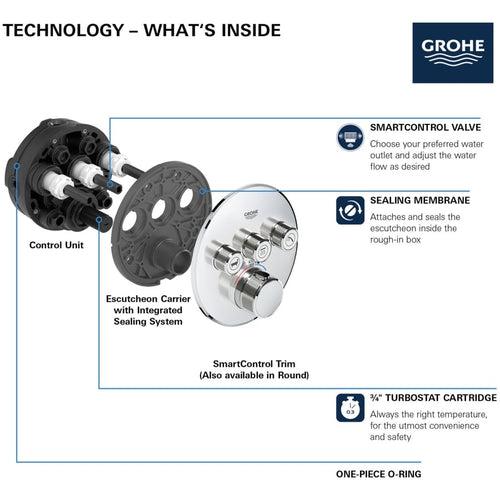

TurboStat: By increasing the sensitivity to the thermo element and restructuring the internal waterways, our thermostats react up to twice as fast to abrupt changes in water pressure, and are up to nine times more accurate than the leading competitors. The desired temperature is achieved in seconds and is maintained throughout the duration of your shower. The outstanding precision offered by the TurboStat technology also adds to your showers conservation of water.

SafeStop: SafeStop is a safety feature for you to set the max temperature at 100Â°F/38Â°C

Grohe 29 138 Specifications:

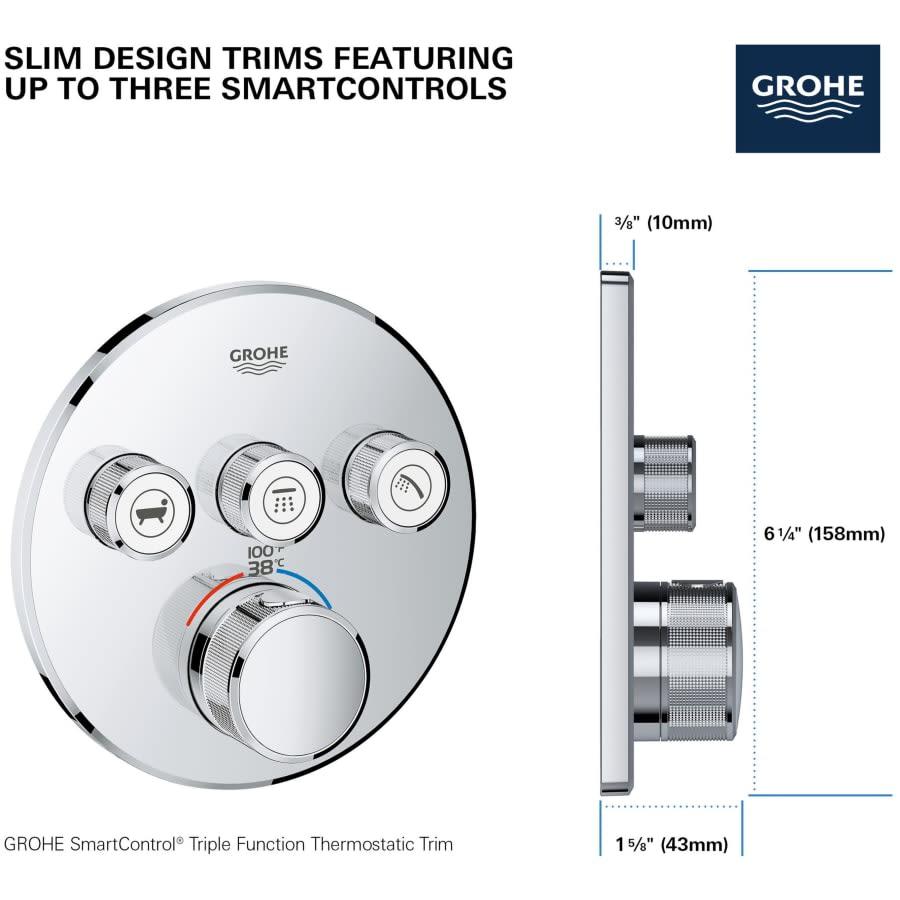

Valve Trim Height: 6-1/4" (bottom to top)
Valve Trim Width: 6-1/4" (left to right)

Dimensions and Measurements

Depth
1.6875 in.
Height
6.25 in.
Width
6.25 in.

Included Components

Diverter Included
Yes
Handles Included
Yes
Valve Included
No
Volume Control
Yes

Characteristics and Features

Diverter Location
Valve Trim
Faucet Type
Shower Faucet
Handle Style
Knob, Push Button
Installation Type
Wall Mounted
Material
Metal
Number of Functions
3
Number Of Handles
4
Scald Guard
Yes
Theme
Modern
Valve Type
Thermostatic

Manufacturer Technology

Grohe Technology
EcoJoy, GrohTherm, QuickFix, SafeStop, StarLight, TurboStat
Valve Technology
TurboStat

Warranty and Product Information

Approved for Commercial Use
Yes
ASME Code
A112.18.1
CALGreen
Yes
Certifications
ASME, CSA
Collection
Grohtherm
Commercial Warranty
1 Year Limited
Country Of Origin
Mexico
CSA Code
B125.1
Manufacturer Warranty
Limited Lifetime

Grohe

Grohtherm Triple Function Thermostatic Valve Trim Only with Triple Knob Handles and Volume Control - Less Rough In
