Product Features:

Valve is constructed of brass ensuring durability and dependability
Covered under Moen's limited lifetime warranty for residential installations and 5-year limited warranty for commercial installations
Features Moen's M-PACT® common valve system
Posi-Temp® pressure balancing valve maintains water pressure and controls temperature
Designed for sweat (CC) inlet / outlet connections
Back-to-back installation capabilities
Sturdy mounting bracket included with valve
Note: This is the rough-in valve only - valve trim is required to complete product
Sold Individually

Product Technologies / Benefits:

M-PACT M-PACT® Common Valve System: This innovation from Moen gives the homeowner the up-most functionality and convenience when it comes to bathroom faucets. Designed to be a catch-all valve system, once M-PACT® is installed you can upgrade the style of the lavatory or shower faucet without replacing nay of the faucet plumbing.

Posi-Temp® Valve: A pressure balancing valve that maintains water temperature within 3° F. Built-in temperature limit stops allow you to control how far the handle rotates, in effect controlling the range of water temperature. The Posi-Temp® offers the best water flow available for any comparable valve.

Product Specifications:

Connection Size: 1/2"
Connection Type: Sweat (also known as "CC")
Cartridge Included: 1222
Number of Ports: 4

Variations:

62320: This model
62300: IPS connections, no stops
62330: CPVC connections, with stops
62340: CPVC connections, no stops
62360: PEX connections, with stops
62365: Cold expansion PEX connections, no stops
62370: Sweat (CC) connections, with stops
62380: PEX connections, no stops
62385: Cold expansion PEX connections, with stops
62390: IPS connections, with stops

Different Types of Valve Inlet / Outlet Connections:

Inlet Types

Dimensions and Measurements

Max Deck Thickness
2.5 in.
Water Connection
1/2"

Included Components

Installation Hardware Included
Yes
Integrated Diverter
No
Volume Control
No

Characteristics and Features

Configuration
Shower Valve
Material
Brass
Number Of Ports
4
Scald Guard
Yes
Theme
Modern
Valve Function
Pressure Balance
Valve Type
Pressure Balanced
Water Connection Type
Sweat

Manufacturer Technology

Moen Technologies
Compatible with MPACT Valve
Valve Technology
M-PACT, Posi-Temp, 1222 Cartridge

Warranty and Product Information

Approved for Commercial Use
Yes
ASME Code
A112.18.1M
Certifications
ASME, CSA
CSA Code
B125
Manufacturer Warranty
5 Year Limited Commercial, Limited Lifetime Residential

Moen

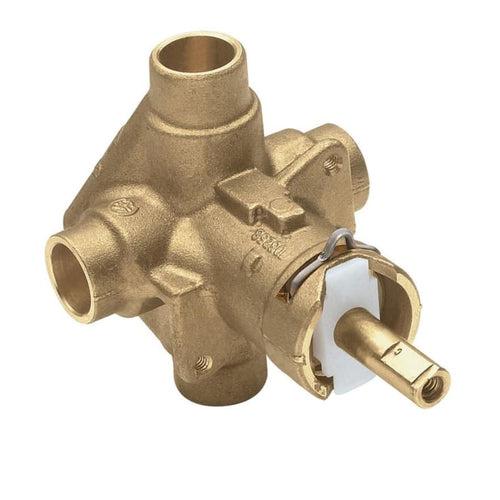

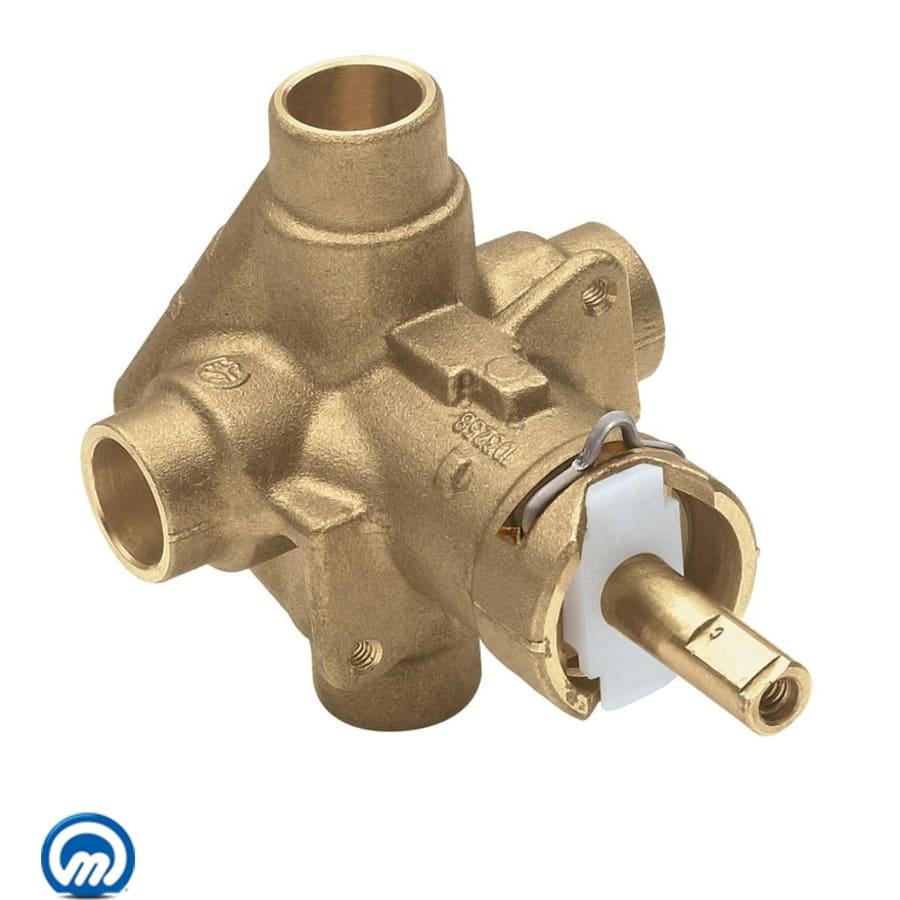

1/2 Inch Sweat (Copper-to-Copper) Posi-Temp Pressure Balancing Rough-In Valve (No Stops)
