Product Features:

Valve is constructed of brass ensuring durability and dependability
Covered under Moen's limited lifetime warranty for residential installations and 5-year limited warranty for commercial installations
Features Moen's M-PACTÂ® common valve system
Posi-TempÂ® pressure balancing valve maintains water pressure and controls temperature
Designed for PEX inlet / outlet connections
Integrated service stops allow you to turn water off at the valve
Back-to-back installation capabilities
Sturdy mounting bracket included with valve
Note: This is the rough-in valve only - valve trim is required to complete product
Sold Individually

Product Technologies / Benefits:

M-PACT M-PACTÂ® Common Valve System: This innovation from Moen gives the homeowner the up-most functionality and convenience when it comes to bathroom faucets. Designed to be a catch-all valve system, once M-PACTÂ® is installed you can upgrade the style of the lavatory or shower faucet without replacing nay of the faucet plumbing.

Posi-TempÂ® Valve: A pressure balancing valve that maintains water temperature within 3Â° F. Built-in temperature limit stops allow you to control how far the handle rotates, in effect controlling the range of water temperature. The Posi-TempÂ® offers the best water flow available for any comparable valve.

Product Specifications:

Connection Size: 1/2"
Connection Type: PEX
Cartridge Included: 1222
Number of Ports: 4

Variations:

62360: This model
62300: IPS connections, no stops
62320: Sweat (CC) connections, no stops
62330: CPVC connections, with stops
62340: CPVC connections, no stops
62365: Cold expansion PEX connections, no stops
62370: Sweat (CC) connections, with stops
62380: PEX connections, no stops
62385: Cold expansion PEX connections, with stops
62390: IPS connections, with stops

Different Types of Valve Inlet / Outlet Connections:

Inlet Types

Dimensions and Measurements

Max Deck Thickness
2.5 in.
Water Connection
1/2"

Included Components

Cartridge Included
Yes
Installation Hardware Included
Yes
Integrated Diverter
No
Service Stops Included
Yes
Trim Included
No
Volume Control
No

Characteristics and Features

Configuration
Shower Valve
Digital
No
Material
Brass
Number Of Ports
4
Scald Guard
Yes
Theme
Modern
Valve Function
Dual Function Pressure Balance
Valve Type
Pressure Balanced
Water Connection Type
PEX

Manufacturer Technology

Moen Technologies
Compatible with MPACT Valve
Valve Technology
M-PACT, Posi-Temp, 1222 Cartridge

Warranty and Product Information

Approved for Commercial Use
Yes
ASME Code
A112.18.1
Certifications
ASME, CSA
CSA Code
B125.1
Manufacturer Warranty
5 Year Limited Commercial, Limited Lifetime Residential

Moen

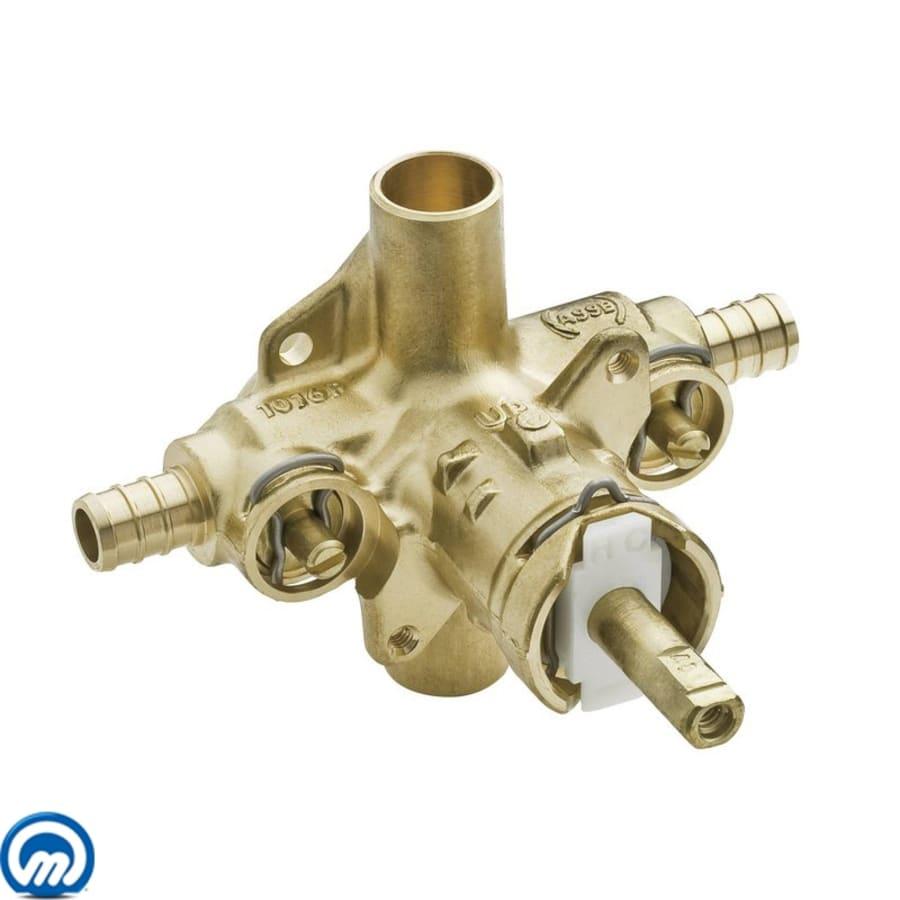

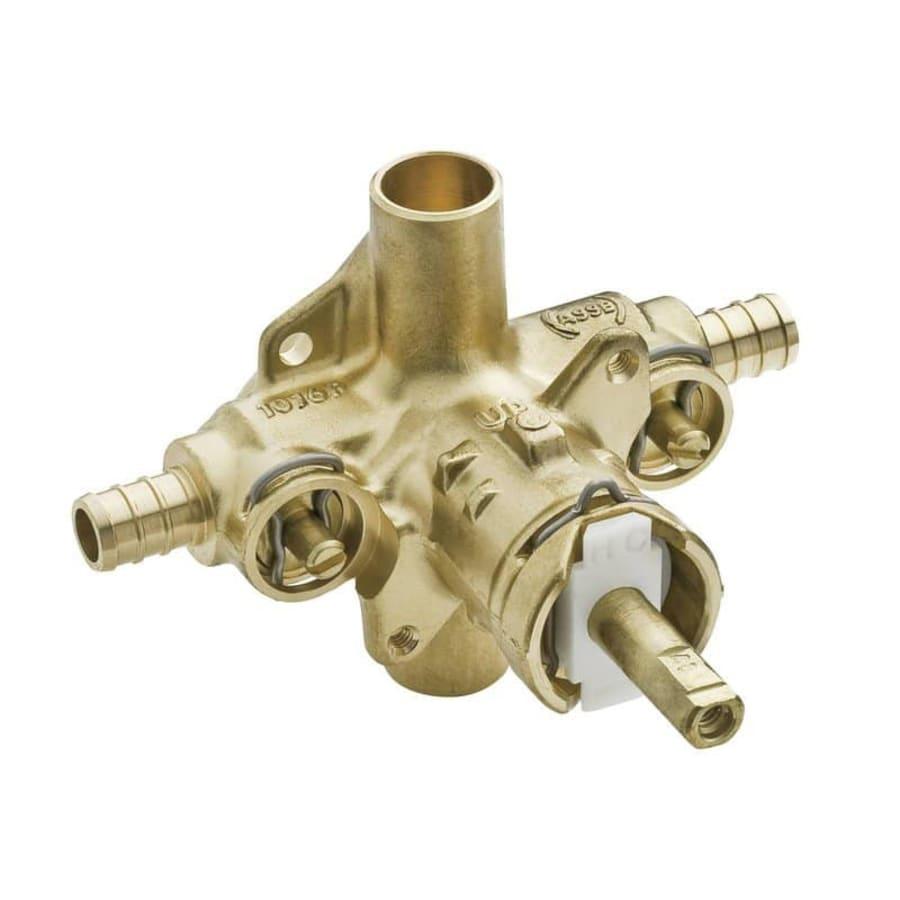

1/2 Inch PEX Posi-Temp Pressure Balancing Rough-In Valve (With Stops)

Finish

Product Details
