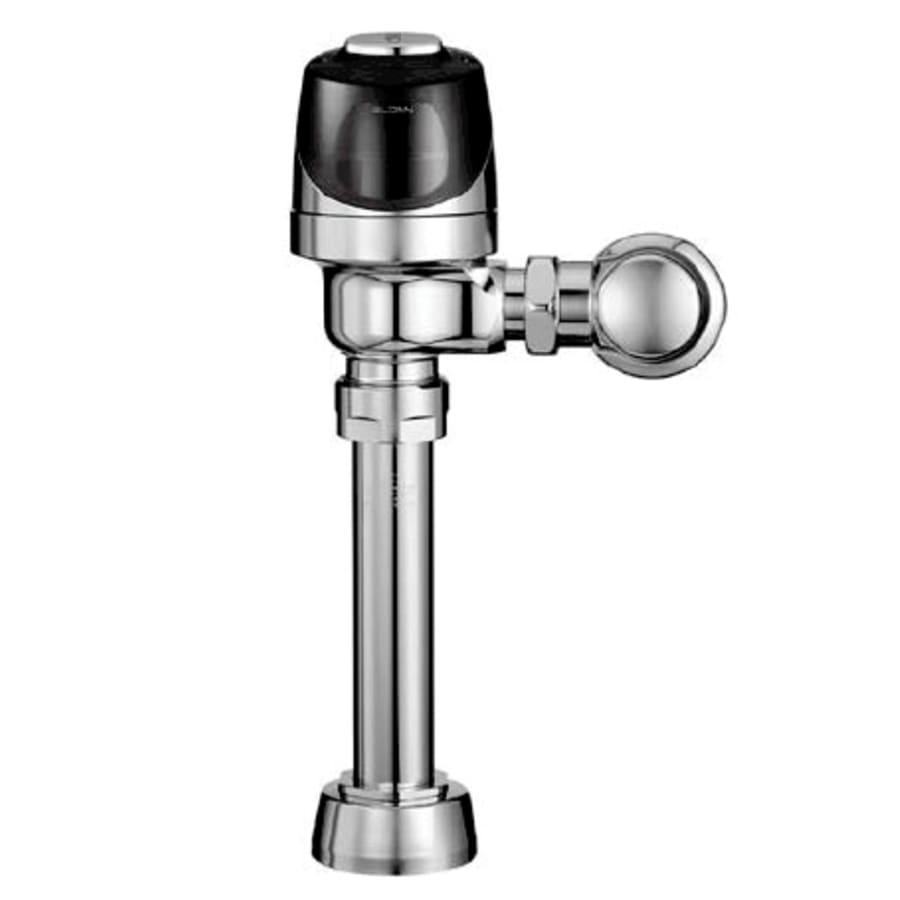

Low Consumption (1.6 gpf) Exposed, Battery Powered, Sensor Operated G2® Model Water Closet Flushometer for floor mounted or wall hung 1-1/2" top spud bowls.

Low Consumption (1.6 gpf) Exposed, Battery Powered, Sensor Operated G2® Model Water Closet Flushometer for floor mounted or wall hung 1-1/2" top spud bowls.

Brand:

Sloan

In stock

List price: List price: $550.00
GoSource price: GoSource price: $530.54
List price: List price: $550.00

ID#:

SKU:ferguson_products_3250400

Finish:

View full details

Product Description

Low consumption (1.6 gpf) Exposed, Battery Powered, Sensor Operated G2(R) Model Water Closet Flushometer for floor mounted or wall hung 1-1/2" top spud bowls.

Quiet, Exposed, Diaphragm Type, Chrome Plated Closet Flushometer for either left or right hand supply.

Features:

  • PERMEX(tm) Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • Flex Tube Diaphragm designed for improved life and reduced maintenance
  • ADA Compliant OPTIMA Plus(R) Battery Powered Infrared Sensor for automatic "No Hands" operation
  • Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
  • Latching Solenoid Operator
  • Engineered Metal Cover with replaceable Lens Window
  • User friendly three (3) second Flush Delay
  • Courtesy Flush(tm) Override Button
  • Four (4) Size AA Batteries factory installed
  • "Low Battery" Flashing LED
  • Infrared Sensor Range Adjustment Screw
  • Initial Set-up Range Indicator Light (first 10 minutes)
  • Chrome Plated Metal Handle Cap
  • 1" I.P.S. Screwdriver Bak-Chek(R) Angle Stop
  • Free Spinning, Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
  • Spud Coupling and Flange for 1½" Top Spud
  • Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID(tm) Technology
  • Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX(tm) Rubber Compound for Chloramine resistance

Electrical Specifications:

Control Circuit:
Solid State
6 VDC Input
8 second Arming Delay
3 second Flush Delay
OPTIMA Sensor Type:
Active Infrared
OPTIMA Sensor Range:
Nominal 22"-42" (559 mm-1067 mm), adjustable ± 8" (203 mm)
Battery Type:
Four (4) AA Alkaline
Battery Life:
3 years @ 4,000 flushes/month
Indicator Lights:
Range Adjustment/Low Battery
Operating Pressure:
15-100 psi (104-689 kPa)
Sentinel Flush:
Once Every 24 Hours After the Last Flush

Automatic:
Sloan G2 Optima Plus(R) Flushometers activate via multilobular sensor detection to provide the ultimate in sanitary protection and automatic operation. A battery powered infrared sensor sets the flushing mechanism after the user is detected and completes the flush when the user steps away.
Functional & Hygienic:
Touchless, sensor operation eliminates the need for user contact to help control the spread of infectious diseases. The G2 Optima Plus Flushometer is provided with an Override Button to allow a "courtesy flush" for individual user comfort.
Economical:
Sloan installed batteries speed installation and provide years of metered flushing to control the use of water and energy. Batteries can be changed without turning off the water.
Warranty:
3 year (limited)


Dimensions and Measurements

  • Gallons Per Flush
  • 1.6
  • Spud Size
  • 1.5 in.

Characteristics and Features

  • Configuration
  • Exposed
  • Control Type
  • Electronic
  • Installation Type
  • Toilet
  • Spud Placement
  • Top

Warranty and Product Information

  • ADA
  • Yes
  • Approved for Commercial Use
  • Yes
  • CA Drought Compliant
  • No
  • Eco Friendly
  • No
  • TX Drought Compliant
  • No
