Delta 9178T-DST Features:

Covered under Delta's limited lifetime warranty (5 year electronic parts)

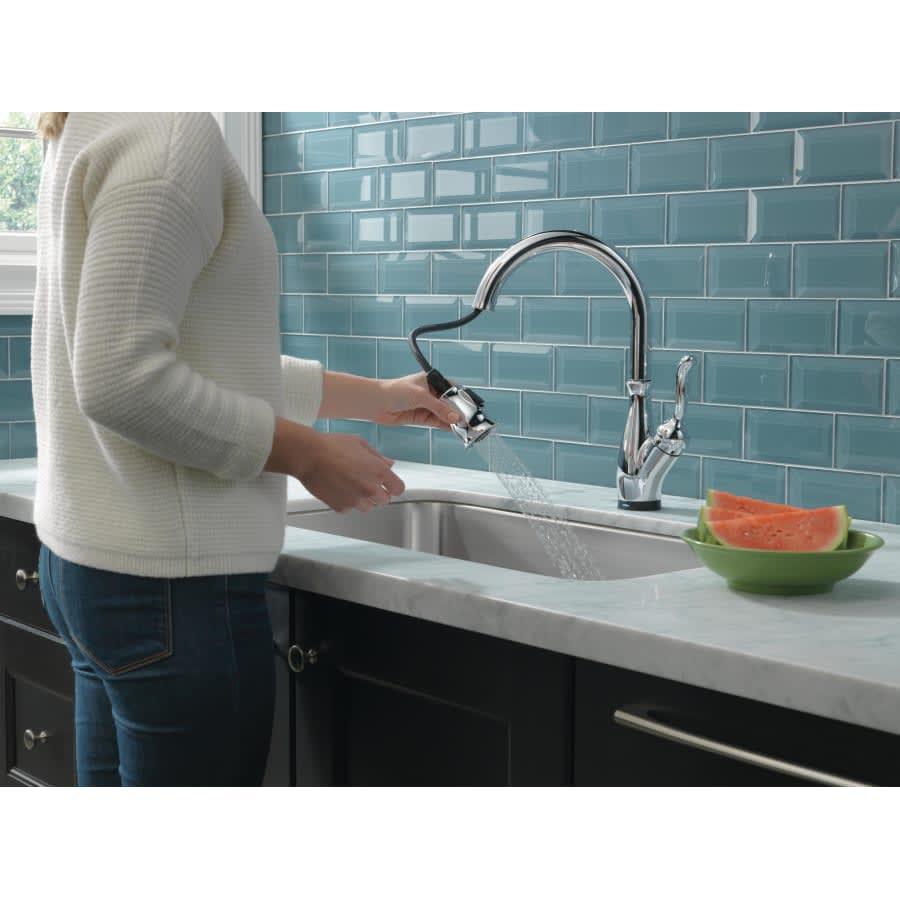

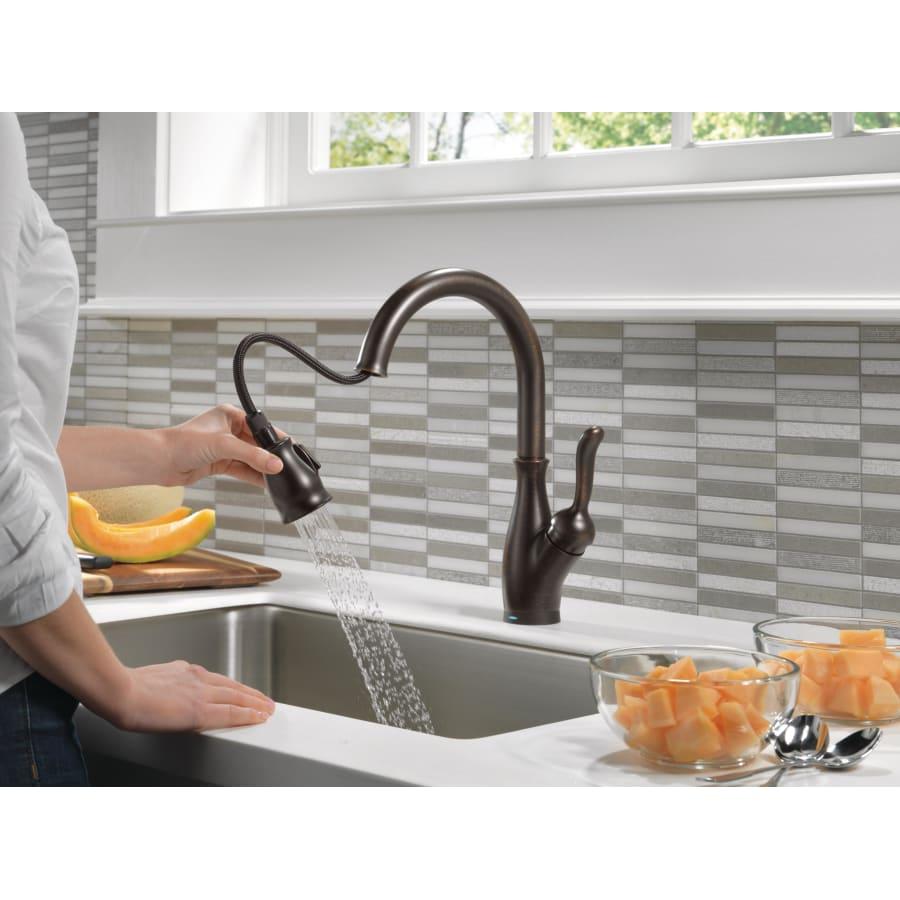

Pull-down spray head with dual function spray
Magnetic docking pullout spray head with toggle spray switch
ShieldSpray technology powers off the mess without making a mess
Spout swivels 360 degrees providing greater access to more areas of the sink
Automatic water flow shut-off after four minutes if the water is left running
Battery operated (6 AA included) for up to 2 year battery life
TempSense Technology LED light indicates water temperature change
Operates with Touch2O functionality and manually (with handle)
ADA compliant
California low flow compliant - Under 1.8 gallon-per-minute flow rate
Diamond Seal valve cartridge last 2x the industry standard
Optional A/C adapter EP102157 may be ordered separately
VoiceIQ compatible: (when adding to cart, optional VoiceIQ Module will be offered)

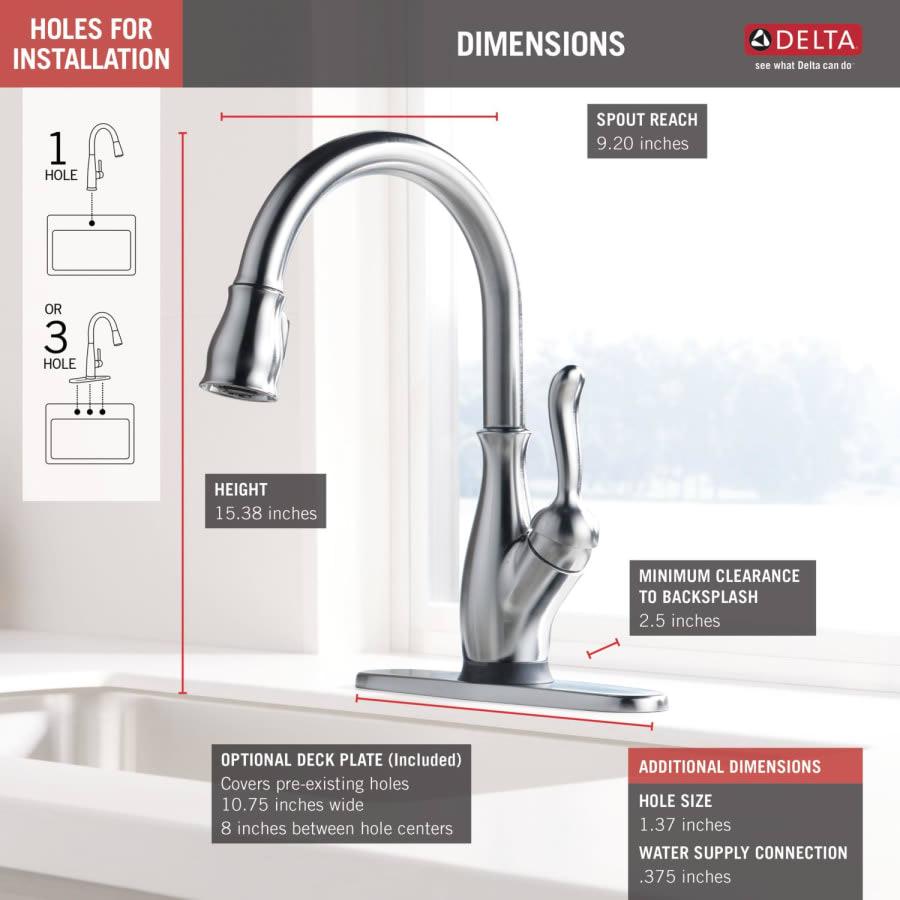

Delta 9178T-DST Specifications:

Height: 14-7/8" (deck to top of faucet)
Spout Height: 7-7/8" (deck to spout outlet)
Spout Reach: 9-13/64" (faucet base to spout outlet)
Flow Rate: 1.8 gallons-per-minute
Hole size: 1-3/8"
Holes Required: 1
Maximum Deck Thickness: 2-1/2"
Escutcheon Width: 10-3/4"

Delta 9178T-DST Technologies / Benefits:

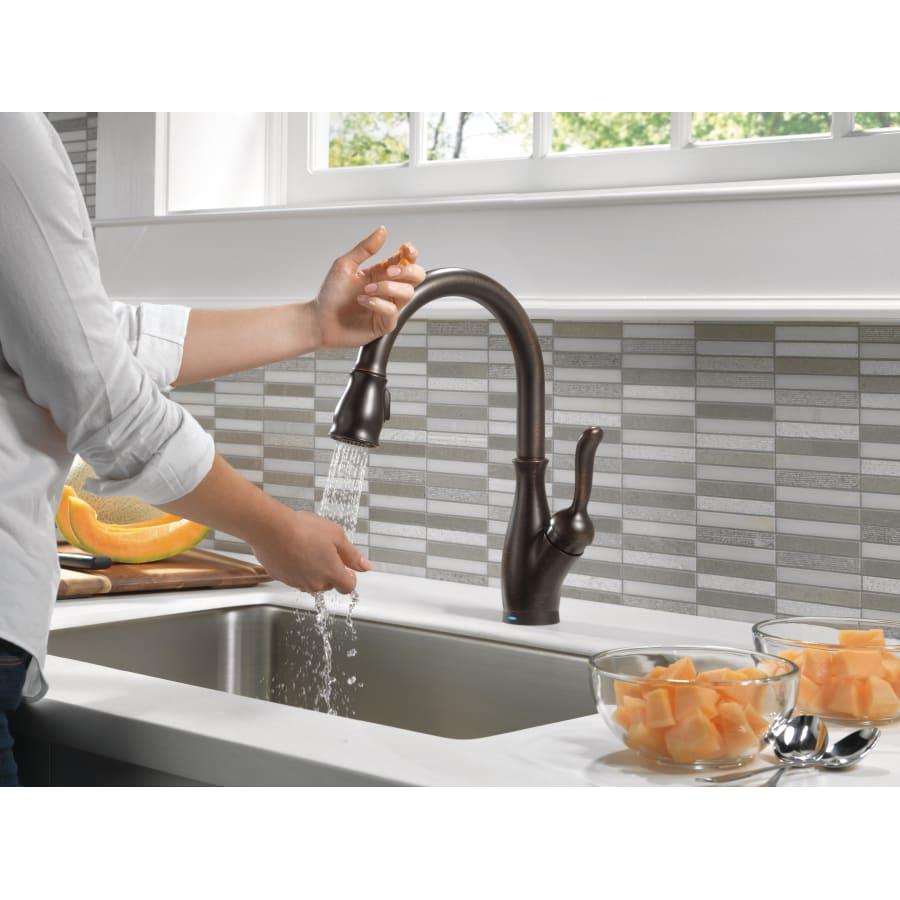

ShieldSpray:Â Cleans with laser-like precision while containing mess and splatter. A concentrated jet powers away stubborn remnants of food while an innovative shield of water surrounds the jet and mess to keep the splashing contained, so you can spend less time soaking, scrubbing and shirt swapping.
MagnaTite Docking:Â Delta's patented MagnaTite Docking Technology uses a powerful integrated magnet to securely hold your Delta kitchen faucet's pull-down spray in place when not in use. A light tug releases the wand for total flexibility and a full range of motion. When docking the wand after use, the MagnaTite Docking mechanism will guide the spray securely back into place.
Touch Clean:Â Only Delta offers faucets equipped with Touch Clean soft, rubber nubbins (spray holes) that allow you to easily wipe away calcium and lime build-up with the touch of a finger. This is particularly helpful for areas with hard water.
Diamond Seal:Â Delta DIAMOND Seal Technology utilizes a ceramic disc valve with a real diamond coating to produce a faucet that will last up to 5 million uses. That's an amazing 2 times the industry standard, guaranteeing a lifetime of leak-free, trouble-free performance.

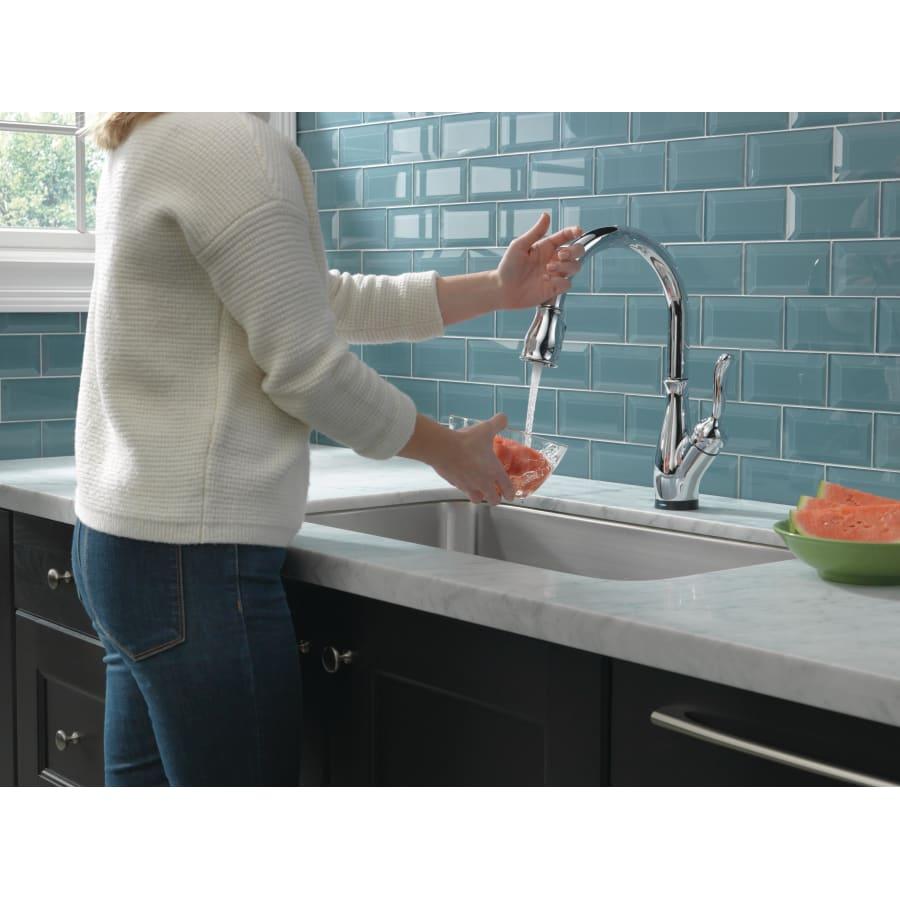

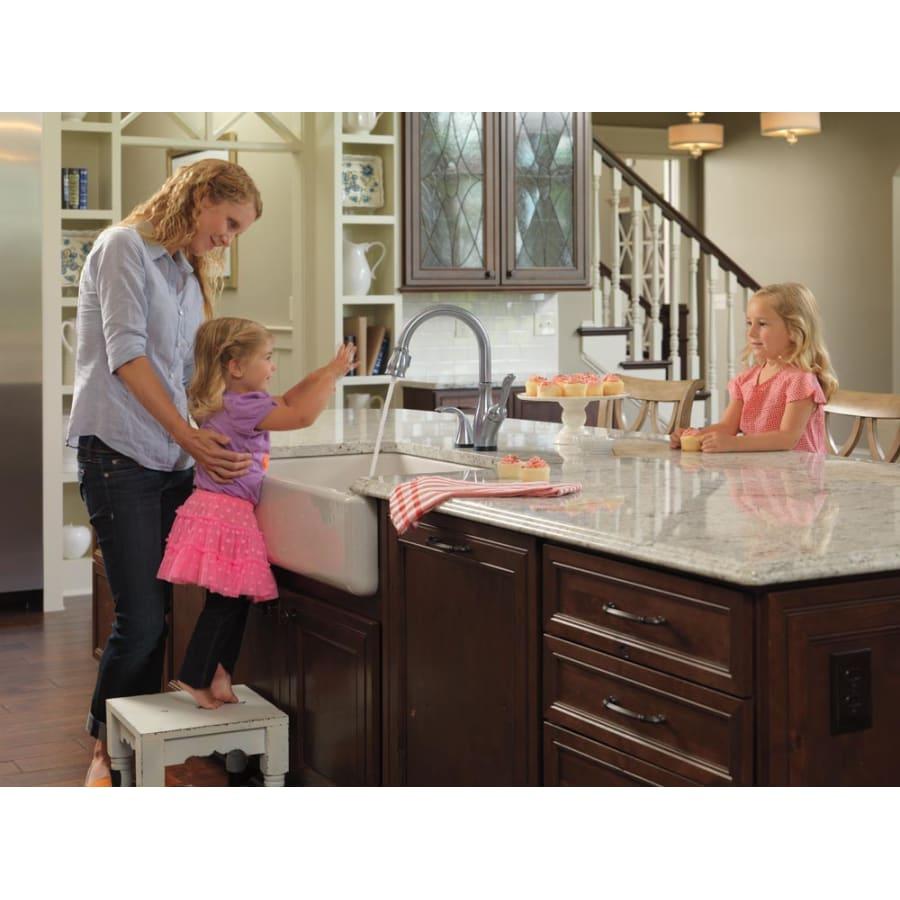

Touch2O:Â This intuitive tap technology enables you to turn the faucet on and off with just a touch anywhere on the faucet's body or handle. This feature is particularly helpful when your hands are messy (such as cooking) or when on-demand water is needed (such as dishwashing). Touch2O faucets include an LED indicator light at the base of the faucet which lets you know the touch feature is active while also making the statement that you've got the latest-and-greatest in faucet technology. Touch2O kitchen faucets are designed to be easy enough to install that the typical homeowner can do it in less than an hour. Electricians are not required.
VoiceIQ Compatible: Turn your water on/off, pour specific amounts, and even warm up water with just your voice using the optional VoiceIQ module which pairs with your connected AmazonÂ® AlexaÂ®- or GoogleÂ® Assistant-enabled home device.

Dimensions and Measurements

Escutcheon Width
10.75 in.
Faucet Centers
0 in.
Faucet Hole Size
1.375 in.
Flow Rate (GPM)
1.8
Height
14.875 in.
Hose Length
54 in.
Max Deck Thickness
2.5 in.
Spout Height
7.875 in.
Spout Reach
9.203 in.
Spout Swivel
360 Degrees
Water Connection
3/8"

Included Components

Escutcheon Included
Yes
Filtering
No
Handles Included
Yes
Installation Hardware Included
Yes
Sidespray
No
Soap Dispenser Included
No
Valve Included
Yes

Characteristics and Features

Electronic
Yes
Faucet Holes
1
Faucet Type
Kitchen Faucet
Handle Style
Lever
Installation Type
Deck Mounted
Magnetic Docking
Yes
Material
Zinc
Number Of Handles
1
Pre Rinse
No
Pullout Direction
Down
Pullout Spray
Yes
Spout Style
High Arc, Pull-Out
Spout Type
Swivel
Theme
Traditional
Touch Faucet
Yes
Valve Type
Ceramic Disc
Water Connection Type
Compression
Water Efficient
Yes

Manufacturer Technology

Delta Smart Solutions
MagnaTite Docking, Touch Clean, Touch2O, Diamond Seal Technology
Diamond Seal
Yes
MagnaTite
Yes
Touch Clean
Yes
Touch2O
Yes

Electrical and Operational Information

Power Source
Battery

Warranty and Product Information

ADA
Yes
Approved for Commercial Use
Yes
CA Drought Compliant
Yes
Collection
Leland
Manufacturer Warranty
5 Year Limited Commercial, Limited Lifetime Residential

Delta

Leland Pull-Down Kitchen Faucet with On/Off Touch Activation and Magnetic Docking Spray Head and ShieldSpray - Includes Lifetime Warranty (5 Year on Electronic Parts)
