Product Features:

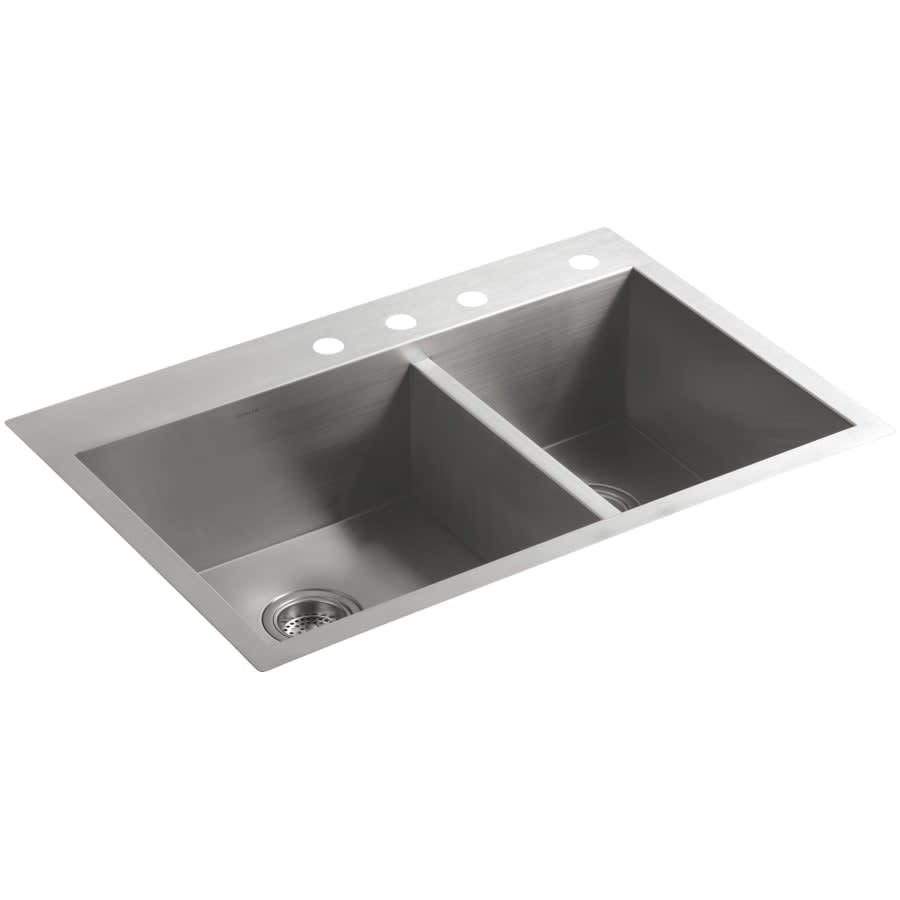

Double basin sink with a 60/40 split provides increased versatility for any task
Covered under Kohler's limited lifetime warranty
The distinctive, modern design of the Vault sink lends a contemporary vibe to any kitchen
This sink features tightly angled corners to maximize basin space and a sloped bottom that helps with draining and clean up
Hand crafted from 18-gauge stainless steel giving both the aesthetic beauty you want and the durability and longevity you need
Top-mount or Under-mount installation options
Rear drain location increases workspace area in the sink as well as storage area underneath
All hardware needed for installation included

Product Technologies / Benefits:

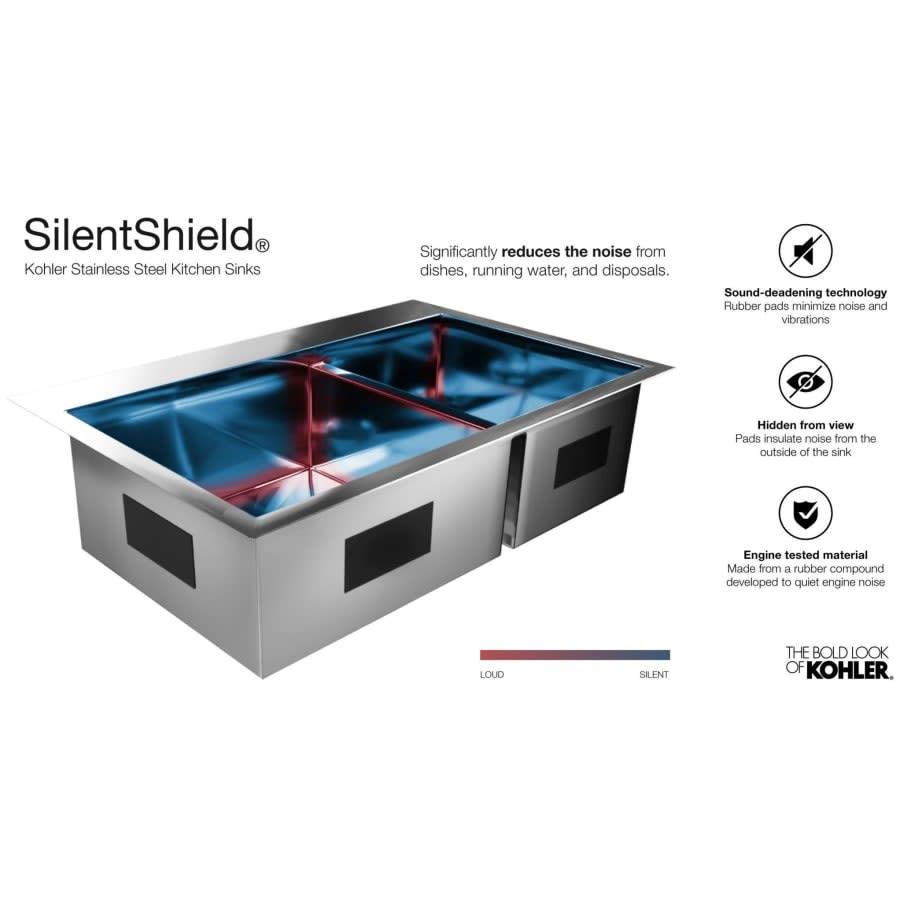

SilentShieldÂ®: A sound-absorption system found in many Kohler sinks that significantly reduces the noise from clanging dishes and silverware, as well as undesirable noise caused by running water and disposals.

Product Specifications:

Height: 9-5/16" (measured from the bottom of the sink to the top most point of the sink)
Overall Width: 22" (measured from the back outer rim to the front outer rim)
Overall Length: 33" (measured from the left outer rim to the right outer rim)
Basin Width (left): 16-9/16" (measured from the back inner rim to the front inner rim)
Basin Length (left): 17-1/2" (measured from the left inner rim to the right inner rim)
Basin Depth (left): 9" (measured from center of the basin to the rim)
Basin Width (right): 16-9/16" (measured from the back inner rim to the front inner rim)
Basin Length (right): 11-5/8" (measured from the left inner rim to the right inner rim)
Basin Depth (right): 9" (measured from center of the basin to the rim)
Installation Type: Top-mount or Under-mount
Number of Faucet Holes: 4
Drain Outlet Connection: 3-5/8"
Minimum Base Cabinet Width: 35"

With everything that Kohler does it lives on the leading edge of design and technology, while maintaining a constant level of quality regardless of price. Kohler sets the standard of excellence in its field, and yet is constantly striving to improve.

From sustainable products in the kitchen and bath, to engines for lawn tractors and generators, to power systems that protect data centers and urban landscapes all over the world; this is what the Kohler Company is all about.

Dimensions and Measurements

Basin Depth
9 in.
Basin Depth (Left)
9 in.
Basin Depth (Right)
9 in.
Basin Length (Left)
17.5 in.
Basin Length (Right)
11.625 in.
Basin Width (Left)
16.563 in.
Basin Width (Right)
16.563 in.
Drain Connection
3.625 in.
Faucet Centers
8 in.
Gauge
18
Height
9.313 in.
Length
33 in.
Nominal Length
33 in.
Nominal Width
22 in.
Sink Length
33 in.
Width
22 in.

Included Components

Basin Rack Included
No
Basket Strainer Included
No
Cutting Board Included
No
Faucet Included
No
Soap Dispenser Included
No

Characteristics and Features

Basin Split
60/40
Drain Placement
Rear
Farmhouse
No
Faucet Holes
4
Installation Type
Drop In, Undermount
Material
Stainless Steel
Number Of Basins
2
Sink Shape
Rectangular
Sound Dampening
Yes
Theme
Modern

Warranty and Product Information

ADA
No
Collection
Vault
Country Of Origin
USA
