Product Features:

All Kohler Widespread Faucets come with handles and valves pre-assembled
Spout, handles, valves, drain, tee assemblyÂ and attachment hardware come all in one box
Fully covered under Kohler's limited lifetime faucet warranty
Faucet body constructed of brass, ensuring durability and dependability
Kohler finishes resist corrosion and tarnishing, exceeding industry standards for durability
The Devonshire Collection features a classic silhouette will complement a variety of bathroom decors
Double handle operation - handles rest on 1/4 turn valves
Mounts in a widespread/mini-widespread configuration - 3 holes required with handles completely separate from the spout
Metal pop-up drain assembly included for complete installation
ADA compliant - complies with the standards set forth by the Americans with Disabilities Act
Low lead compliant - meets federal and state regulations for lead content
Designed for use with standard U.S. plumbing connections
WaterSense Certified product - uses at least 30% less water than standard 2.2 GPM faucets while still meeting strict performance guide lines
Features an extra-secure mounting assembly
All hardware needed for installation is included

Product Technologies / Benefits:

UltraGlide Valve: Kohler has created the next generation of faucet valve technology with the Ultra-Glide ceramic valve. With high quality engineered ceramic materials, this valve is built to be exceedingly durable and ultra smooth. The Ultra-Glide is rated for up to 4,000,000 on/off cycles, beating the industry standard by eight times and guaranteeing a lifetime of leak-free performance. Unlike standard valves, the Ultra-Glide confines the water below the valve stem, keeping the majority of components dry at all times; this reduces the chance of corrosion and deterioration that affects most valves. Additionally, this valve increases the turning radius of the faucet handles, allowing for greater and more pin-point control over the water flow's volume and temperature. The Ultra-Glide valve represents the pinnacle in versatility - it will last a lifetime and bring any home into the new age of faucet technologies.
WaterSense Certified Product: To help make a difference on a global scale and to further its role as an industry leader in eco-performance practices, Kohler has established partnerships with a number of environmental organizations, including WaterSense. Many Kohler faucets and toilets are equipped with low-flow technology - they use less water, while continuing to meet superior performance standards.
Quick Mount Installation: With Kohler's innovative valve technologies, installation is now as simple as one-two-three. Simply place the faucet handle(s) in the desired position on the countertop, and the valve cartridges thread directly in from the bottom with a locking nut. All that is required is the tightening of two mounting screws. In addition to the ease of installation, this process also offers an extra-secure mounting assembly. Where most faucet handles will loosen over time, Kohler's will hold firmly in place for the life of the faucet.

Product Specifications:

Overall Height: 4-3/4" (measured from countertop to highest point on faucet)
Spout Height: 3-3/8" (measured from countertop to spout outlet)
Spout Reach: 6-3/8" (measured from center of faucet base to center of spout outlet)
Mounting Type: Widespread
Flow Rate: 1.2 GPM (gallons per minute)
Maximum Deck Thickness: 1-3/8"
Number of Holes Required for Installation: 3
Faucet Centers (Distance Between Handle Installation Holes): 8" - 16"
2 metal lever handles are included with the faucet

Variations:

K-393-N4 : Centerset version of this model
K-193-4 : Single Hole version of this model

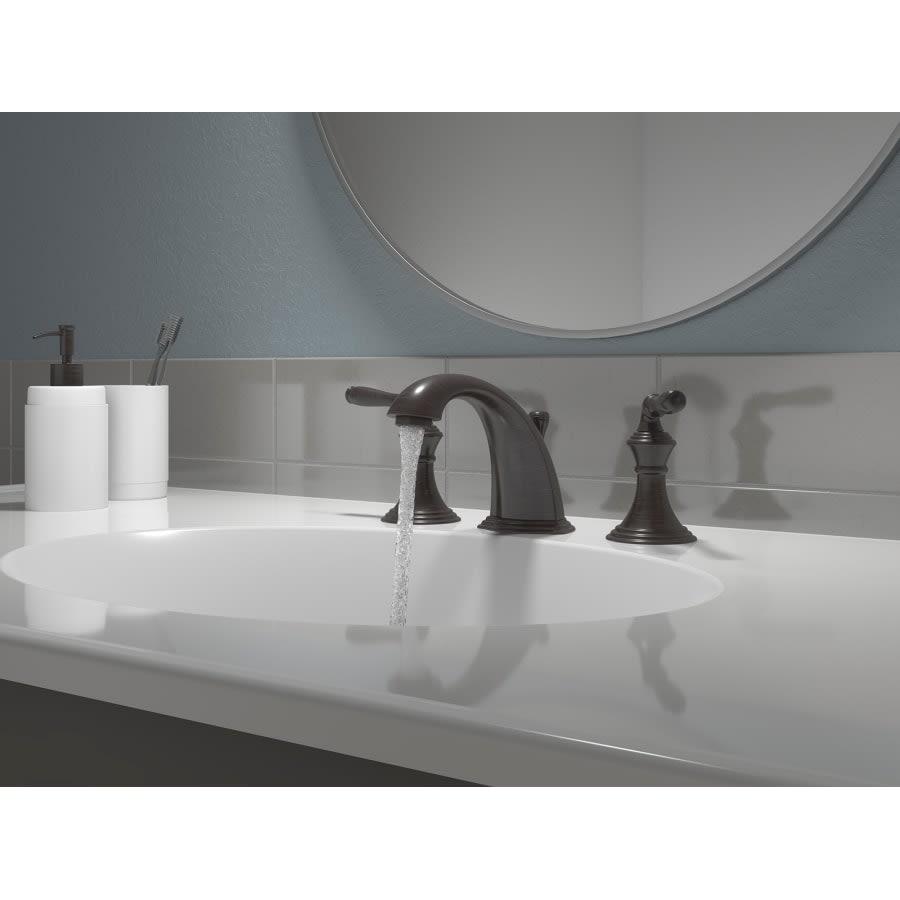

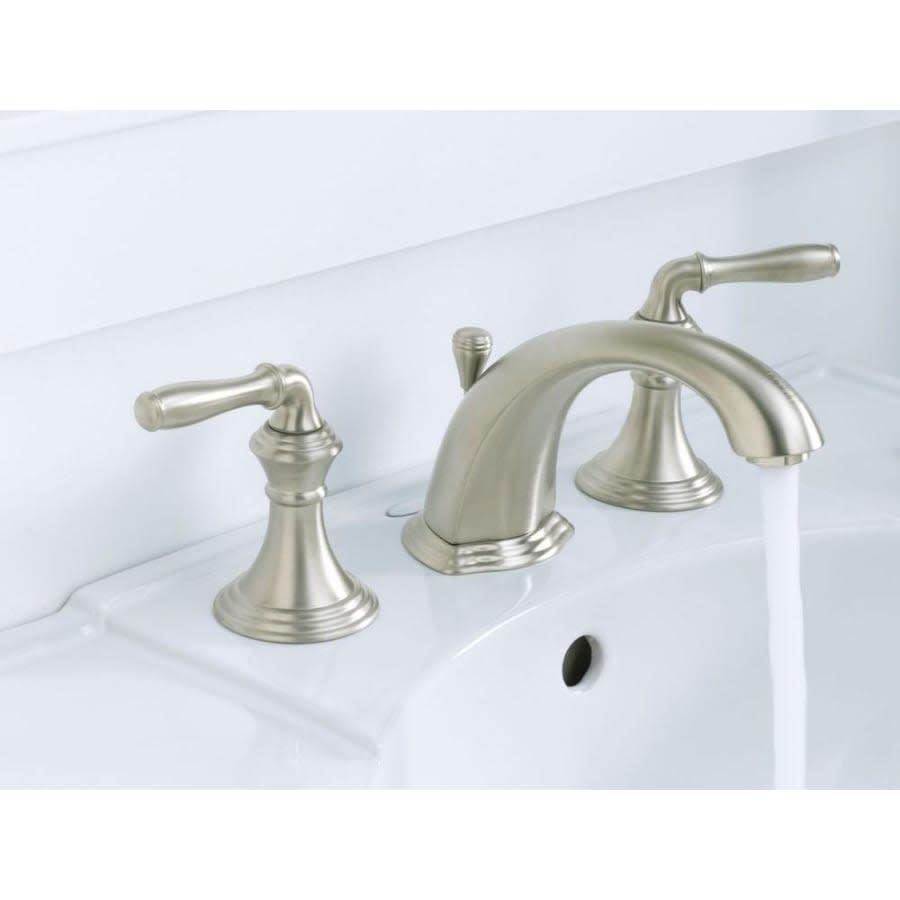

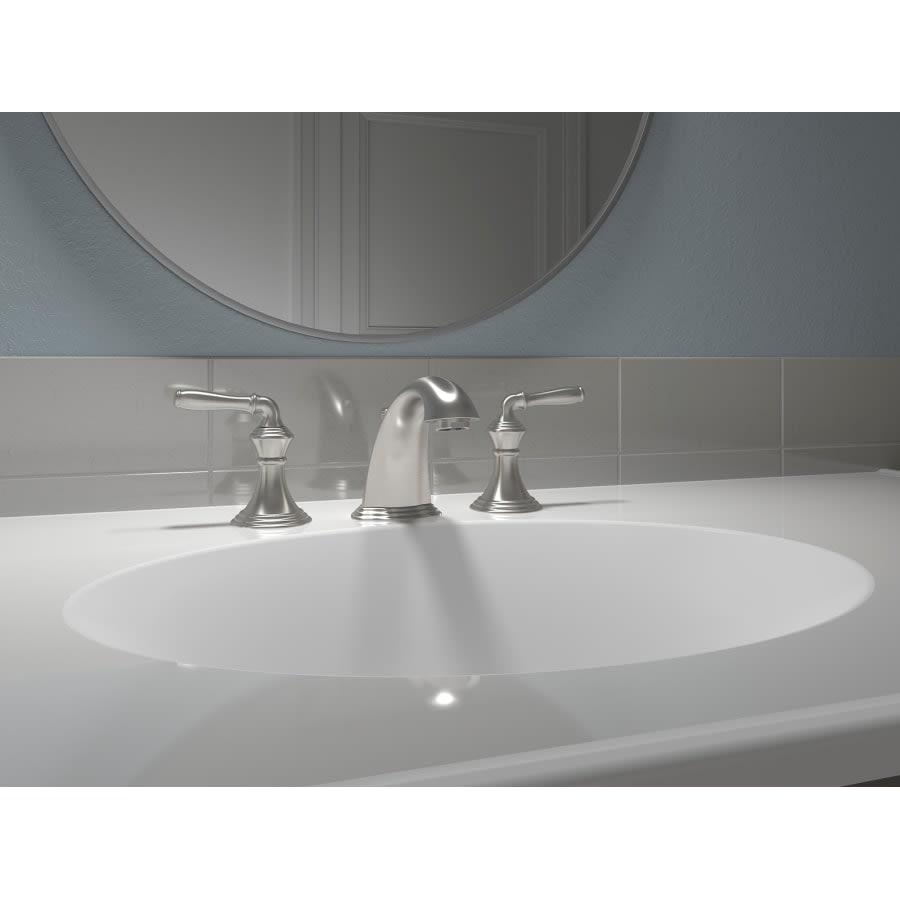

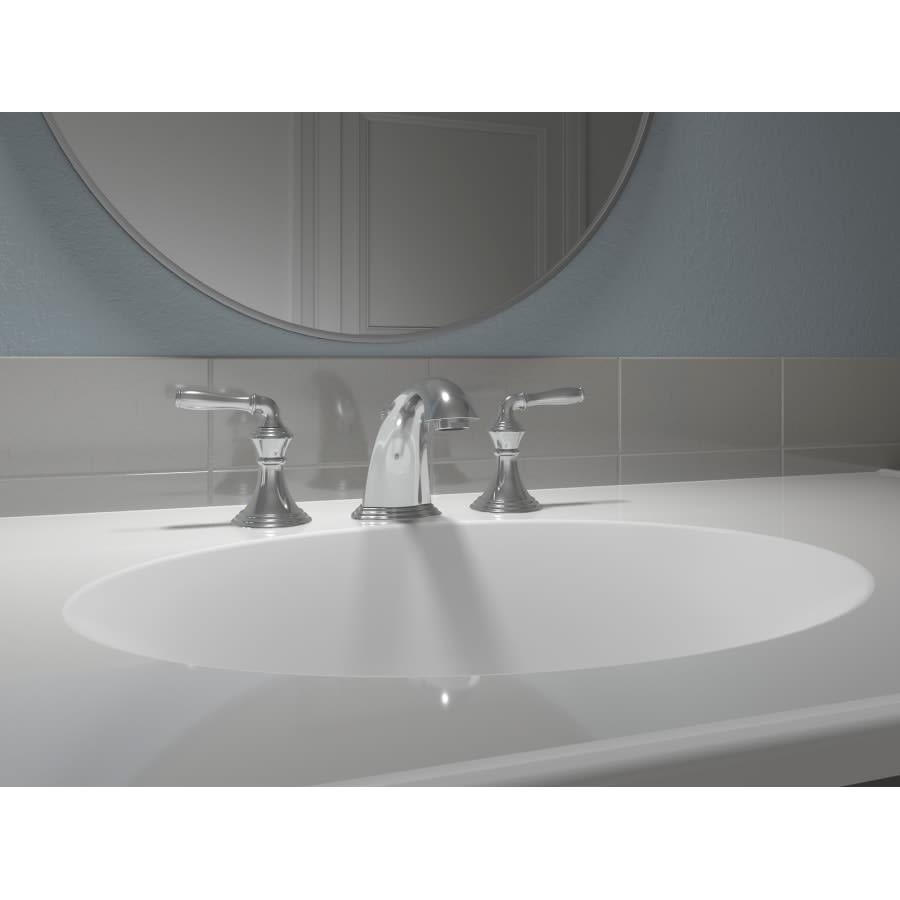

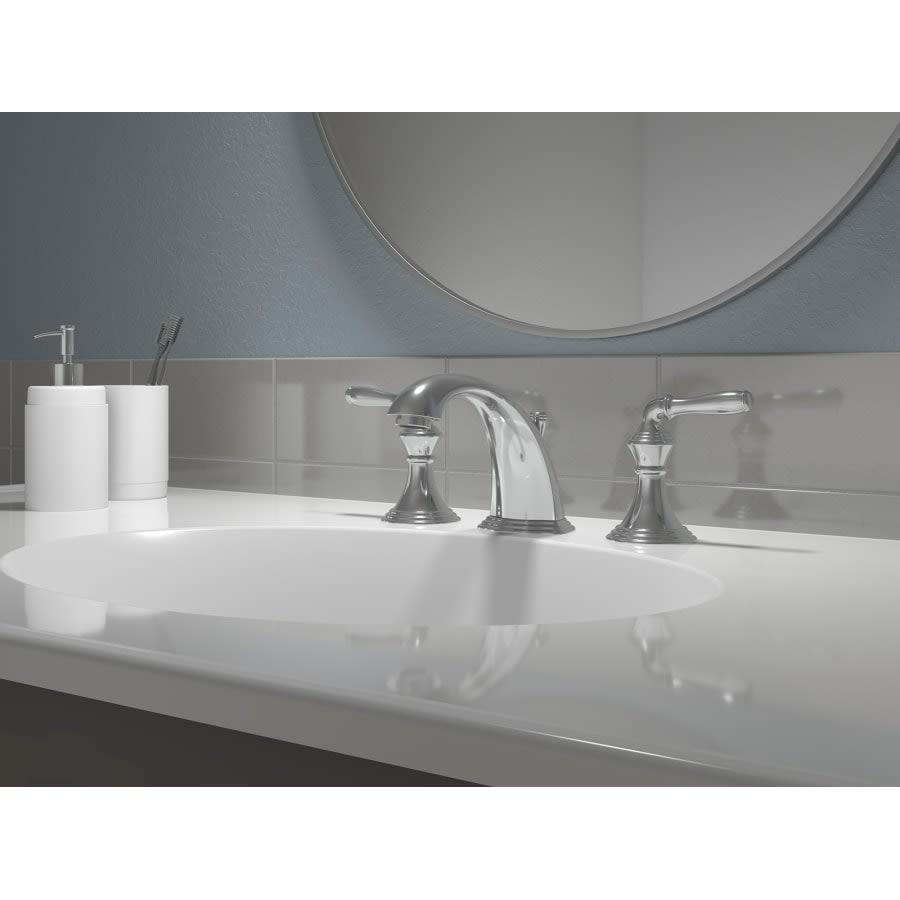

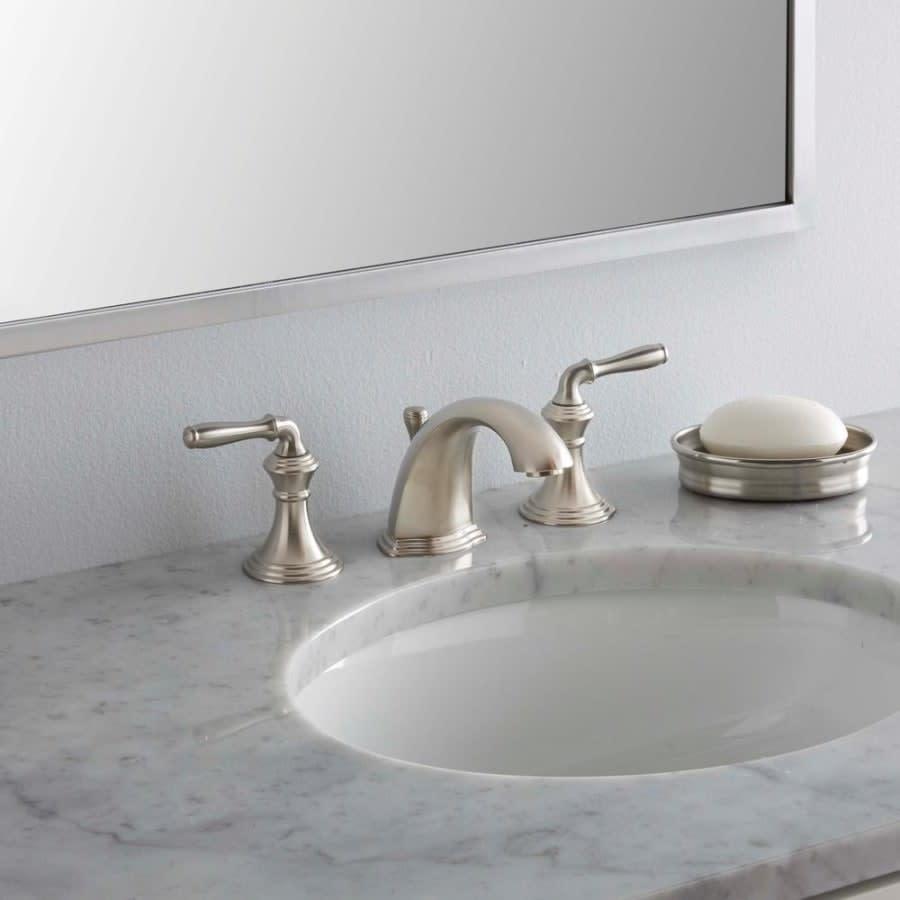

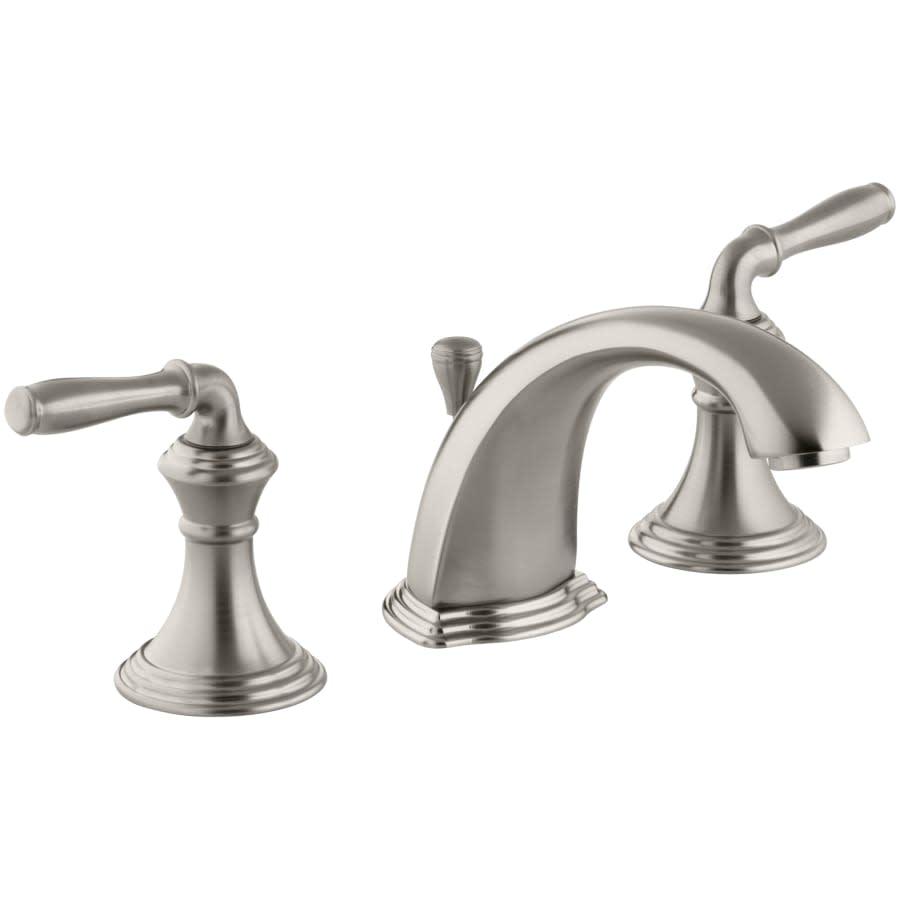

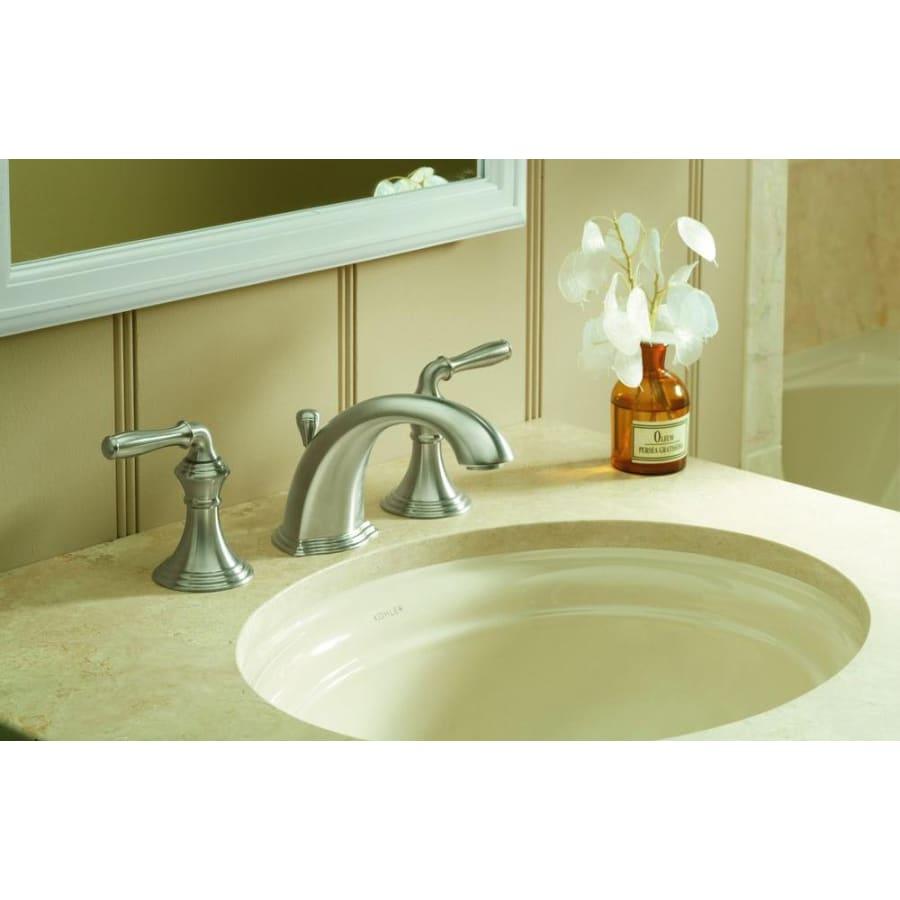

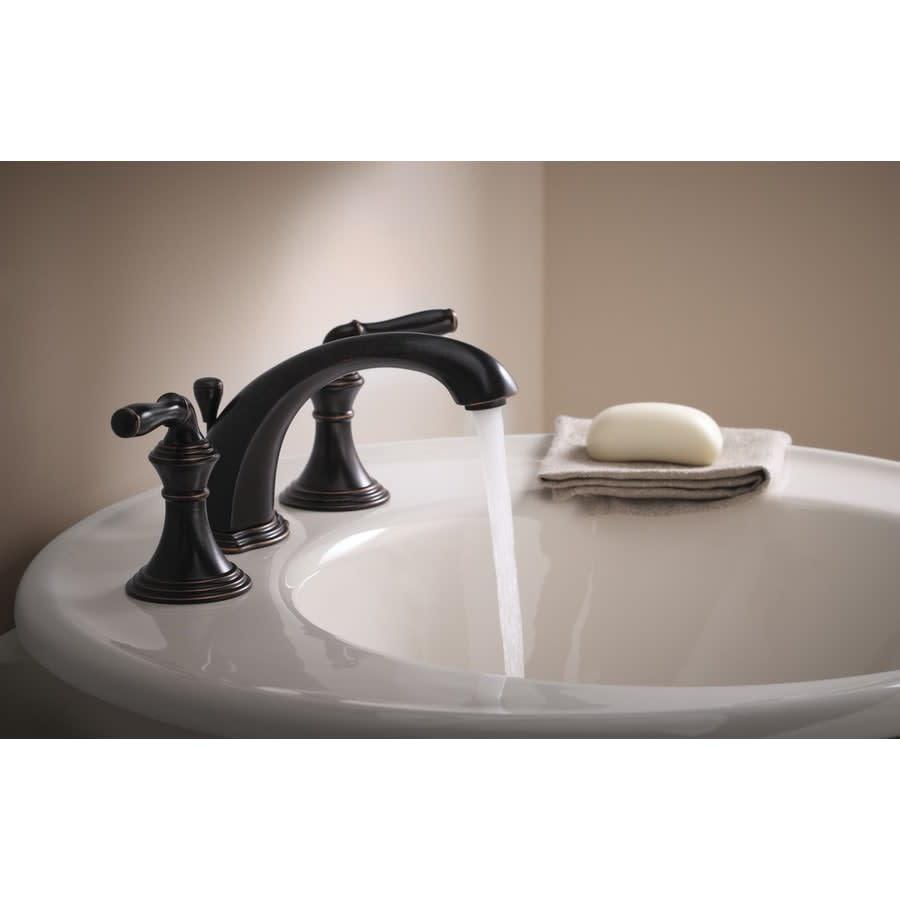

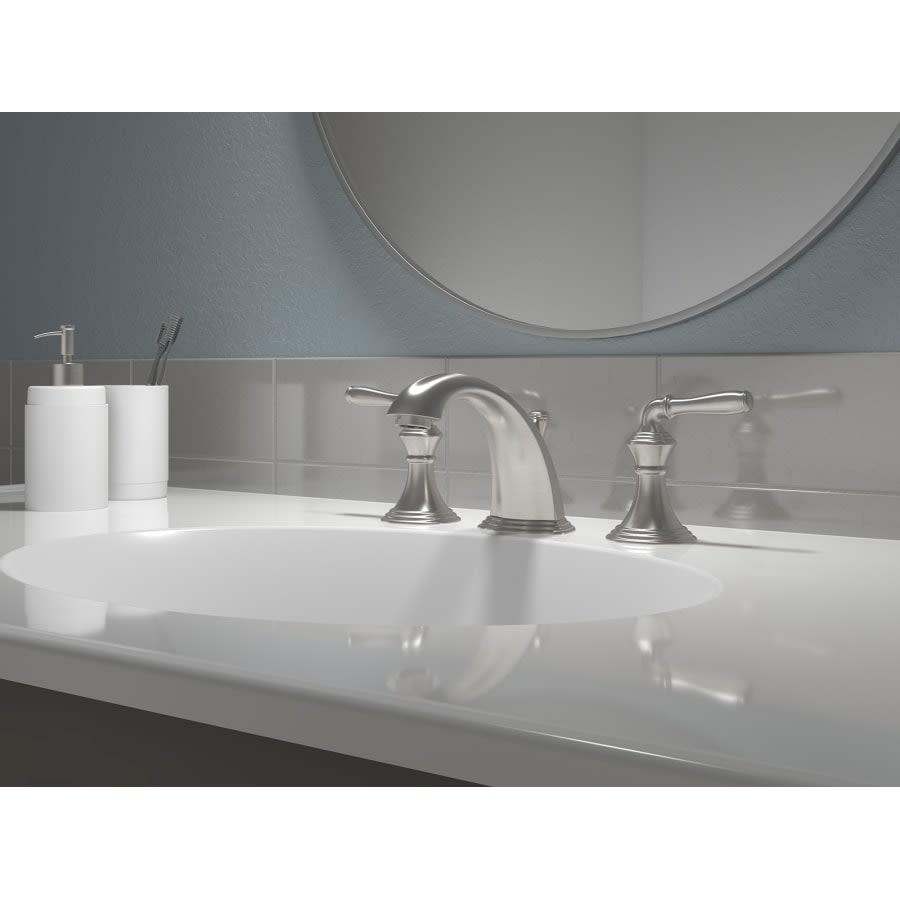

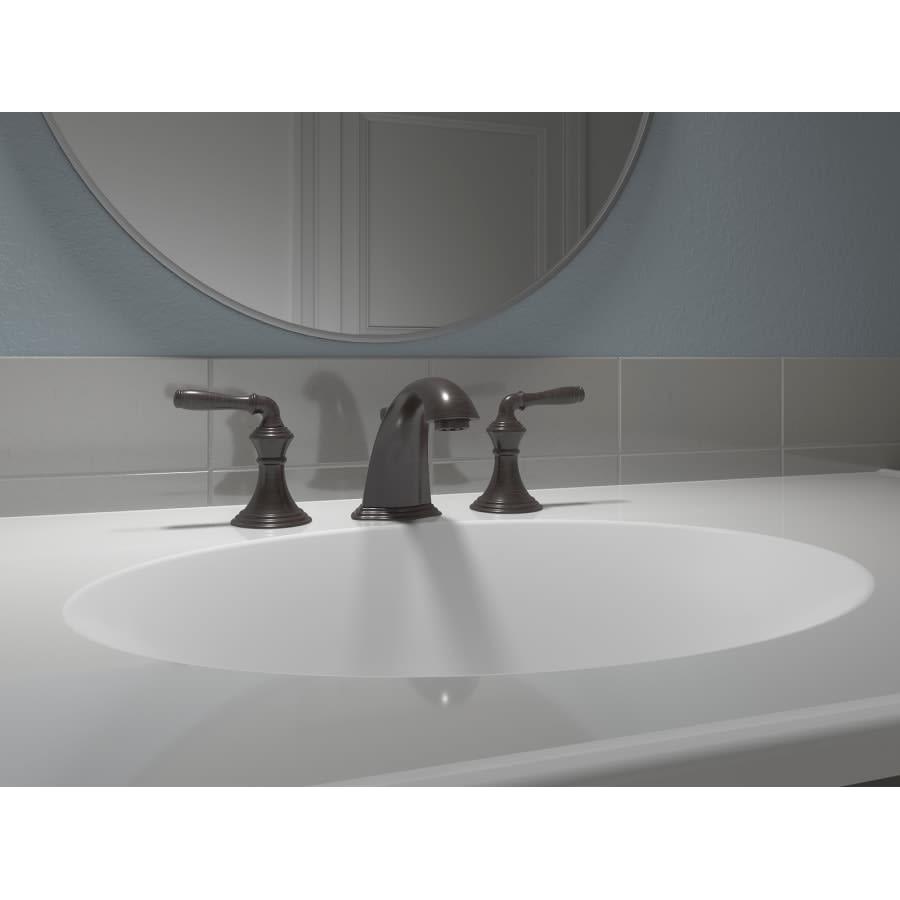

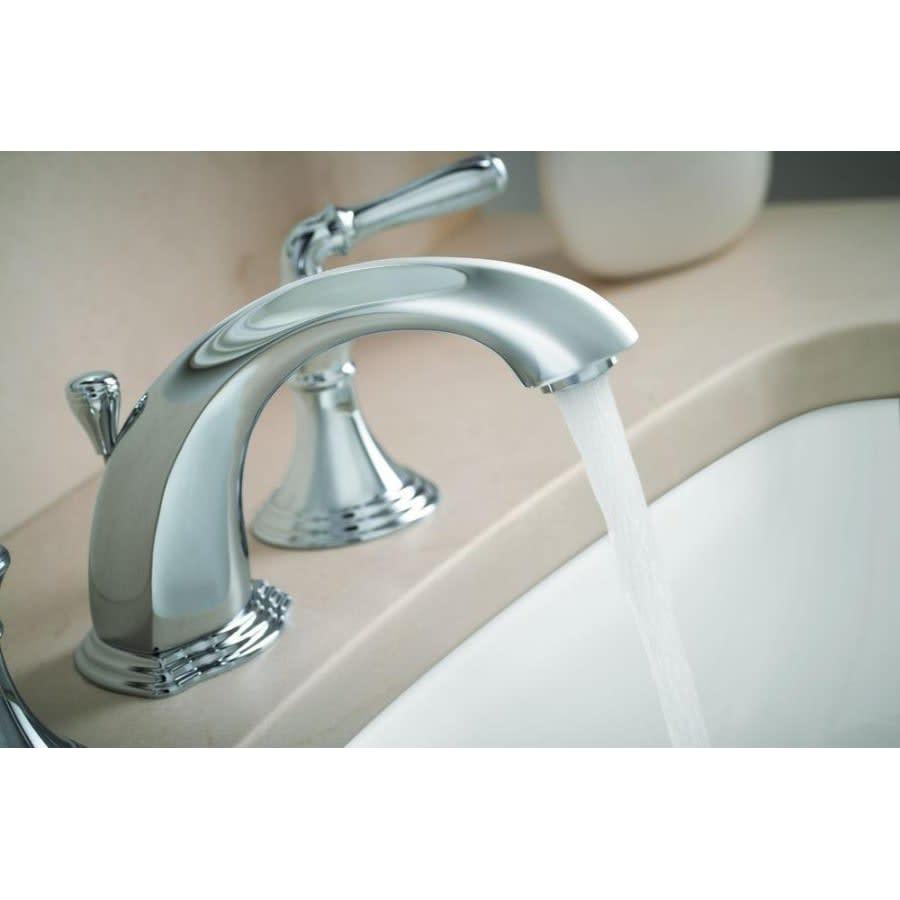

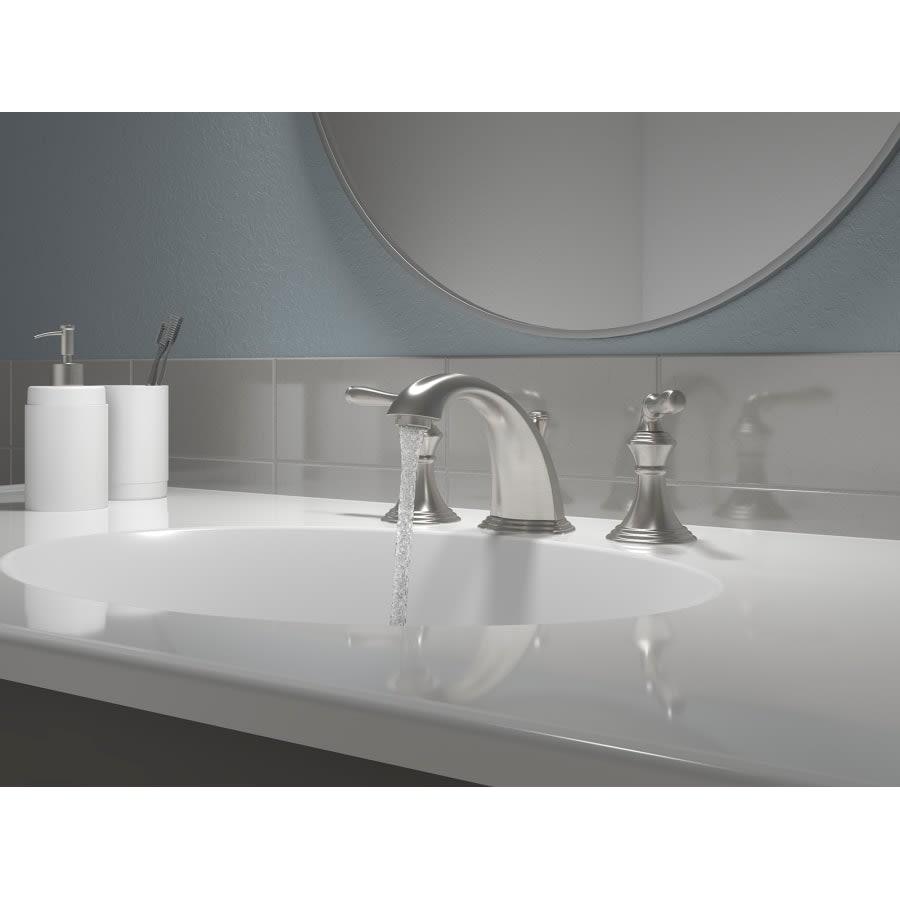

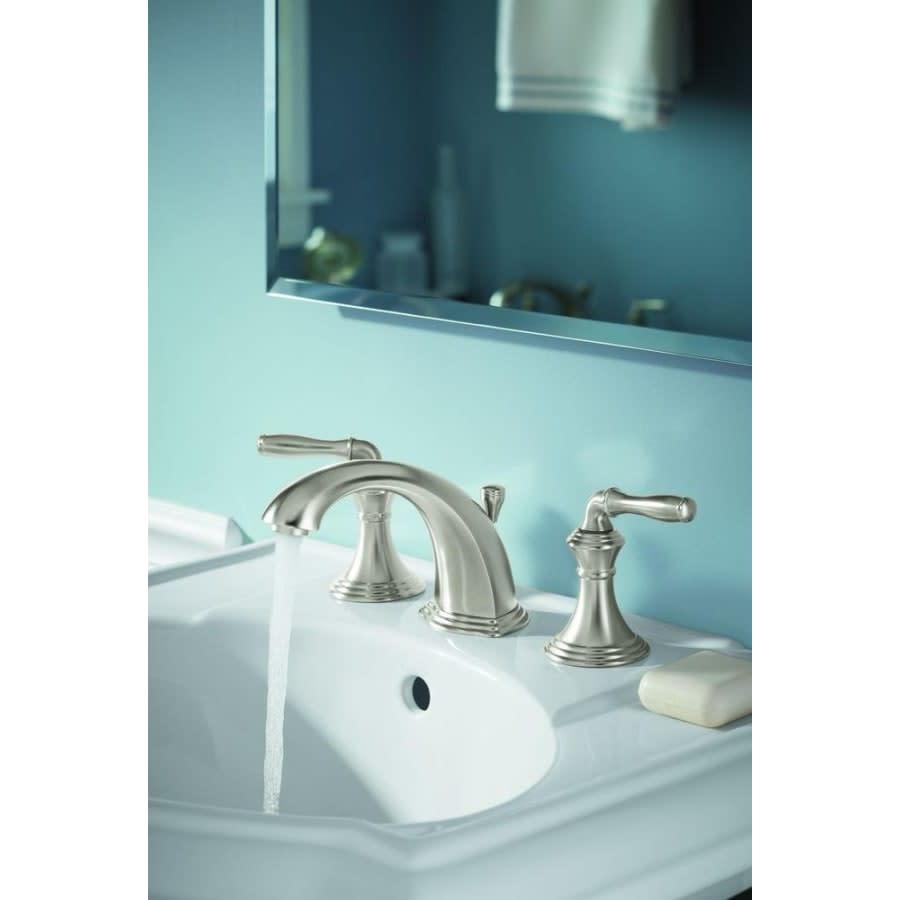

Devonshire

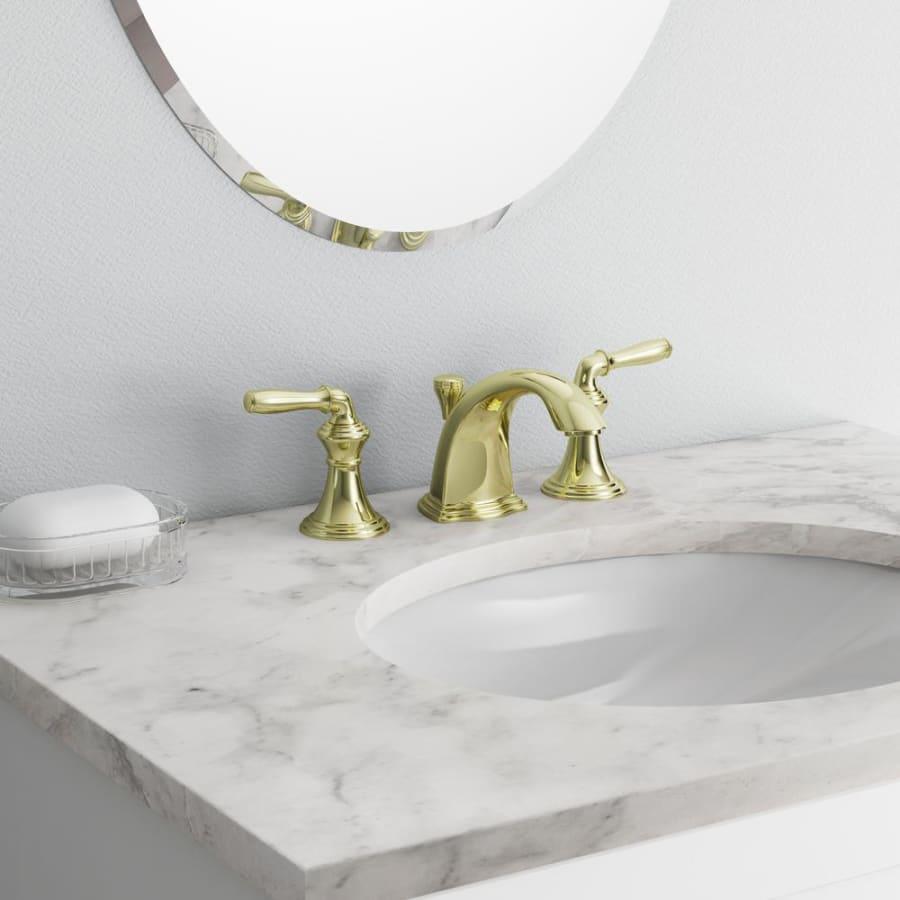

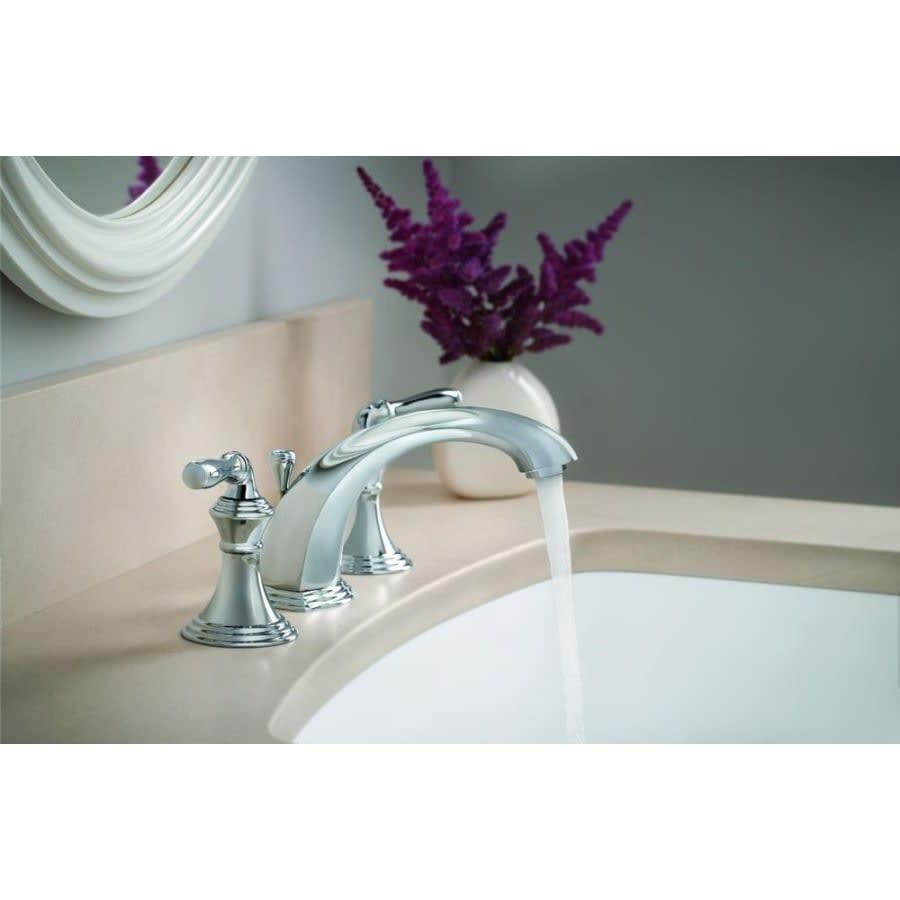

Capturing the elegance of a bygone era, Devonshire is reminiscent of old-world design. This Devonshire faucet brings a refined look to your bath or powder room sink, with lever handles providing easy operation. Easy-to-clean and leak-free UltraGlide valves offer durable performance over time.

Dimensions and Measurements

Drain Connection
2.25 in.
Faucet Centers
10, 11, 12, 13, 14, 15, 16, 8, 9 in.
Faucet Hole Size
1.125 in.
Flow Rate (GPM)
1.2
Handle Height
4.19 in.
Height
4.75 in.
Max Deck Thickness
1.375 in.
Spout Height
3.375 in.
Spout Reach
6.375 in.

Included Components

Drain Assembly Included
Yes
Escutcheon Included
No
Handles Included
Yes
Pop-Up Included
Yes
Soap Dispenser Included
No
Valve Included
Yes

Characteristics and Features

Faucet Holes
3
Faucet Type
Bathroom Sink Faucet
Handle Material
Metal
Handle Style
Lever
Installation Type
Deck Mounted
Material
Brass
Mounting Type
Widespread
Number Of Handles
2
Spout Type
Fixed
Theme
Traditional
Valve Type
Ceramic Disc
Water Efficient
Yes

Manufacturer Technology

Valve Technology
UltraGlide

Warranty and Product Information

ADA
Yes
Approved for Commercial Use
Yes
ASME Code
A112.18.1
CA Drought Compliant
Yes
Certifications
ANSI, ASME, CSA, NSF
Collection
Devonshire
Country Of Origin
USA
CSA Code
B125.1
Eco Friendly
Yes
Low Lead Compliant
Yes
Made in America
Yes
Manufacturer Warranty
Limited Lifetime
WaterSense Certified
Yes
