Product Features:

Single basin design provides maximum available workspace
Covered under Kohler's limited lifetime warranty
Equip your kitchen with the popular and versatile Mayfield sink
Constructed of enameled cast-iron which combines strength, durability and insulation benefits
Top-mount installation makes for a quick and easy install wile keeping the elegant you crave
Center drain location provides optimal drainage capability
All hardware needed for installation included

Product Technologies / Benefits:

Enameled Cast-Iron: Kohler Enameled Cast-Iron combines the strength, durability, and insulation benefits of cast-iron with the scratch, chip, and burn resistance of a baked, powder coat finish and comes with an exceptional Lifetime Limited Warranty. When these materials are combined it gives the sink or tub the strength to last a lifetime of use. Kohler Enameled Cast-Iron is also available in a wide variety of specialty colors allowing you to truly customize your home.

Product Specifications:

Height: 8-3/4" (measured from the bottom of the sink to the top most point of the sink)
Overall Width: 22" (measured from the back outer rim to the front outer rim)
Overall Length: 25" (measured from the left outer rim to the right outer rim)
Basin Width: 15" (measured from the back inner rim to the front inner rim)
Basin Length: 22" (measured from the left inner rim to the right inner rim)
Basin Depth: 7-3/4" (measured from center of the basin to the rim)
Installation Type: Top-mount
Number of Faucet Holes: 3
Drain Outlet Connection: 3-5/8"
Minimum Base Cabinet Width: 27"

With everything that Kohler does it lives on the leading edge of design and technology, while maintaining a constant level of quality regardless of price. Kohler sets the standard of excellence in its field, and yet is constantly striving to improve.

From sustainable products in the kitchen and bath, to engines for lawn tractors and generators, to power systems that protect data centers and urban landscapes all over the world; this is what the Kohler Company is all about.

Dimensions and Measurements

Basin Depth
7.75 in.
Basin Length
22 in.
Basin Width
15 in.
Drain Connection
3.625 in.
Faucet Centers
8 in.
Faucet Hole Size
1.375 in.
Height
8.75 in.
Length
25 in.
Nominal Length
25 in.
Nominal Width
22 in.
Sink Length
25 in.
Width
22 in.

Included Components

Basin Rack Included
No
Basket Strainer Included
No
Cutting Board Included
No
Faucet Included
No
Soap Dispenser Included
No

Characteristics and Features

Basin Split
Single Basin
Drain Placement
Center
Farmhouse
No
Faucet Holes
3
Installation Type
Drop In
Material
Cast Iron
Number Of Basins
1
Sink Shape
Rectangular
Sound Dampening
Yes
Theme
Traditional
Undercoating
No

Warranty and Product Information

ADA
No
Collection
Mayfield
Country Of Origin
USA
Made in America
Yes

Kohler

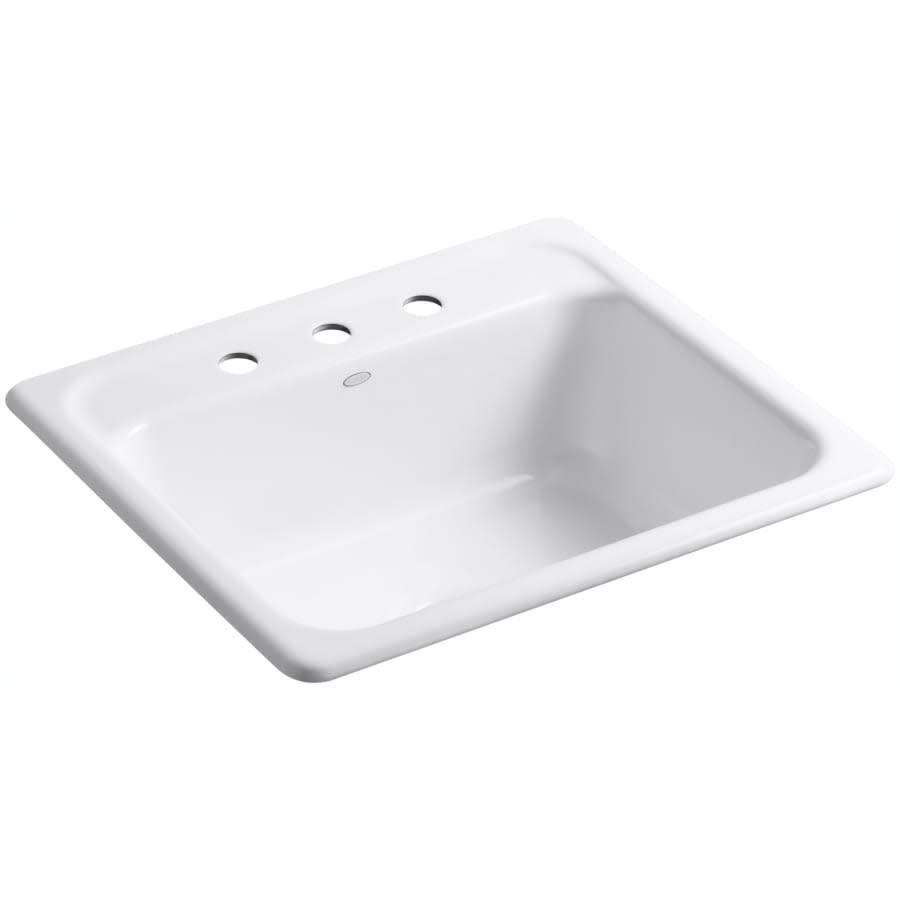

Mayfield 25" Single Basin Top-Mount Enameled Cast-Iron Kitchen Sink

Finish

Product Details
