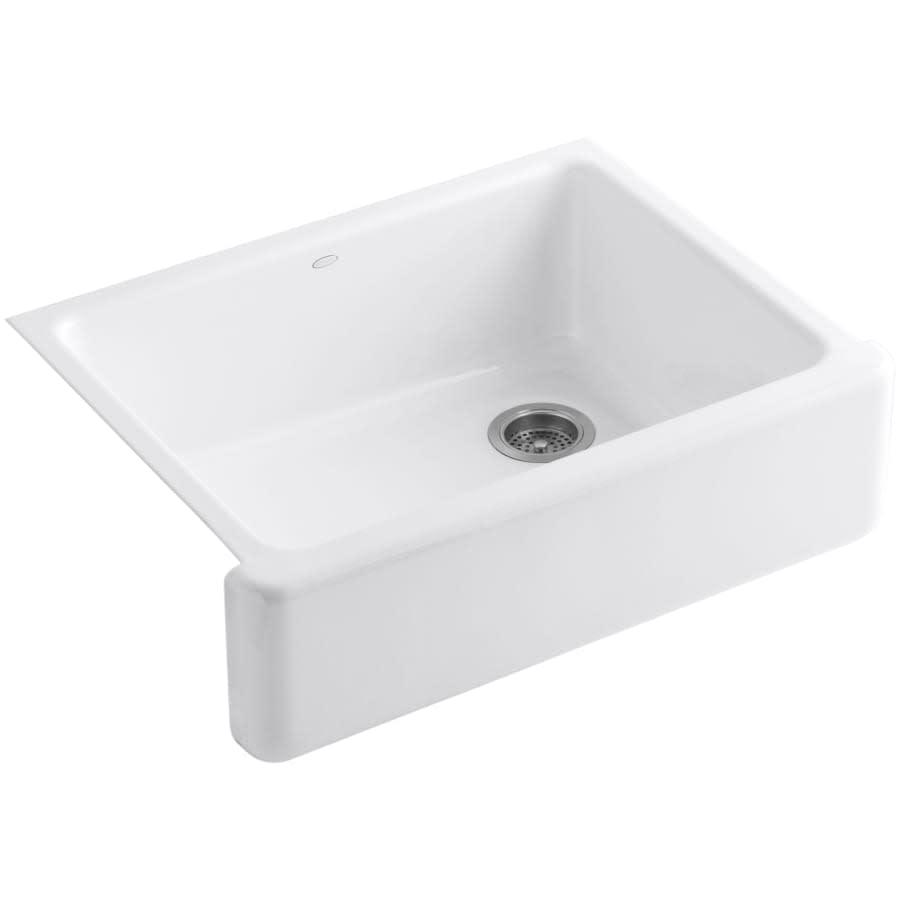

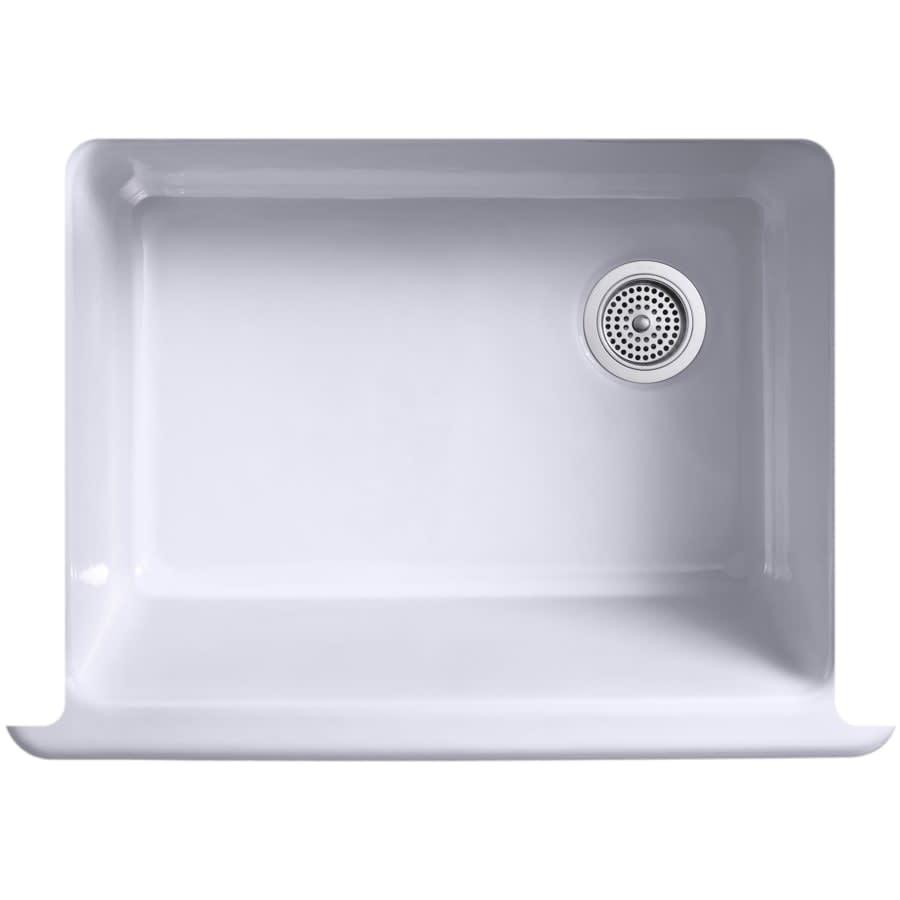

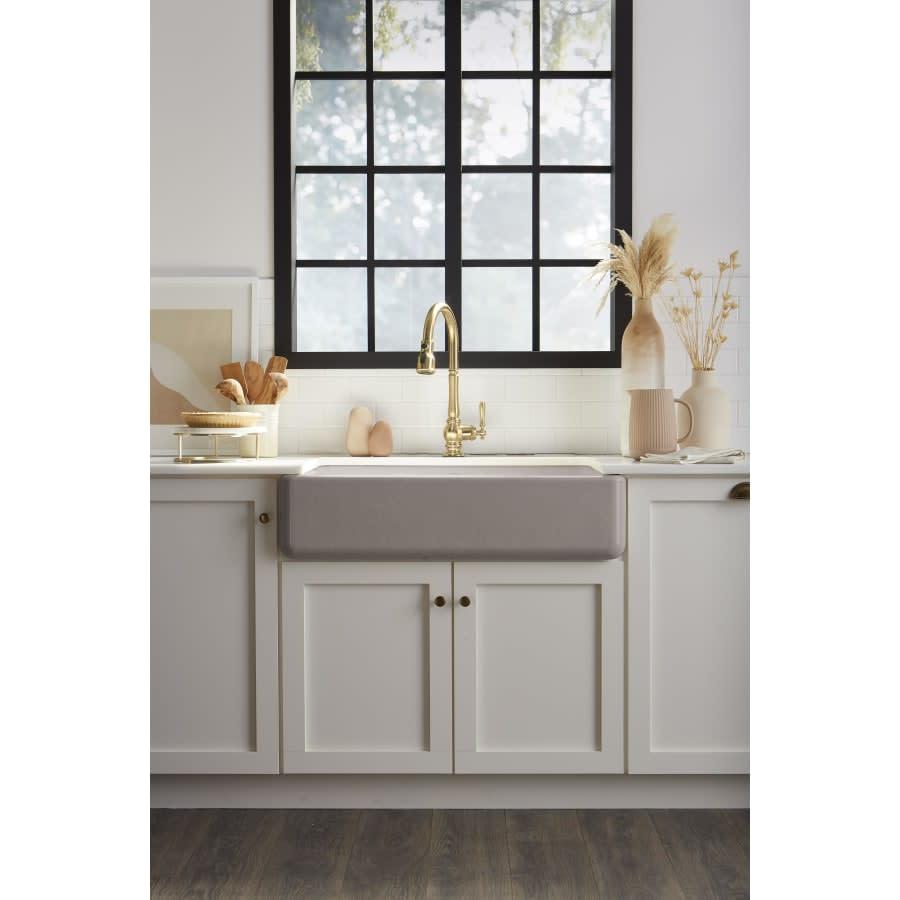

The Whitehaven apron-front kitchen sink features a streamlined and versatile farmhouse style. The Self-Trimming design requires only a simple rough cut, overlapping the cabinet face for beautiful results. The tall integral apron also acts as a drip edge to protect the cabinet from water damage. A large single basin accommodates large pots and pans, while the sloped bottom helps with draining and cleanup. Crafted from enameled cast iron, this sink resists chipping, cracking, or burning for years of beauty and reliable performance.

Kohler K-6487 Features:

Covered under Kohler's limited lifetime warranty
Basin slopes 2 degrees toward drain to minimize water pooling
Offset drain increases workspace in the sink and storage space underneath
Includes cutout templates
Constructed of enameled cast iron
Undermount installation - sink will install under the countertop and requires special cabinets with an exposed front
Single basin design for maximum workspace
Right drain location increases available space under the sink
Coordinates with products from the Whitehaven line
Made in America

Kohler K-5664 Technologies and Benefits:

Self-TrimmingÂ®: Self-TrimmingÂ® apron sinks overlap cabinet face for easy seamless installation with beautiful results.

Kohler K-6487 Specifications:

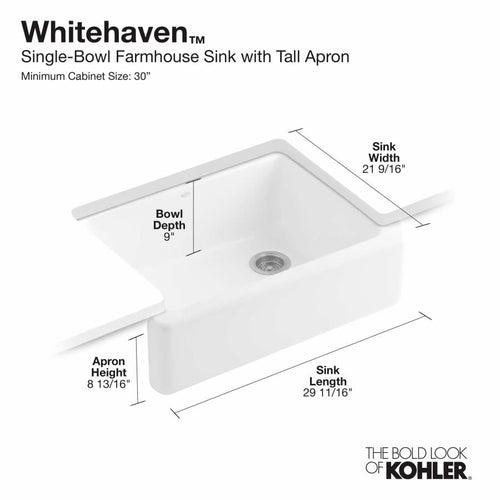

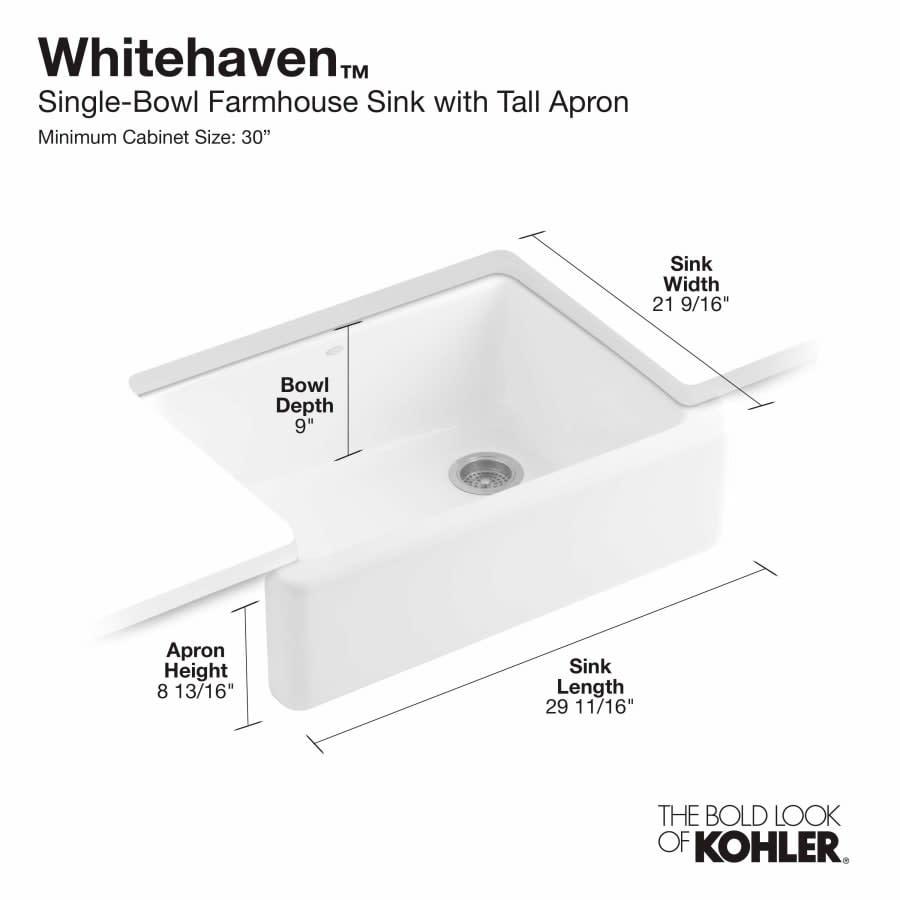

Sink Length: 29-11/16" (left to right)
Sink Width: 21-9/16" (front to back)
Sink Height: 9-5/8" (top to bottom)
Basin Dimensions: 24-3/4" L x 18-1/16" W x 9" D
Minimum Cabinet Size: 30"
Drain Connection: 1-1/2"

Dimensions and Measurements

Basin Depth
9 in.
Basin Length
24.75 in.
Basin Width
18.063 in.
Drain Connection
1.5 in.
Faucet Centers
0 in.
Height
9.625 in.
Length
29.6875 in.
Minimum Cabinet Size
30 in.
Nominal Length
30 in.
Nominal Width
22 in.
Product Weight
130.0 lbs.
Sink Length
29.688 in.
Width
21.5625 in.

Included Components

Basin Rack Included
No
Basket Strainer Included
No
Colander Included
No
Cutting Board Included
No
Drainboard
No
Faucet Included
No
Soap Dispenser Included
No

Characteristics and Features

Apron Front
Yes
Basin Split
Single Basin
Corner Sink
No
Drain Placement
Right
Farmhouse
Yes
Faucet Holes
0
Installation Type
Farmhouse, Undermount
Material
Cast Iron
Number Of Basins
1
Self Trimming
Yes
Sink Shape
Rectangular
Sound Dampening
Yes
Theme
Traditional
Workstation Sink
No

Warranty and Product Information

ADA
No
Approved for Commercial Use
Yes
ASME Code
A112.19.1
Certifications
ASME, CSA
Collection
Whitehaven
Commercial Warranty
1 Year Limited
Country Of Origin
USA
CSA Code
B45.2
Made in America
Yes
Manufacturer Warranty
Limited Lifetime
