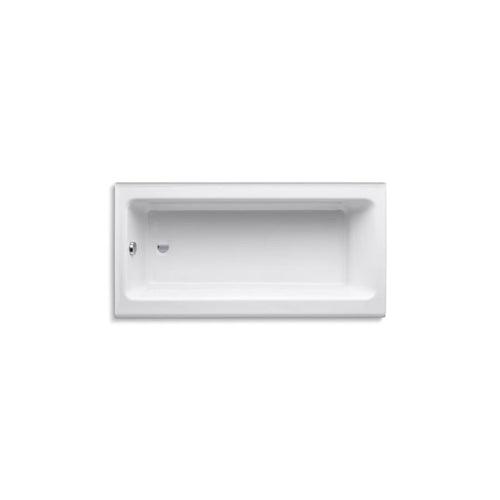

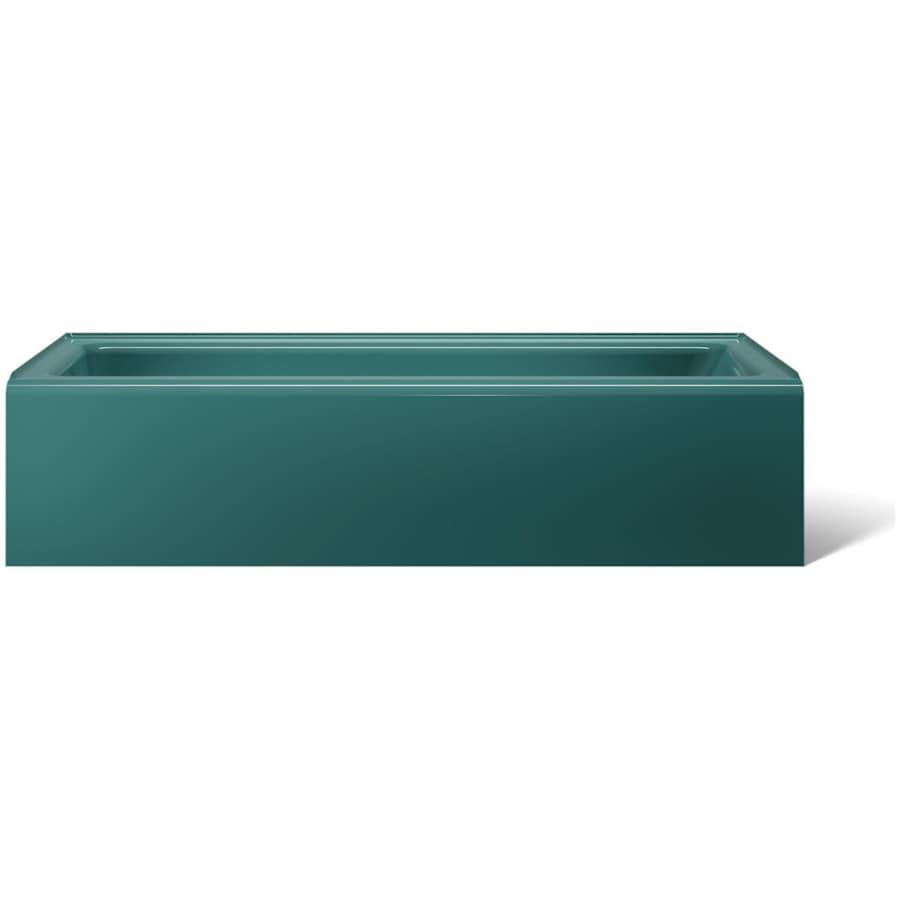

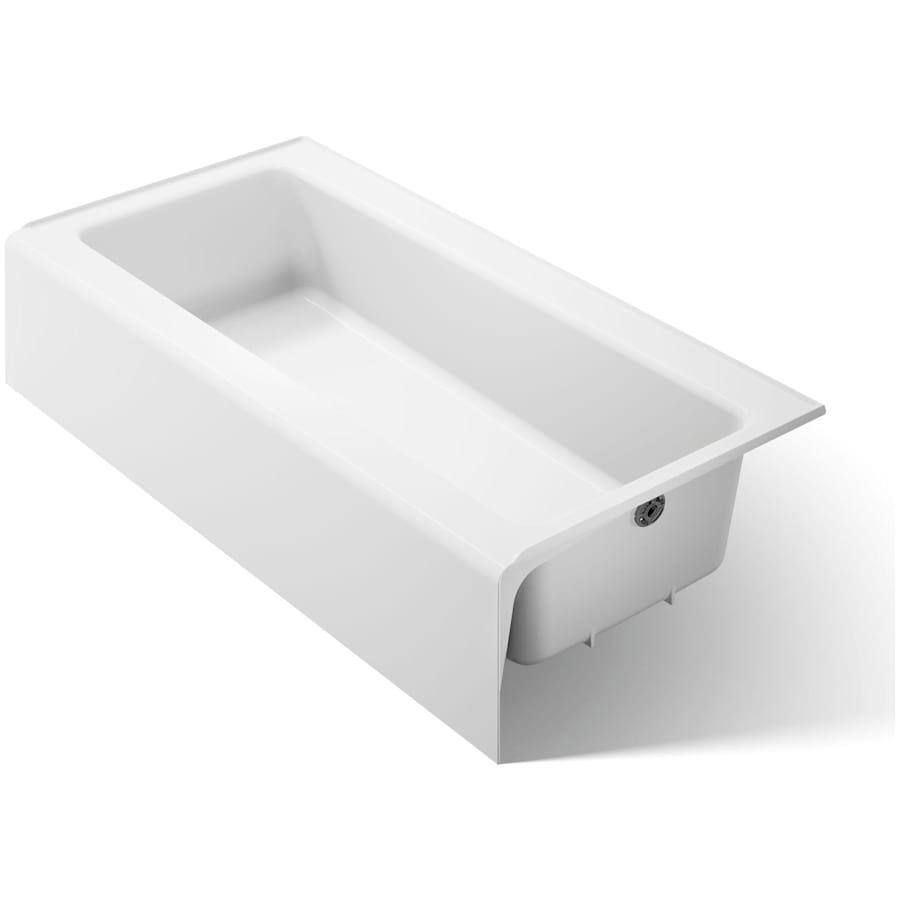

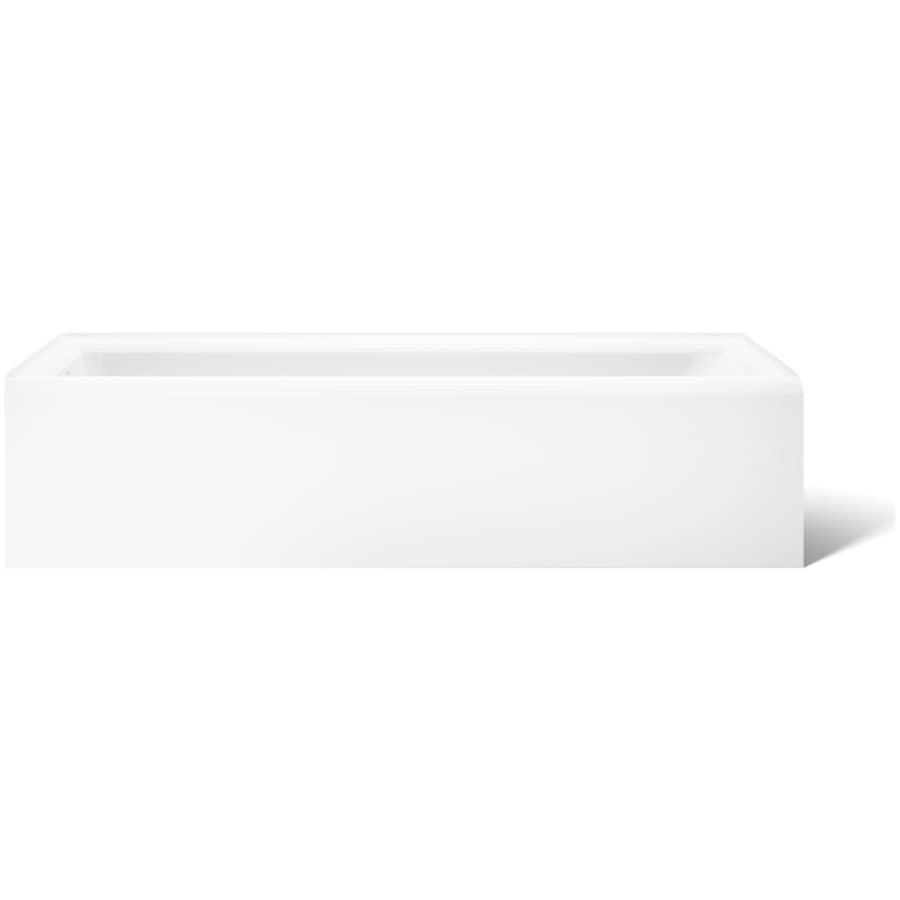

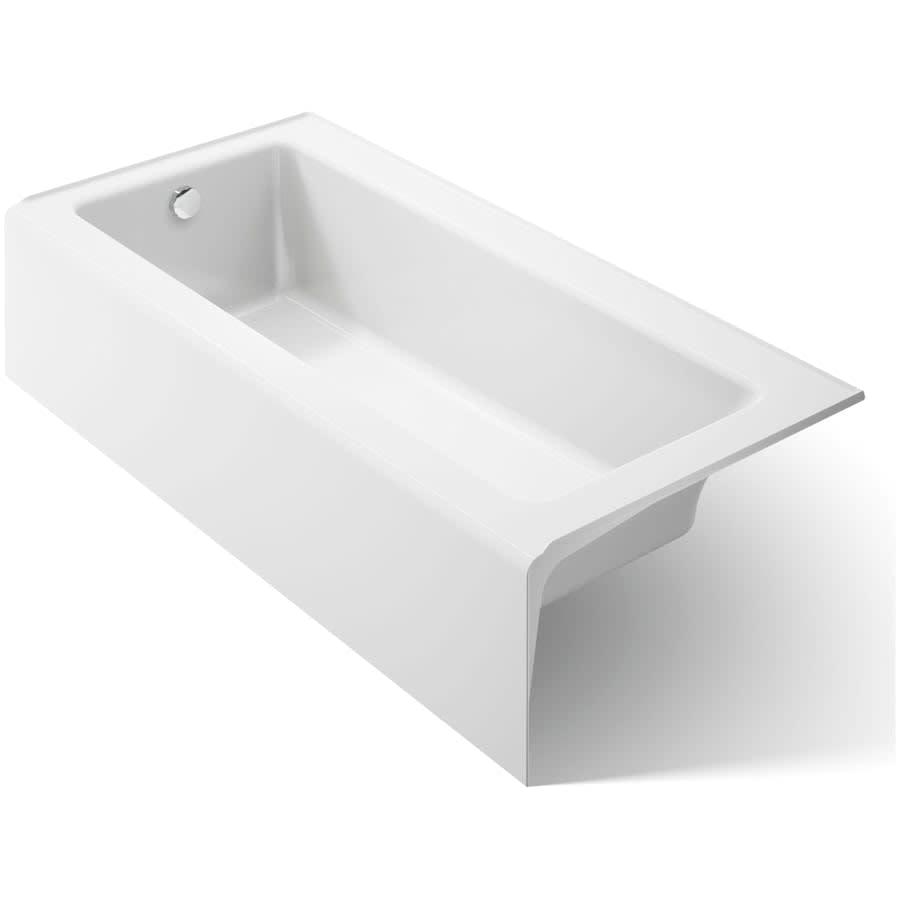

Bellwether

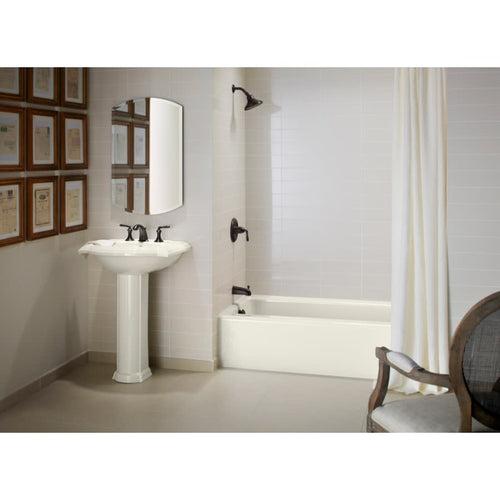

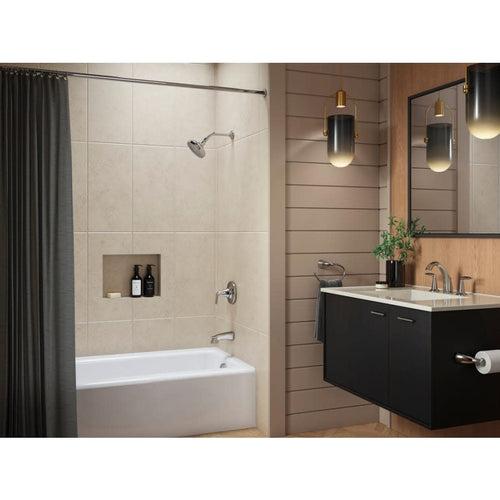

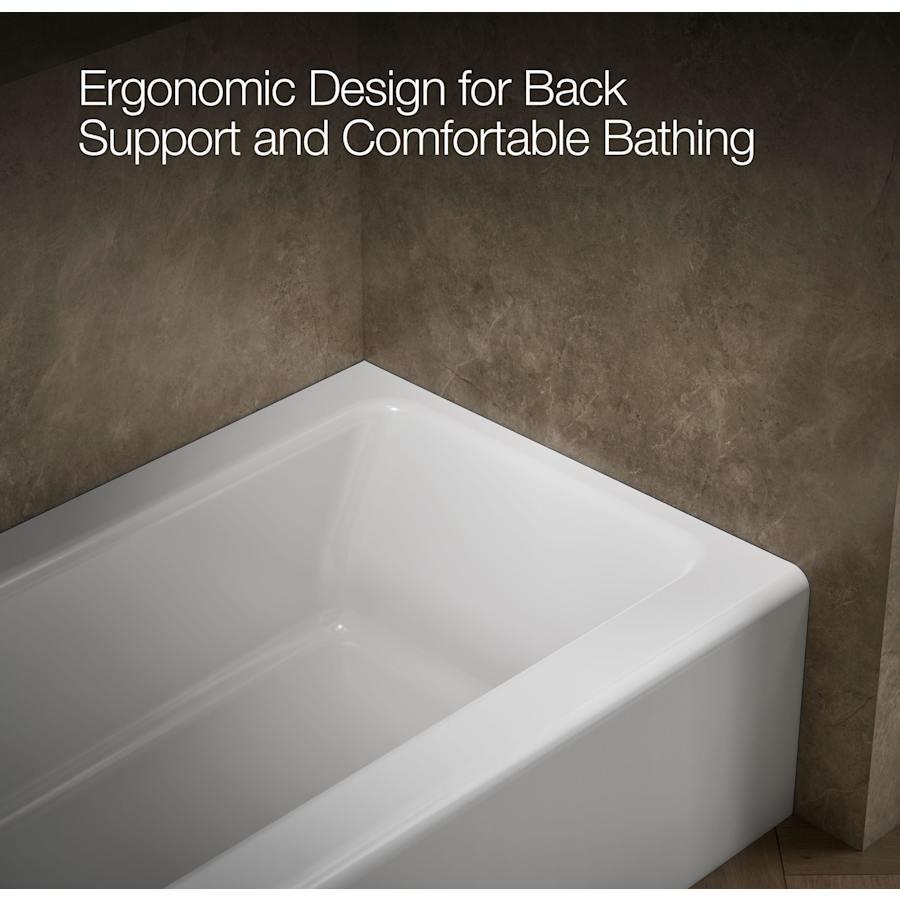

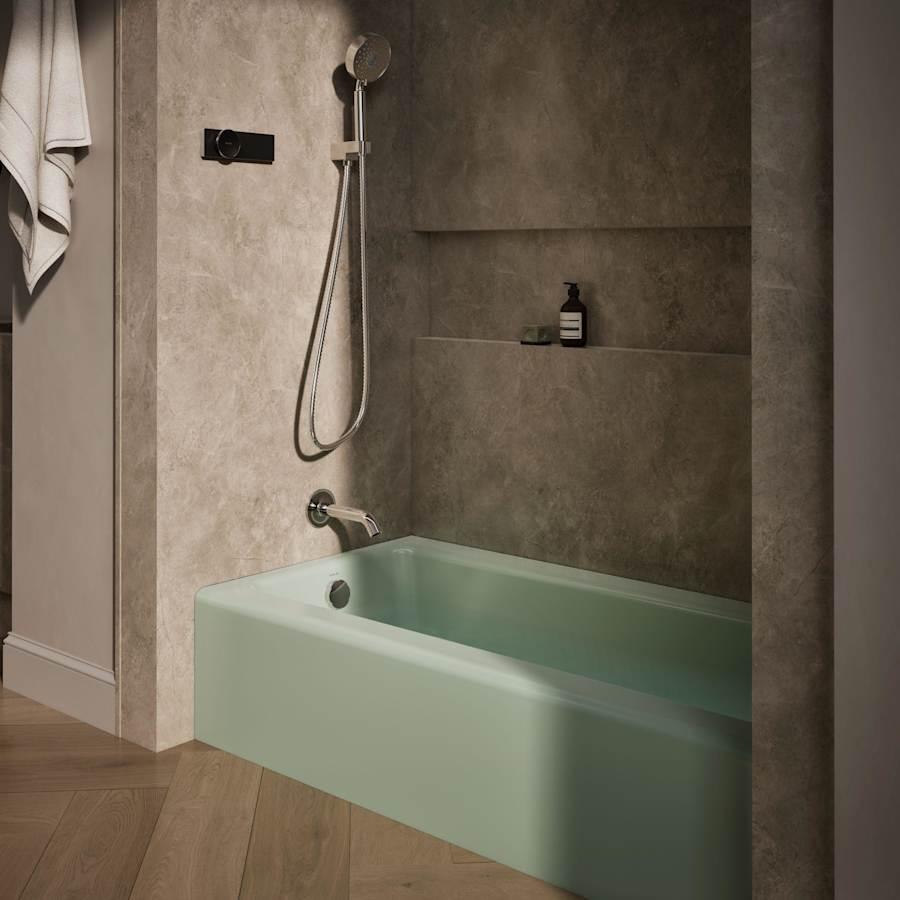

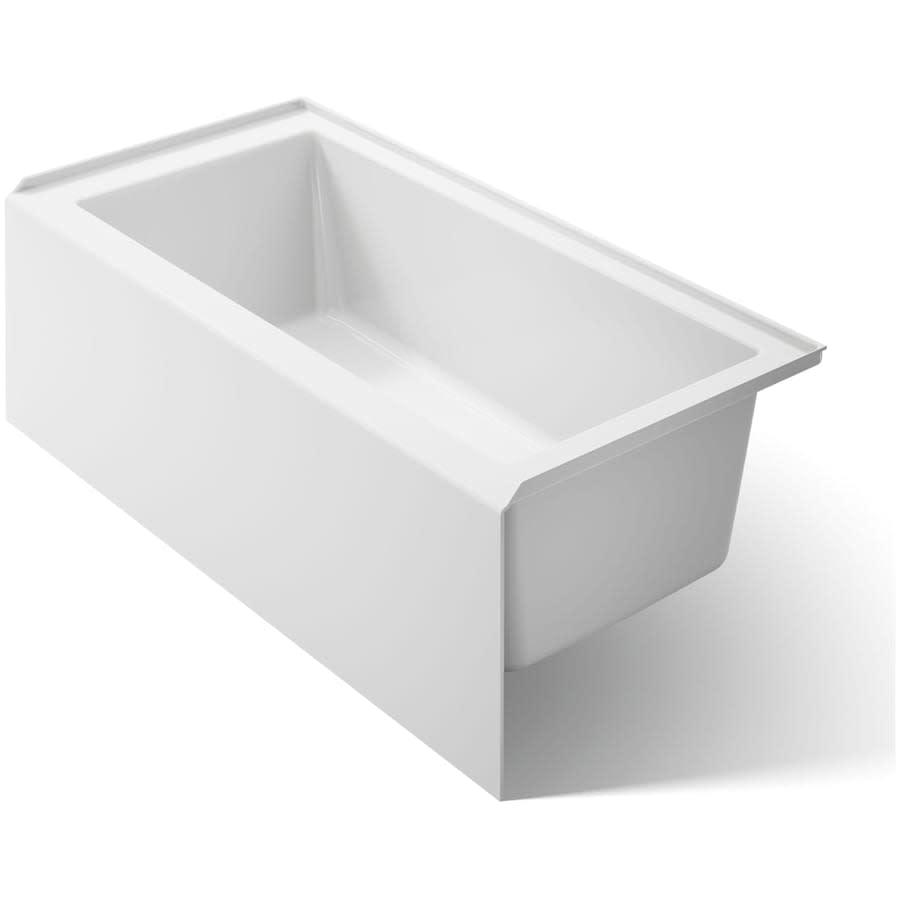

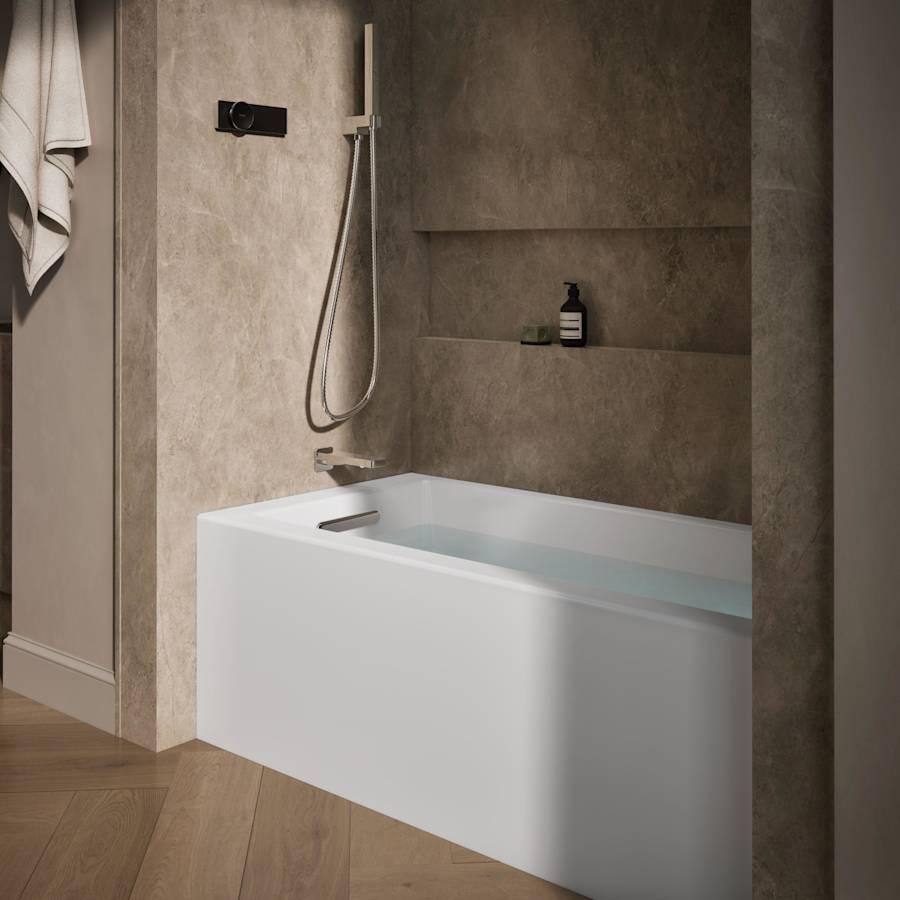

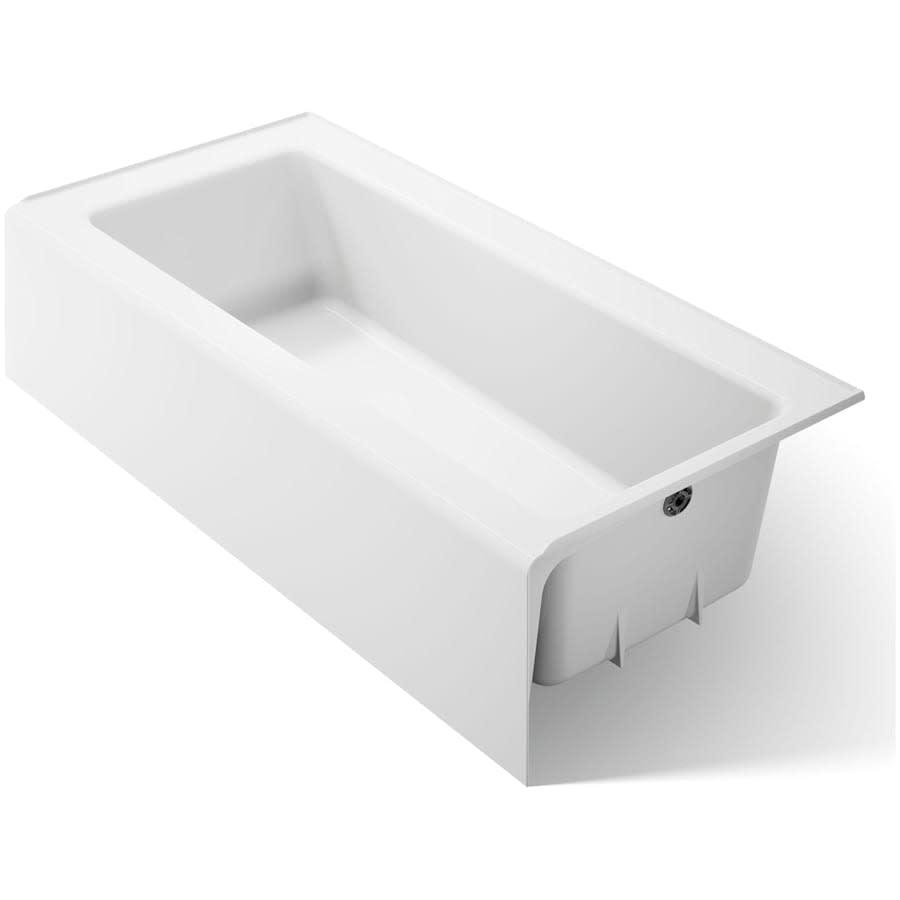

Update of a bestseller, Bellwether features a clean, contemporary design in a popular, industry-standard size. Its integral apron simplifies alcove installation, while a low step-over threshold allows for comfortable entry and exit. Bellwether's wide ledges provide storage space for towels, toiletries, and other items. Crafted from enameled cast iron, this bath offers years of reliable performance. Lifestyle

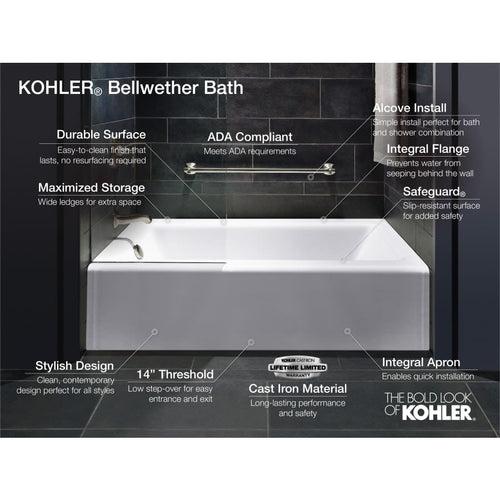

Product Features:

Kohler's cast iron components carry a limited lifetime warranty

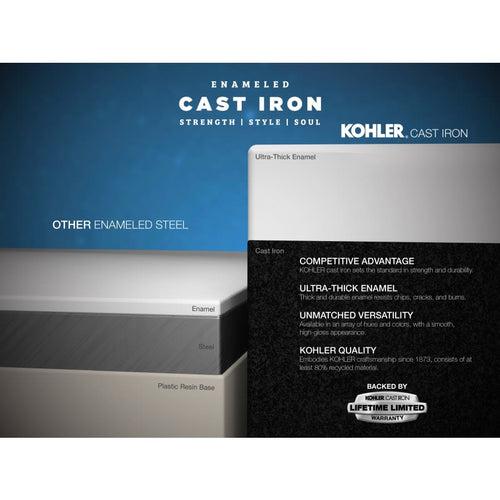

Tub is constructed from enameled cast iron, combining strength with durability
Soaking tub - provides the user with a soothing and relaxing bathing experience
Bellwether tubs feature clean, contemporary design in a popular, industry-standard size

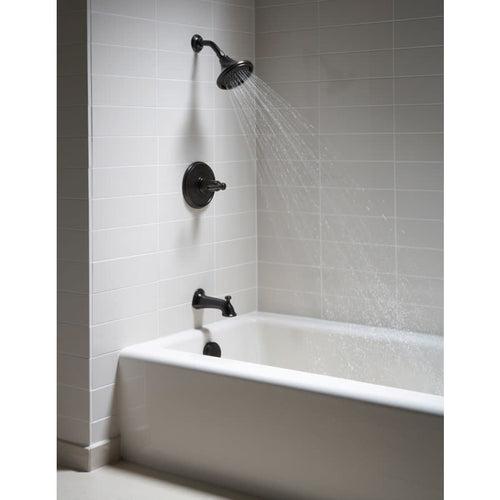

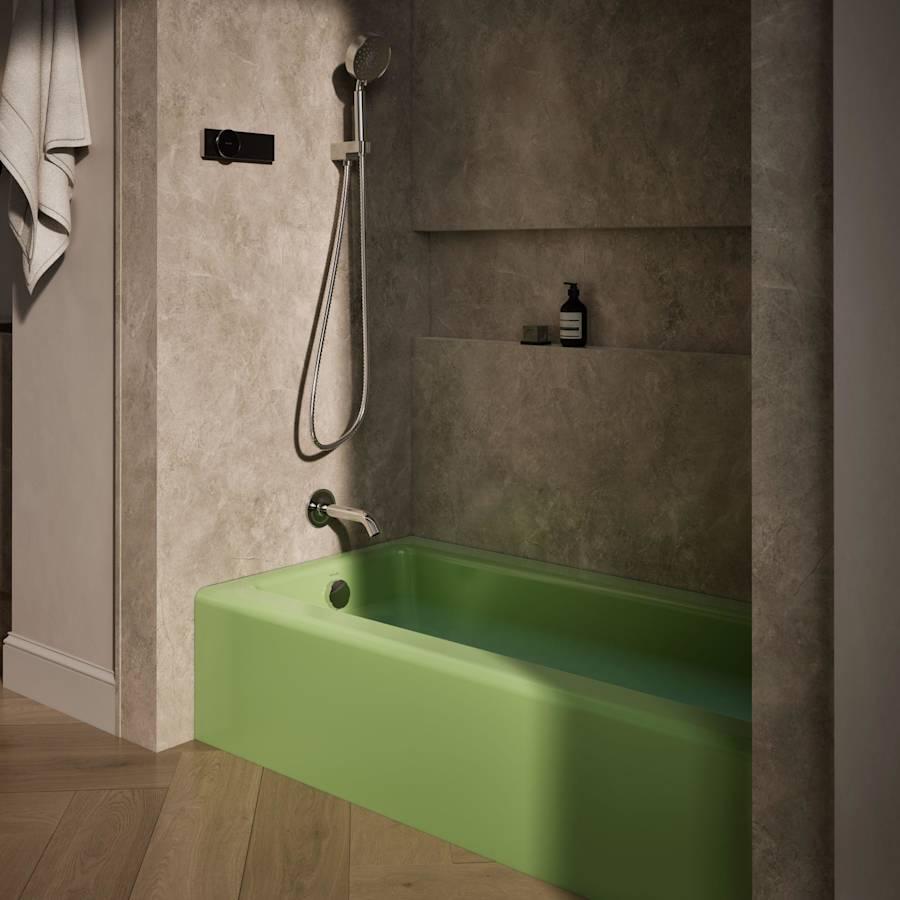

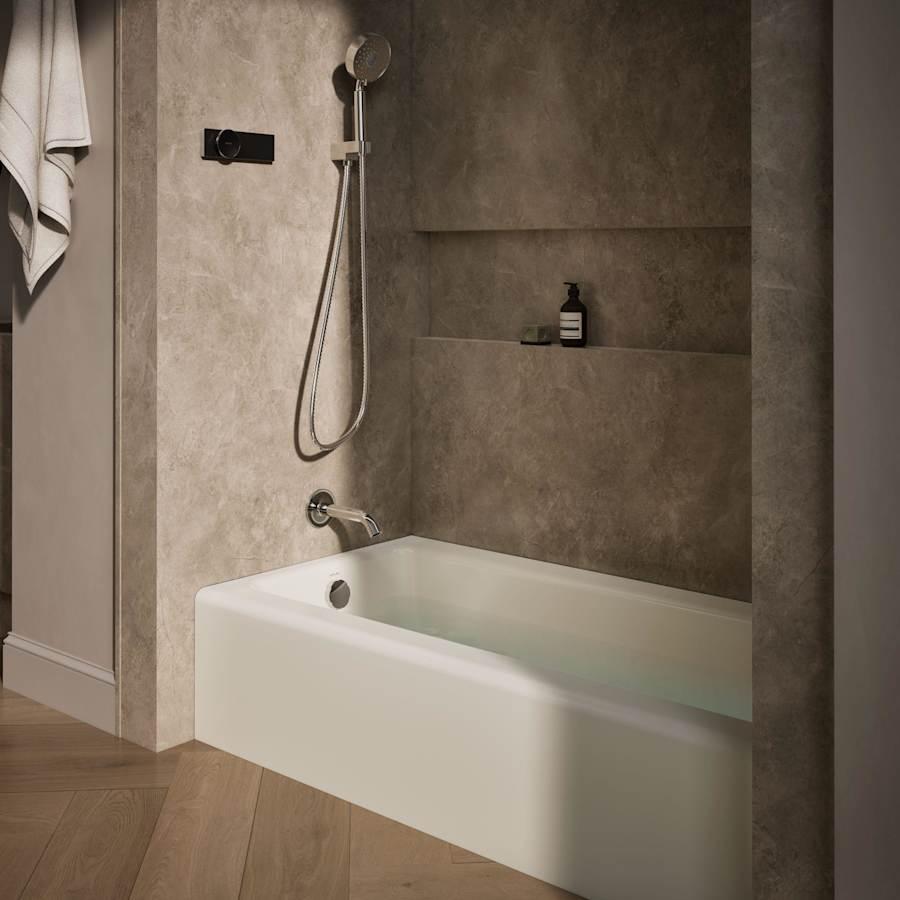

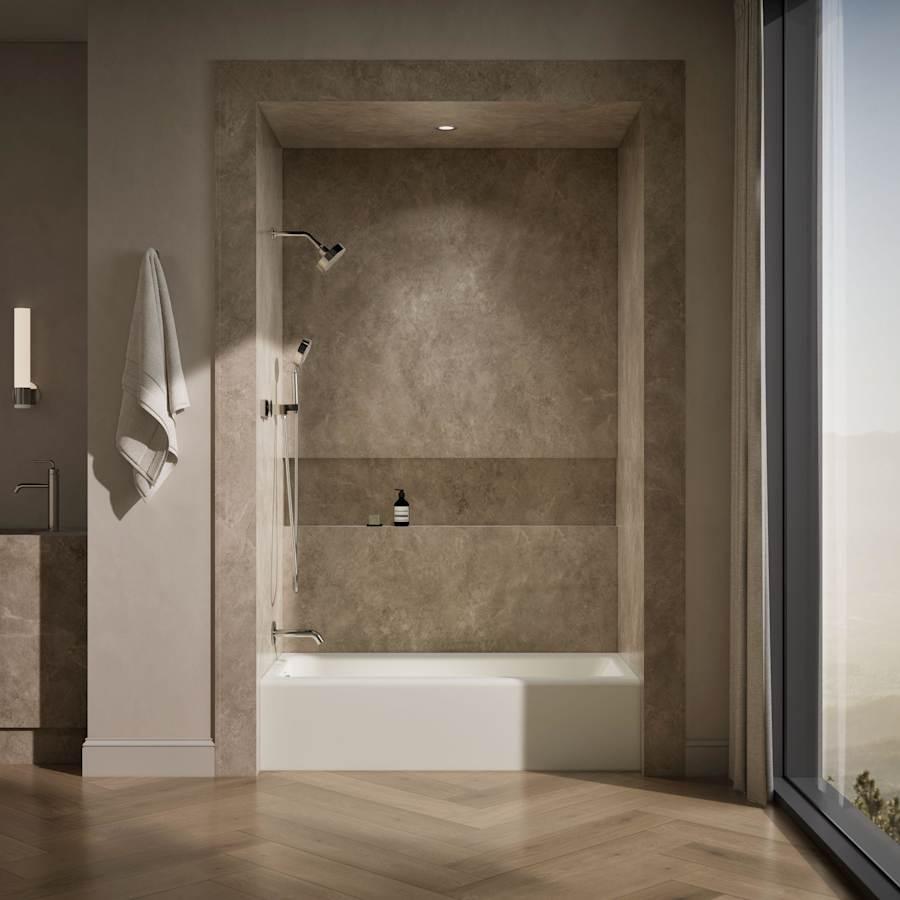

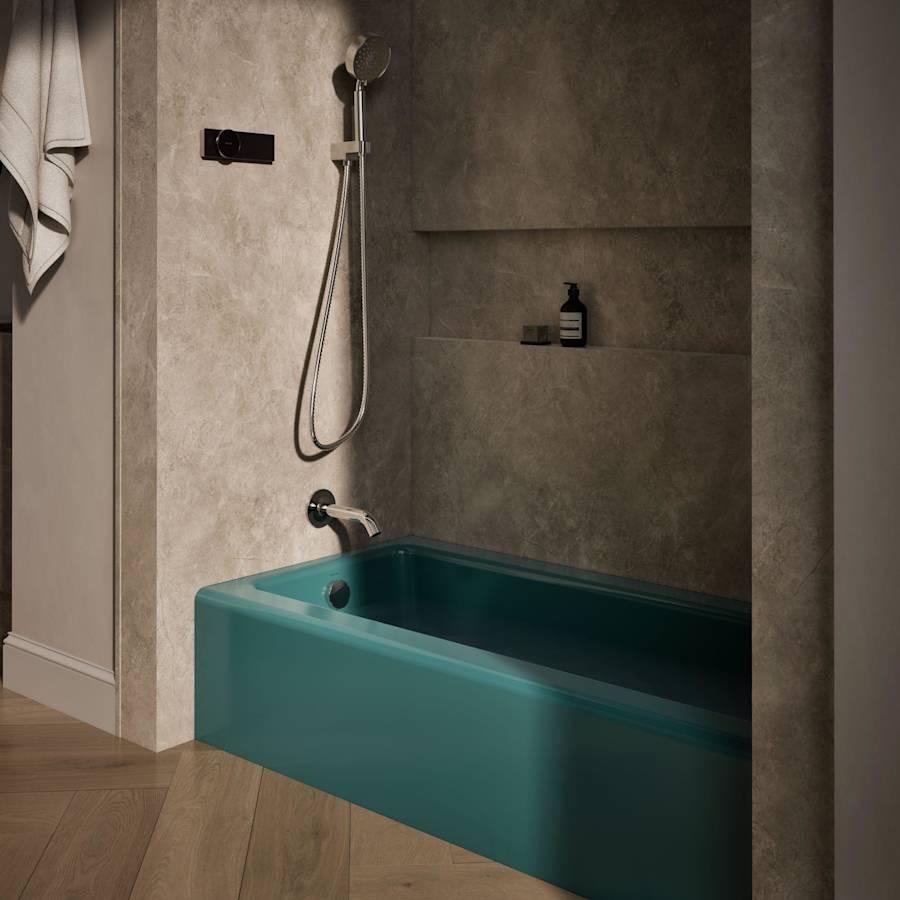

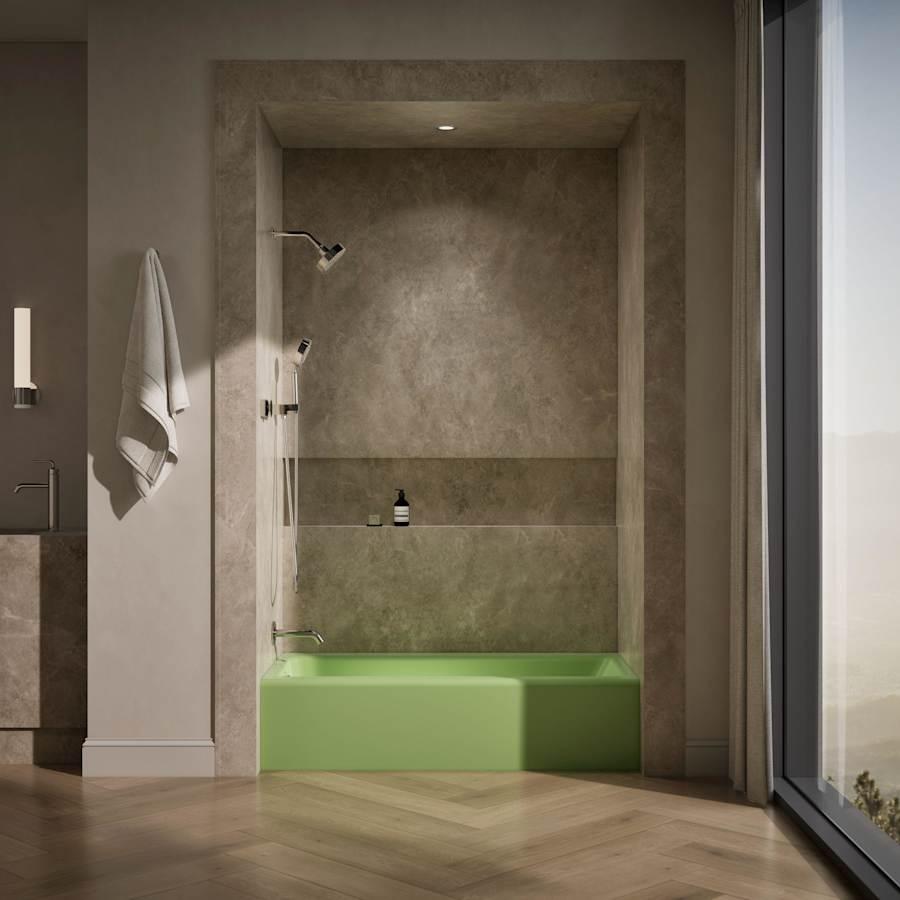

Installs in a three-wall alcove configuration

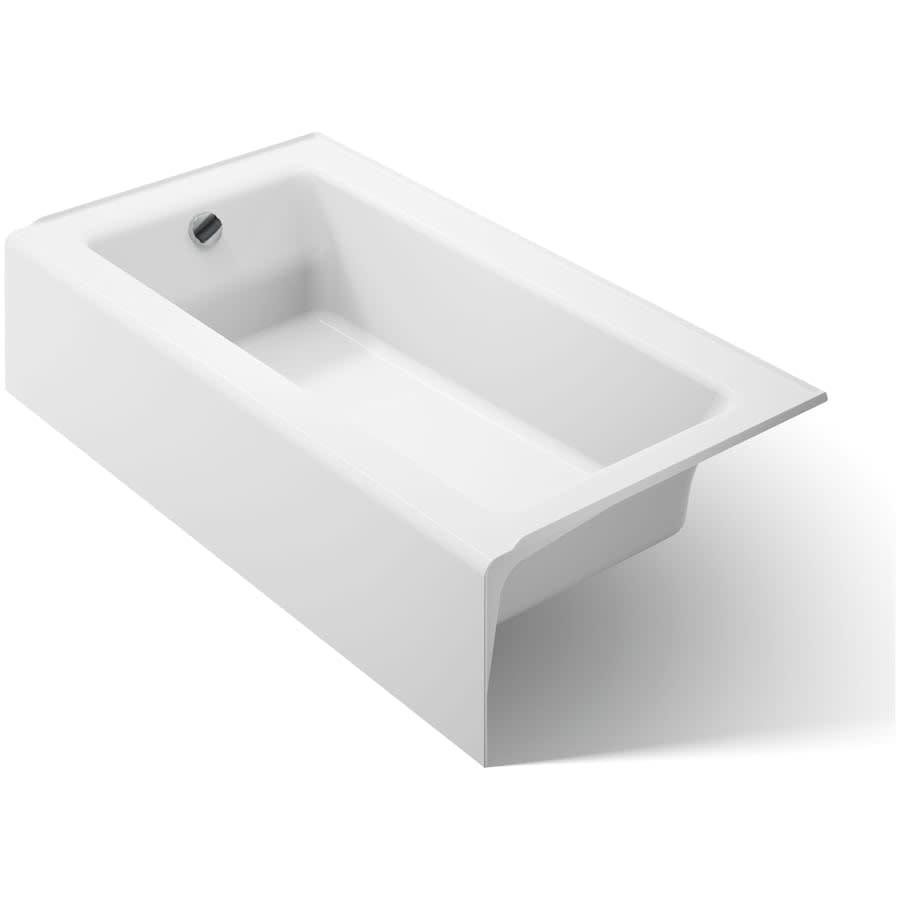

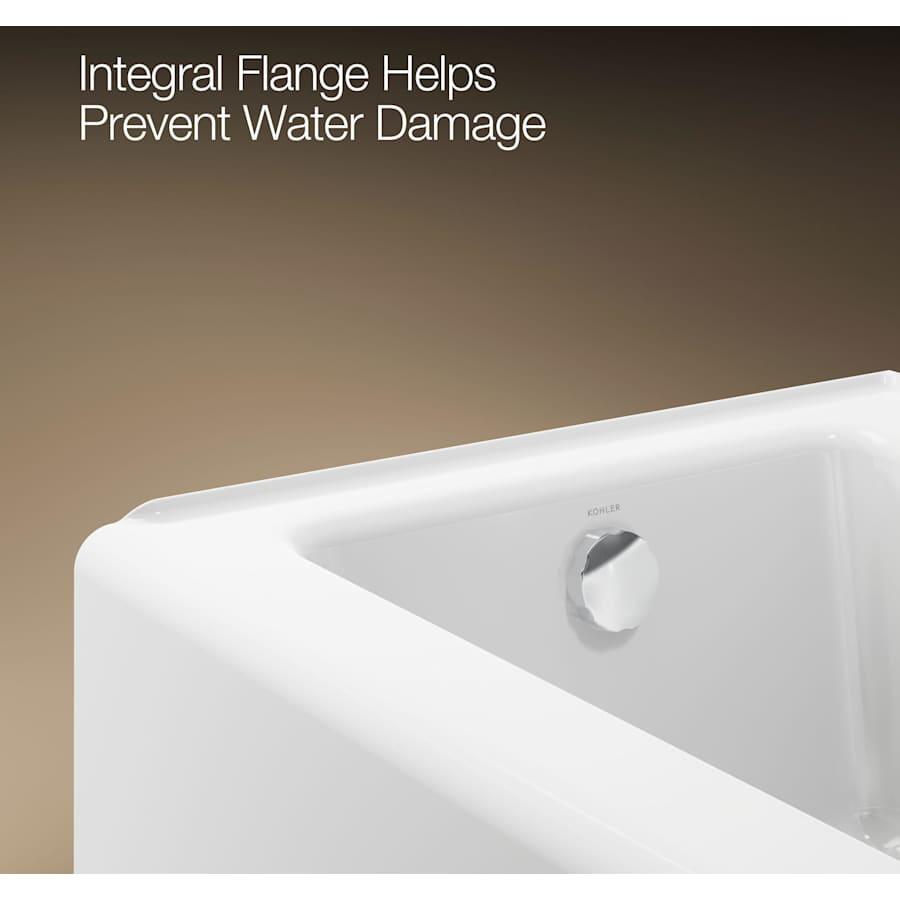

Tile flange simplifies installation and prevents water seepage behind the wall

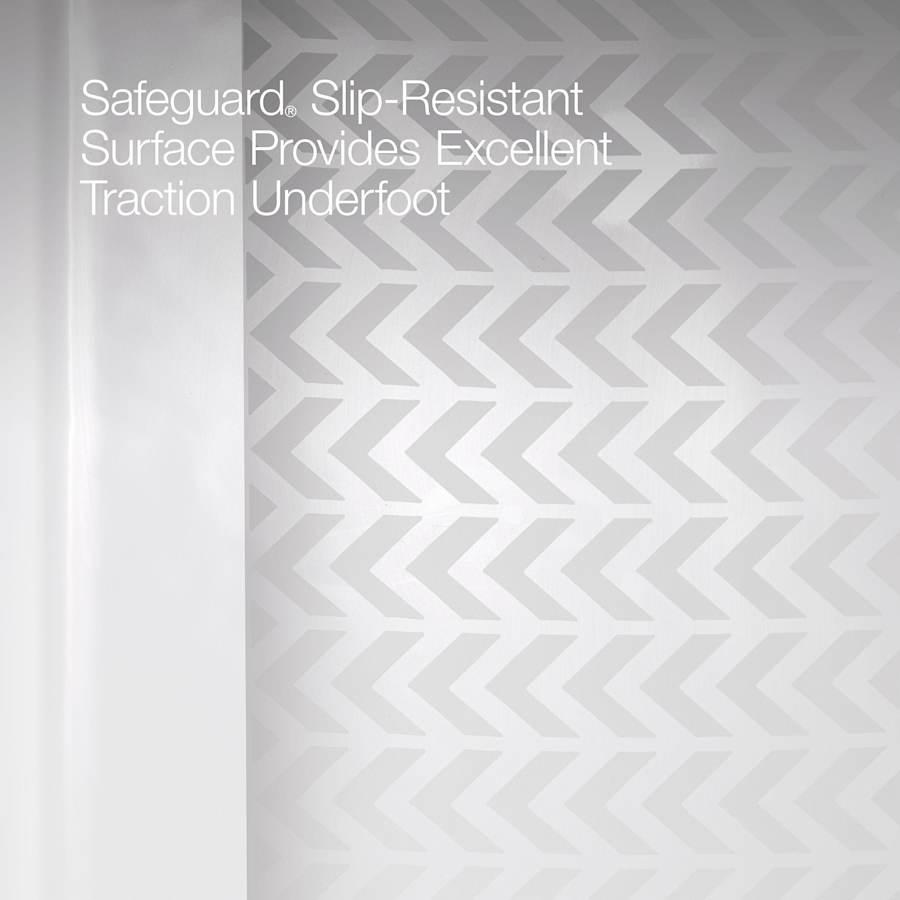

A SafeGuardâ¢ slip-resistant bottom removes the danger of slipping and sliding while moving about the tub

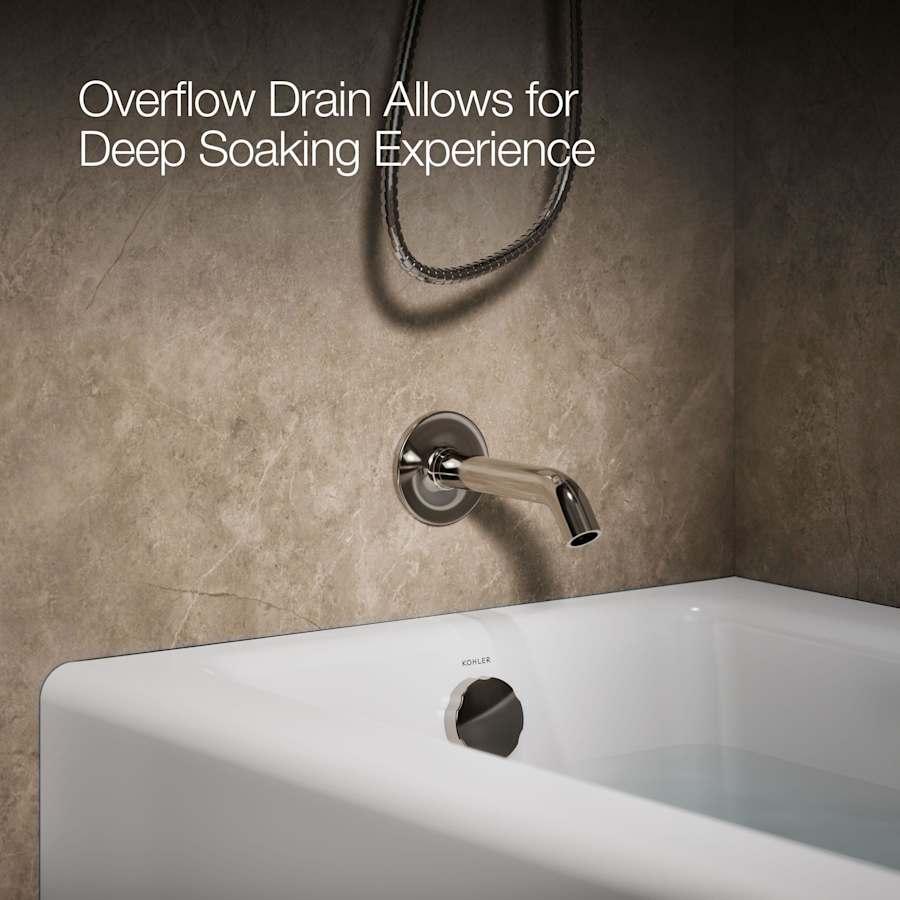

Equipped with an overflow assembly, permitting the user to enjoy a deep soak without worrying about spillage
ADA compliant - complies with the standards set forth by the American's with Disabilities Act

Product Technologies and Benefits:

Product Specifications:

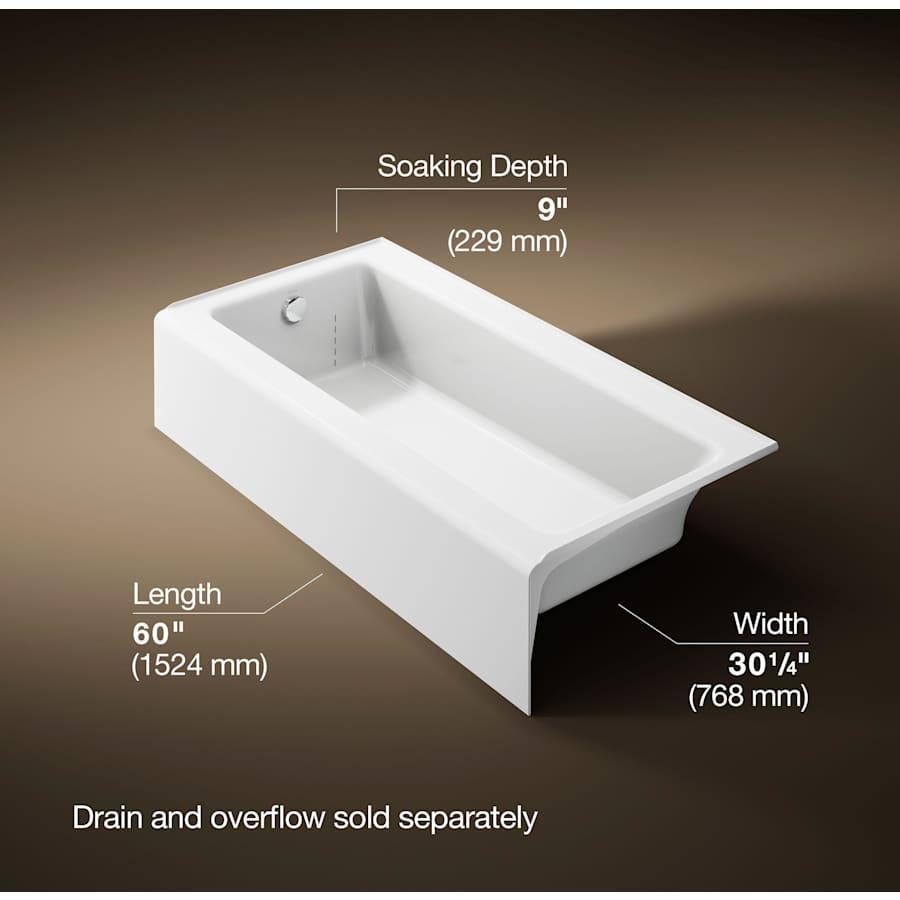

Overall Height: 14-1/2" (measured from top of tub rim to bottom of basin)
Overall Width: 30-1/4" (measured from back outer rim to front outer rim)
Overall Length: 60" (measured from left most to right most point on outer rim)
Basin Width (Bottom): 19-5/16" (back to front measurement at bottom of basin walls)
Basin Length (Bottom): 48-3/4" (right to left measurement at bottom of basin walls)
Basin Width (Top): 21-3/16" (back to front measurement at top of basin walls)
Basin Length (Top): 54-11/16" (right to left measurement at top of basin walls)
Water Depth: 9" (depth of water at tub's maximum capacity)
Maximum Water Capacity: 32.6 gallons

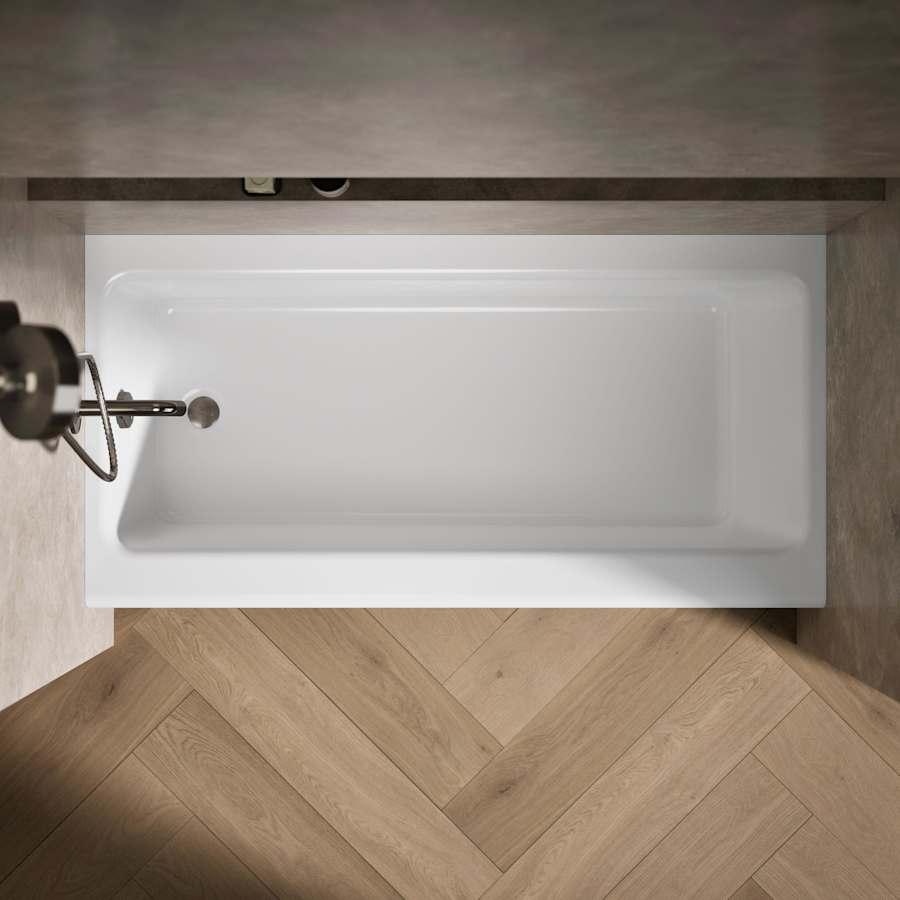

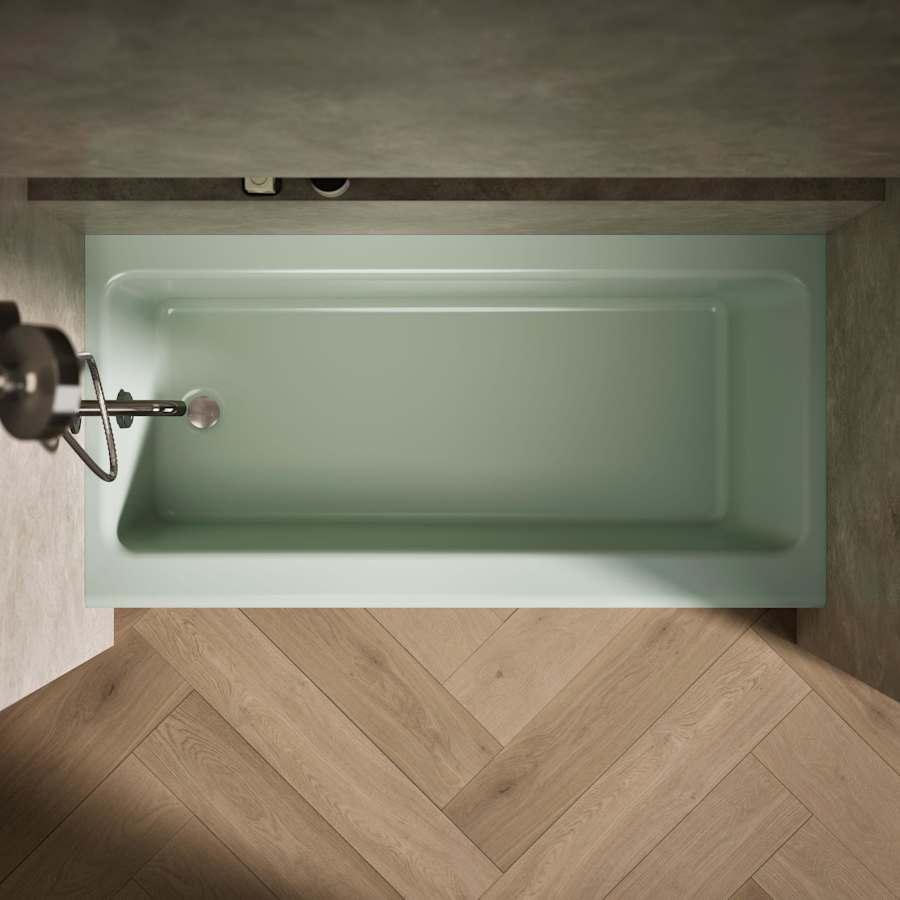

Drain Location: Left

Lifestyle

Variations:

K-838
K-838
Right-hand drain version of this model

K-847
K-847
66" version of this model

Dimensions and Measurements

Basin Depth
9 in.
Capacity (Gallons)
32.6
Height
14 in.
Length
60 in.
Nominal Length
60 in.
Nominal Width
31 in.
Overflow Height
9 in.
Product Weight
325 lbs.
Tub Size
60 Inches
Water Depth
9 in.
Width
30.25 in.

Included Components

Drain Assembly Included
No
Handshower Included
No
Tile Flange
Yes

Characteristics and Features

Apron Front
Yes
Drain Placement
Left
Installation Type
Three Wall Alcove
Material
Cast Iron
Number Of Bathers
1
Overflow
Yes
Self Leveling Base
No
Slip Resistant
Yes
Sound Dampening
Yes
Theme
Modern
Tub Shape
Rectangular

Warranty and Product Information

ADA
Yes
Approved for Commercial Use
Yes
ASME Code
A112.19.1
Certifications
ANSI, ASME, CSA
Collection
Bellwether
CSA Code
B45.2
Manufacturer Warranty
Limited Lifetime

Kohler

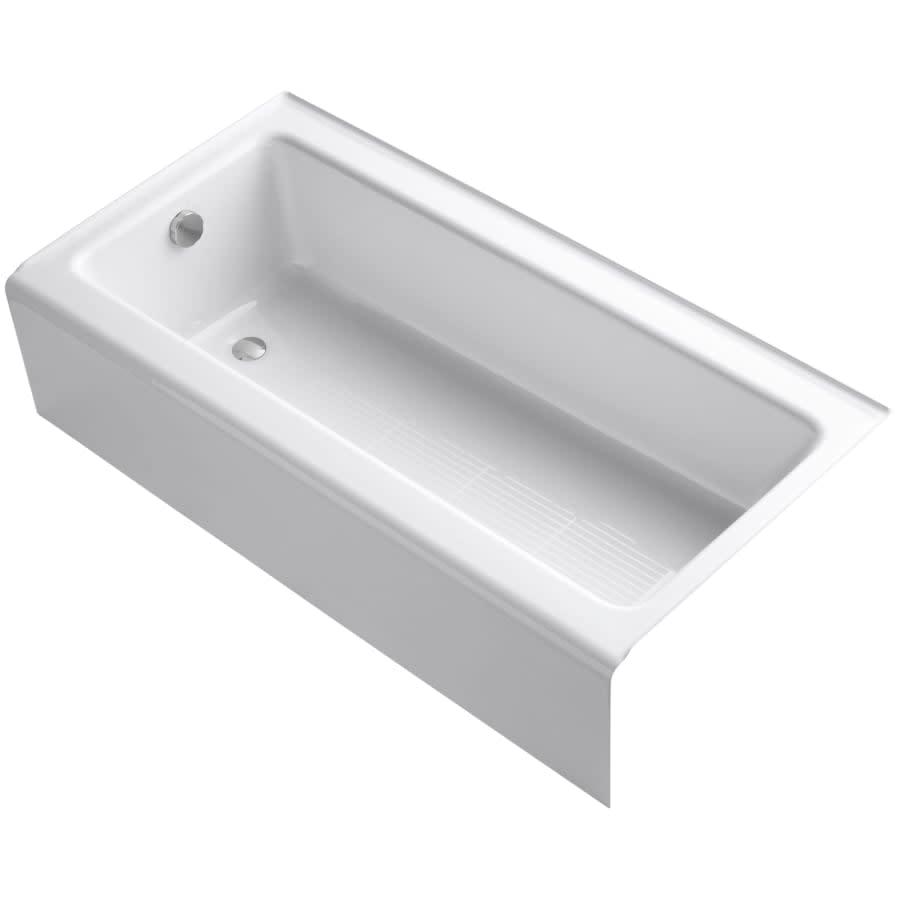

Bellwether 60" Alcove Soaking Tub with Left Drain
