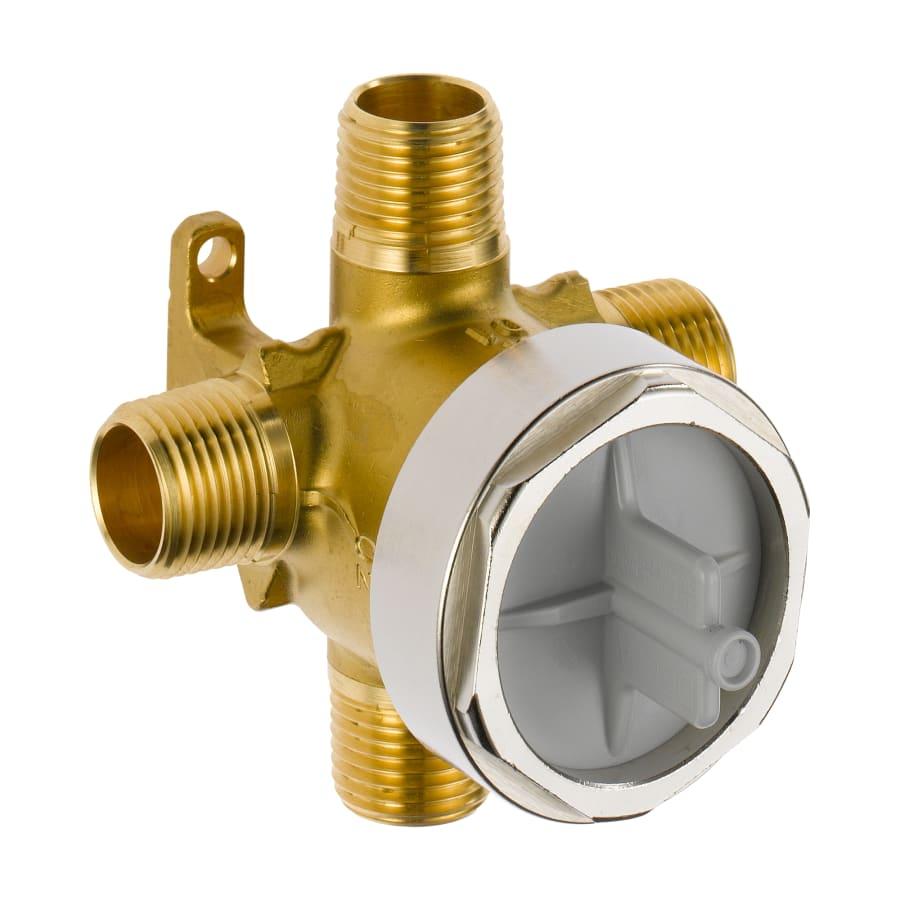

Brizo - Universal Diverter Rough-In Valve - For Use with All Brizo 3 or 6 Function Diverter Trims

Brizo - Universal Diverter Rough-In Valve - For Use with All Brizo 3 or 6 Function Diverter Trims

$108.83

$139.68

23% Off

Brass

SKU:

ferguson_products_r60700

Product Options

  • Finish


Description:

Product Features:

  • Covered under Brizo's limited lifetime warranty for residential installations and 5-year limited warranty for commercial installations
  • Valve is constructed of forged brass ensuring durability and dependability
  • Controls direction of water from mixing valve to custom shower systems
  • Does not control volume of water - that is done at the mixing valve
  • For use with Brizo 3 function and 6 function diverter trims
  • Accepts multiple diverter cartrides - diverter trim ships with shared function cartridge
  • RP72123 - non shared 2 function cartridge for 2 applications (optional, not included)
  • RP72124 - non shared 3 function cartridge for 3 applications (optional, not included)
  • RP51918 - shared 3 function cartridge for 2 applications (included with diverter trim)
  • RP51919 - shared 6 function cartridge for 3 applications (included with diverter trim)
  • Heat-resistant pressure test cap for air/water testing before cartridge is installed
  • 0.5-in inlet/outlet connections
  • Six function diverter valve with 3 individual positions, 3 shared positions
  • Use plug (included) in right outlet for three function trims (2 individual positions, 1 shared position)
  • Heat-resistant pressure test cap for air/water testing before cartridge is installed
  • Note: this is the rough-in only - valve trim (which includes the cartridge) required to complete
  • Designed for use with U.S. plumbing connections
  • Extra secure mounting assembly
  • All necessary mounting hardware included
  • Please Note: for 2 applications the Right port MUST be capped

3 Function Diverter - 2 Individual Positions, 1 Shared Position

3 Diverter Positions

6 Function Diverter - 3 Individual Positions, 3 Shared Positions

6 Diverter Positions


Dimensions and Measurements

  • Height
  • 3.375 in.
  • Water Connection
  • 1/2"
  • Width
  • 3.375 in.

Characteristics and Features

  • Configuration
  • Diverter Valve
  • Material
  • Brass
  • Number of Functions
  • 6
  • Theme
  • Modern

Warranty and Product Information

  • Approved for Commercial Use
  • Yes
  • ASME Code
  • A112.18.1
  • Certifications
  • ASME, CSA
  • CSA Code
  • B125.1
  • Manufacturer Warranty
  • 5 Year Limited Commercial, Limited Lifetime Residential
