M-COREâ¢ is shower design on your time. This valve system is simpler and faster to install, and offers additional functionality with desired style choices to create an ideal shower environment. Moen has conducted extensive research to create M-CORE, and what drives the design is a passion to make the workday more streamlined for plumbers, and to give more freedom in showering functionality and design for both new construction and remodel projects. Homeowners and designers will enjoy M-CORE's improved style and finish options, including perfectly matching mixing and transfer trim, and refined details that provide the finishing touches to a dream bathroom. Once installed, M-CORE valves, with new 3-Series trim, have pressure-balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home. They also feature volume control, allowing you to adjust the flow of water.

Moen U130CI Features:

M-CORE valves, with 3-Series trim, have pressure-balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home
Feature volume control, allowing you to adjust the flow of water for greater functionality
Improved style options, including the perfectly matched mixing and transfer trim, are available
M-CORE 3-Series offers a full line of finish, style and platform options for every shower configuration
Offers design flexibility to choose your trim after the valve installation, so you can take your time with your style and finish selections
M-COREâS adaptability allows the valves to be roughed-in with the option of functionality and style changes that don't require removing or changing the valve(s)
Brass construction
All inlets match outlets
Supplied flush plug allows testing up to 200PSI with air (300 PSI water)
Installation in thin or thick wall applications
Cartridge (1213) is supplied in the M-CORE trim kit
Third party certified to meet ASME A112.18.1/CSA B125.1, and all applicable requirements referenced therein

Dimensions and Measurements

Water Connection
1/2"

Included Components

Volume Control
Yes

Characteristics and Features

Material
Brass
Number Of Ports
3
Valve Type
Pressure Balanced
Water Connection Type
CC, IPS

Manufacturer Technology

Valve Technology
M-CORE

Warranty and Product Information

Approved for Commercial Use
Yes
Commercial Warranty
5 Year Limited
Manufacturer Warranty
10 Year Limited, Limited Lifetime

Moen

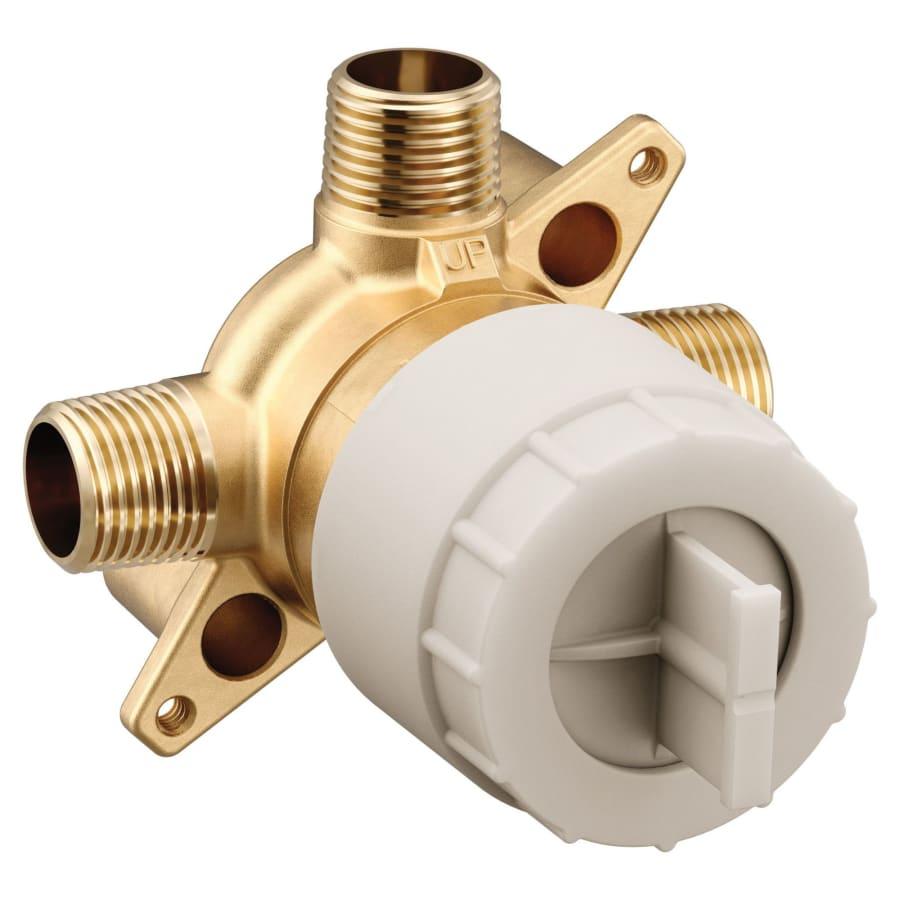

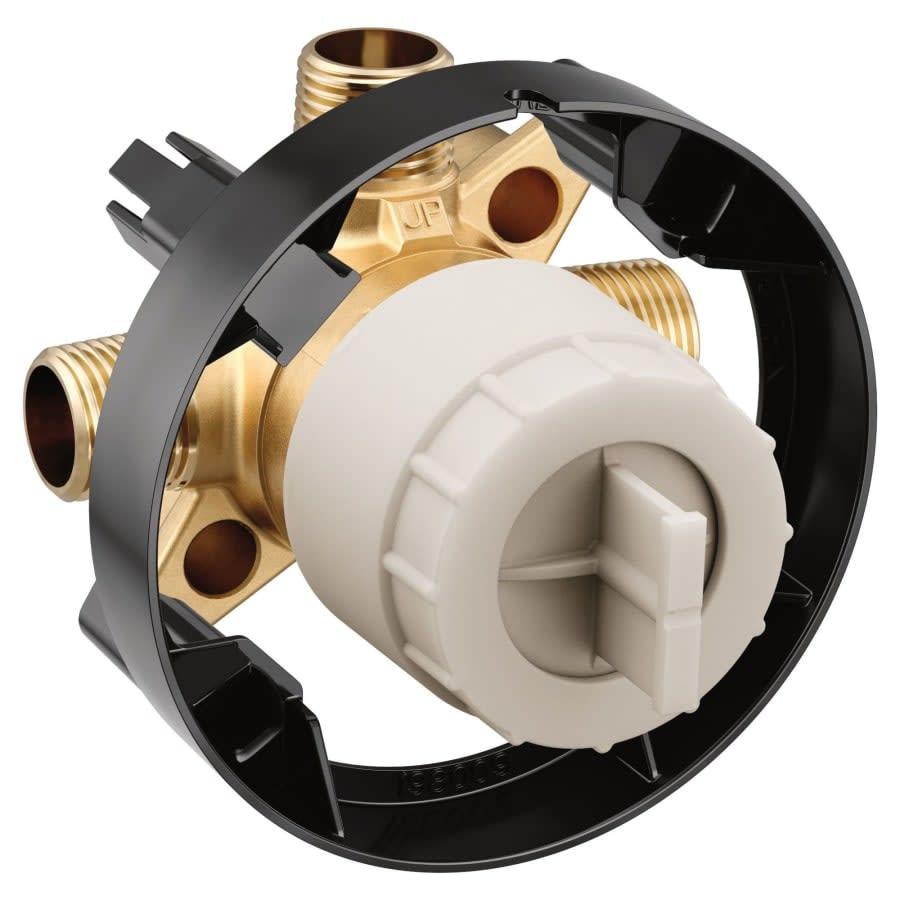

M-Core 3 Port Pressure Balanced 1/2" CC and IPS Shower Only Valve
