M-COREâ¢ is shower design on your time. This valve system is simpler and faster to install, and offers additional functionality with desired style choices to create an ideal shower environment. Moen has conducted extensive research to create M-CORE, and what drives the design is a passion to make the workday more streamlined for plumbers and to give more freedom in showering functionality and design whether in new construction or remodel projects. Homeowners and designers will enjoy M-CORE's improved style and finish options including perfectly matching mixing and transfer trim, and attention to detail that reflects a desire for a dream bathroom. Once installed, M-CORE valves, with new 3-Series trim, have pressure-balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home. They also feature volume control, allowing you to adjust the flow of water.

Moen U232CXS Features:

Integrated M-CORE Transfer Valves can control 2 or 3 showering devices, a simple transfer cartridge modification changes the valveâs flow from two outlets to three outlets
Valve allows 2 or 3 showering devices to flow independently
IMPORTANT: When using 3 Showering Devices, transfer valve cartridge must be modified. Simple Cartridge Modification changes the valves flow from 2Â outlets to 3Â outlets. See Transfer Valve Instructions for additional information
IMPORTANT: When using 2 Showering Devices, designated outlet 3 must be CAPPED. Caps are not included with the transfer valves
M-CORE valves, with 3-Series trim, have pressure-balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home
Features volume control, allowing you to adjust the flow of water for greater functionality
Brass construction
1/4 turn stops on each inlet
Transfer valve outlets match inlet connection type
No tub outlet
Supplied flush plug allows testing up to 200 PSI with air (300 PSI water)
Mixing cartridge is supplied in the M-CORE 3-series trim kit
Includes 2 function / 3 function ceramic disk cartridge for transfer valve
Third party certified to meet ASME A112.18.1/CSA B125.1, and all applicable requirements referenced therein
For use with Cold Expansion PEX

Dimensions and Measurements

Water Connection
1/2"

Included Components

Service Stops Included
Yes
Volume Control
Yes

Characteristics and Features

Material
Brass
Number Of Ports
5
Valve Type
Pressure Balanced
Water Connection Type
PEX

Manufacturer Technology

Valve Technology
M-CORE

Warranty and Product Information

Approved for Commercial Use
Yes
Commercial Warranty
5 Year Limited
Manufacturer Warranty
10 Year Limited, Limited Lifetime

Moen

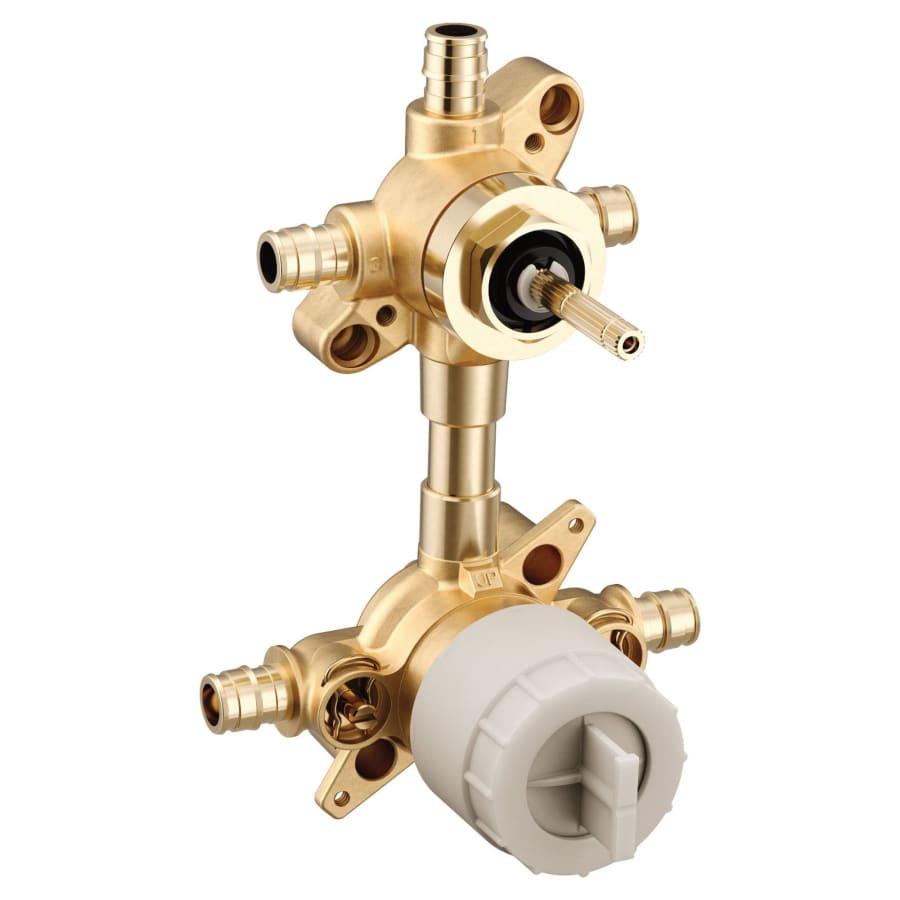

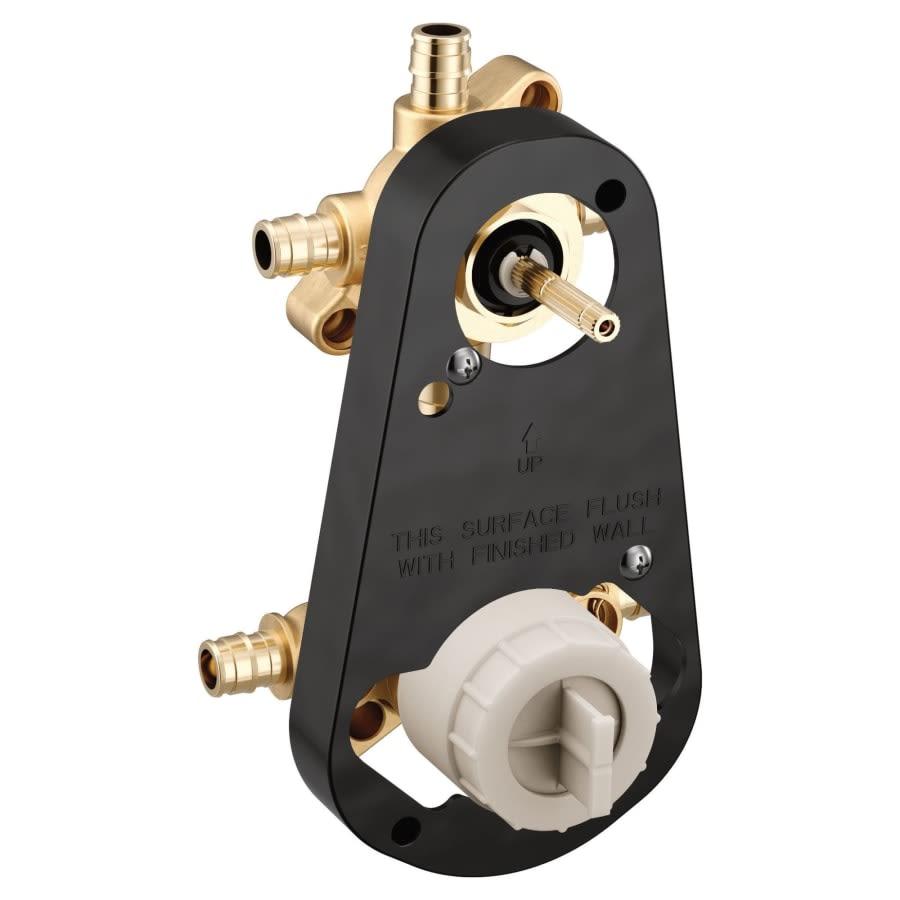

M-Core 2 or 3 Non-Shared Function Pressure Balanced 1/2" Cold Expansion PEX Shower Valve with Stops
